Y3150E Ordinary NC Gear Hobbing Machine

Y3150E Ordinary NC Gear Hobbing Machine

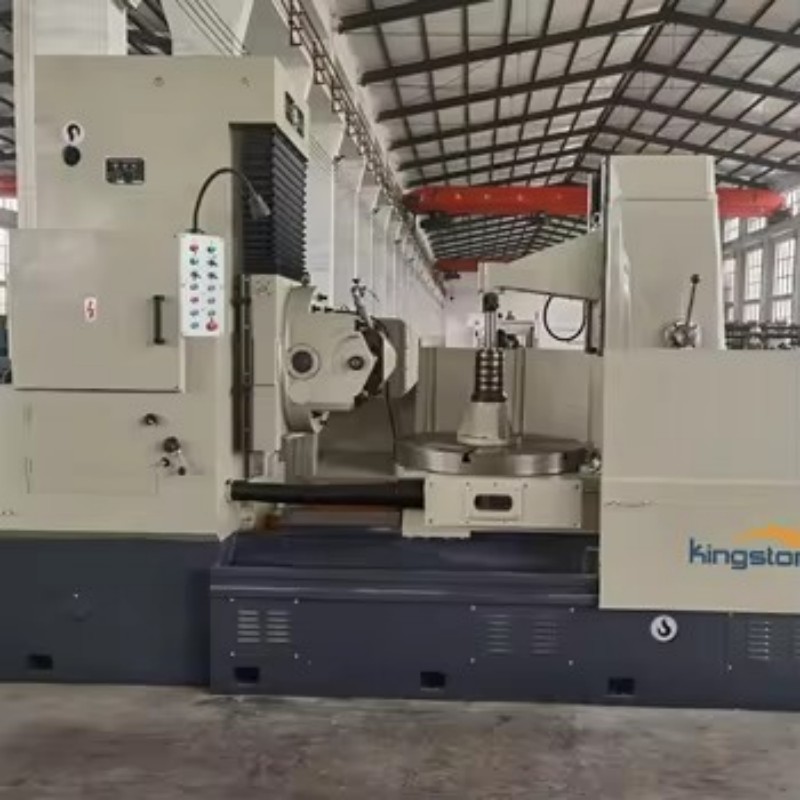

This NC gear hobbing machine supports single and batch production of cylindrical, helical and worm gears. It owns rigid cast body, stable machining precision and low maintenance cost for small gear workshops.

Order(MOQ) :
1
Product Origin :
China
Color :
China
Shipping Port :
Shanghai
Lead Time :
30
Weight :
4800

Inquire Now

1.Non-CNC ordinary manual design, suitable for single piece and mass production of cylindrical gears, helical gears, worm gears and sprockets.

2.Thick cast iron frame with high rigidity and strength, ensuring long-term stable high precision cutting.

3.Two processing modes: up milling & down milling, support axial and radial feeding machining.

4.Simple mechanical structure, convenient manual adjustment and low daily maintenance difficulty.

5.5.5KW stable main motor, continuous 24-hour batch processing available.

specification

Specification	Unit Model		Y3150E
Max workpiece dia	mm	With small pillar	500
	mm	Without small pillar	500
Max module	Module		8
Max width	mm		300
Distance from hob cutter to worktable face	mm	Max	535
	mm	Min	235
Max dia/length of hob cutter	mm	Max dia	160
	mm	Max length	160
Distance from hob cutter to worktable Axes center	mm	Max	330
	mm	Min	30
Worktabel aperture	mm		80
Worktabel dia	mm		510
Distance from worktable to holder surface	mm	Min	380
	mm	Max	580
Spindle rotate step/range			12 0.4-4mm/r
Main motor power an rotate speed			N=5.5KW1500r/min
Spindle taper			Morse 5
Net weight	KG		4800
Machine size	mm		260014001800

product introduction

Y3150E and Y3180E are classic ordinary non-CNC gear hobbing machines, widely used in small and medium gear processing factories. Y3150E max workpiece diameter 500mm, max module 8; Y3180E without small pillar can process workpiece up to 800mm diameter, max module 10.

Adopting all cast iron bed to reduce cutting vibration, the machine supports both axial and radial feeding. Equipped with 12-stage axial feeding range 0.4-4mm/r, Morse 5 spindle taper, complete mechanical manual adjustment system without expensive CNC system. Cost-effective for reducer, agricultural machinery and small auto gear mass production. All machines pass factory precision inspection with complete English maintenance manual.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

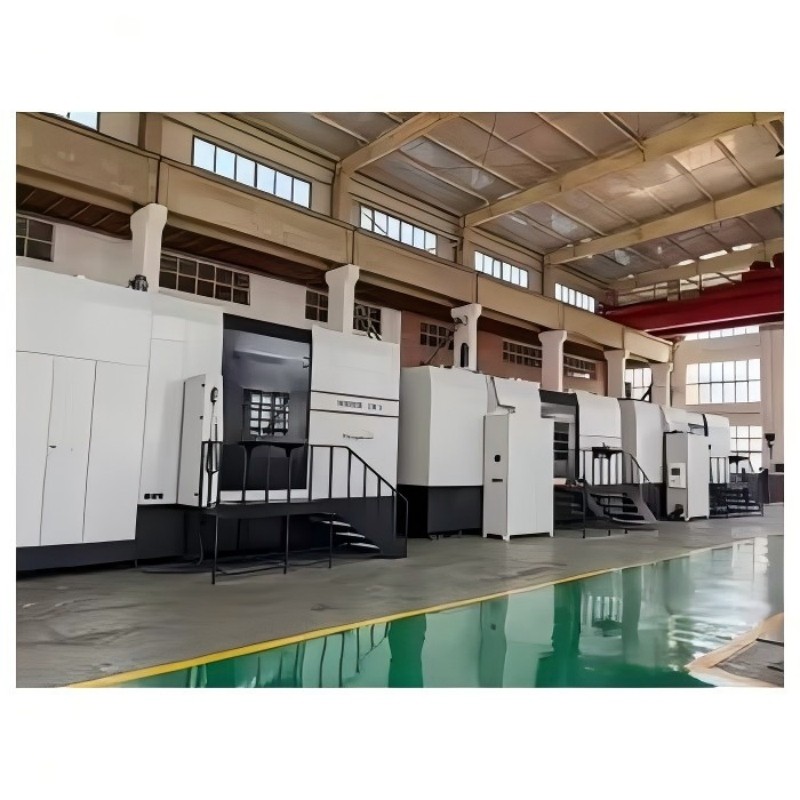

factory show

Professional Production Base, Strength in Precision Manufacturing

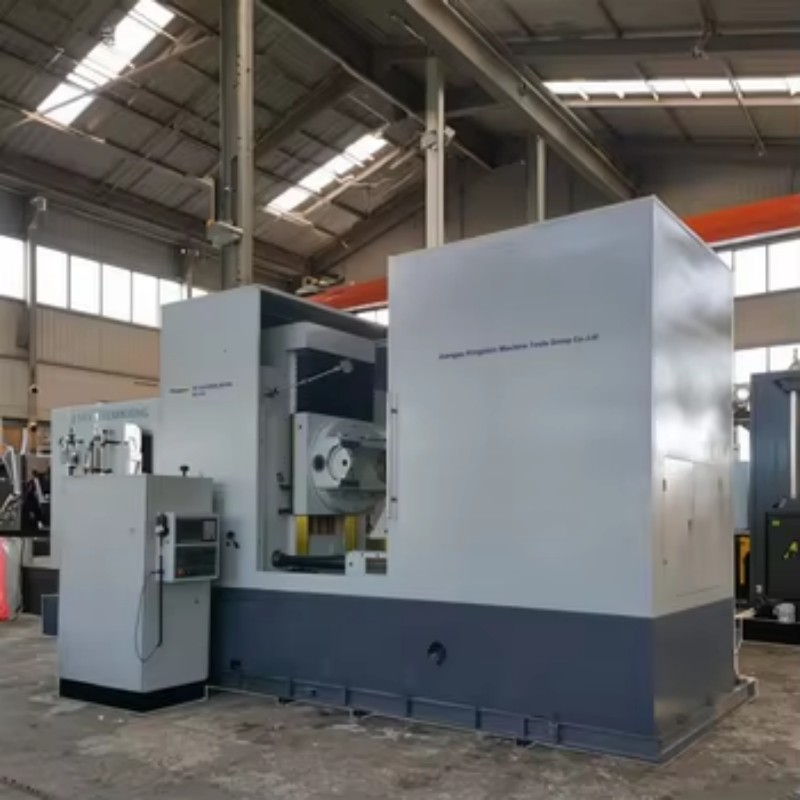

Heavy machinery Factory Exhibition High-quality lathe cnc machine

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer Heavy machinery manufacturer

Q: What is the max processing module of two models?
A:Y3150E max module 8.

Q: What workpieces can this machine process?

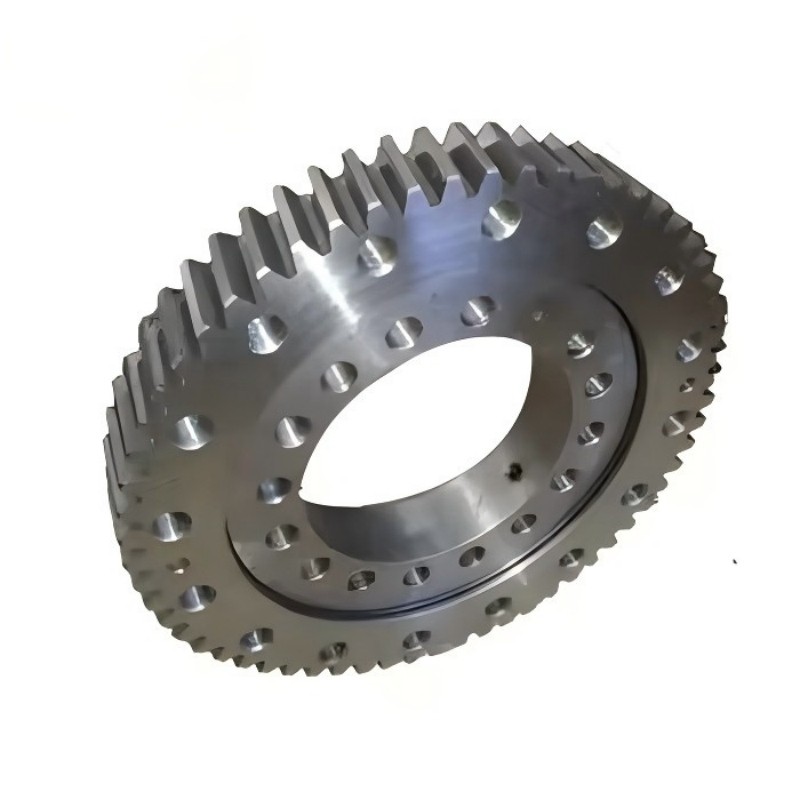

A:Cylindrical spur gears, helical gears, worm gears and transmission sprockets.

Q: Can it work continuously for batch production?
A:Yes, the stable mechanical structure supports long-time continuous hobbing work.

Q: Machine weight and overall dimension?

A:Y3150E: 4800KG, size 260014001800mm.

Hot Tags :

Y3150E Ordinary NC Gear Hobbing Machine

Q: What is the max processing module of two models?
A:Y3150E max module 8.

Q: What workpieces can this machine process?
A:Cylindrical spur gears, helical gears, worm gears and transmission sprockets.

Q: Can it work continuously for batch production?
A:Yes, the stable mechanical structure supports long-time continuous hobbing work.

Q: Machine weight and overall dimension?

A:Y3150E: 4800KG, size 260014001800mm.

Module 8 Ordinary Gear Hobbing Machine

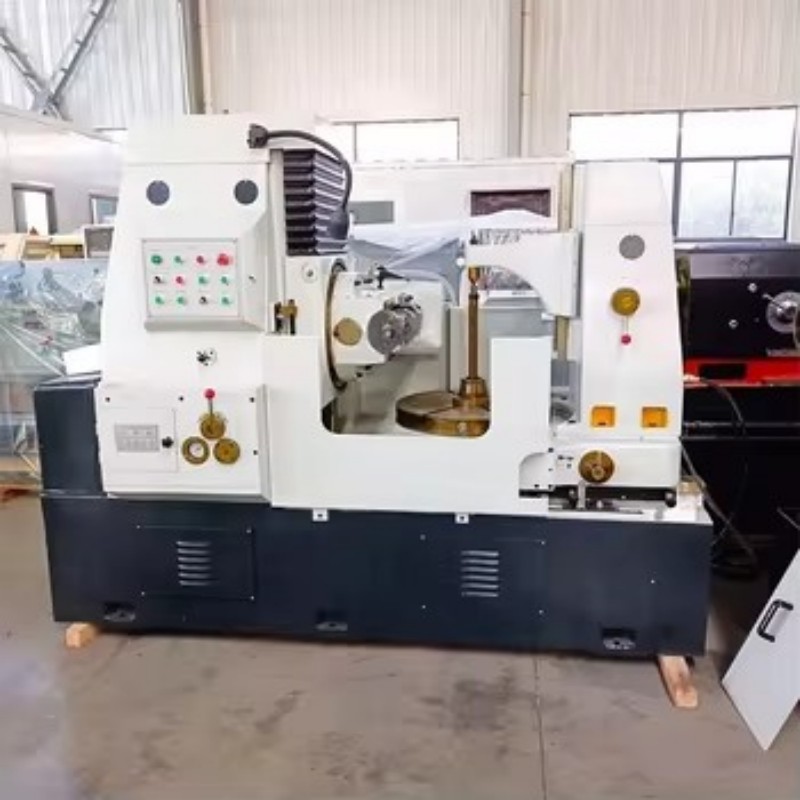

Y3150E Y3180E Manual Gear Cutting Lathe
