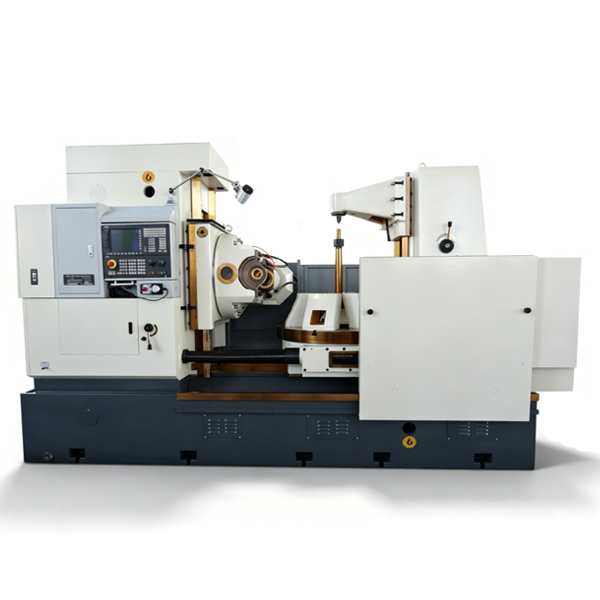

YK31180E Large-Capacity Gear Hobbing Machine for Extended Module Processing

The YK31180E is a large-capacity gear hobbing machine designed for extended module processing. It handles substantial gear workpieces with robust construction, high rigidity, and precision indexing, making it suitable for heavy industrial gear manufacturing applications.

Order(MOQ) :
1
Product Origin :
China
Color :
China
Shipping Port :
Shanghai
Lead Time :
30
Weight :
18000KG

Inquire Now

1.Large Workpiece Capacity: Handles substantial gear diameters with extended column and stroke.

2.CNC Precision: Automated control ensures consistent tooth geometry across production runs.

3.High Rigidity Construction: Built for heavy-duty cutting with minimal vibration.

4.Versatile Processing: Supports cylindrical, helical, worm, and sprocket gears.

5.Extended Tool Life: Electric hob shift system maximizes cutter utilization.

specification

Description	Specifications
Max. workpiece dia.	1800mm
Max. module	10mm
Hob head slide travel	400mm
Max. hob head swivel	±45rad
Max. hob dimensions （dia. × length）	200×240mm
Max. axial travel of the hob	200mm
Center distance between hob and worktable	45~405mm
Distance between hob center and worktable surface	280~680mm
Distance between workstay center and worktable surface	390~890mm
Max.Tooth width	200 mm
Table hole dia	120 mm
Spindle speed	80~500r/min
Max. worktable speed	50r/min
Max. radial feed speed (X-axis)	2600 mm/min
Max. tangential feed speed (Y-axis)	2000 mm/min
Axial feed speed（Z-axis）	2600 mm/min
Max. hob head rotary speed	5rad/s
Main motor power	18.5KW
Total power	50Kw/50Hz
Net weight	17000Kg(6 AXIS )/15000KG(4 AXIS)
Overall dimensions	42×39×37cm

product introduction

The YK31180E is a heavy-duty gear hobbing machine engineered for large-capacity gear production. Building on the proven Y31180 platform with CNC enhancement, this machine processes cylindrical gears, helical gears, worm gears, and sprockets with exceptional rigidity and precision. The extended vertical column and increased stroke accommodate larger workpieces, while the CNC control system delivers automated precision for consistent production quality. This machine is ideal for heavy industrial applications including mining equipment, marine propulsion, and large industrial gearbox manufacturing.
