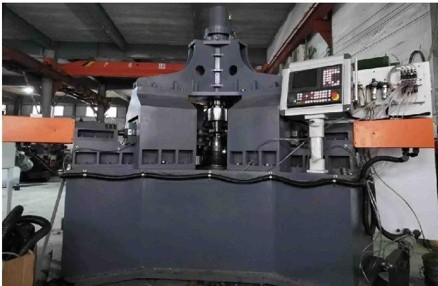

KSTVS80-III CNC Vertical Splitting Spinning Machine High Efficiency

The KSTVS80-III CNC vertical splitting spinning machine adopts compact vertical frame and 3-axis servo linkage system. It accomplishes metal spinning and tube splitting continuously, delivering tidy cutting edges and precise dimensional tolerance. Ideal for mass production of various split pipe fittings made of aluminum, steel and stainless steel.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30

Inquire Now

KSTVS80-III CNC Vertical Splitting Spinning Machine High Efficiency

Adopting vertical structural layout and three-axis servo synchronous control, this machine realizes spinning forming and precision splitting in one clamping procedure, eliminating extra cutting and welding procedures. The reinforced cast frame effectively suppresses forming vibration and ensures consistent splitting clearance. It works well on aluminum, carbon steel and stainless steel tubes to produce Y-type, T-type split tubular parts. With programmable spinning tracks, overload protection and convenient program storage, it delivers stable dimension accuracy and higher production efficiency for automotive fittings, pipeline connectors and hardware components manufacturing.

specification

Project		Data	Data
Model specifications		KSTVS50-Ⅲ	KSTVS580-Ⅲ
Maximum workpiece diameter		60mm	200-500mm
Main motor power		30Kw	45Kw
Spindle speed		500Rpm	50-300Rpm
Spindle gearbox		stepless	stepless
Itinerary	X-axis	100mm	200mm
	Y-axis	100mm	200mm
	A-axis	100mm	500mm
Bending station		Three-station dedicated rotary wheel frame	2+1
Split and spin the thickness of the material	Low-carbon steel	6.0-15.0mm	5.0-12mm
Compression water cooling		Circulating water cooling	Automatic water-cooled lubrication
Delivery of goods		Automatic mechanical feeding	Horizontal symmetrical 180 degree double rotary wheel
Machine tool lubrication		Centralized automatic oiling	Centralized automatic oiling

Product Advantages

Integrated Spinning & Splitting Function
Complete forming and splitting in single setup, reduce secondary processing and shorten production cycle.
Vertical Stable Structural Layout
Workpiece is fixed vertically, benefiting clamping stability and convenient loading & unloading.
3-Axis Servo Linked Control
Precise roller trajectory control guarantees uniform wall thickness and neat splitting edges.
Wide Range Of Workpiece Applications
Suitable for various metal tubular blanks to manufacture split connectors and special rotary parts.
