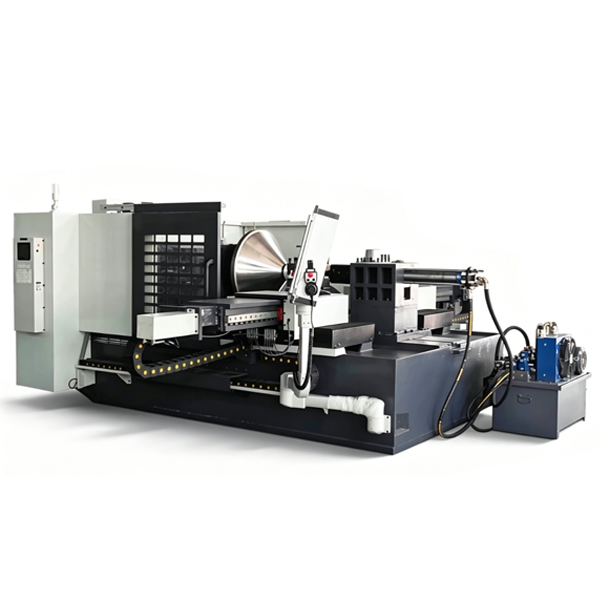

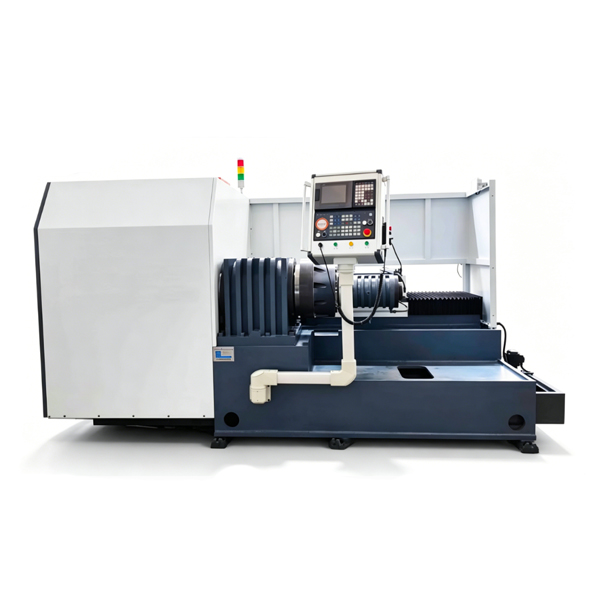

HSP120 3 Roll Metal Spinning Machine for Aluminum Axisymmetric Workpieces

HSP120 3 Roll Metal Spinning Machine for Aluminum Axisymmetric Workpieces

HSP120 three roll spinning machine is customized for aluminum axisymmetric workpieces. Balanced three rollers protect aluminum surfaces from defects, with stable CNC control and rigid machine frame for high-efficiency seamless forming of small and medium aluminum rotary parts.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30

Inquire Now

High Power Three Roller Machine for Seamless Metal Parts

1.Triangular three-roller balanced extrusion

Uniform surrounding pressure prevents large metal shells from deforming and ensures even wall thickness.

2.One-step seamless integral forming

Finishes thinning, necking and flanging at once, no weld seams for better air tightness.

3.Reinforced cast iron anti-vibration bed

Stable structure retains consistent precision during long-time continuous production.

4.CNC programmable storage system

Save forming parameters of different shells, one-click switching to cut changeover time.

5.Wide material compatibility

Supports forming stainless steel, aluminum and copper for various large shell workpieces.

specification


Item			HSP120	HSP250	HSP300
Diameter range		mm	30-120	40-260	70-320
Spinning length		mm	600/1000	2000/3000	1500/2000
Radial	Pressure	KN	150-200	250-500	250-500
	Stroke	mm	50	110	125
	Speed	mm/min	1000	1000	1500
Axial	Pressure	KN	200-300	250-350	250-500
	Stroke	mm	800/1200	2100/3100	1550/2050
	Speed	mm/min	3000-6000	3000-6000	3000-6000
Spindle speed		RPM	0-600	0-450	0-600
Spindle power		KW	37	90/110	75/90
Wheel QTY			3	3	3

Product Advantages

Special soft spinning pressure tuning for aluminum

Optimized extrusion parameters to prevent aluminum blanks from cracking, wrinkling or scratching during forming.
Compact integrated machine frame

Small footprint design suitable for factories with limited workshop space while maintaining structural rigidity.
Fine-tunable low-speed forming mode

Precise adjustable low spinning speed for delicate thin aluminum parts with smooth surface finish.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Certificate

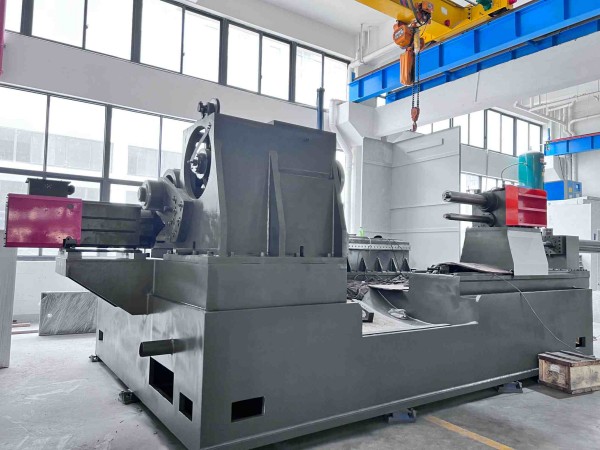

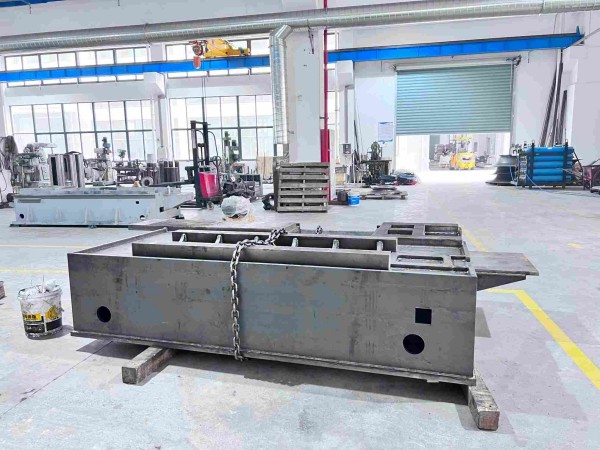

factory show

Professional Production Base, Strength in Precision Manufacturing

Cnc Metal Spinning Flanging Machine 11kw metal spinning machine 7.5kw Cnc Spinning lathe Machine high power Metal Spinning Machine

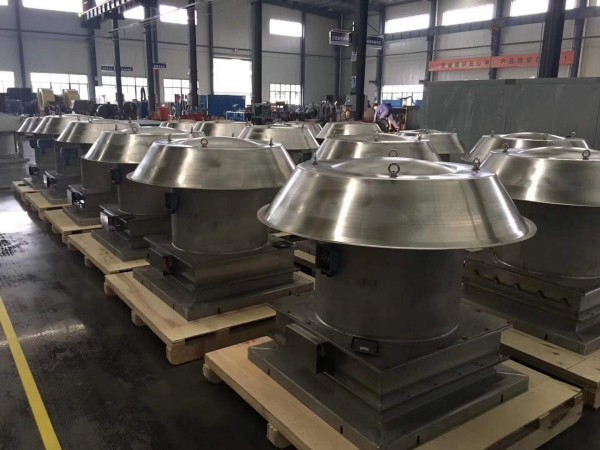

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer Heavy machinery manufacturer

1.What raw materials can your CNC spinning machines process?

All our spinning lathes support aluminum, stainless steel, copper, brass and carbon steel sheets, suitable for various thickness axisymmetric blank forming.

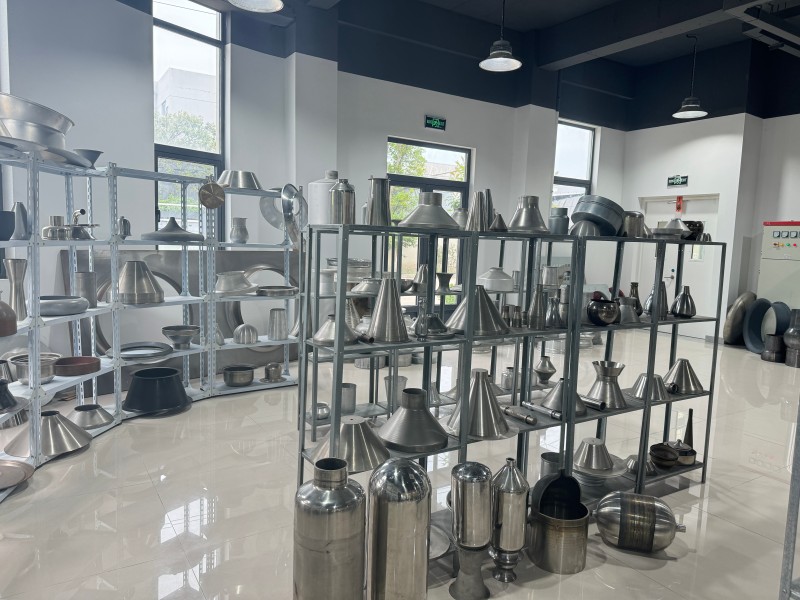

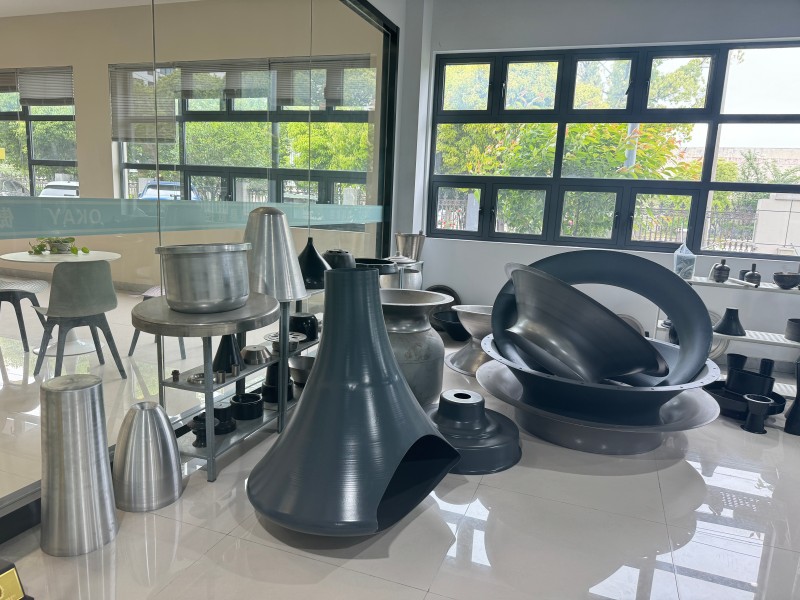

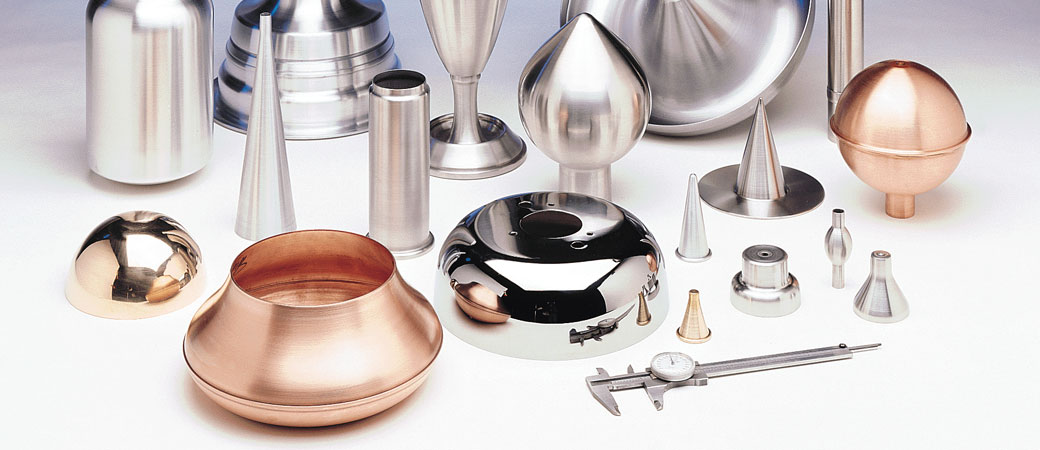

2.What kinds of finished parts can your spinning equipment produce?

They can make venturi valves, lamp reflectors, stainless steel cookware, water tank liners, fan cones, auto exhaust shells and other seamless rotary components for HVAC, kitchenware, lighting and auto industries.

3.What large axisymmetric parts can this 3 rollers CNC spinning lathe produce?

It can fabricate large venturi valves, automotive wheel hubs, pressure vessel heads and big lamp reflectors made of stainless steel and aluminum.

4.What is the advantage of three rollers compared with double roller spinning machines?

Three symmetric rollers provide more balanced extrusion force, greatly reduce workpiece deformation and achieve more uniform wall thickness for large-size thin-wall parts.

5.What is the MOQ?

Machine MOQ is 1 unit.
