ISO Certified High Power 3 axis KSTHP-880-III CNC Metal Spinning Machine

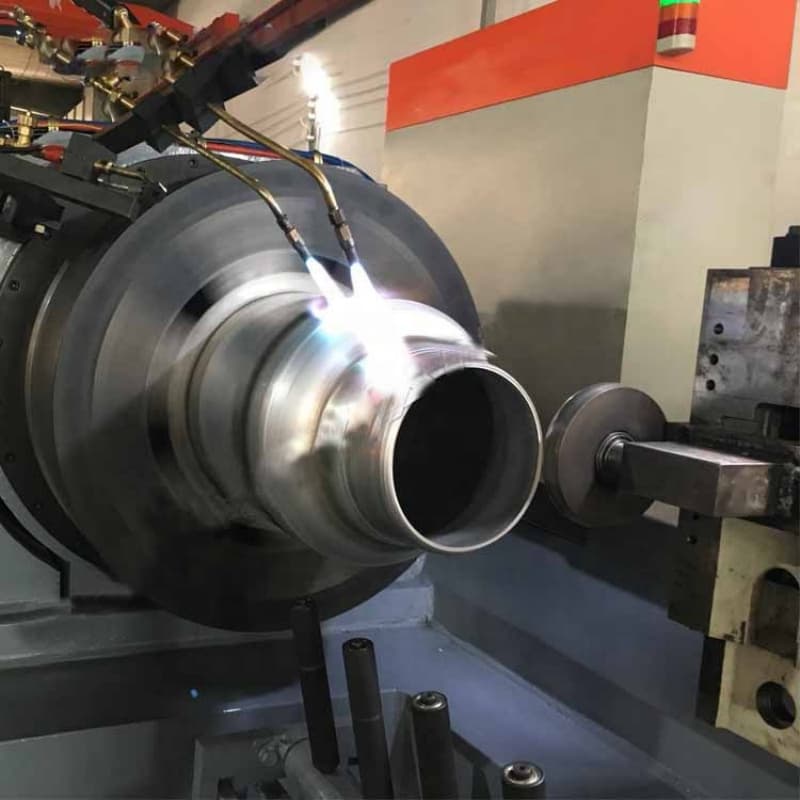

KSTHP-880-3 is a heavy-duty 3-axis linkage CNC metal spinning machine built for medium and thick plate rotary component forming.Equipped with professional three-axis servo synchronous control system, this spinning equipment achieves flexible coordinated movement of spinning rollers to complete necking, closing, flanging and complex curved surface forming in one clamping.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30

Inquire Now

ISO Certified High Power 3 axis KSTHP-880-III CNC Metal Spinning Machine

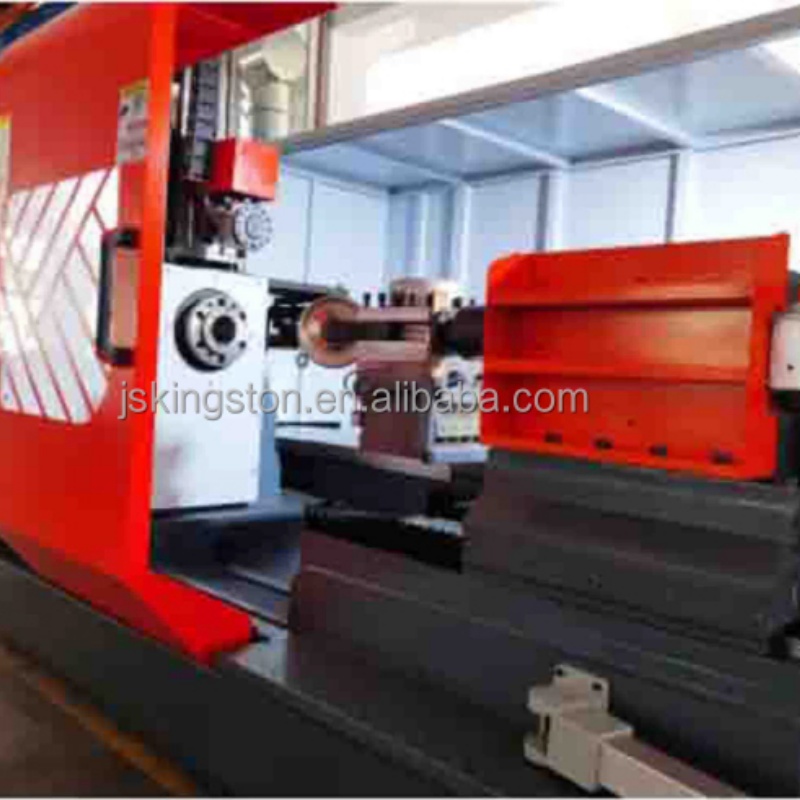

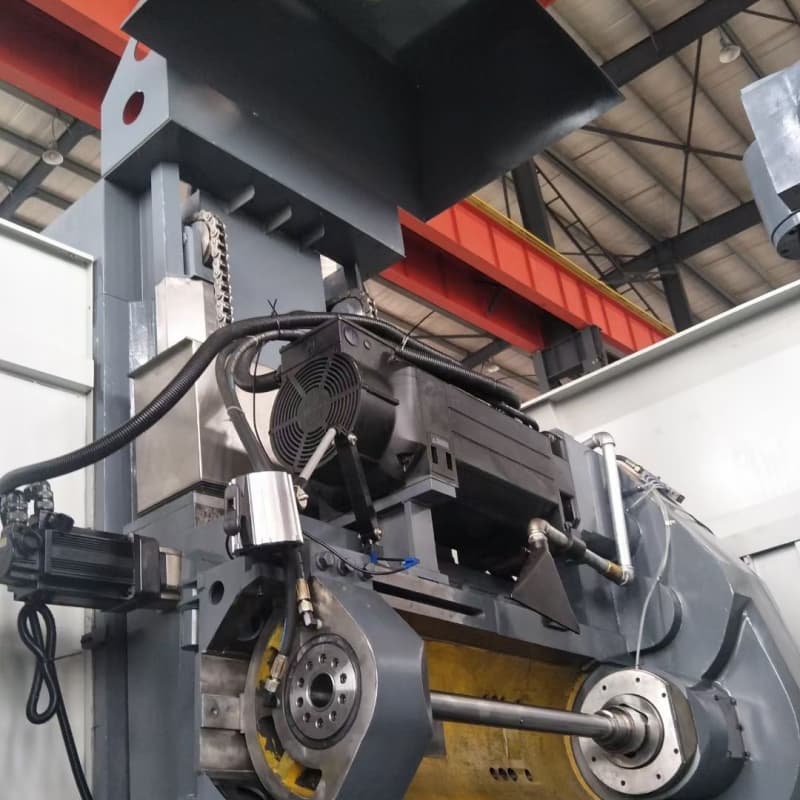

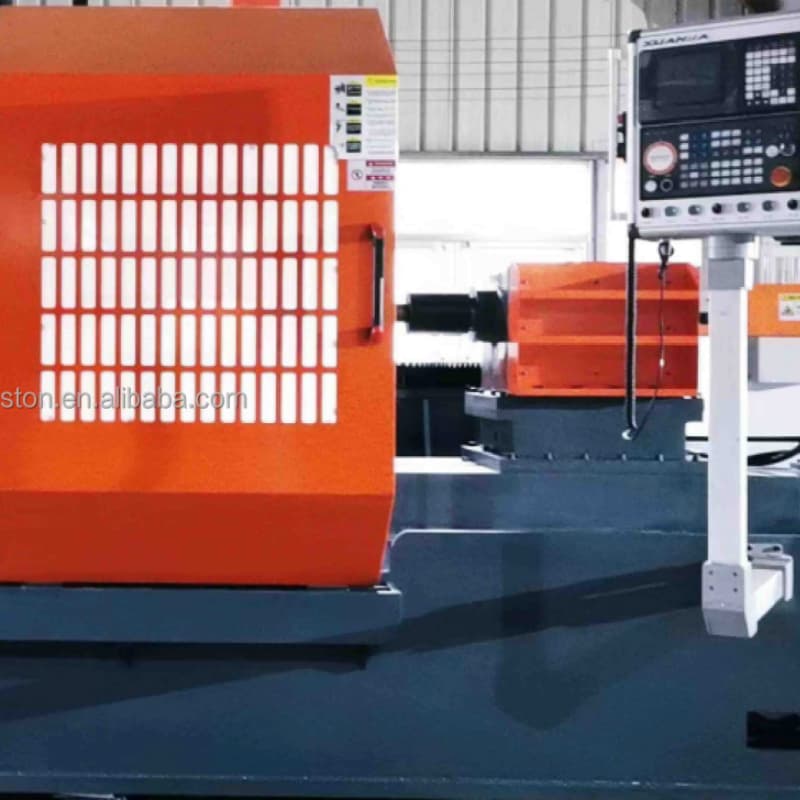

The 800-Ⅲ three-axis high-strength CNC rotary press adopts a 180-degree double-wheel rotary layout, a floor-mounted integral bed, an integral bed headbox and an integral hydraulic tailstock. The scraping is equipped to ensure rigid contact, smoothness and no vibration. The central Z-axis lead screw ensures smooth and balanced transmission of the large table, providing the best transmission environment. The linear guide pair transmission has no gap and a low friction coefficient. It is agile and flexible, suitable for high-speed movement. The main shaft adopts a horizontal boring main shaft structure unit to ensure the durability and stability of heavy-load work. The imported guide rails and lead screws are wear-resistant and anti-vibration, which is more than five times the lifespan of traditional machine tool guide rails.

specification

Project		Data
Model specifications		KSTHS800-Ⅲ
Maximum sheet diameter		800mm
Overdrum barrel diameter		450mm
Main motor power		18.5Kw
Spindle speed		2000Rpm
Itinerary	X1 axis, X2 axis	350mm
	Axis	500mm
Maximum tail thrust		20Kn
Tail thrust stroke		500mm
Processing material thickness	Copper and aluminum materials	0.5-8.0mm
	Steel	0.5-4.0mm
	Stainless steel	0.5-2.5mm
Tool holder station		4+4/1+1
Wafer blank tray travel		300mm
Positioning accuracy		0.02mm

Product Advantages

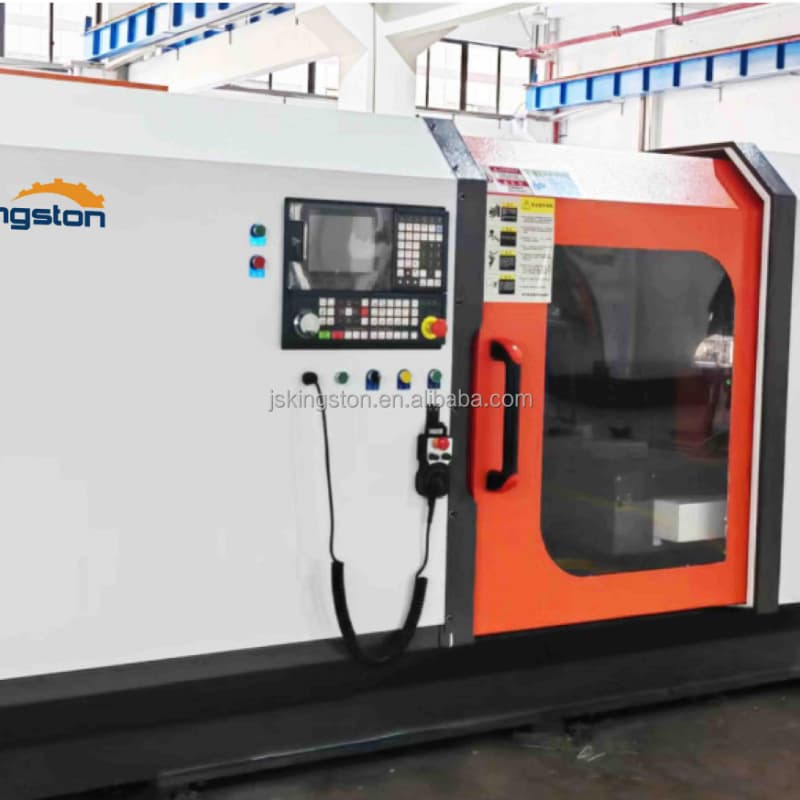

Multi-Axis CNC Precise Control
Accurate forming track ensures consistent necking dimension and uniform wall thickness for every workpiece.
Wide Material & Forming Range

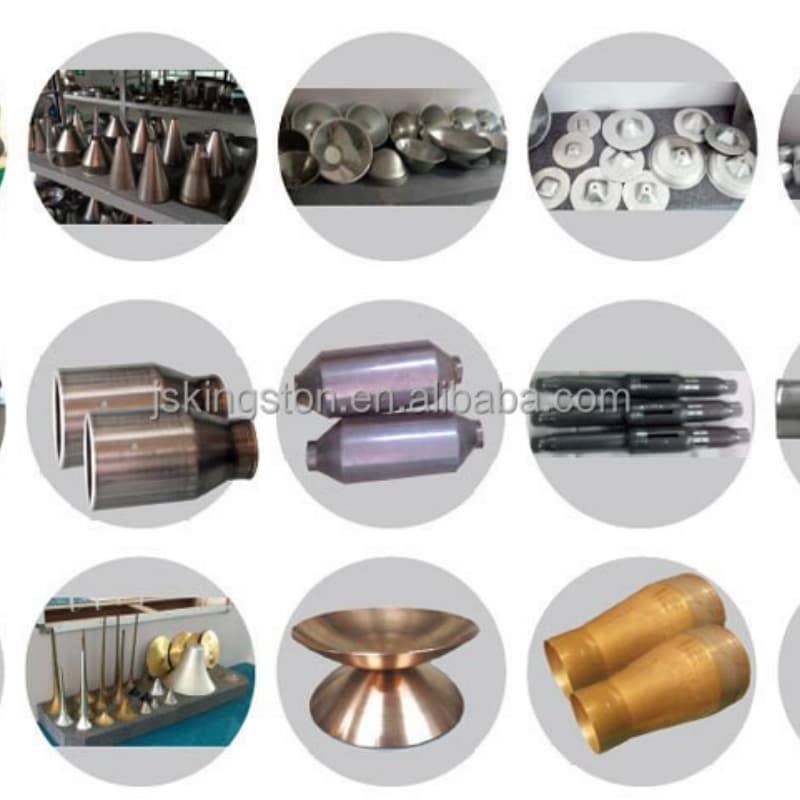

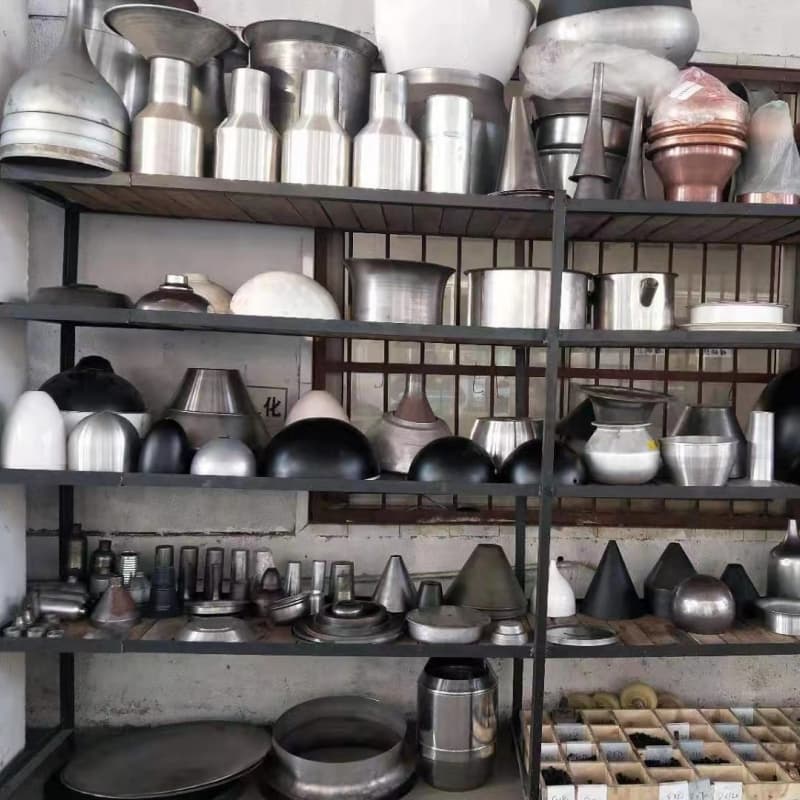

Capable of necking, closing, flanging and reducing forming for steel, copper, aluminum and alloy tubular workpieces.
High Rigidity Anti-Vibration Frame
Integral cast iron bed structure absorbs spinning impact force, maintains stable precision under long-time continuous heavy forming operation.
Automatic Batch Production Capacity
Program storage function supports rapid switching of different product molds, reducing mold change time and labor cost for mass manufacturing.
