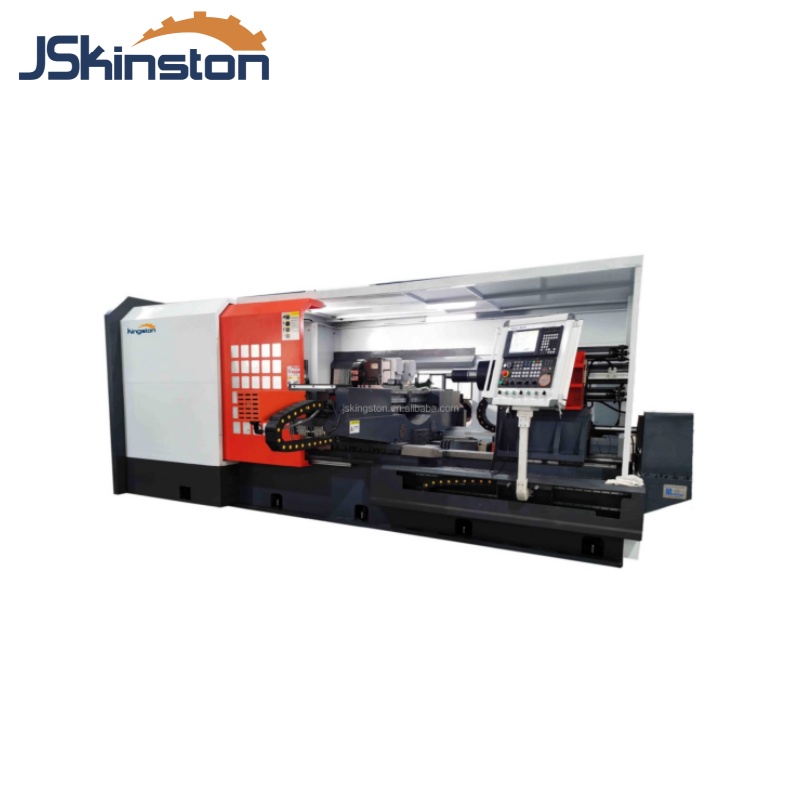

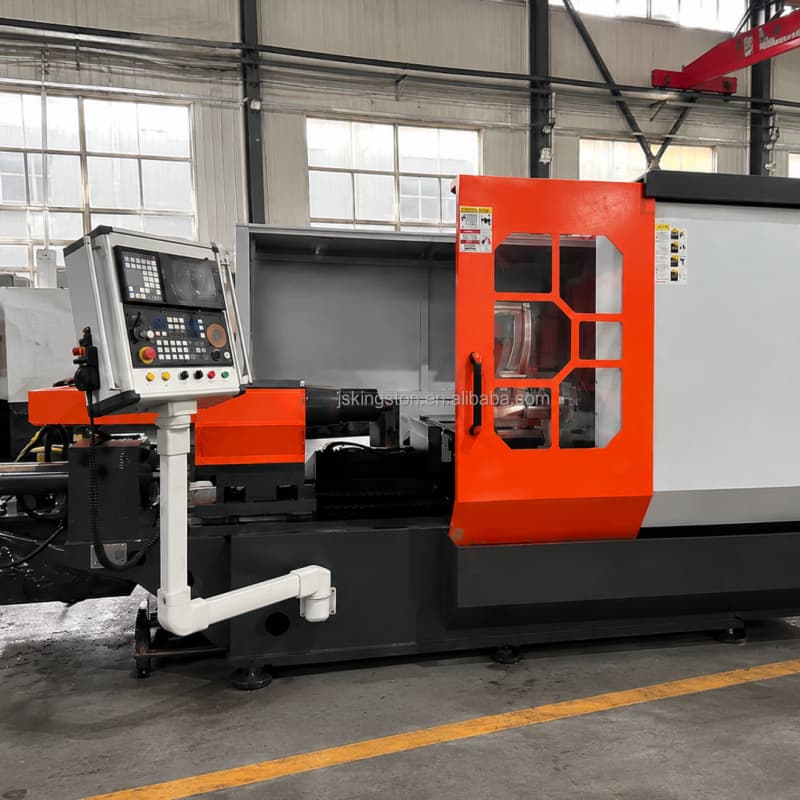

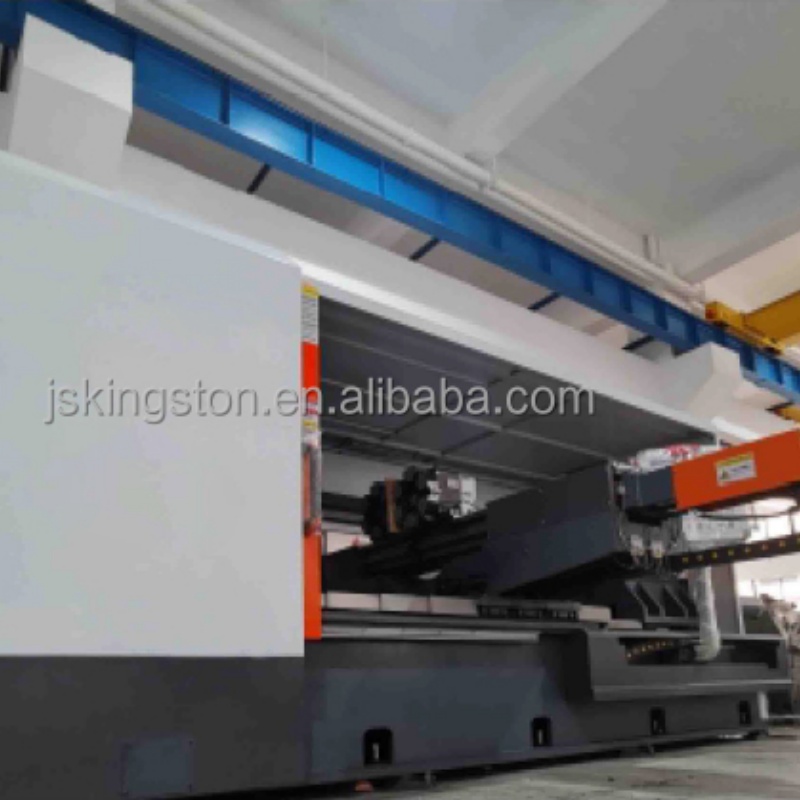

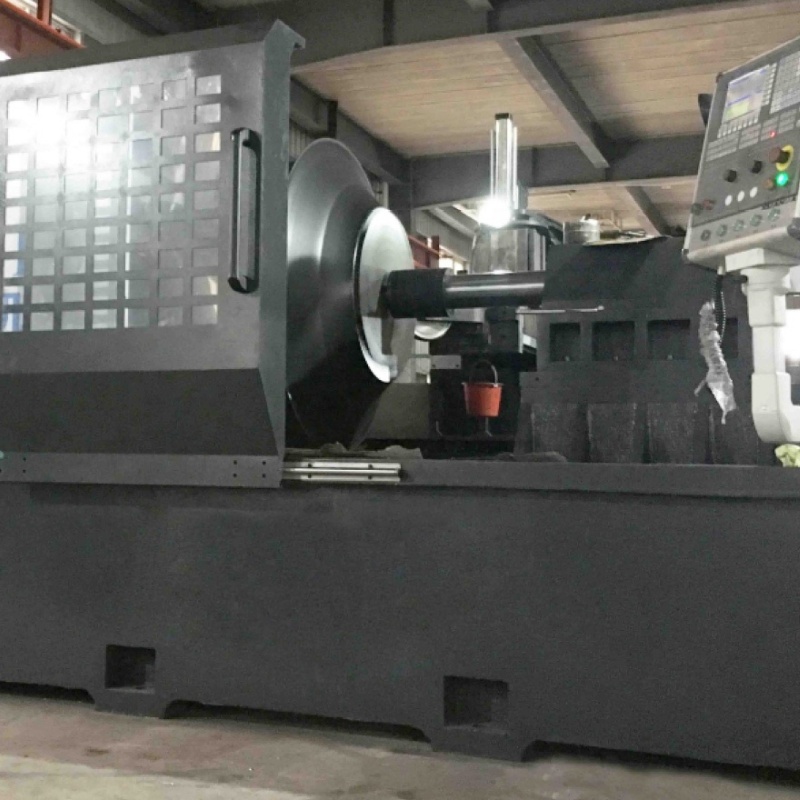

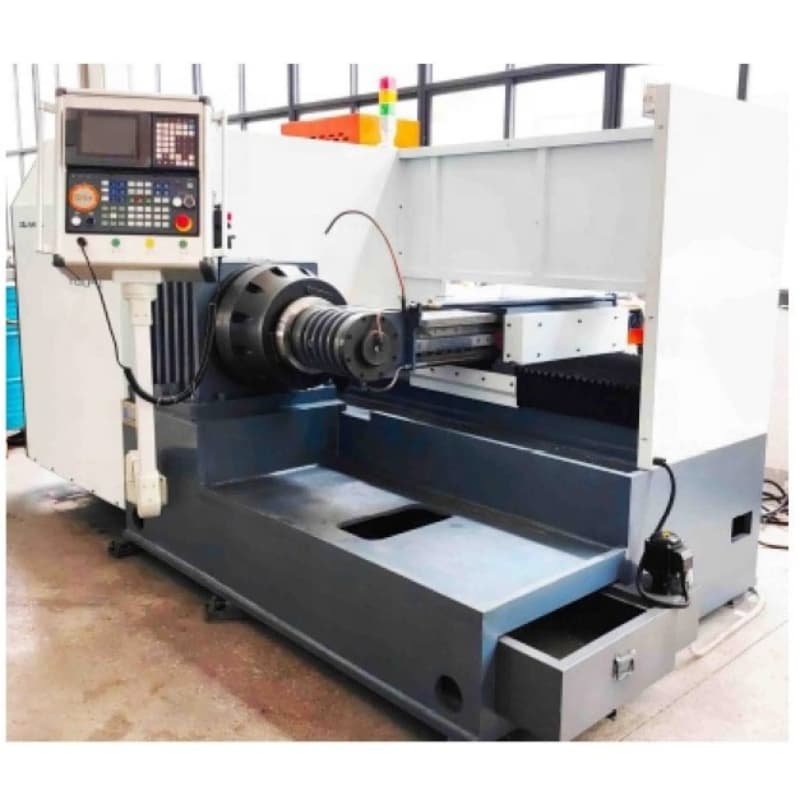

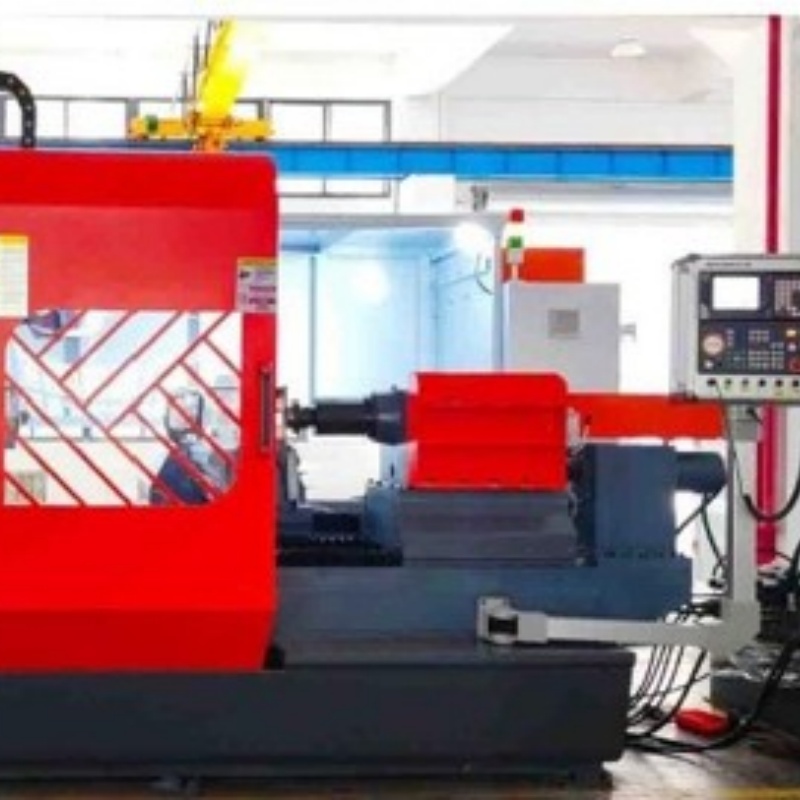

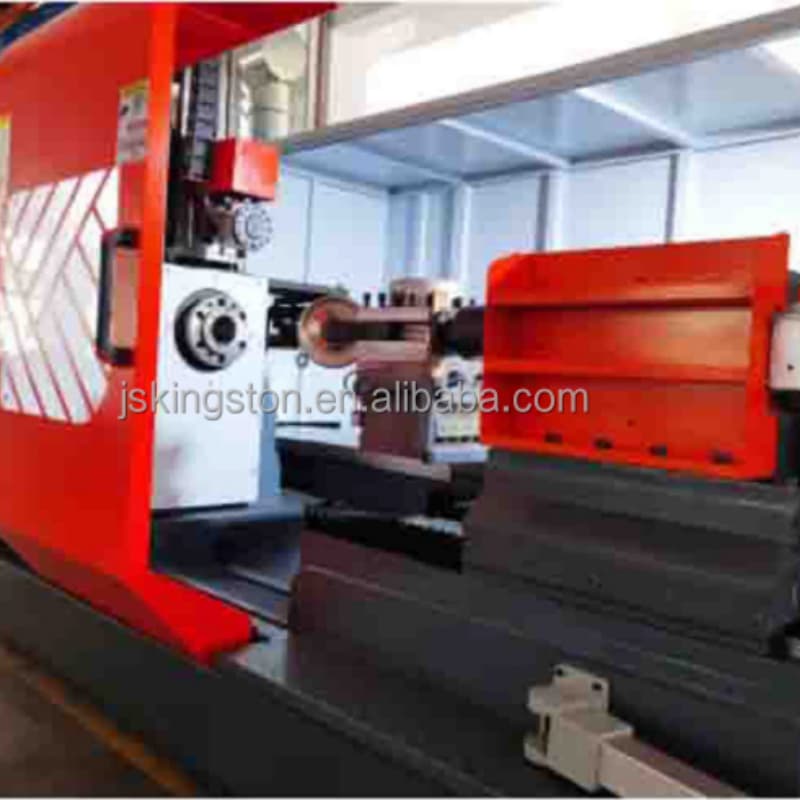

Heavy Duty Customized Roller CNC KSTHS1480-I Metal Spinning Machine

The KSTHS1480-I is a heavy-duty customized roller CNC metal spinning machine, specially designed for large-diameter and thick-wall rotary metal parts forming. It adopts a customized spinning roller structure to adapt to diverse complex forming processes, featuring strong load capacity and excellent structural stability.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30

Inquire Now

Heavy Duty Customized Roller CNC KSTHS1480-I Metal Spinning Machine

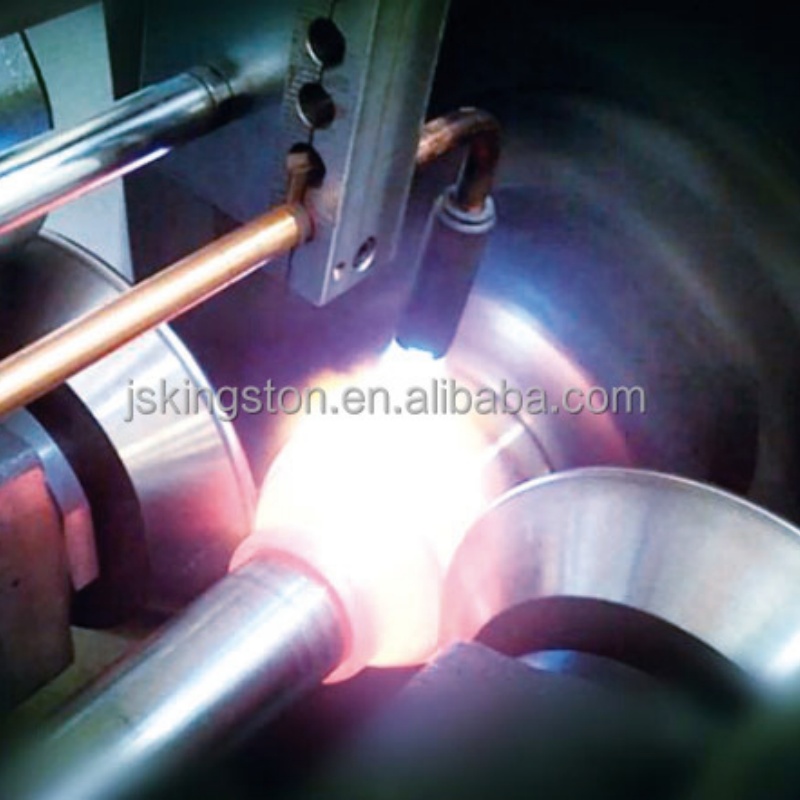

Built with integral thick cast iron bed and reinforced spindle base, the whole machine features outstanding structural rigidity to eliminate vibration during high-pressure spinning forming. The humanized CNC touch screen supports custom program editing, parameter storage and one-click batch operation, effectively avoiding unstable size caused by manual operation. Matched with intelligent heating linkage and overload protection system, it effectively prevents workpiece wrinkling, cracking and uneven wall thickness, greatly improving product yield and long-term stable production capacity.

specification

Project		Data	Data
Model specifications		KSTHS1480-I	KSTHS1680-I
Maximum sheet diameter		1450mm	1680mm
Main motor power		45Kw	75kw
Spindle speed		900Rpm	750 Rpm
Itinerary	x-axis	1250mm 1000mm	1650mm
Itinerary	Axis	1250mm 1000mm	800mm
Maximum tail thrust		25Kn	35 Kn
Tail thrust stroke		500mm	800mm
Processing material thickness	Copper and aluminum materials	1.0-10.0mm	1.0-8.0mm
	Steel	1.0-5.0mm	1.0-6.0mm
	Stainless steel	1.0-3.0mm	1.0-4.0mm
Specialized hydraulic tool magazine		Four-position	Four-position
Automatic trimming and forming mechanism		Optional	Optional
Automatic lubrication spray device		Optional	Optional

Product Advantages

Customized Spinning Roller Design

Supports adjustable and personalized roller configuration, perfectly meeting diversified and special-shaped workpiece spinning requirements.
Heavy-Duty Load & Stable Forming

Reinforced stress-relief frame effectively resists spinning vibration, ensuring stable precision and reliable forming for large thick-wall workpieces.
Multi-Process Integrated Processing

Integrates multiple spinning processes in one clamping, avoiding secondary processing to improve efficiency and cut production costs.
Wide Material & Application Adaptability

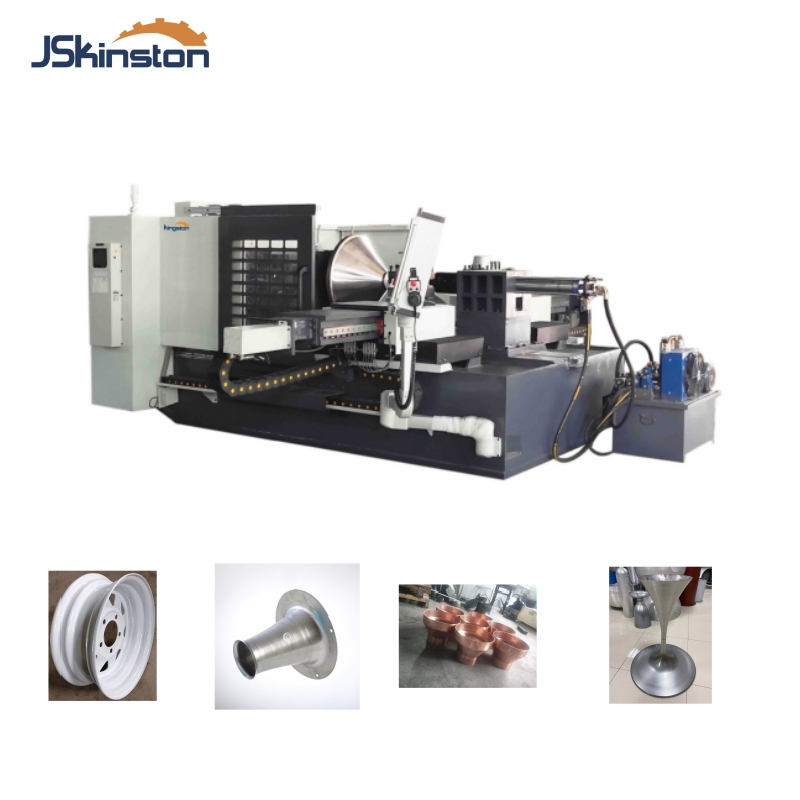

Compatible with various metal materials, widely applicable for pressure vessels, ventilation equipment and industrial rotary parts manufacturing.
