SK490/640 Bottle Necking CNC Spinning Machine For Gas Cylinders

SK490/640 Bottle Necking CNC Spinning Machine For Gas Cylinders

SK490/640 CNC Gas Cylinder Necking Spinning Machine is a dedicated hot spinning equipment independently developed for seamless high-pressure gas cylinder neck forming. It adopts heavy-duty integral cast bed, dual/triple spinning wheel balanced structure and full CNC servo control system, specially designed for necking, shoulder forming and uniform wall thickness strengthening of steel & aluminum alloy gas cylinders such as hydrogen storage bottles, CNG cylinders, oxygen cylinders, LPG tanks and industrial pressure vessels.

Eliminating welding seams at bottle mouth via one-time hot spinning forming, this machine greatly improves cylinder air tightness, burst pressure and structural fatigue resistance. It supports batch mass production and small-batch customized trial production, widely adopted by gas cylinder manufacturers worldwide.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
26Ton

Inquire Now

Automatic Cylinder Neck Machine CNC Roller Hot Spinning Machine

Main Application Industries

1.New energy storage: Hydrogen vehicle cylinders, hydrogen storage tank liners

2.Energy gas: CNG / LNG high-pressure steel cylinders

3.Medical industry: Oxygen, nitrogen, medical gas bottles

4.General industry: Seamless pressure vessels, fire extinguisher tanks

5.Metallurgy & aerospace: Large aluminum alloy rotary thin-wall parts

specification


Item		SK490	SK640
Machining diameter range	mm	≤490	≤640
Forward lengrh	mm	3000	3500
Clamping system		Disc spring clamping unit	Disc spring clamping unit
Clamping force		120	150
Feed thrust	KN	90	110
CNC System	KN	828D	828D
Power	KW	110	135
Heating mode		natural gas+oxygen	natural gas+oxygen
Operating Weight	kg	23000	26000

Product Advantages

Dual Model Coverage
Two standard configurations to match medium & large diameter cylinder blanks (490mm / 640mm outer diameter). Compatible with tube length up to 3200mm, wall thickness 8–25mm, covers most mainstream industrial & new energy gas cylinder specifications.
High Rigidity & Balanced Spinning Structure
Horizontal heavy cast bed + symmetric multi-spindle spinning wheel layout, balanced radial force during hot forming, effectively reduce vibration. X/Z axis high-thrust servo hydraulic drive, positioning accuracy ≤0.04mm, repeat accuracy ≤0.02mm, stable neck contour & consistent wall thickness control.
Intelligent CNC Control System
Optional Siemens / domestic industrial CNC system with touch operation, support G-code programming, graphic import and teach mode. Built-in dedicated cylinder necking program library; one-click parameter switching for different neck taper, arc and shoulder shapes, low operation threshold for workers.

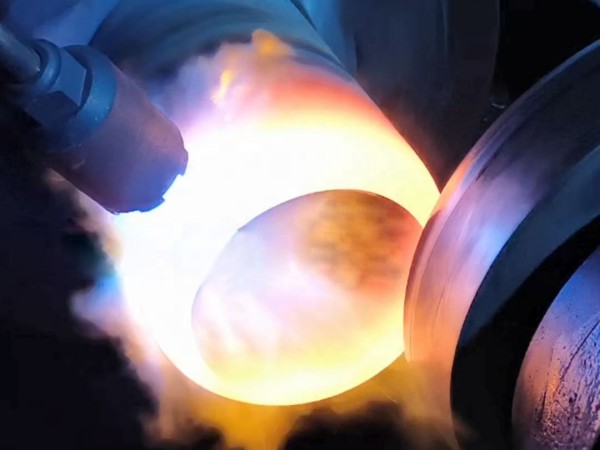

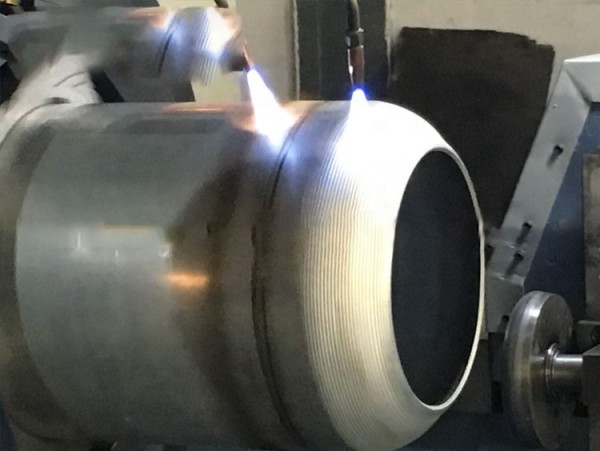

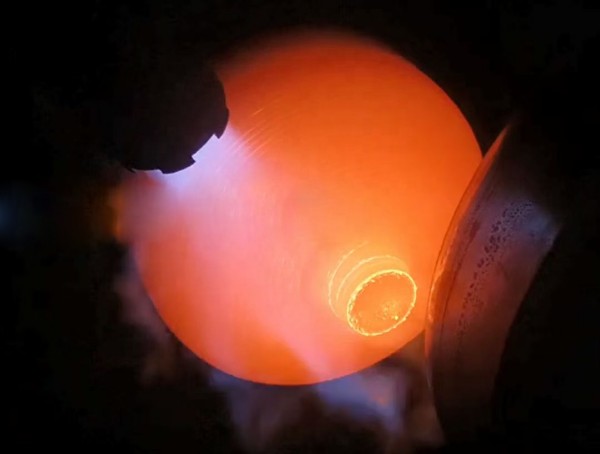

Precision Hot Spinning Heating System
Configurable medium-frequency induction heating or flame heating module with real-time temperature monitoring, auto adjust heating power to maintain stable forming temperature (350–450℃). Avoid over-burning or cracking of aluminum / steel tube blanks, one-time forming success rate over 95%.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Certificate

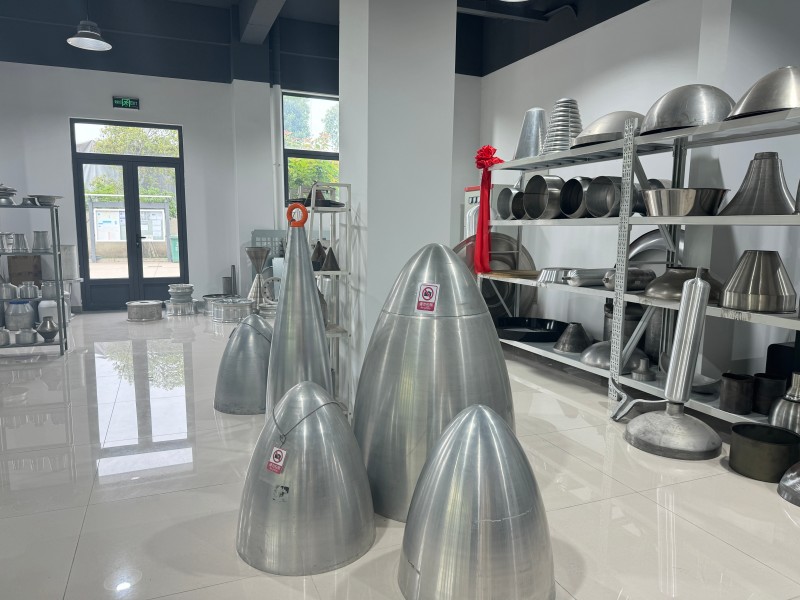

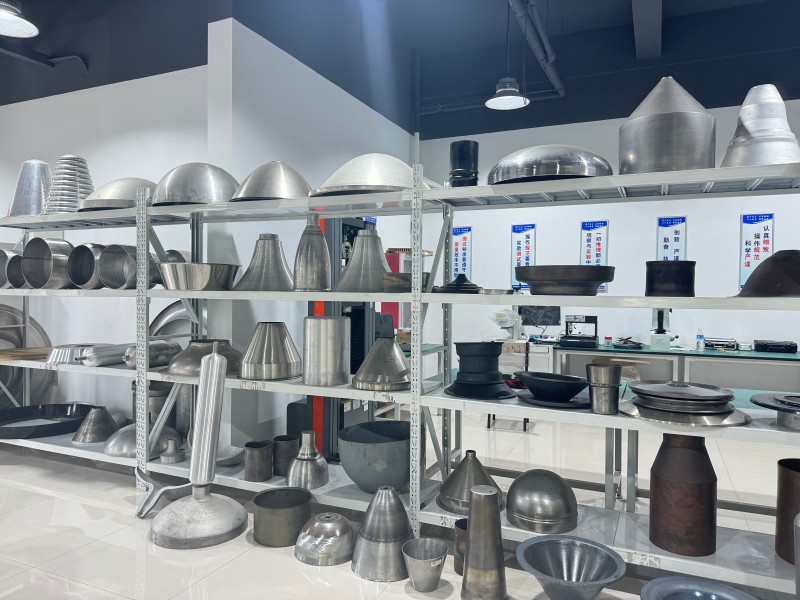

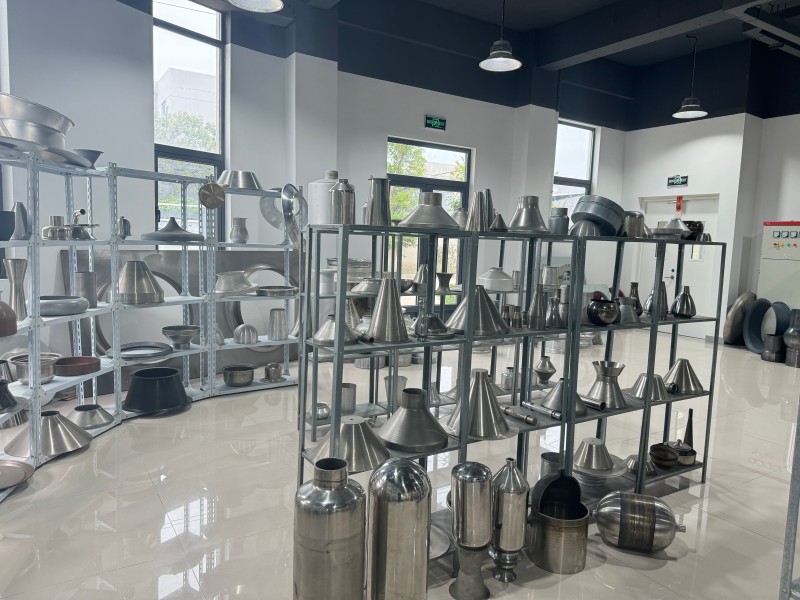

factory show

Professional Production Base, Strength in Precision Manufacturing

CNC metal spinning machine Automatic metal spinning machine Siemens control metal spinning machine fanuc control metal spinning machine

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer Heavy machinery manufacturer

Q: Why is it called high power type?
A: Equipped with high-power hydraulic system and strong spinning force, suitable for thick-wall steel cylinder forming.
Q: What are the core advantages?
A: Full CNC automatic control, uniform neck size, smooth surface, no crack, high finished product rate.
Q: Is it hot spinning or cold spinning?
A: Support stable hot spinning forming, ensuring high strength and airtight performance of cylinder mouth.
Q: What is the production efficiency?
A: Fast forming speed, stable batch production, ideal for mass gas cylinder manufacturing factories.
Q: What material can be processed?
A: Specialized for carbon steel and alloy steel gas cylinder pipe blanks.
Q: Does it support customized cylinder sizes?
A: Yes, spinning diameter and necking parameters can be customized according to customer cylinder specifications.
