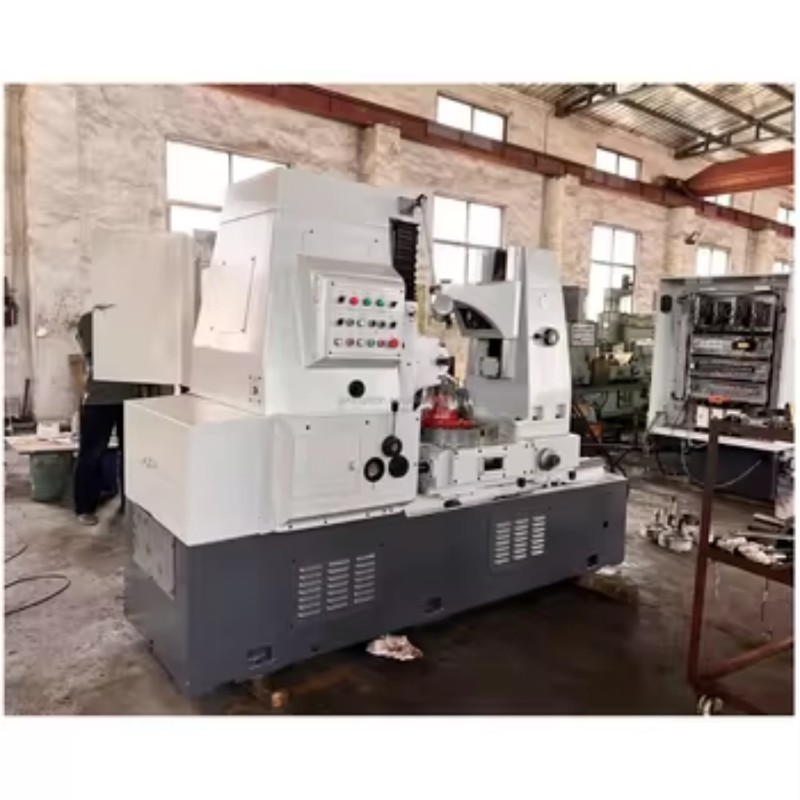

YDQ31315 Extra-Large Gear Hobbing Machine for Ultra-Large Gear Production

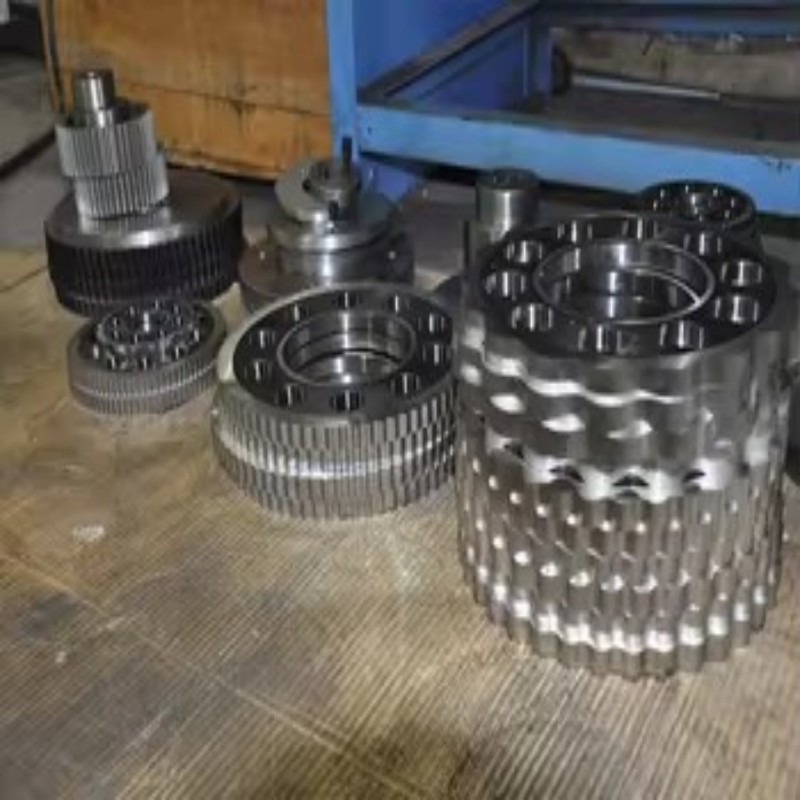

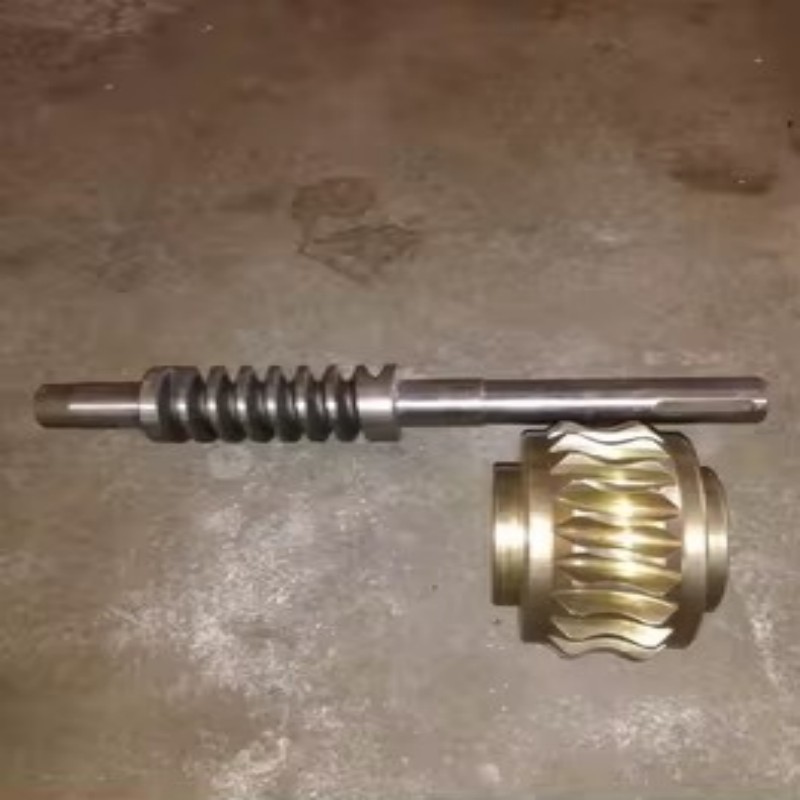

The YDQ31315 is a high-capacity gear hobbing machine designed for extra-large workpiece production. It processes cylindrical gears, helical gears, worm gears, and sprockets with exceptional rigidity and precision. Supporting large modules up to 36mm and workpiece weights up to 15 tons, this machine is ideal for heavy industrial gear manufacturing.

Order(MOQ) :
1
Product Origin :
China
Color :
China
Shipping Port :
Shanghai
Lead Time :
30
Weight :
41T

Inquire Now

1.Extra-Large Workpiece Capacity: Handles maximum workpiece diameters up to 3150mm without a small pillar.

2.High Module Capability: Supports steel modules up to 30mm, cast iron up to 30mm, and finger milling cutter modules up to 36mm.

3.Heavy Load Capacity: Maximum workpiece weight of 15 tons for massive gear components.

4.High Power Drive: Equipped with an 18.5KW main motor for superior cutting performance.

5.Massive Construction: Large machine size (9200*2550*3700mm) and 41-ton weight ensure exceptional stability and precision.

specification

Specification	Unit Model		YDQ31315
Max workpiece dia	mm	With small pillar	1600
	mm	Without small illar	3150
Max module	Module Steel		30
	Module Cast iron		30
Max width	mm		1200
Max dia/length of hob cutter	mm		310/400
Worktabel dia	mm		1800
Arbor dia	mm		30/40/50/60/80
Max workpiece weight	T		15
Main motor	KW		18.5
Spindle taper	Morse		Morse 6
Distance from hob cutter to worktable axes center	mm		100-1759
Worktabel aperture	mm		430
Machine size	mm		920025503700
Net weight	T		41

product introduction

The YDQ31315 represents the ultimate in extra-large gear hobbing capability. Engineered for the most demanding heavy industrial applications, this machine handles cylindrical gears, helical gears, worm gears, and sprockets with unparalleled ease. With its massive construction, high-power 18.5KW drive system, and exceptional module capacity, the YDQ31315 is the preferred choice for manufacturers producing large wind turbine gears, mining equipment components, and other heavy-duty gear applications.
