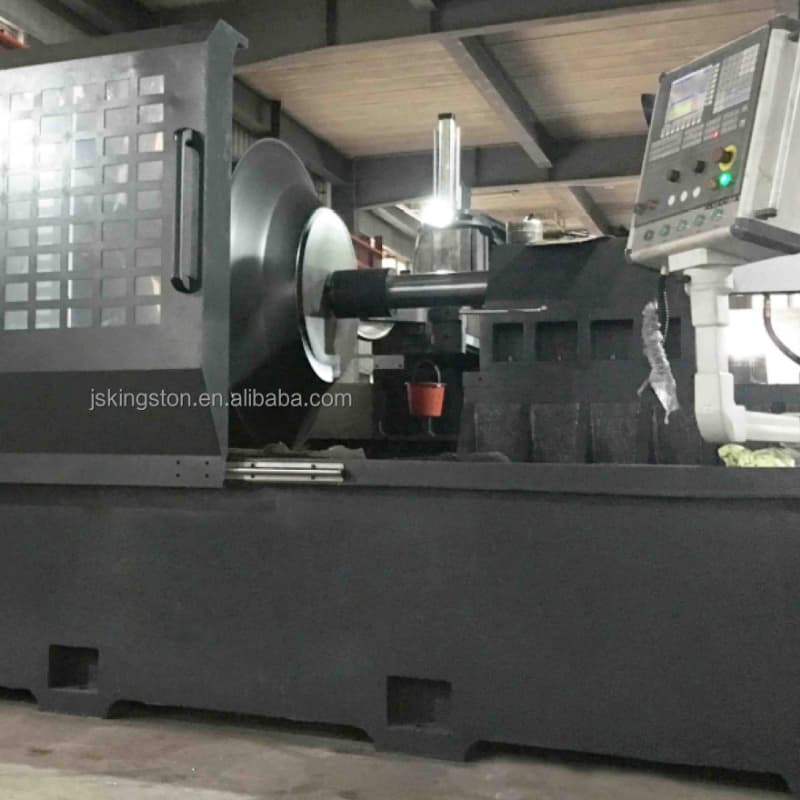

Conical Parts Spinning Machine
Aluminum Spinning Forming Lathe
Multi Roller Spinning Equipment

KSTHS2080-1 Programmable Rotary Heavy Duty CNC Metal Spinning Lathe

The KSTHS2080-1 is a large-scale programmable rotary CNC metal spinning lathe, designed for super-large-diameter and heavy-gauge metal rotary part forming. It features programmable track editing and high-torque rotary driving, delivering powerful and stable forming capacity for industrial heavy-duty processing.

  • Order(MOQ) :

    1
  • Product Origin :

    China
  • Color :

    Customized
  • Shipping Port :

    Shanghai
  • Lead Time :

    30
Inquire Now
KSTHS2080-1 Programmable Rotary Heavy Duty CNC Metal Spinning Lathe

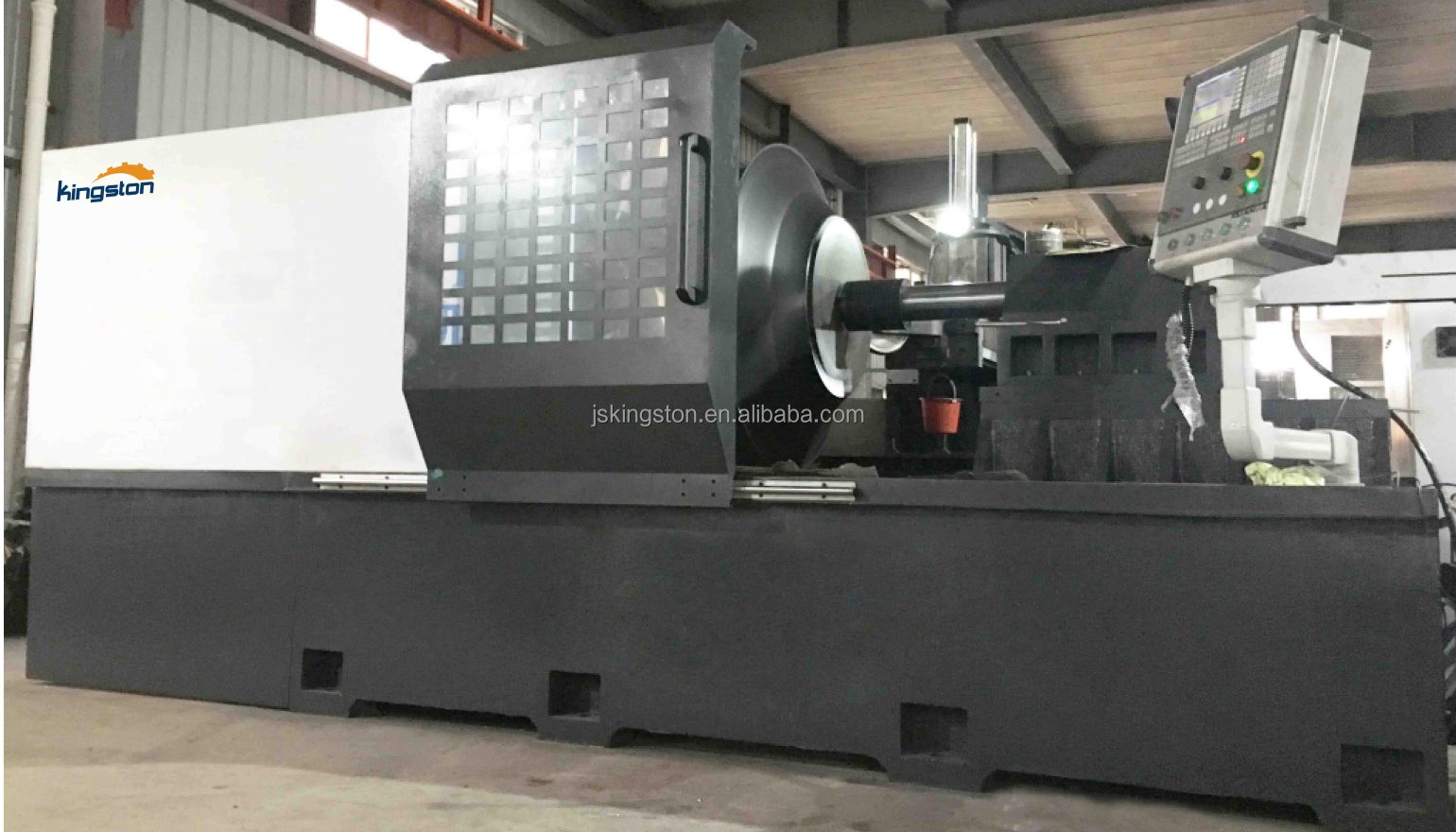

Lighting Shell Spinning Machine



Adopting an ultra-rigid integral welded frame with stress relief treatment, this heavy-duty spinning lathe effectively suppresses vibration and structural deformation during long-time high-load operation. Equipped with an upgraded full-program CNC control system, it supports custom editing, storage and one-click calling of various linear, arc and multi-curve spinning trajectories, enabling flexible switching of diverse processing crafts. It completes precision necking, closing, flanging and profiling forming in a single clamping, suitable for thick carbon steel, stainless steel and alloy steel workpieces. Widely applied in manufacturing large pressure vessel shells, industrial fan barrels, tank bodies and oversized rotary components, it is fitted with full travel limit protection and anti-collision systems to ensure safe, stable and high-precision batch production.

specification

Project

Data

Data

Model specification

KSTHS2080-1

KSTHS2580-1

Maximum wafer diameter

2000mm

2580mm

Wafer substrate tray travel

1800mm

800mm

Main motor power

110Kw

130Kw

Main spindle speed

600Rpm

600Rpm

Itinerary

x-axis

2000mm

2500mm

1200mm

Axis

1000mm

Maximum tail thrust

60Kn

100Kn

Tail thrust stroke

1000mm

1000mm



Processing material thickness

Copper and aluminum materials

1.0-10.0mm

1.0-10.0mm

Steel

1.0-6.0mm

1.0-6.0mm

Stainless steel

1.0-4.0mm

1.0-4.0mm

Special hydraulic tool magazine

Four-station

Four-station

Automatic trimming and forming mechanism

Optional accessories

Optional accessories

Automatic lubrication and spraying device

Optional accessories

Optional accessories

Product Advantages

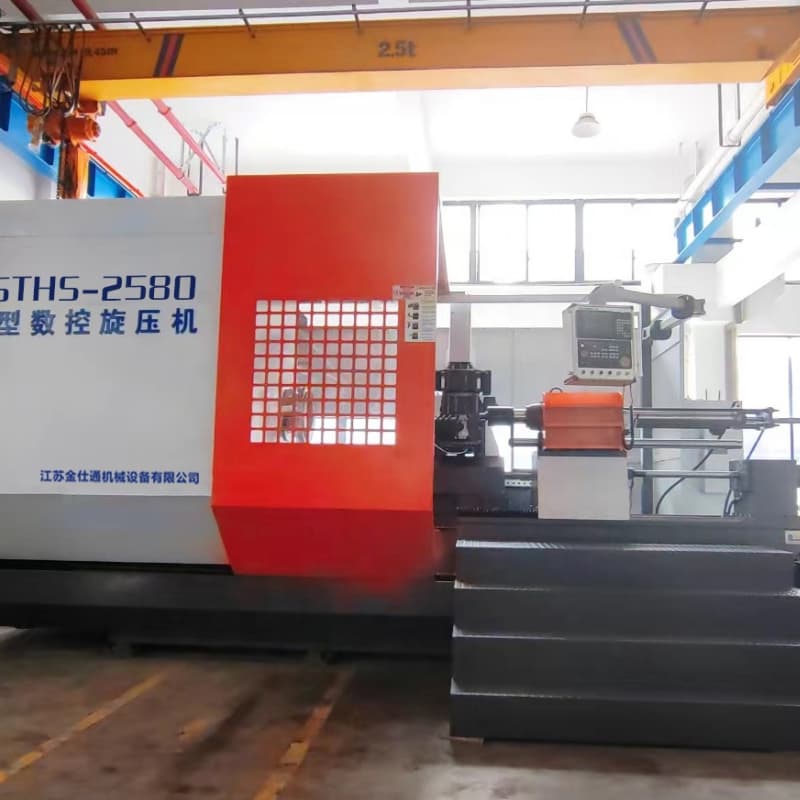

  • Metal spinner
    Powerful Programmable Forming
    Supports custom multi-trajectory programming and program storage, realizing flexible processing of complex rotary part profiles.

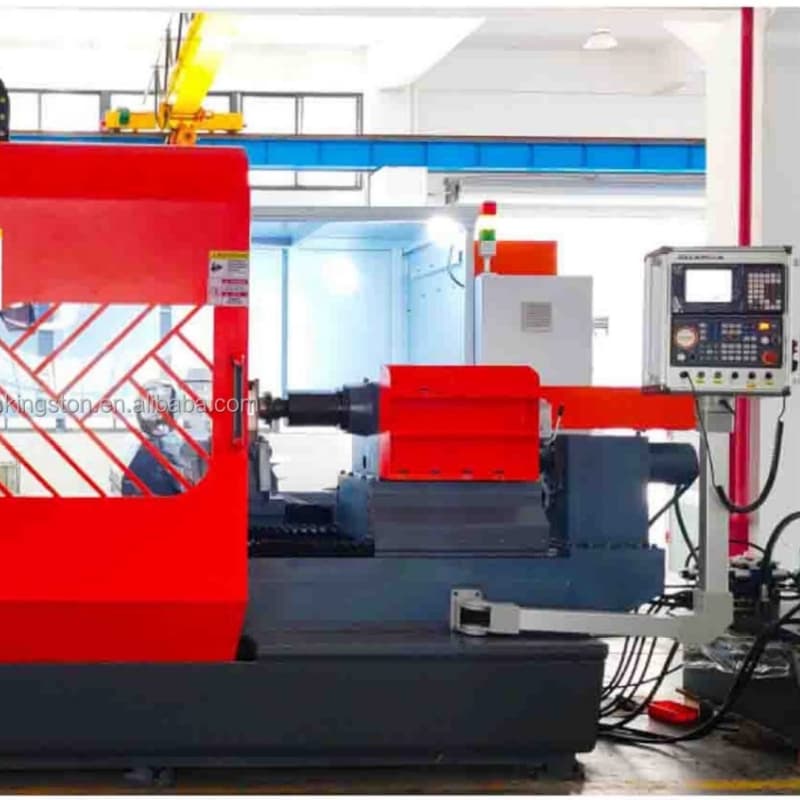

  • Alloy Metal Spinning Machine
    Super Large Processing Capacity
    Optimized for oversized diameter and thick-wall workpieces, meeting heavy-duty industrial forming demands.

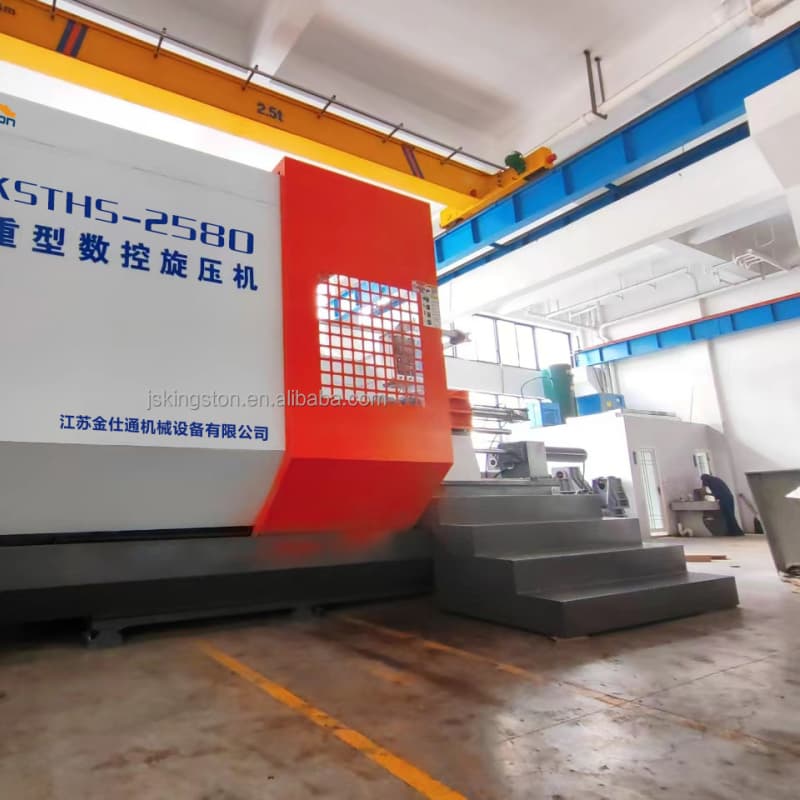

  • Auto Parts Spinning Lathe
     Ultra-Rigid Stable Structure
    Stress-relief welded frame resists high-load vibration, maintaining long-term consistent processing precision.

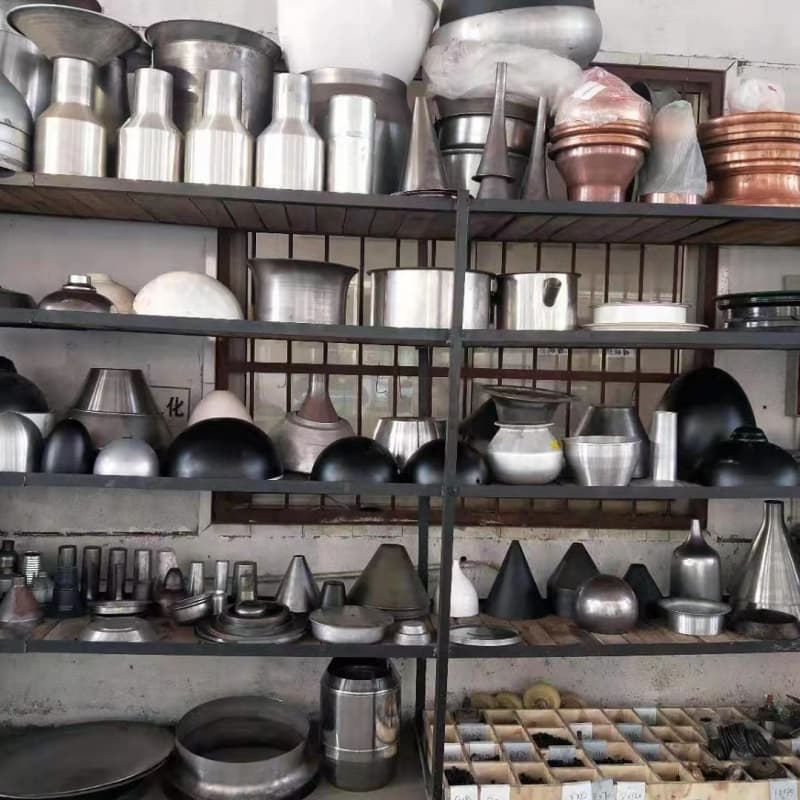

  • One Step Spinning Equipment
     Comprehensive Safety Protection
    Built-in travel limit and anti-collision devices avoid processing errors and equipment damage for safer production.
JIANGSU  KINGSTON  MACHINE  TOOLS GROUP    CO.,LTD
Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.





Why choose us

  • # Mature And Stable Technology
    With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
  • # Support Customized Solutions
    We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
  • # Complete After-sales Service
    We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Certificate



factory show

Professional Production Base, Strength in Precision Manufacturing

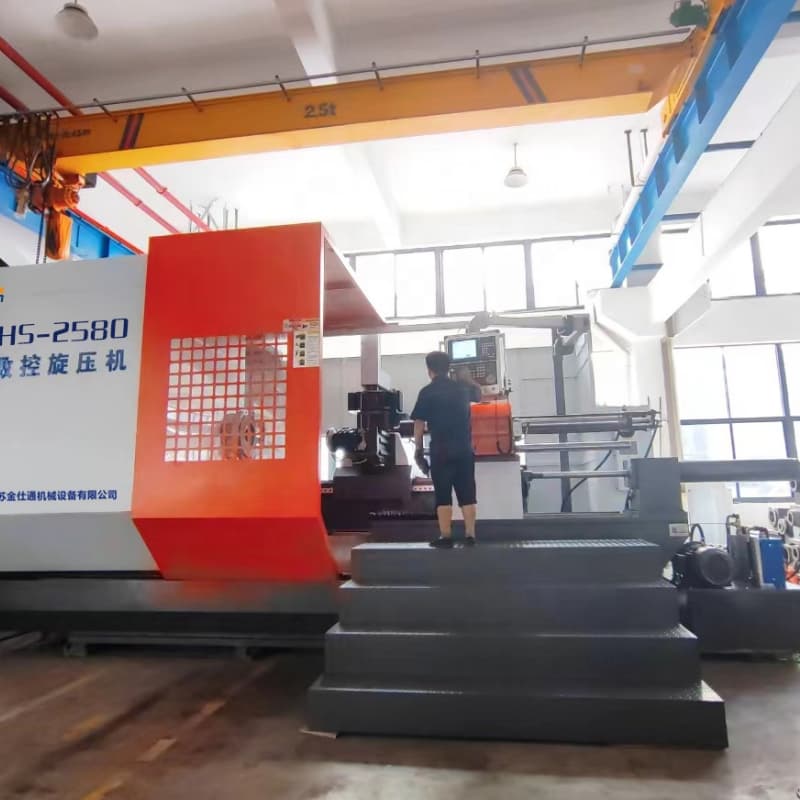

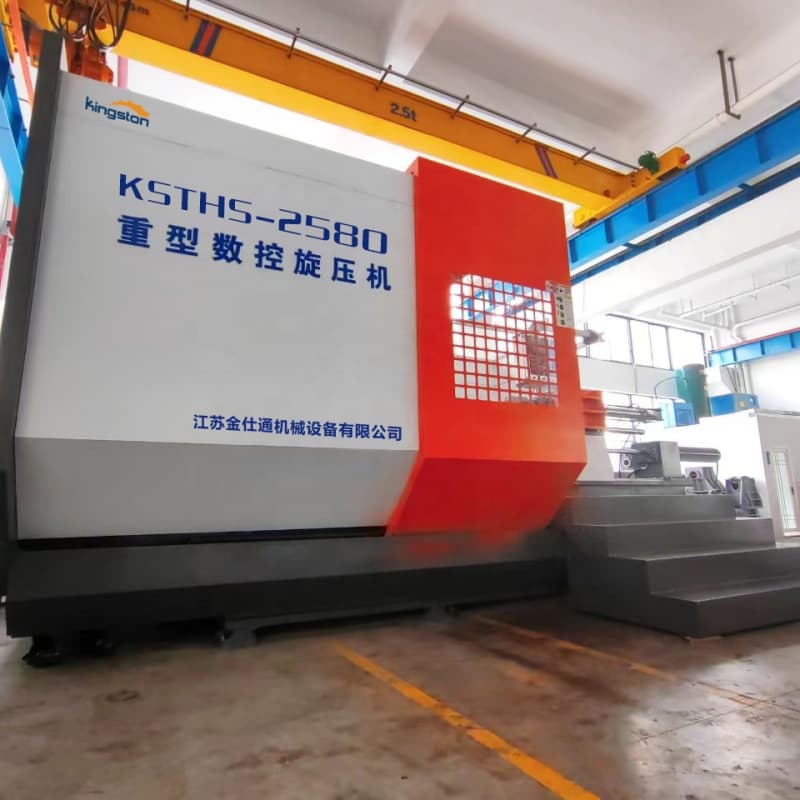

Cast Frame Spinning MachineAutomatic metal spinning machineServo cnc metal spinning machineCookware Spinning Forming Lathe



Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturerHeavy machinery manufacturer





FAQ

1. Q: What is the advantage of programmable rotary function?

A: The programmable rotary table provides precise angle indexing, ensuring symmetrical forming and uniform wall thickness for large rotary workpieces.

2. Q: Why is it called heavy-duty spinning lathe?

A: Reinforced thickened bed and high-load hydraulic system support continuous heavy spinning for thick metal plates without deformation.

3. Q: Does it support one-time integral forming?

A: Yes, it realizes seamless integral spinning, effectively avoiding welding seams and improving workpiece pressure resistance.

4. Q: What surface quality can be achieved?

A: CNC precise track control delivers smooth, crack-free and wrinkle-free surface, no secondary polishing required.

5. Q: Is the machine suitable for mass production?

A: It supports mass program storage and one-click recall, greatly improving production consistency and efficiency.
