YK3180E 6-Axis CNC Gear Hobbing Machine with 800mm Workpiece Capacity

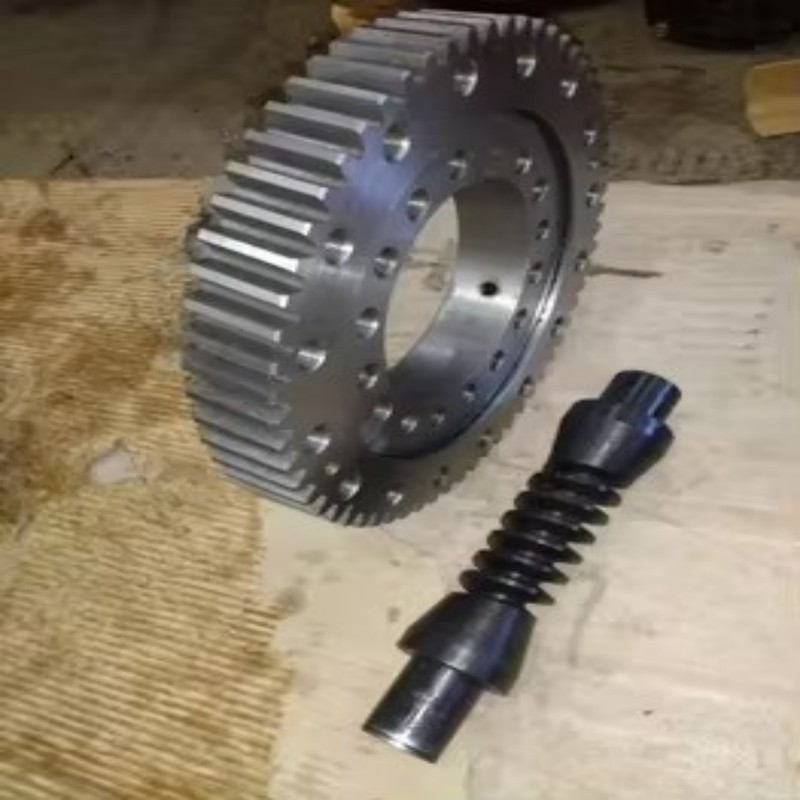

The YK3180E is a 4/6-axis CNC gear hobbing machine featuring radial (X), tangential (Y), axial (Z), and tool post rotary (A) axes for high-precision gear cutting. It processes spur gears, helical gears, worm gears, and sprockets with exceptional accuracy and operational stability

Order(MOQ) :
1
Product Origin :
China
Color :
China
Shipping Port :
Shanghai
Lead Time :
30
Weight :
17000KG

Inquire Now

1.Versatile Gear Processing: Handles spur, helical, worm, and sprocket gears with ease.

2.High-Precision Indexing: Advanced worktable drive ensures accurate tooth spacing.

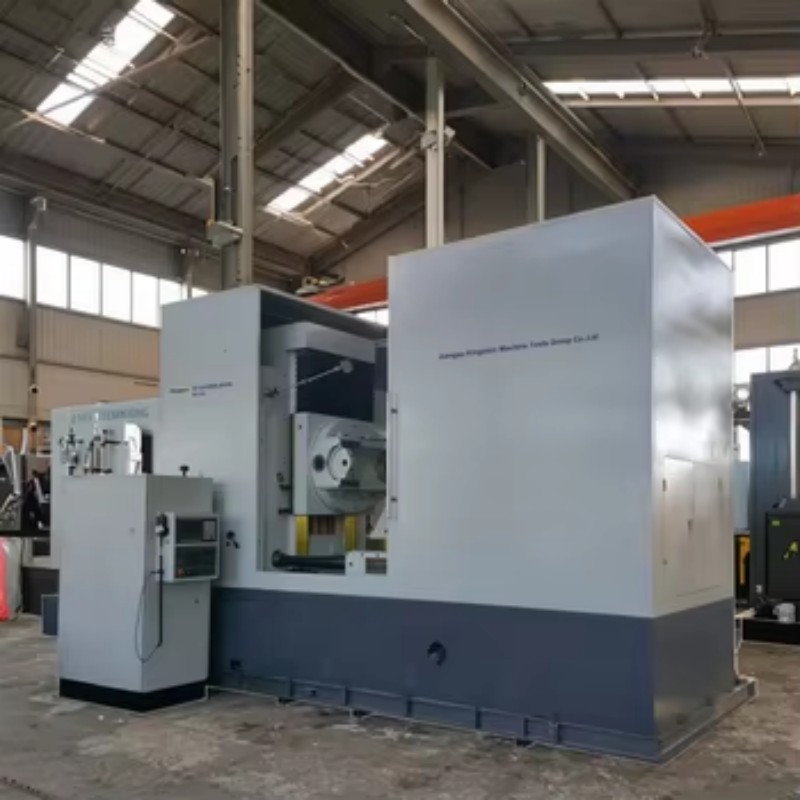

3.Tangential Feed Capability: Y-axis tangential feed enables precise hob positioning and shifting.

4.Robust Construction: Designed for continuous operation in demanding production environments.

5.User-Friendly Programming: Intuitive CNC interface simplifies setup and operation.

specification

Description	Specifications
Max. workpiece dia.	800mm
Max. module	10mm
Hob head slide travel	400mm
Max. hob head swivel	±45rad
Max. hob dimensions （dia. × length）	200×240mm
Max. axial travel of the hob	200mm
Center distance between hob and worktable	45~405mm
Distance between hob center and worktable surface	280~680mm
Distance between workstay center and worktable surface	390~890mm
Max.Tooth width	200 mm
Table hole dia	120 mm
Spindle speed	80~500r/min
Max. worktable speed	50r/min
Max. radial feed speed (X-axis)	2600 mm/min
Max. tangential feed speed (Y-axis)	2000 mm/min
Axial feed speed（Z-axis）	2600 mm/min
Max. hob head rotary speed	5rad/s
Main motor power	18.5KW
Total power	50Kw/50Hz
Net weight	17000Kg(6 AXIS )/15000KG(4 AXIS)
Overall dimensions	42×39×37cm

product introduction

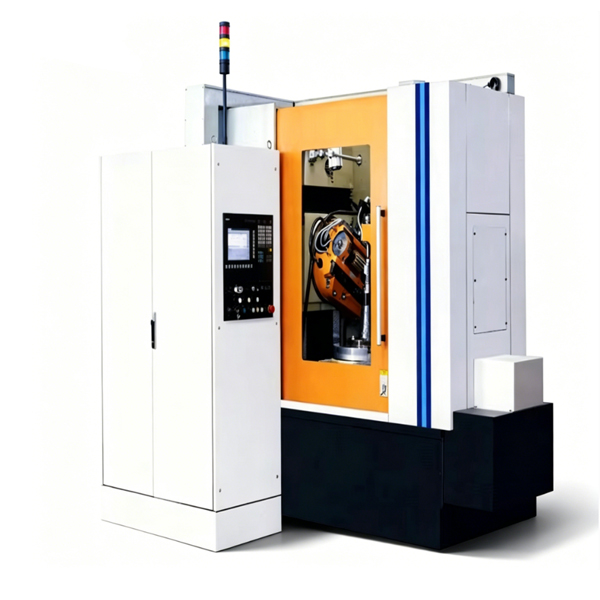

The YK3180E is a sophisticated 6-axis CNC gear hobbing machine engineered for high-precision gear production. With control axes including radial feed (X), tangential feed (Y), axial feed (Z), and tool post rotary (A) motion, this machine delivers exceptional flexibility for machining spur gears, helical gears, worm gears, and sprockets. The robust construction ensures stable operation and consistent accuracy, making it ideal for both batch production and single-piece manufacturing in automotive, aerospace, and industrial drivetrain applications
