Y31800B/Y31800C/Y311250C High-Power Gear Hobbing Trio

This trio of heavy-duty hobbing machines spans workpiece diameters from 8 meters to 12.5 meters, with spindle power ranging from 37kW to 45kW. All three models support steel modules to 30mm, cast iron to 40mm, and achieve 60mm module with finger milling cutters, serving the largest gears in power generation, marine propulsion, and heavy machinery sectors.

Order(MOQ) :
1
Product Origin :
China
Color :
China
Shipping Port :
Shanghai
Lead Time :
30
Weight :
131T

Inquire Now

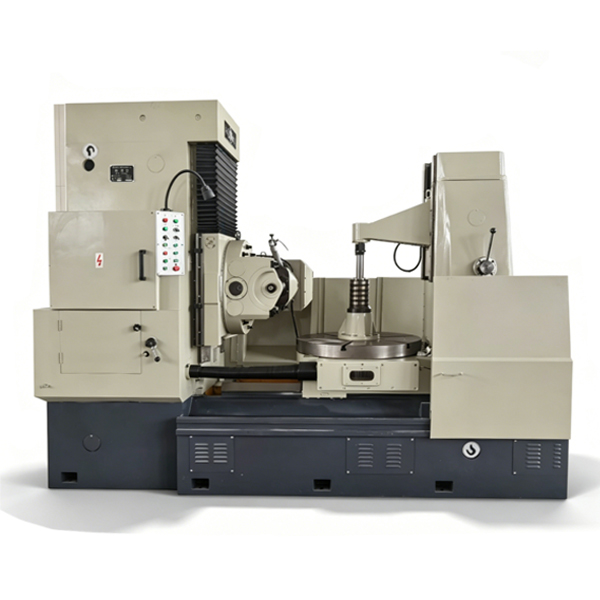

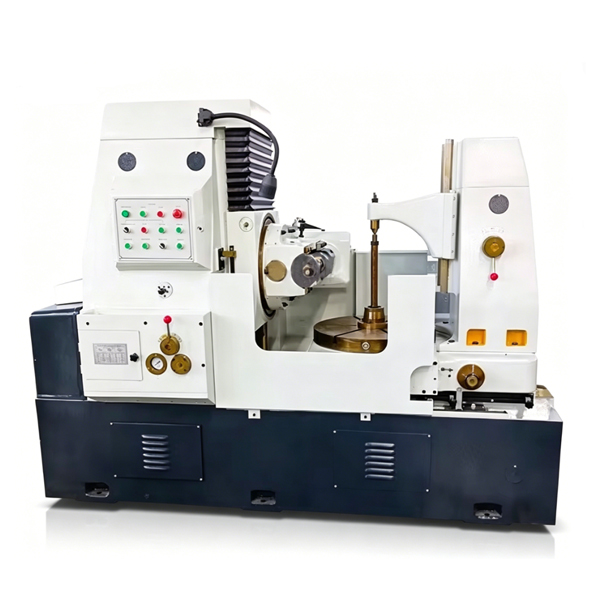

1.Tiered Capacity Options: Y31800B clears 8-meter diameters with 37kW power; Y31800C maintains 8-meter swing with 45kW; Y311250C expands to 12.5-meter diameters with 45kW.

2.Comprehensive Module Capability: Steel modules to 30mm, cast iron to 40mm, and finger milling cutter modules to 60mm across the entire series.

3.High-Stiffness Bed Construction: Ribbed casting design on all models minimizes deflection under full cutting loads.

4.Load-Sensing Feed Control: Adaptive feed rates compensate for tool wear conditions, maintaining consistent tooth geometry.

5.Extended Vertical Travel: 2000mm toolhead stroke on all three models accommodates deep-face gears.

specification

Specification	Unit Model		Y31800B	Y31800C	Y311250C
Max workpiece dia	mm	With small pillar	Post without a crossbar	Post without a crossbar	Post without a crossbar
	mm	Without small illar	8000	8000	12500
Max module	Module Steel		30	30	30
	Module Cast iron		40	40	40
	Finger milling cutter		60	60	60
Max width	mm		1800	1800	1800
Max dia/length of hob cutter	mm		400/500	400/500	400/500
Worktabel dia	mm		3700	4500	4500
Arbor dia	mm		30/40/50/60/80	30/40/50/60/80	30/40/50/60/80
Main motor	KW		37	45	45
Distance from hob cutter to worktable axes center	mm		750-4400	1200-4450	1200-6545
Worktabel aperture	mm		1000	1000	1000
Machine size	mm		1400050705200	1446050705500	1900060705570
Net weight	T		131	170	175

product introduction

The Y31800B, Y31800C, and Y311250C represent the pinnacle of gear hobbing technology, addressing workpiece sizes that approach the practical limits of hob-based machining. These machines incorporate oversized spindle bearings, reinforced column sections, and heavily ribbed beds that distribute cutting forces efficiently across the entire structure. The feed system on all three models incorporates load-sensing technology to optimize cutter engagement as tool wear progresses, while advanced condition monitoring systems provide real-time vibration analysis to protect critical components.

All three machines serve the most demanding applications: wind turbine main shafts, marine propulsion systems, large kiln drives, and rolling mill stands. The progressive power and capacity tiers allow manufacturers to select the optimal configuration for their specific workpiece portfolio.
