X6140 Heavy Duty Universal Milling Machine

X6140 is a high‑rigidity universal knee‑type milling machine for versatile metal machining. It delivers stable precision and strong cutting performance for general engineering workshops.The X6140 universal milling machine is powered by an 11kW main motor and features a 1700×400 mm worktable. With 18 spindle speeds (30-1500 rpm) and a swiveling table (±45°), it delivers robust performance for heavy-duty metal cutting.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
3850Kg

Inquire Now

Heavy Duty Universal Milling Machine with 11kW Spindle X6140

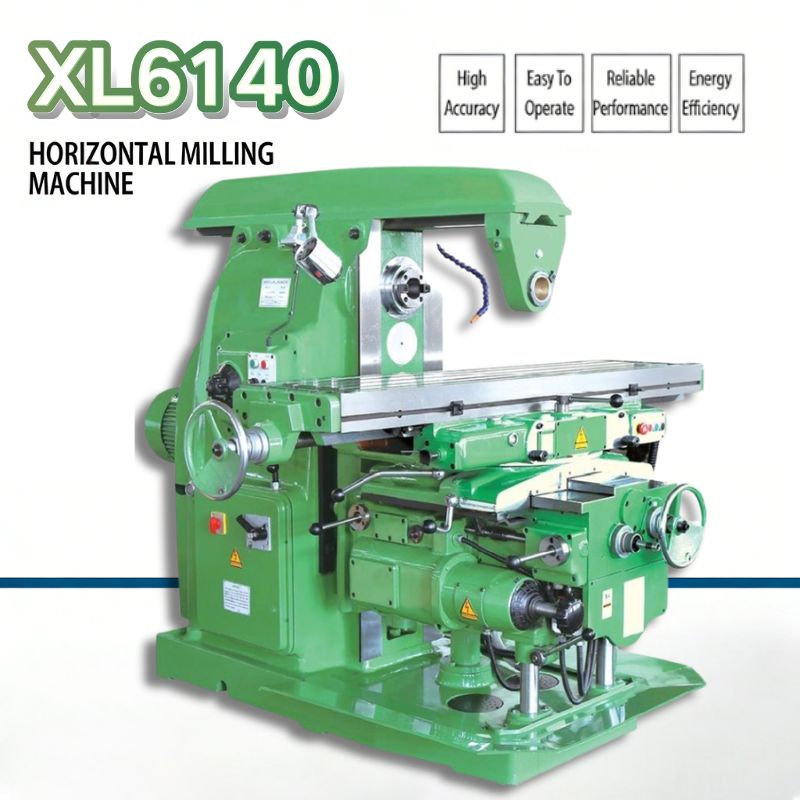

X6140 universal milling machine heavy duty

1.High-power spindle system: Equipped with an 11 kW main motor, an ISO 50 taper spindle, and 18-speed gear ratios ranging from 30 to 1500 rpm; low-speed, high-torque operation is suitable for heavy-duty cutting, whilst high-speed operation is ideal for finishing.

2.Rigid bed structure: A monobloc cast iron bed, optimised through finite element analysis, significantly reduces cutting vibrations, ensuring long-term machining accuracy and machine tool longevity.

3.Large-Travel Worktable: 1700 × 400 mm worktable with longitudinal travel of 900/880 mm, transverse travel of 315/300 mm, and vertical travel of 350/330 mm. With a maximum load capacity of 800 kg, it is suitable for large workpieces.

4.Rapid Feed System: Rapid traverse speeds of 2300 mm/min on the X/Y axes and 770 mm/min on the Z axis, significantly reducing set-up times and improving production efficiency.

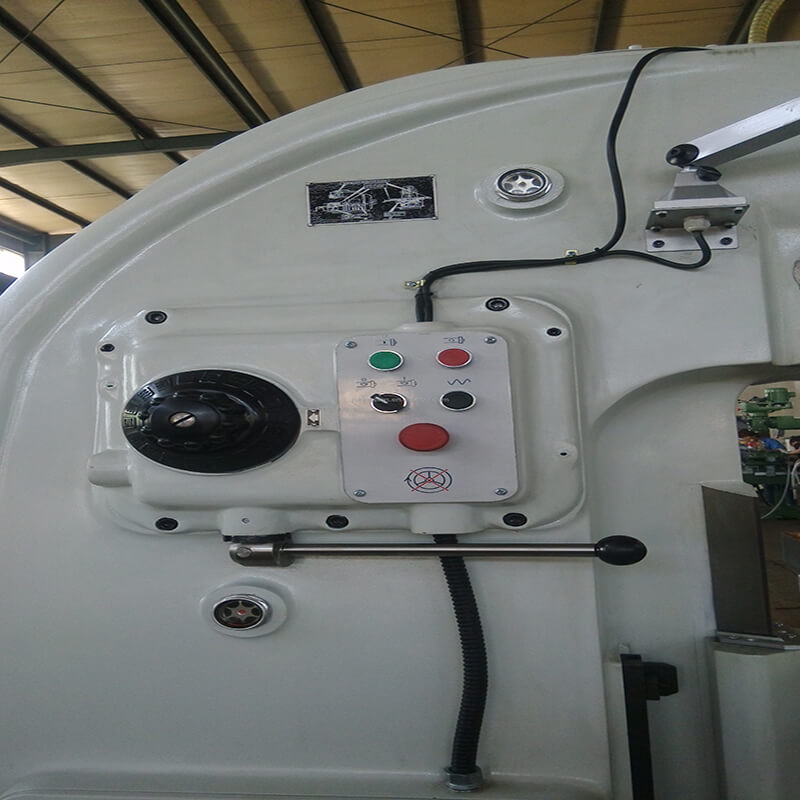

5.Safety and protection: Equipped with an emergency stop button and overload protection switch; a semi-enclosed protective cover is available as an option, complying with CE safety standards.

specification

Specification	Units	X6140
Table size	mm	1700×400
No.of T-slots	-	3
Width cf T-slots	mm	18
Max.load	kg	800
Lorigitudinal travel(miarual/auto)	TITI	900/880
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	350/330
Rapid feed speed	mm/min	X:2300 Y:2300,Z:770
Table feed range(XY/Z)	mm/min	23.5-1180/23.5-1180/8-394
Spindle speed range	r/mm	30-1500
Spindle speed step	(steps)	18
Dislance belween spindle axis and lable surface	mm	30-380
Power of spindle motor	kw	11
Overall dimension(LxW×H)	mm	2556×2159×1770
Net weight	kg	3850

Product Advantages

High-Power Heavy Cutting Capacity
Equipped with an 11kW spindle motor, ISO 50 taper, and 18 speeds from 30-1500 rpm. Low-speed high torque easily handles stainless steel, mold steel, and other difficult-to-machine materials.
Extra Large Working Envelope
1700×400 mm worktable with 880 mm longitudinal travel, 300 mm cross travel, and 330 mm vertical travel. Maximum load 800 kg, suitable for large molds and structural parts.
Universal Milling Flexibility
Table swivels ±45°, enabling helical grooves, spiral gears, and worm gears with a universal dividing head – one machine for multiple tasks.
High-Speed Rapid Feeds
X/Y axis rapid traverse 2300 mm/min, Z axis 770 mm/min, significantly reducing idle time and improving batch production efficiency.
Comprehensive Safety Protection
Equipped with emergency stop button, overload protection switch, and optional semi-enclosed guard, meeting CE safety standards.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

factory show

Professional Production Base, Strength in Precision Manufacturing

Heavy machinery Factory Exhibition cnc machine High-quality lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer
Heavy machinery manufacturer

1. Can the X6140 machine stainless steel?

Yes. The 11 kW spindle and low-speed, high-torque design are suitable for difficult-to-machine materials such as stainless steel.

we recommend using carbide cutting tools.

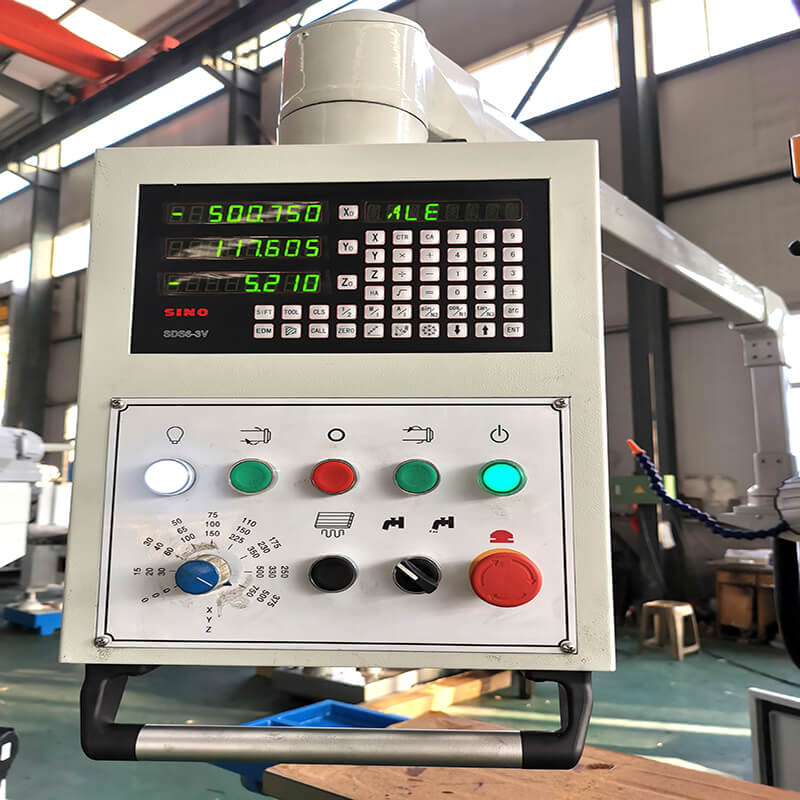

2.Is a digital readout (DRO) included?

A DRO is not included as standard but is available as an option. We recommend contacting our sales team to discuss customisation.

3.Can an indexing head be fitted to the worktable?

Yes. With T-slot spacing of 90 mm, it is compatible with a variety of indexing heads and rotary tables.

4.What are the voltage requirements?

The standard specification is 380V/50Hz, but 220V/60Hz or other voltages can be customised.

5.What is the warranty period?

 The machine comes with a 12-month warranty, whilst the spindle and gearbox are covered for 18 months.
