CNC Horizontal Milling Machine with ISO40 Spindle XLK6030CL

Name: CNC Horizontal Milling Machine with ISO40 Spindle XLK6030CL
Availability: InStock

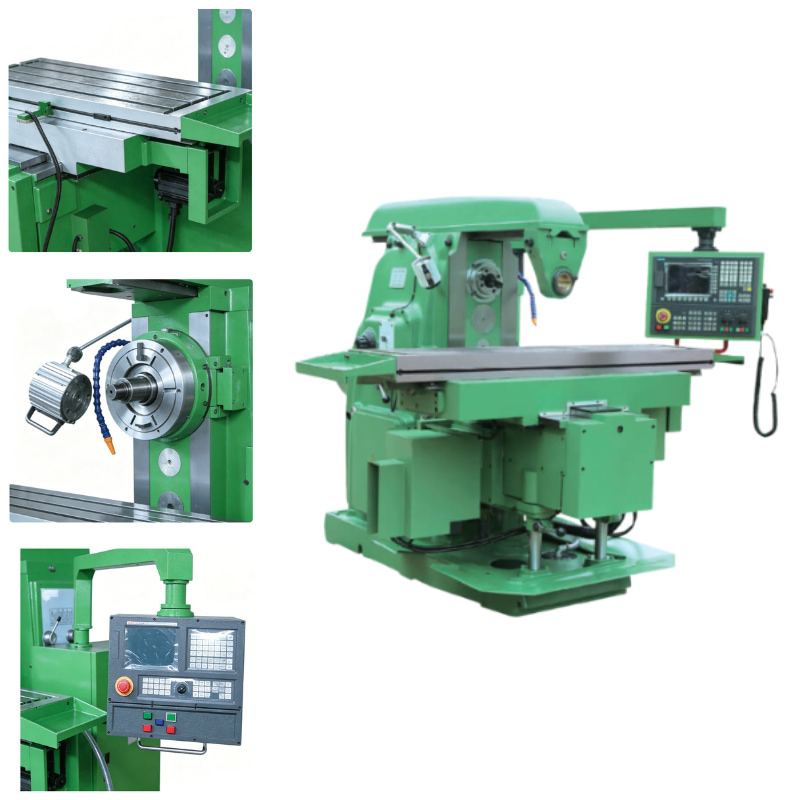

XLK6030CL is a compact economic CNC horizontal milling machine. It is designed for small precision workpieces with reliable CNC performance.The XLK6030CL is a compact CNC horizontal milling machine with an ISO40 spindle and 1370×300 mm table. It offers full CNC capability in a small footprint, perfect for precision shops and labs.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
2940Kg

Inquire Now

Compact CNC Horizontal Milling Machine for Small Workpieces

Extended Travel Universal Milling Machine

1.Compact design: Dimensions 1850 × 1760 × 1800 mm, net weight 1850 kg, suitable for precision machining workshops with limited space.

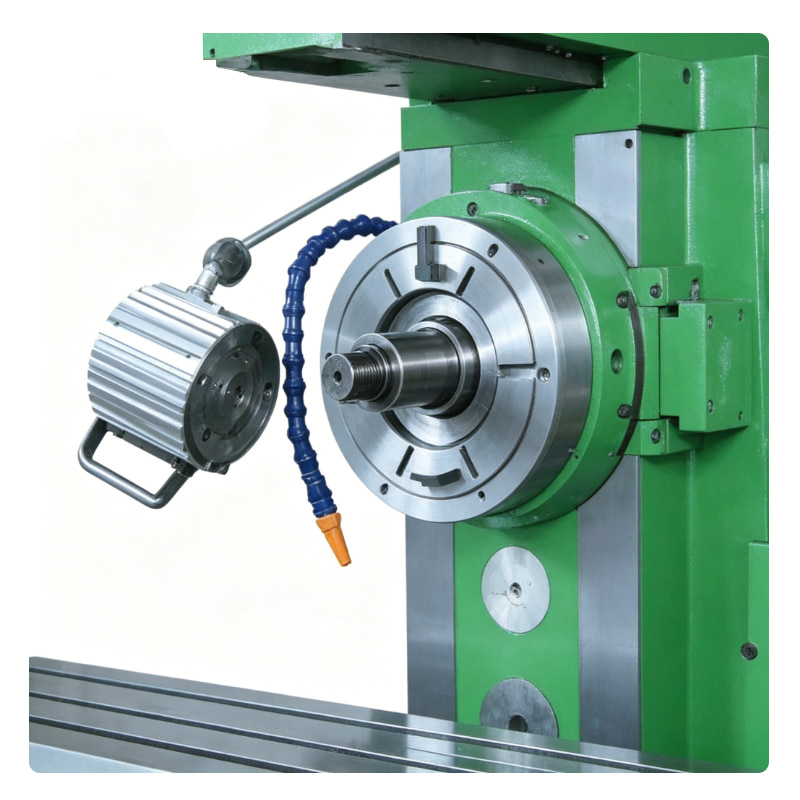

2.ISO 40 spindle: Speed 35–1500 rpm, 3 kW spindle motor, suitable for machining small to medium-sized parts.

3.High-Speed Rapid Traverse: XY axis rapid traverse 4000 mm/min, Z-axis 3000 mm/min, reducing set-up time.

4.Fourth-Axis Expansion: Reserved interface for retrofitting a CNC indexing head.

specification

Specification	X6132	X6132B	X6132H	X6132BH
Table sze	320×1325	320×1600	320×1325	320×1600
Max longitudinaltravəl(manual/automatic)	700/680	900/880	700/680	900/880
Max cross travel (manual/automatic)	255/240
Max vertica travel(manual/autamatic)	320/300		410/390
Max rotary angle of table	±45°
Distance between spindle and table surface	30/350		30/440
Spindle speed step	18 steps
Spindle speed range	30~1500
Feed range of table travel	18 steps
Table feed range	23.5-1180/23.5-1180/8-394
Main motor power	7.5
Feed mctor powor	1.5
Overall size	2294×1770×1610	2294×2050×1610	2294×1770×1790	2294×2050×1790
Net weight /Gross weight	2650/2950	2740/3040	2850/3150	2940/3240

Product Advantages

Space-Saving Compact Design
Overall dimensions 2294×1770×1610 mm, net weight 2650 kg, ideal for small workshops, laboratories, and educational institutions.
Precision Gear Drive

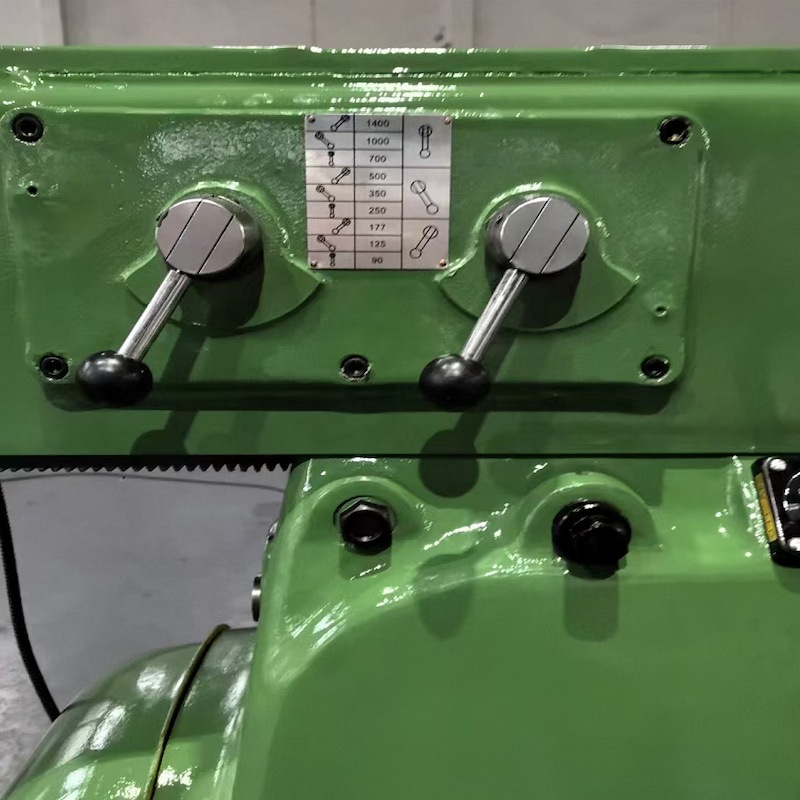

7.5kW main motor, 18 mechanical speeds from 30-1500 rpm. High transmission efficiency with ample low-speed torque.
Flexible Swiveling Table

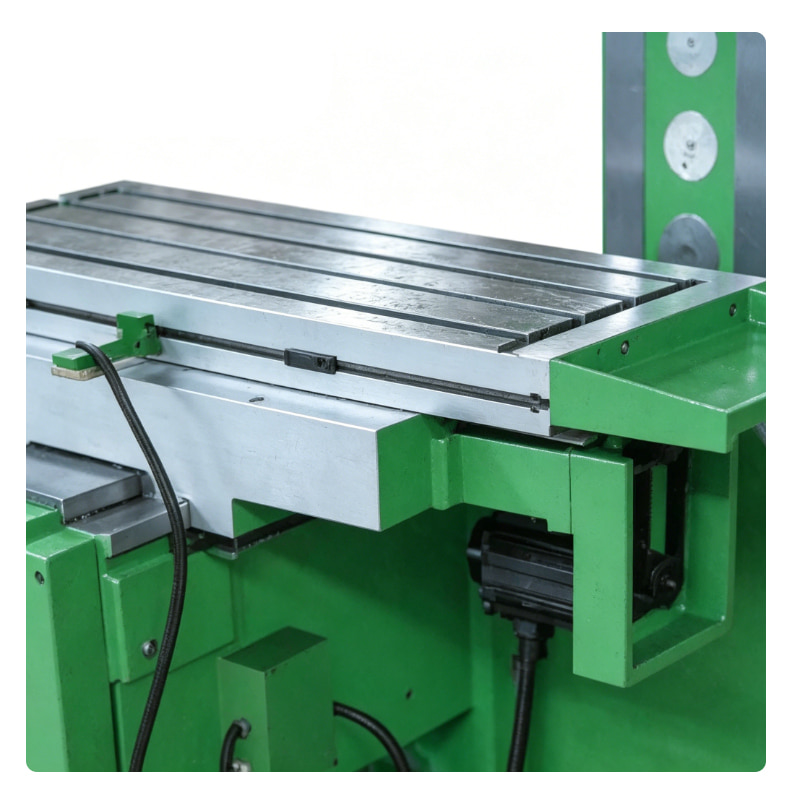

Table rotates ±45° left/right, allowing bevels and helical grooves without complex fixtures, greatly expanding machining range.
Economical Energy Consumption
Feed motor only 1.5 kW, low overall energy consumption, suitable for long-hour continuous operation, reducing operating costs.
Rich Optional Accessories
Dividing head, rotary table, DRO, ballscrews available – upgrade as needed to meet different precision requirements.
