XLK6036CL CNC Horizontal Knee-Type Milling Machine with Siemens

Name: XLK6036CL CNC Horizontal Knee-Type Milling Machine with Siemens
Availability: InStock

XLK6036CL CNC horizontal milling machine adopts SIEMENS 808D system. It realizes automatic machining with high precision and high efficiency.The XLK6036CL is a CNC horizontal milling machine standard with Siemens 808D controller. Featuring a 1600×360 mm table and 5.5kW spindle, it brings automation to heavy horizontal milling tasks.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
2940Kg

Inquire Now

CNC Horizontal Knee-Type Milling Machine with High Precision

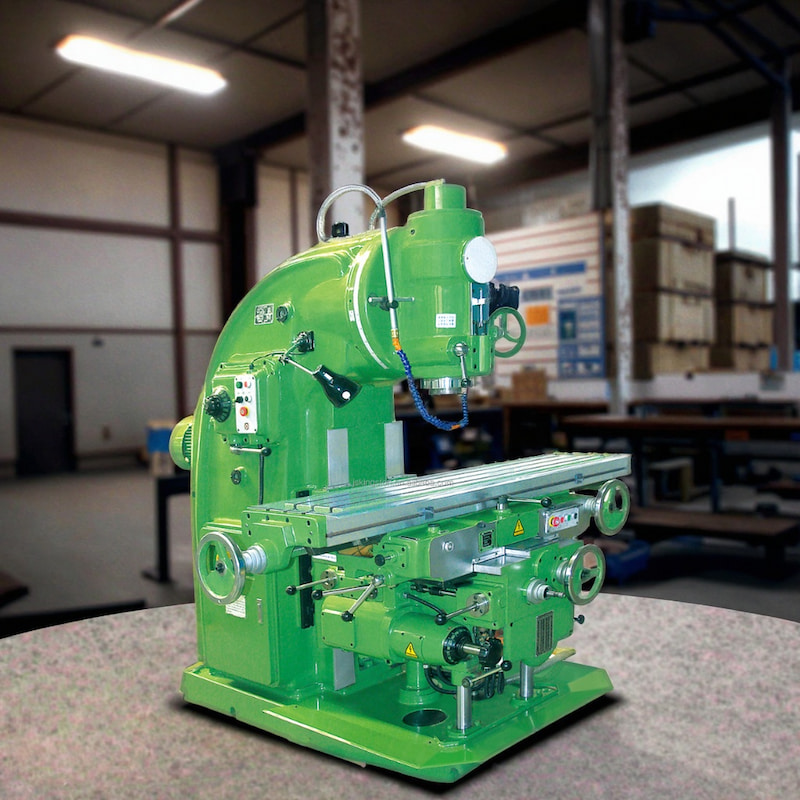

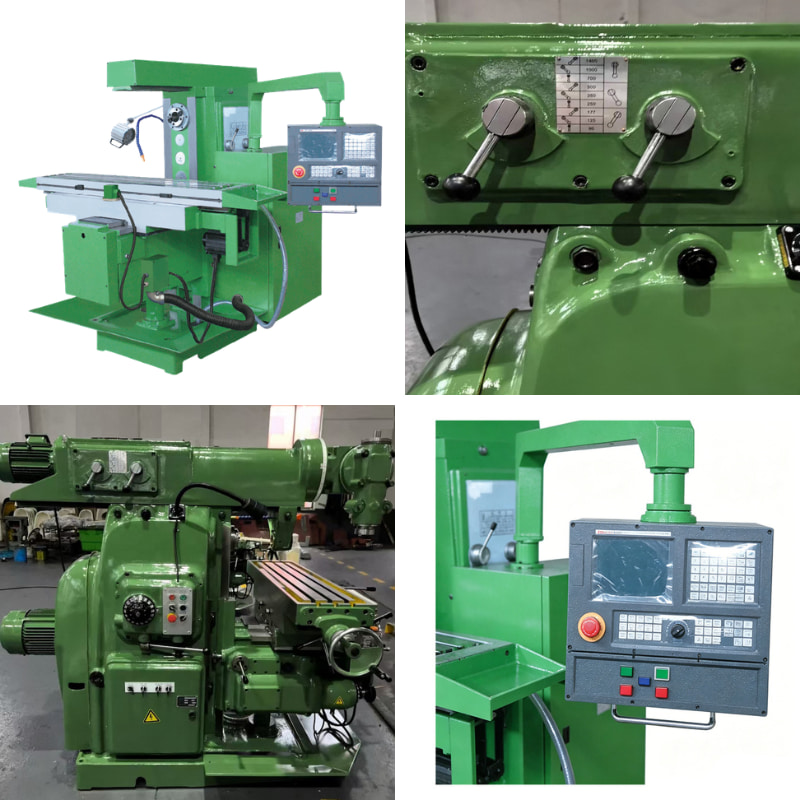

Extended Travel Universal Milling Machine

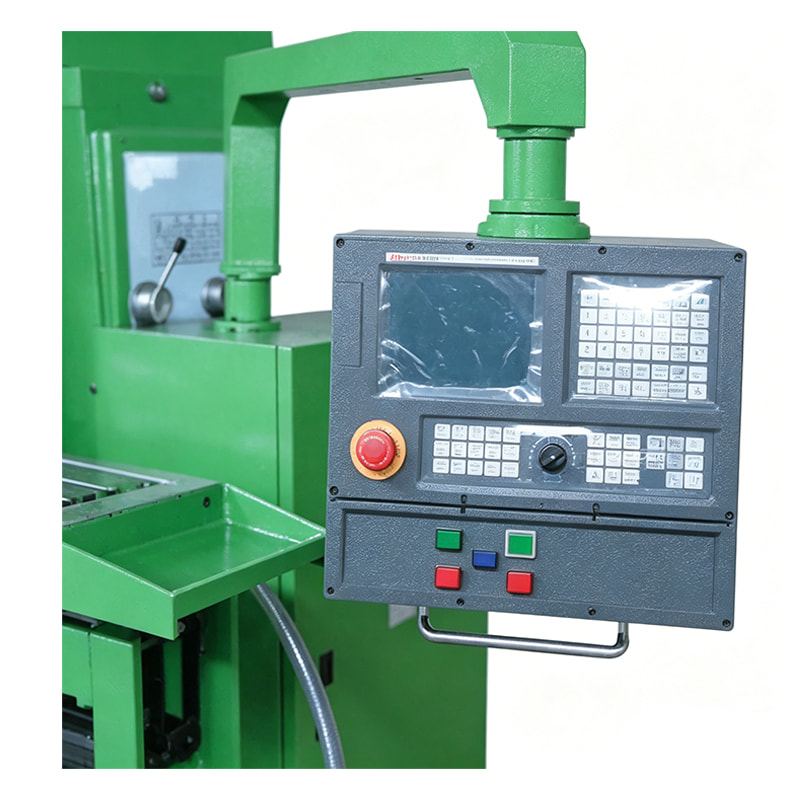

1.Siemens 808D system: graphical programming, supports ISO code, features a USB interface, and is easy to learn.

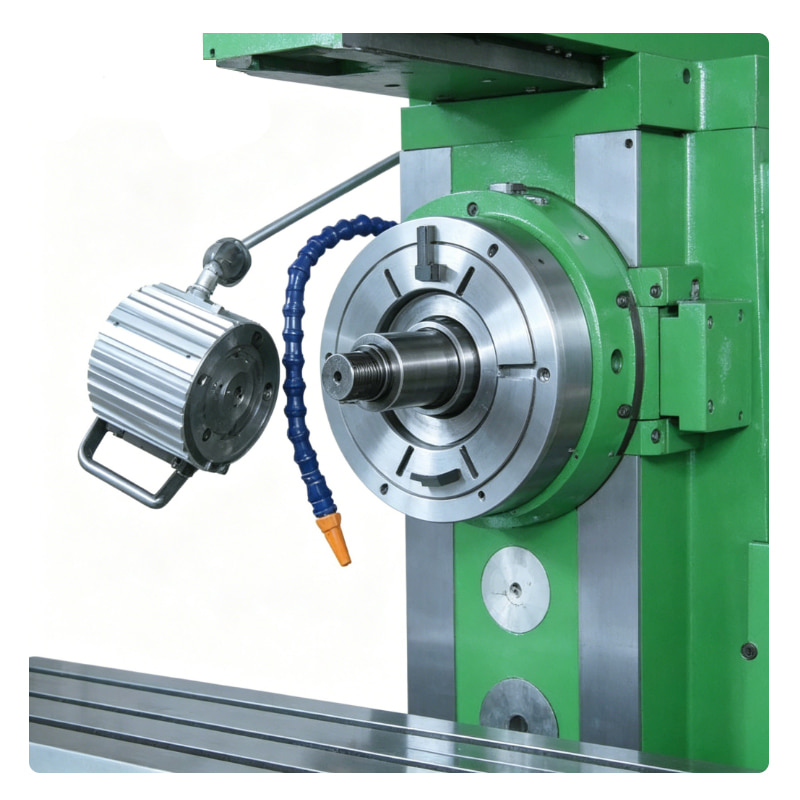

2.High-rigidity horizontal structure: Horizontally mounted spindle, suitable for heavy-duty cutting; tool holder ensures stability for long tool holders.

3.Servo drive: Servo motors on all X, Y and Z axes, with rapid traverse speeds of 4000/4000/3000 mm/min.

4.Compatible with multiple systems: Optional FANUC, Mitsubishi or GSK980MDC systems available to suit different user preferences.

specification

Specification	Unit	XLK6036C	XLK6036CL	XLK6030
Spindle hole taper	一	7:24 ISO50		7:24 ISO40
Distance between spindle and table surface	mm	10-460		75-475
Distance from spindle axis to arm	mm	175		155
Spindle speed range	r/min	12steps 60-1800		12steps 35-150
Arm travel	mm	500		一
Table size	mm	1325×360	1600×360	1370×300
Table travel(XY/Z)	mm	1100/320/450	1300/320/450	820/30D/400
Table rapid feed speed	mm/min	4000/4000/3000		4000/4000/3000
T-slot(No./width/pitch)	mm	3/18/70		3/14/80
Main motor power	kw	5.5		3
Torque of×/Y/Zaxis AC servo motor	N.m	10/10/18		10/10/15
Overall size(LxW×H)	mm	2400×2000×1870	28C0×200Dx1870	1850×1760x1800
Net weight	kg	2465	2510	1850

Product Advantages

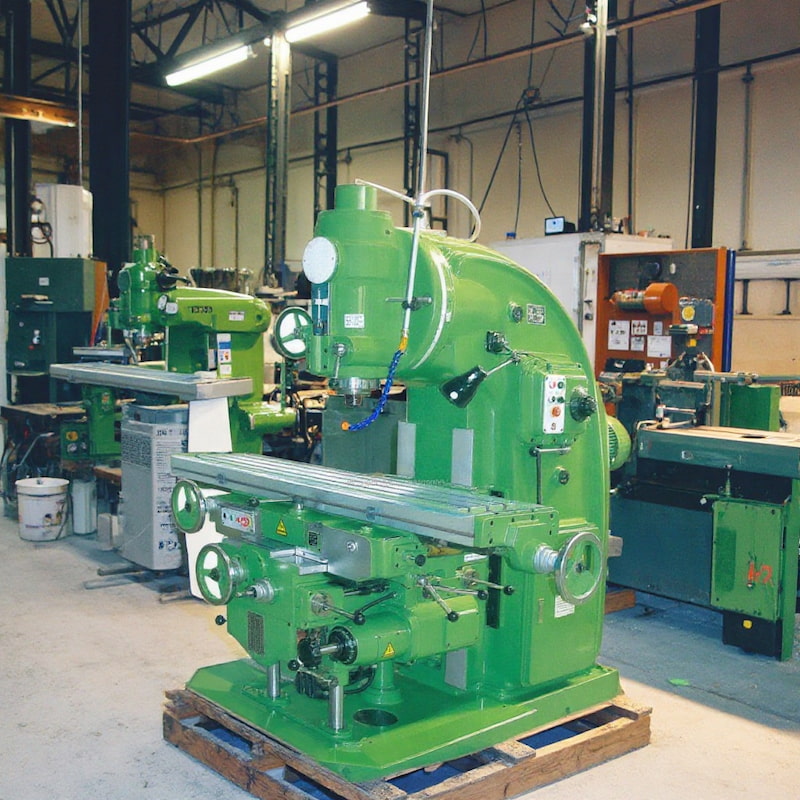

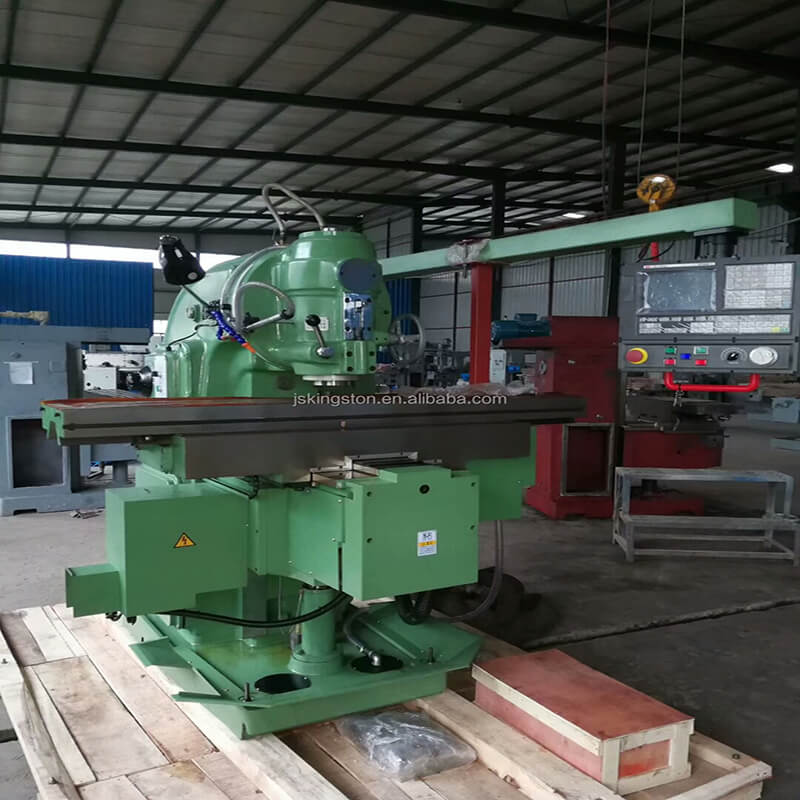

Space-Saving Compact Design
Overall dimensions 2294×1770×1610 mm, net weight 2650 kg, ideal for small workshops, laboratories, and educational institutions.

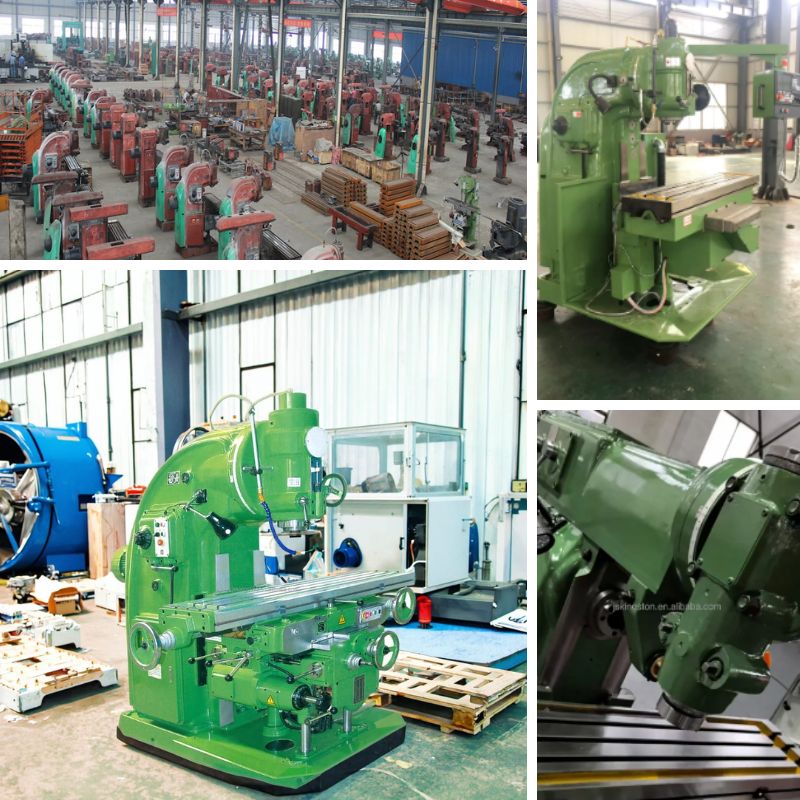

Precision Gear Drive
7.5kW main motor, 18 mechanical speeds from 30-1500 rpm. High transmission efficiency with ample low-speed torque.

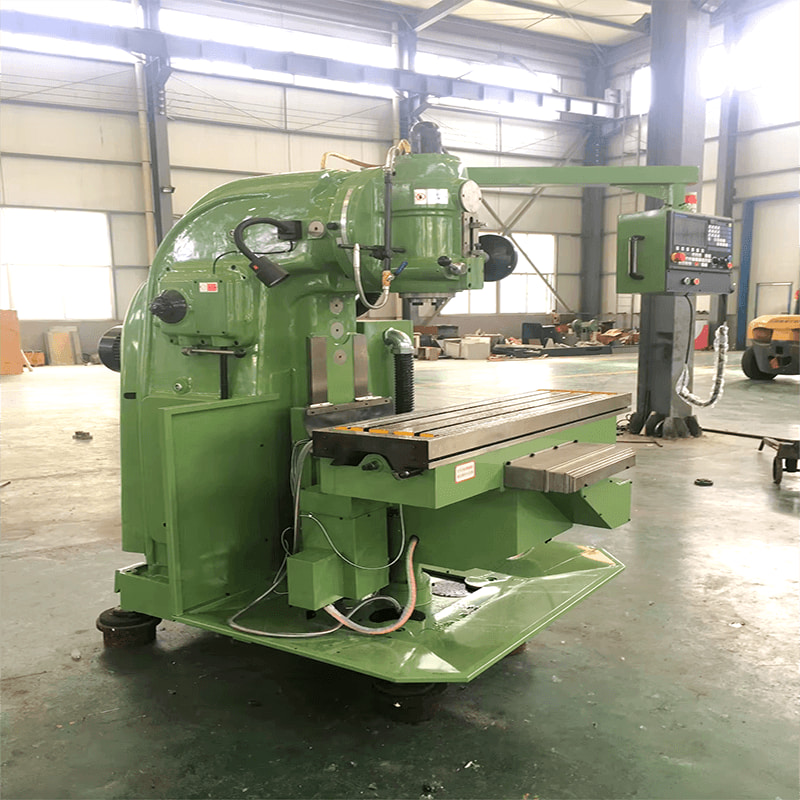

Flexible Swiveling Table
Table rotates ±45° left/right, allowing bevels and helical grooves without complex fixtures, greatly expanding machining range.
Economical Energy Consumption
Feed motor only 1.5 kW, low overall energy consumption, suitable for long-hour continuous operation, reducing operating costs.
Rich Optional Accessories
Dividing head, rotary table, DRO, ballscrews available – upgrade as needed to meet different precision requirements.
