X6132 Versatile Universal Milling Machine with Extended Travel

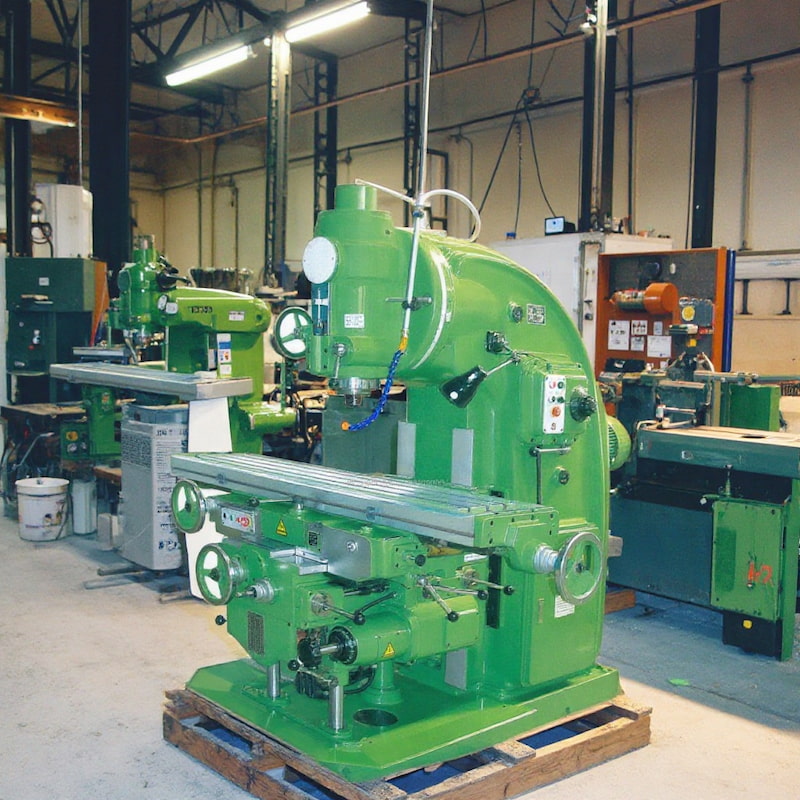

Extended Travel Universal Milling Equipment

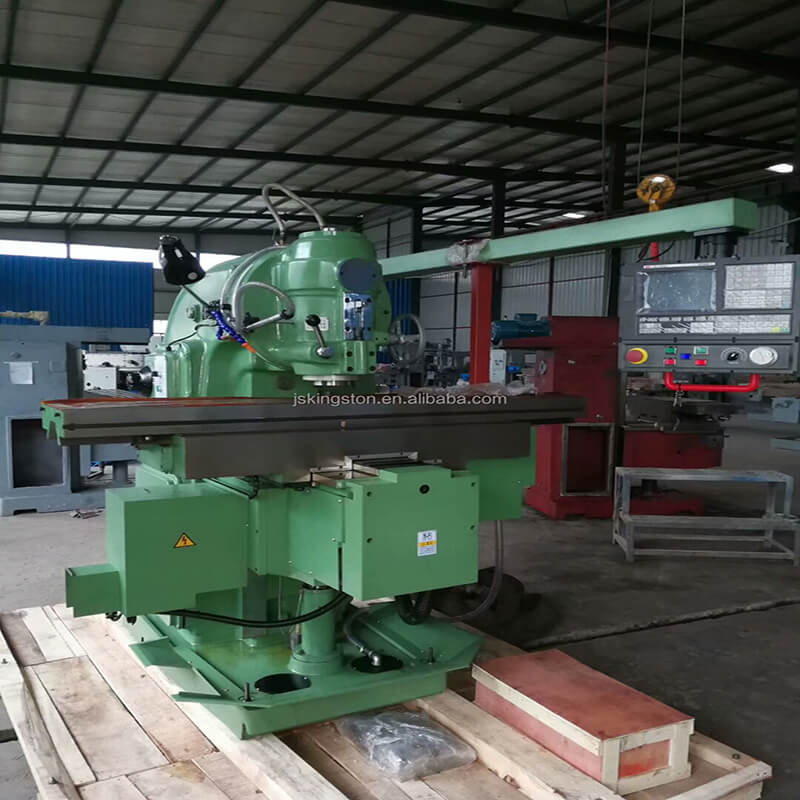

Multi‑Function Universal Metal Milling Machine

X6132 Versatile Universal Milling Machine with Extended Travel

X6132/B/H/BH series offers flexible configurations and extended travel for diversified machining. It provides reliable performance and easy operation for small and medium workshops.The X6132 universal milling machine offers a compact footprint with a 7.5kW spindle and 320×1325 mm table. Ideal for toolrooms and small-batch production, it features ±45° table swivel and 18 spindle speeds.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
2940Kg

Inquire Now

Compact Universal Milling Machine with 7.5kW Motor X6132

Extended Travel Universal Milling Machine

1.Space-optimised design: With overall dimensions of 2294 × 1770 × 1610 mm, this machine is ideal for workshops with limited space; its net weight of 2650 kg makes it easy to move and install.

2.Precision Spindle Unit: 7.5 kW main motor, ISO 50 taper, wide speed range of 30–1,500 rpm, capable of machining a variety of materials including steel, cast iron and aluminium alloy.

3.Flexible Feed System: Worktable travel of 680 mm (longitudinal), 240 mm (transverse) and 300 mm (vertical), with 18 feed rate steps to meet diverse cutting requirements.

4.±45° swivel table: The table can swivel 45° to the left and right, allowing for easy machining of helical grooves and helical racks without the need for special fixtures.

specification

Specification	X6132	X6132B	X6132H	X6132BH
Table sze	320×1325	320×1600	320×1325	320×1600
Max longitudinaltravəl(manual/automatic)	700/680	900/880	700/680	900/880
Max cross travel (manual/automatic)	255/240
Max vertica travel(manual/autamatic)	320/300		410/390
Max rotary angle of table	±45°
Distance between spindle and table surface	30/350		30/440
Spindle speed step	18 steps
Spindle speed range	30~1500
Feed range of table travel	18 steps
Table feed range	23.5-1180/23.5-1180/8-394
Main motor power	7.5
Feed mctor powor	1.5
Overall size	2294×1770×1610	2294×2050×1610	2294×1770×1790	2294×2050×1790
Net weight /Gross weight	2650/2950	2740/3040	2850/3150	2940/3240

Product Advantages

Space-Saving Compact Design
Overall dimensions 2294×1770×1610 mm, net weight 2650 kg, ideal for small workshops, laboratories, and educational institutions.
Precision Gear Drive
7.5kW main motor, 18 mechanical speeds from 30-1500 rpm. High transmission efficiency with ample low-speed torque.
Flexible Swiveling Table
Table rotates ±45° left/right, allowing bevels and helical grooves without complex fixtures, greatly expanding machining range.
Economical Energy Consumption
Feed motor only 1.5 kW, low overall energy consumption, suitable for long-hour continuous operation, reducing operating costs.
Rich Optional Accessories
Dividing head, rotary table, DRO, ballscrews available – upgrade as needed to meet different precision requirements.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

factory show

Professional Production Base, Strength in Precision Manufacturing

Multi‑Function Universal Milling Equipment Factory Exhibition cnc machine High-quality lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Stable Universal Metal Milling Machine
Heavy machinery manufacturer

1. Is the X6132 suitable for teaching purposes?

It is highly suitable. With its compact size, simple operation and comprehensive safety features, it is an ideal choice for vocational colleges.

2.Can a digital readout be fitted?

Yes. We offer an optional DRO to improve machining accuracy.

3.Can the spindle speed be reduced further?

The standard minimum speed is 30 rpm; if a lower speed is required, a variable-frequency spindle is available as an option.

4.What accessories are included?

The standard package includes a faceplate, tool holder, tie-down bar and toolbox; an indexing head and rotary table are available as options.

5.How is it packaged for transport?

It is packed in a moisture-proof and shock-resistant wooden crate, suitable for both sea and land transport.

Hot Tags :

X6132 Versatile Universal Milling Machine with Extended Travel

Compact Universal Mill X6132

7.5kW Horizontal Milling Machine

Toolroom Universal Mill

Related Products

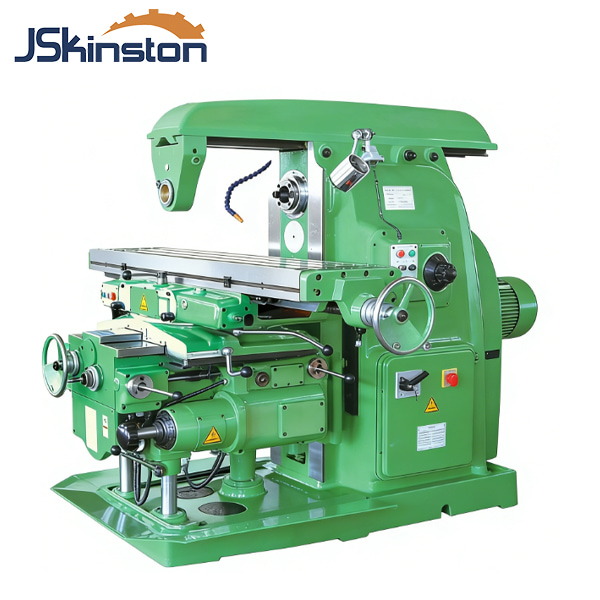

X6140 Heavy Duty Universal Milling Machine
