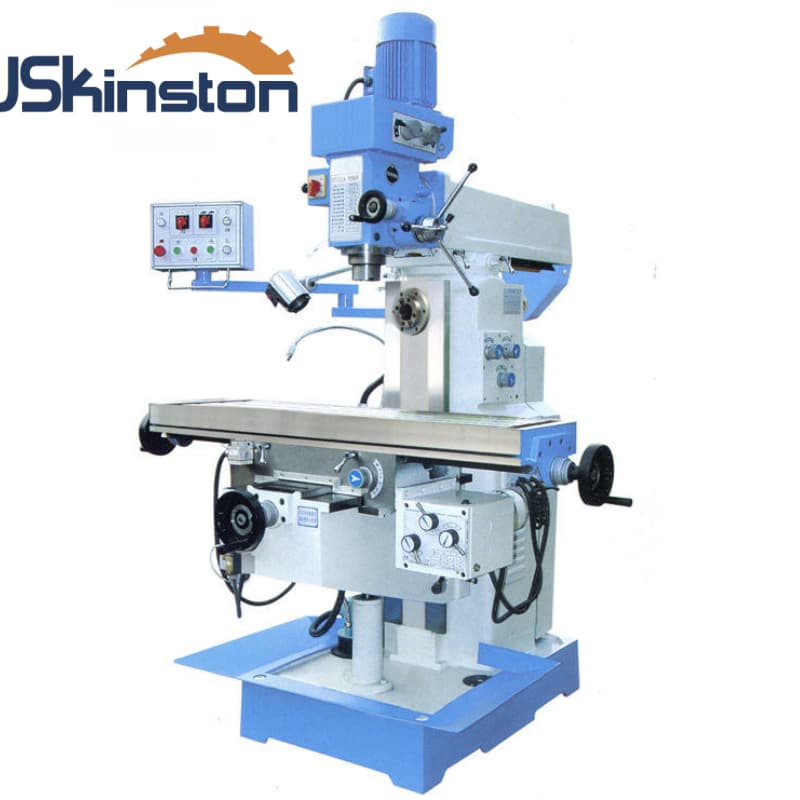

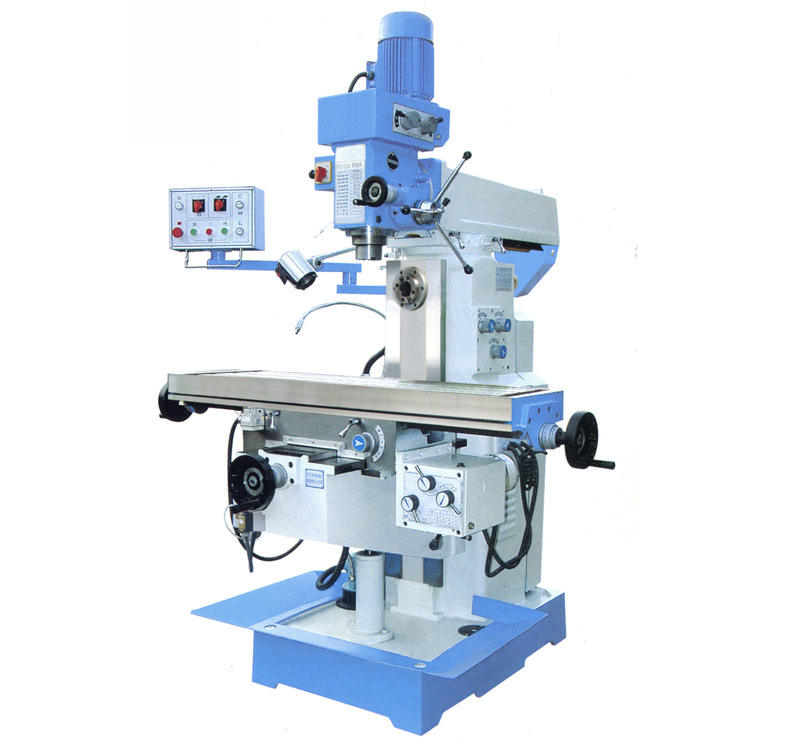

China Factory X6332A/C Vertical Turret Milling Machine

The X6332A/C is a high-precision vertical turret milling machine designed for small to medium-sized workpieces, widely used in tool rooms, maintenance shops, mold making, prototype development, and vocational training. This machine combines the rigidity of a traditional knee mill with the versatility of a turret head, allowing operators to perform vertical and horizontal milling, drilling, boring, and tapping in a single setup.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
1800Kg

Inquire Now

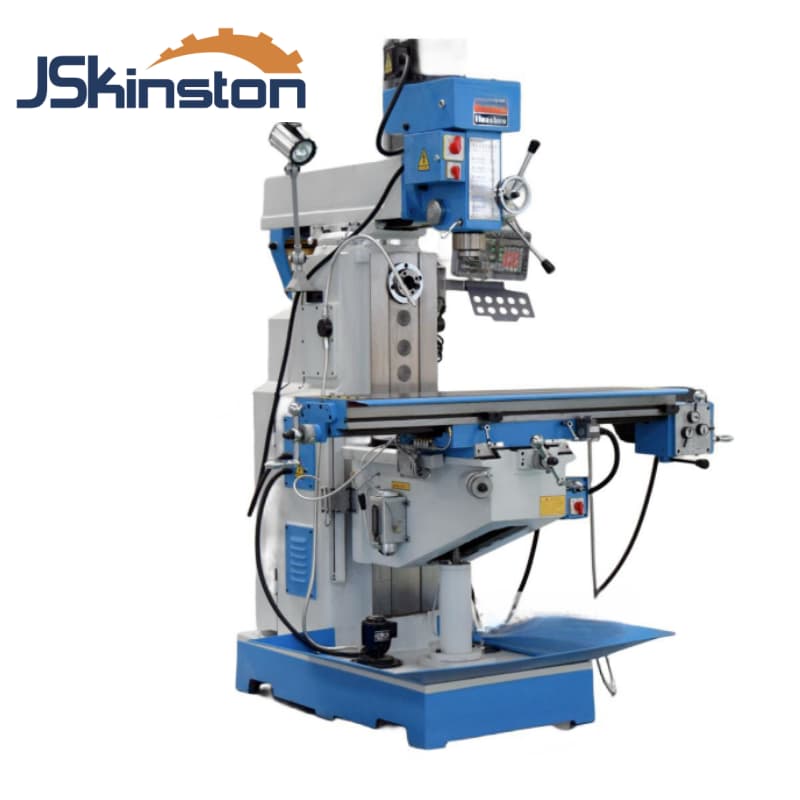

X6332A/C Universal Turret Milling Machine

1. 360° Turret Head Rotation – The head rotates a full 360 degrees and tilts ±90°, enabling angle cutting, dovetail machining, and complex contouring without repositioning the workpiece.

2. Variable Speed Spindle (60-4500 rpm) – Stepless speed control allows operators to match spindle speed precisely to material and cutting conditions, from heavy roughing on steel to fine finishing on aluminum.

3. Hardened & Precision-Ground Guideways – All guideways are induction-hardened and precision-ground, ensuring long-term wear resistance, smooth movement, and sustained accuracy.

4. Versatile Spindle Taper Options – Available with R8, NT30, or NT40 spindle tapers, compatible with standard tooling for easy setup and reduced tooling costs.

5. C Model Upgrade – The X6332C features a more powerful 3.7 kW (5 HP) motor, enhanced precision components, and optional 3-axis power feed for increased productivity and reduced operator fatigue.

specification


Specification	Unit	XQ6332A	XQ6332C
Table size	mm	1370×320
Table travel (X/Y/Z)	mm	820/300/400	1000/380/400
Rapid speed of table(X/Y/Z)	mm/min	1335/1335/1000
Spindle taper	---	3HP:R8 or ISO30;5HP:ISO40
		ISO40
Table feed (X/Y/Z)	mm/min	XY:30-830 Z:23-625
Distance between horizontal nose and table surface	mm	75-475
Distance between spindle axis and ram surface	mm	200
Spindle speed range	r/min	43-3225
		65-4660(16 steps)
		12 steps 35-1500
T-Slots (No./width/pitch)	mm	3/14/80
Arm travel	mm	450
Main motor power	---	3HP or 5HP
		3Kw
Torque of XYIZ axis AC servo motor	N.m	15
Overall size	mm	1820×1680×2350
Net weight	kg	1750	1800

Product Advantages

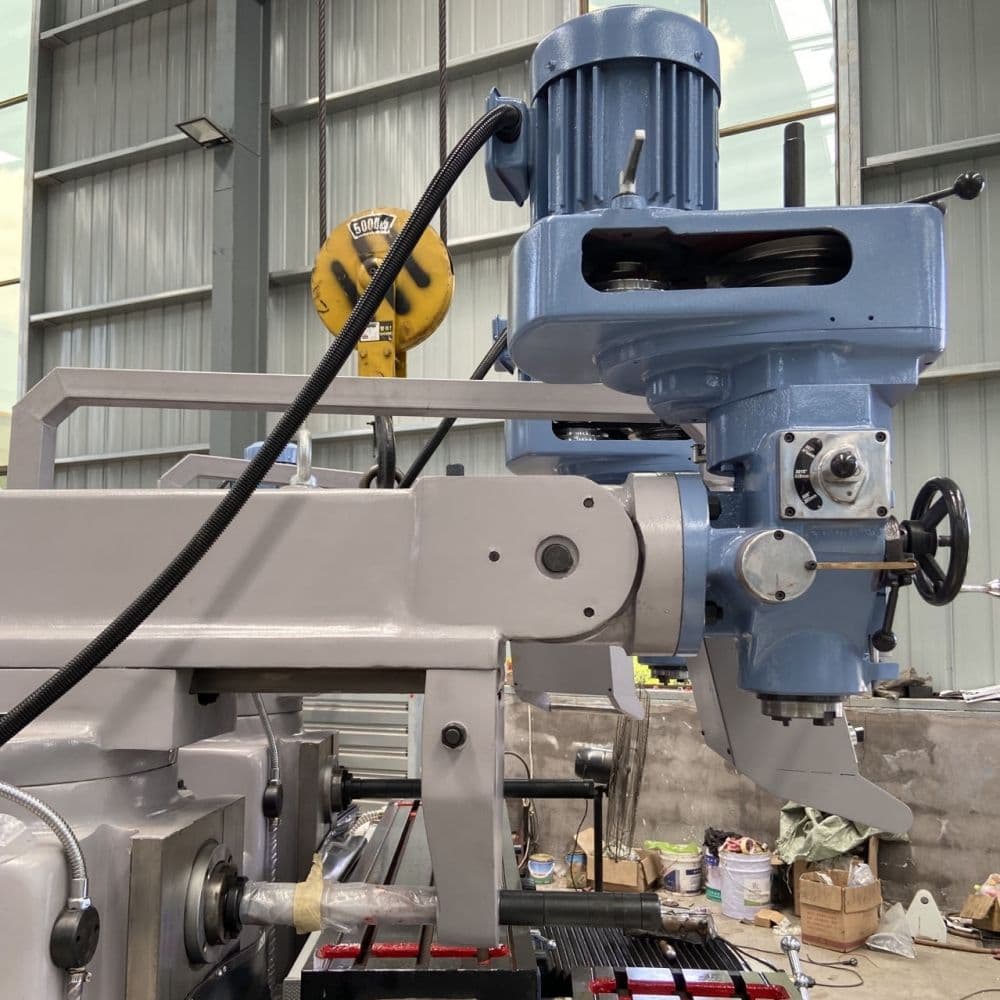

360° Rotating Turret Head
The turret head rotates a full 360 degrees and tilts ±90°, allowing angle cutting, dovetail machining, and complex contouring without repositioning the workpiece.
Induction-Hardened Guideways
All guideways are induction-hardened and precision-ground, providing excellent wear resistance and long-term accuracy even under heavy daily use.
Stepless Variable Speed Spindle (60-4500 rpm)
The variable speed control allows operators to match spindle speed precisely to material and cutting conditions, from low-speed steel roughing to high-speed aluminum finishing.
C Model Upgrade – 5HP Motor & 3-Axis Power Feed
The X6332C features a powerful 3.7 kW (5 HP) motor and optional 3-axis automatic power feed, increasing productivity and reducing operator fatigue for batch production.
Multiple Spindle Taper Options (R8 / NT30 / NT40)
Compatible with standard R8, NT30, or NT40 tooling, allowing easy setup and lower tooling costs based on your specific machining needs.
