Heavy Duty Vertical Knee-Type Milling Machine X5040

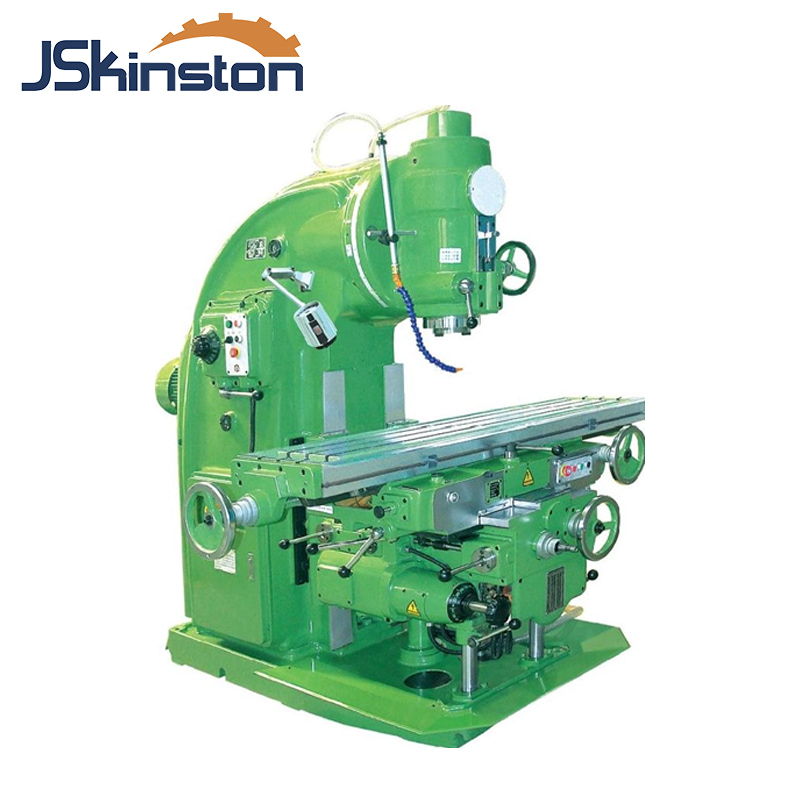

X5040 Heavy Duty Vertical Milling Machine

High Power Vertical Metal Milling Equipment

Heavy Duty Vertical Knee-Type Milling Machine X5040

X5040 is a heavy‑duty vertical milling machine with large table and high power. It features strong rigidity and high efficiency for heavy cutting tasks.The X5040 vertical milling machine delivers 11kW of cutting power with a 1700×400 mm worktable. Its ±45° swiveling head and 18-speed gearbox make it a top choice for heavy-duty vertical milling operations.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
4250Kg

Inquire Now

Powerful Vertical Milling Machine with 11kW Motor and 1700mm Table X5040

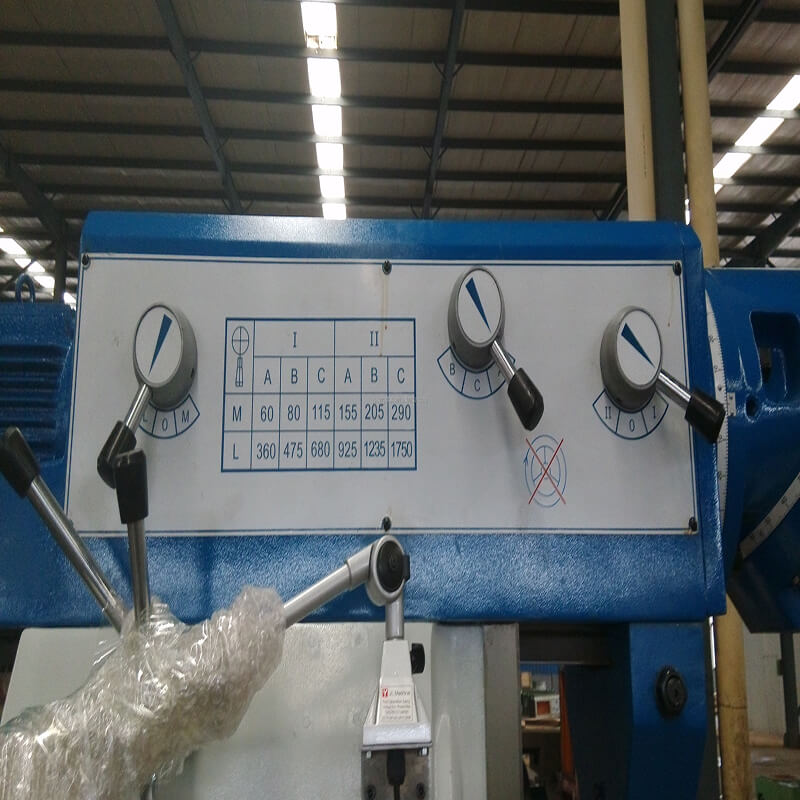

1.High-power vertical milling head: 11 kW spindle motor, ISO 50 taper, 18-speed gearbox with a speed range of 30–1,500 rpm, offering outstanding heavy-duty cutting capabilities.

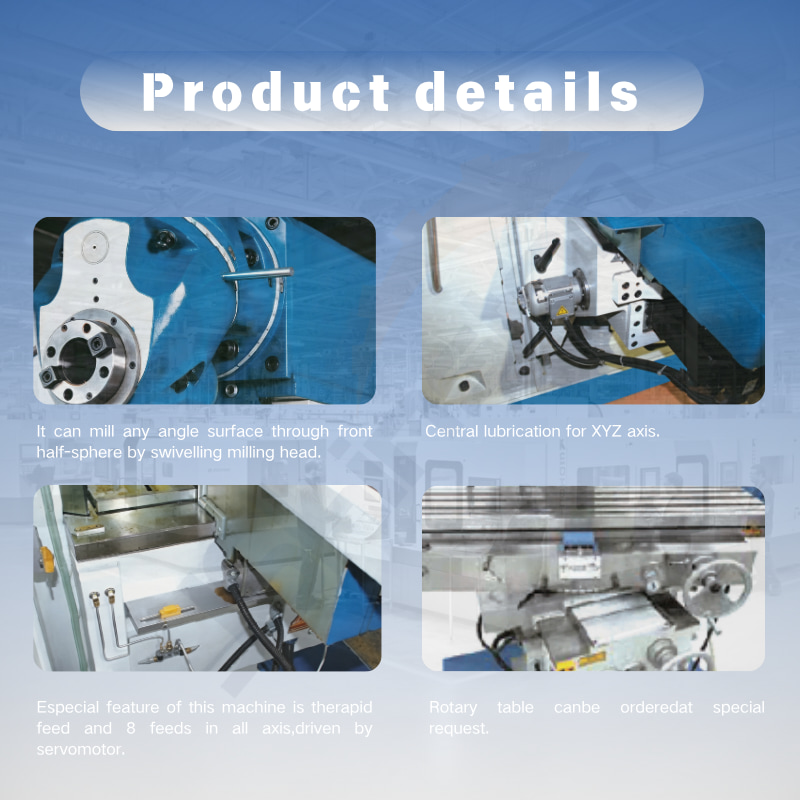

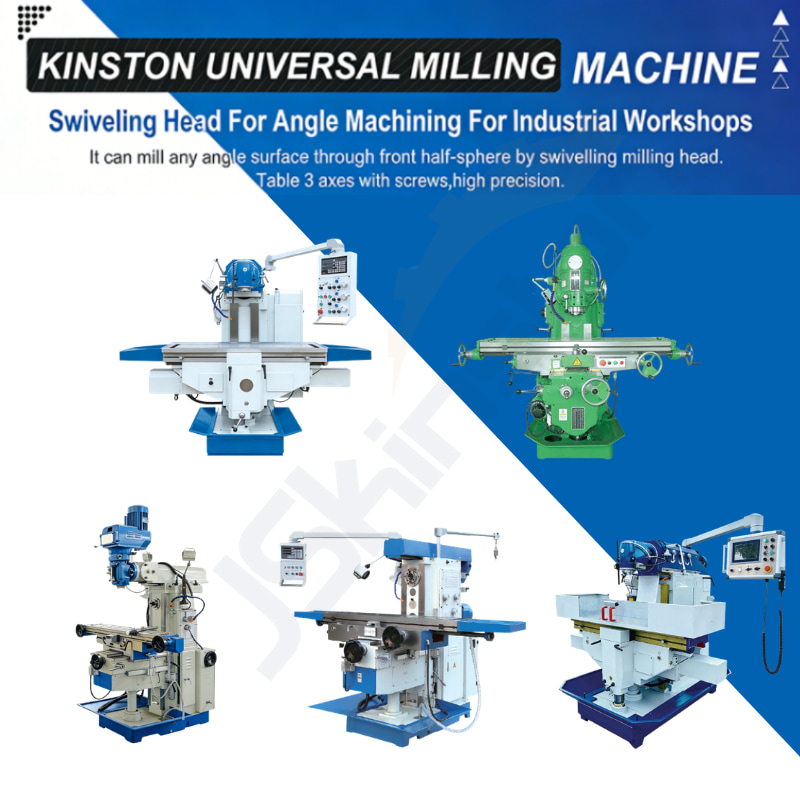

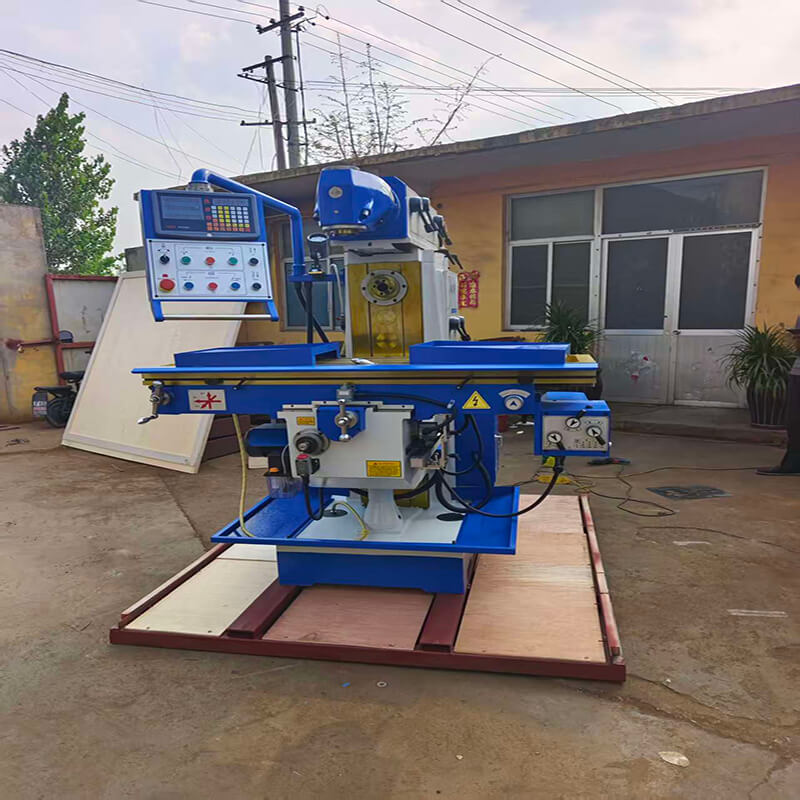

2.±45° swivel milling head: The vertical milling head can swivel 45° to the left and right, enabling the machining of inclined surfaces and grooves without tilting the workpiece.

3.Rapid feed system: X-axis 2300 mm/min, Y-axis 1540 mm/min, Z-axis 770 mm/min, significantly enhancing efficiency.

4.Heavy-duty bed: Net weight 4250 kg, single-piece cast bed, absorbs cutting vibrations and ensures a high surface finish.

specification

Specification	Units	X5040
Table size	mm	1700×400
No.of T-slots	-	3
Width cf T-slots	mm	18
Max.load	kg	800
Lorigitudinal travel(miarual/auto)	TITI	900/880
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	385/365
Rapid feed speed	mm/min	X:2300 Y:1540,Z:770
Table feed range(XY/Z)	mm/min	23.5-1180/15-786/8-394
Spindle speed range	r/mm	30-1500
Spindle speed step	(steps)	18
Dislance belween spindle axis and lable surface	mm	115/500
Power of spindle motor	kw	11
Overall dimension(LxW×H)	mm	2556×2159×1770
Net weight	kg	4250

Product Advantages

Extra Large Worktable
1700×400 mm worktable with 880 mm longitudinal, 300 mm cross, 365 mm vertical travel – one setup for large mold plates.
High-Speed Rapid Traverse
X axis 2300 mm/min, Y axis 1540 mm/min, Z axis 770 mm/min – greatly reduces auxiliary time.
Heavy Bed for Vibration Absorption
Net weight 4250 kg, one-piece cast bed – effectively absorbs cutting vibration, yielding better surface finish.
Wide T-Slots Strong Compatibility
18 mm wide T-slots at 90 mm spacing – compatible with many fixtures and accessories, good expandability.
Automatic Centralized Lubrication
Automatic lubrication pump for XYZ guide rails – reduces manual maintenance, extends guideway life.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

factory show

Professional Production Base, Strength in Precision Manufacturing

Heavy machinery Factory Exhibition cnc machine High-quality lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer
Heavy machinery manufacturer

1. Can the X5040 mill hardened steel?

It can mill hardened steel up to HRC 45; we recommend using CBN cutting tools.

2.Does it have automatic feed?

All three axes feature automatic feed and rapid traverse, with a feed rate range of 23.5–1180 mm/min.

3.Can a CNC system be retrofitted?

Yes, we offer the XK5040 CNC version or provide retrofit kits.

4.What is the maximum table load?

800 kg.

5.What is the cooling system configuration?

A cooling pump and nozzles are standard; a high-pressure flushing system is available as an option.

Hot Tags :

Heavy Duty Vertical Knee-Type Milling Machine X5040

Heavy Duty Vertical Milling Machine

Large Table Vertical Milling Equipment

High Power Vertical Metal Milling Machine

Related Products

Heavy Duty Vertical Knee-Type Milling Machine X5040

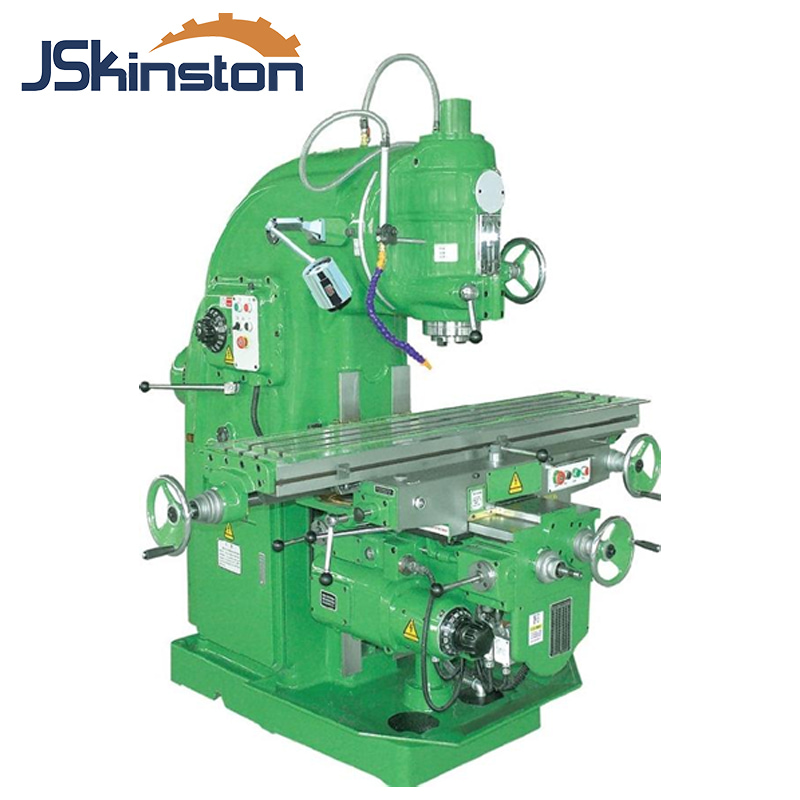

Precision Vertical Knee-Type Milling Machine X5032
