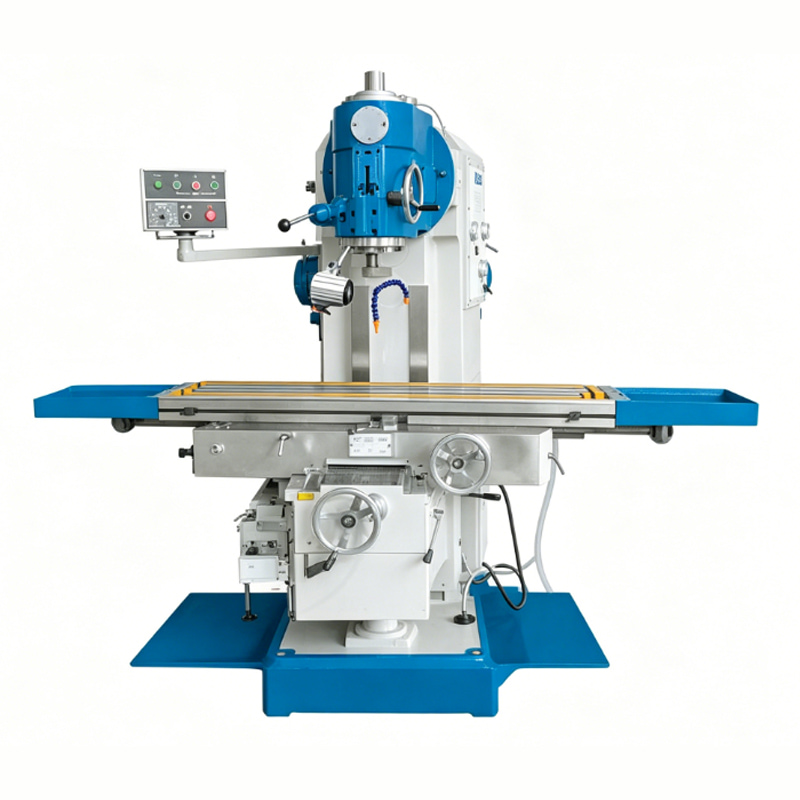

XL5036C Heavy Duty Vertical Mill with Gear Drive

XL5036C Heavy Duty Vertical Mill with Gear Drive

XL5036C/CL adopts cyclic forced lubrication and 12‑speed gear drive. It ensures long service life and stable performance for heavy cutting.The XL5036C vertical milling machine features a 5.5kW gear-driven spindle with 12 speeds (50-1475 rpm) and a ±30° swiveling head. Forced cyclic lubrication extends machine life significantly.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
3000Kg

Inquire Now

Efficient Vertical Milling Machine with Cyclic Lubrication

1.Gear-driven spindle: Compared to belt drives, gear drives suffer from lower torque loss and offer superior heavy-duty cutting capabilities, making them suitable for stainless steel and tool steel.

2.Circulating forced lubrication: The milling head features forced oil injection lubrication, ensuring all gears and bearings are fully lubricated and extending service life by 30%.

3.±30° swivelling vertical milling head: Capable of machining inclined surfaces and grooves; when combined with an indexing head, it can mill helical surfaces.

4.Single servo motor controlling three axes: utilises a single servo motor with an electromagnetic clutch to achieve automatic feed in three directions, offering energy efficiency and high reliability.

specification

Specification	Unit	XL5036C	XL5036CL
Table size	mm	1325X360	1600X360
T-slots(NO.Width/Pitch)		3/18/80
Longitudinal travel	mm	1100	1300
Cross travel	mm	320
Vertical travel		450
Table feed (XY/Z)	mm/min	30-750/20-500/15-3758 steps
Table rapid speed(XYIZ)	mm/min	1200/800/G00
Spindle taper		7:24 ISO50

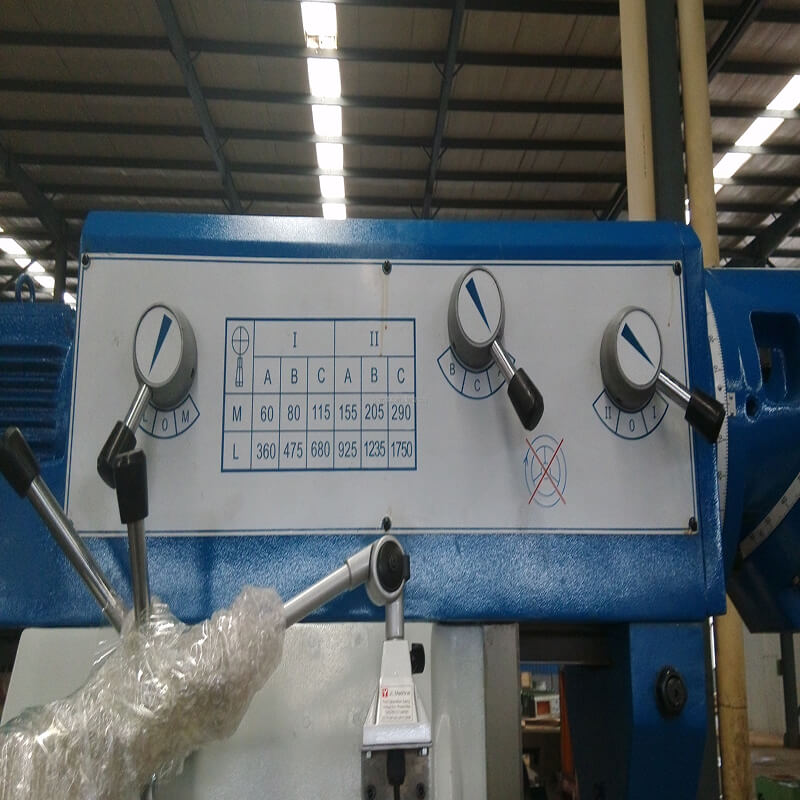

Spindle speed range	r.p.m	50-1475
Spindle speed step	steps	12steps
Spindle travel	mm	70
Max.swivel angle of vertical milling head		±30°
Distance between spindle nose and table surface	mm	50-500
Distance between spindle axis and column g deway		378
Torque ofXY/Z axis AC servo motor	N.m	15
Main motor Power	kw	5.5
Ovərall dimensions(L×W×H)	mm	2245X2100X2150	2520X2100X2150
Net weight	kg	2900	3000

Product Advantages

Gear Drive High Torque
Less torque loss than belt drive – stronger heavy cutting capability, suitable for stainless steel and mold steel.
Cyclic Forced Lubrication
Forced oil lubrication inside head – all gears and bearings fully lubricated, 30% longer life, fewer failures.

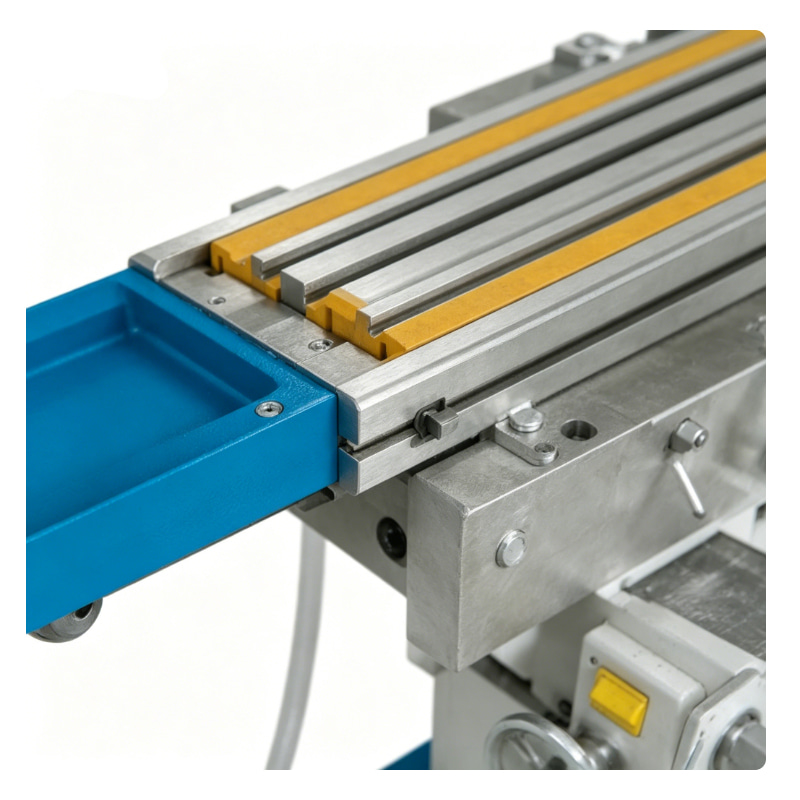

Large Travel Worktable
1325×360 mm, longitudinal 1100 mm, cross 320 mm, vertical 450 mm – spacious working range.

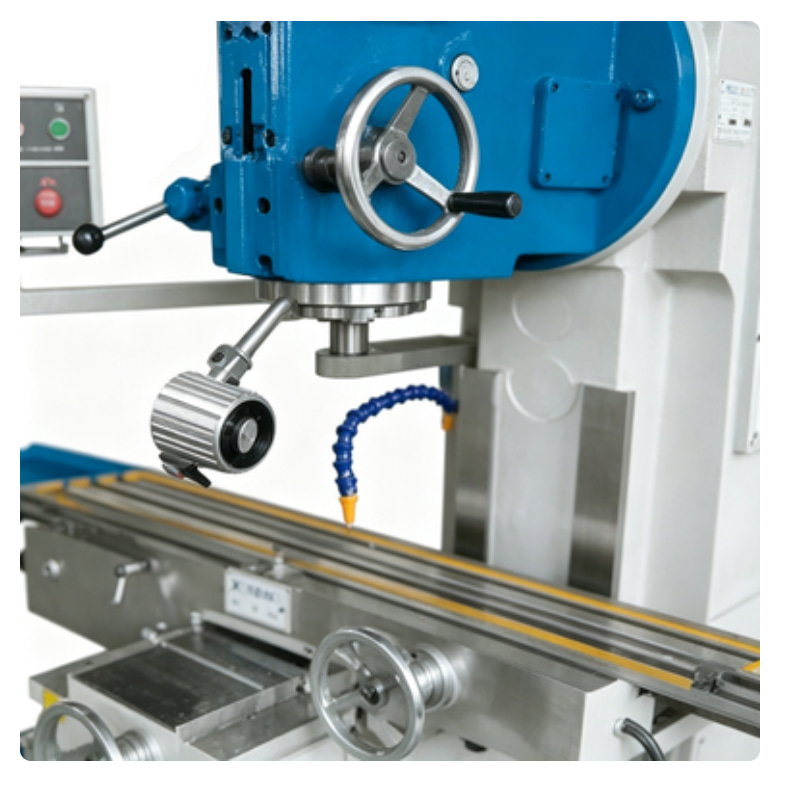

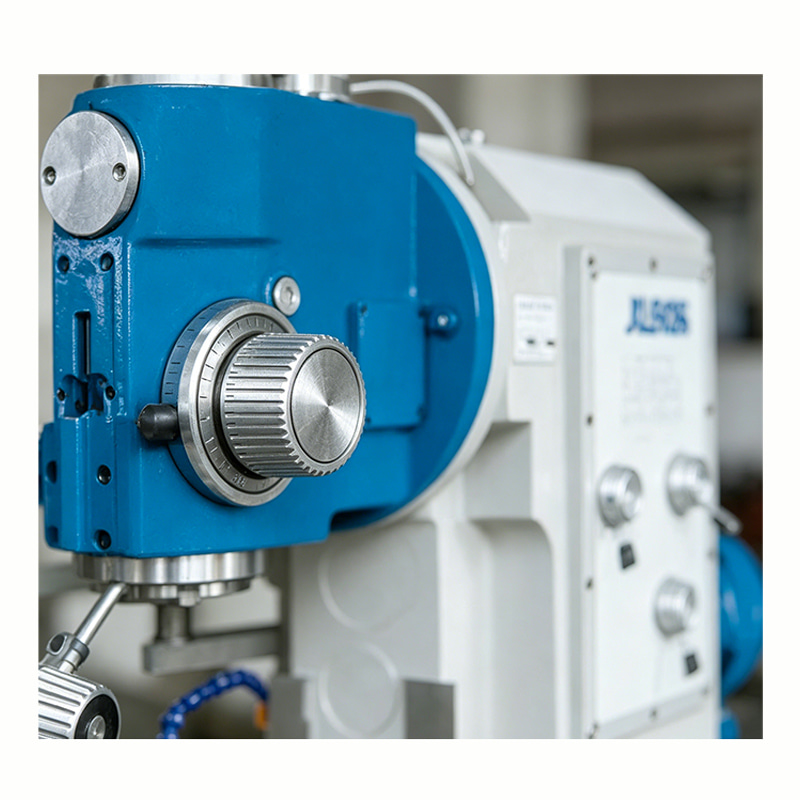

±30° Swiveling Head
Processes bevels and inclined slots – with dividing head, can mill helical surfaces, expanding capability.

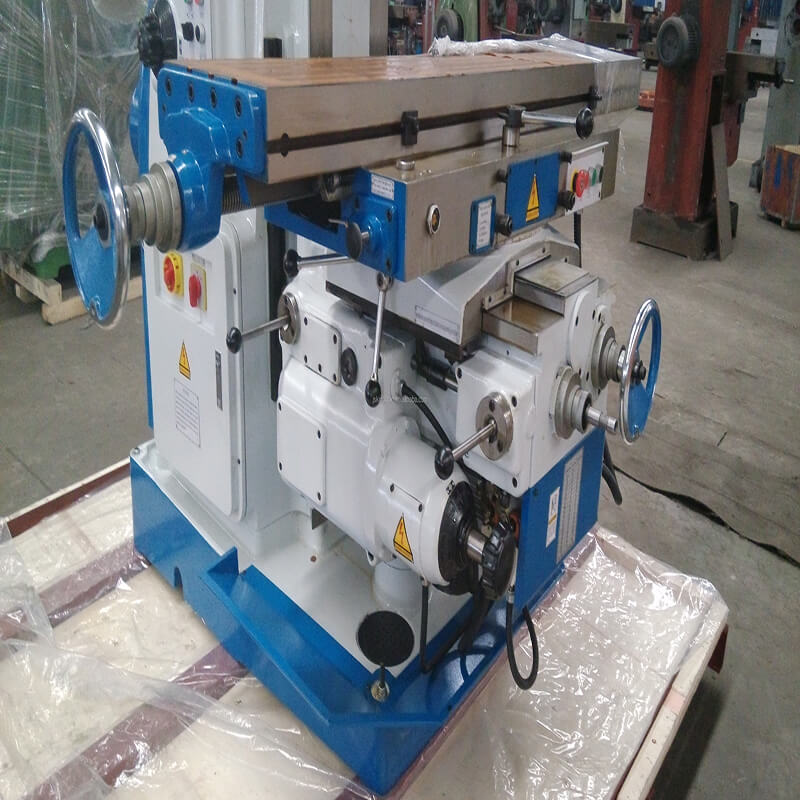

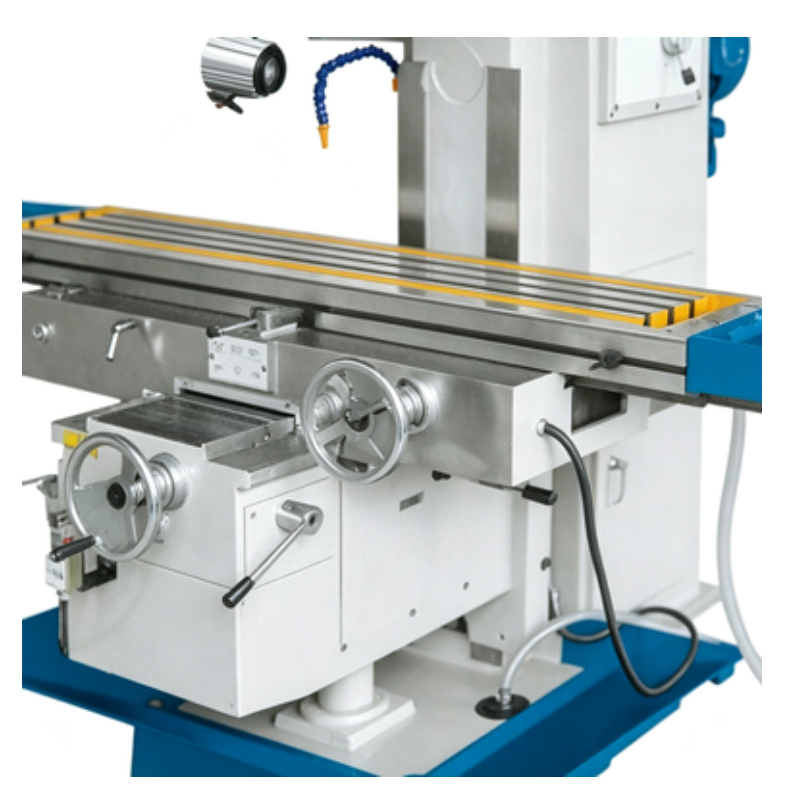

Three-Axis Power Feeds
Automatic feed and rapid traverse on XYZ – labor-saving operation, suitable for batch production.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

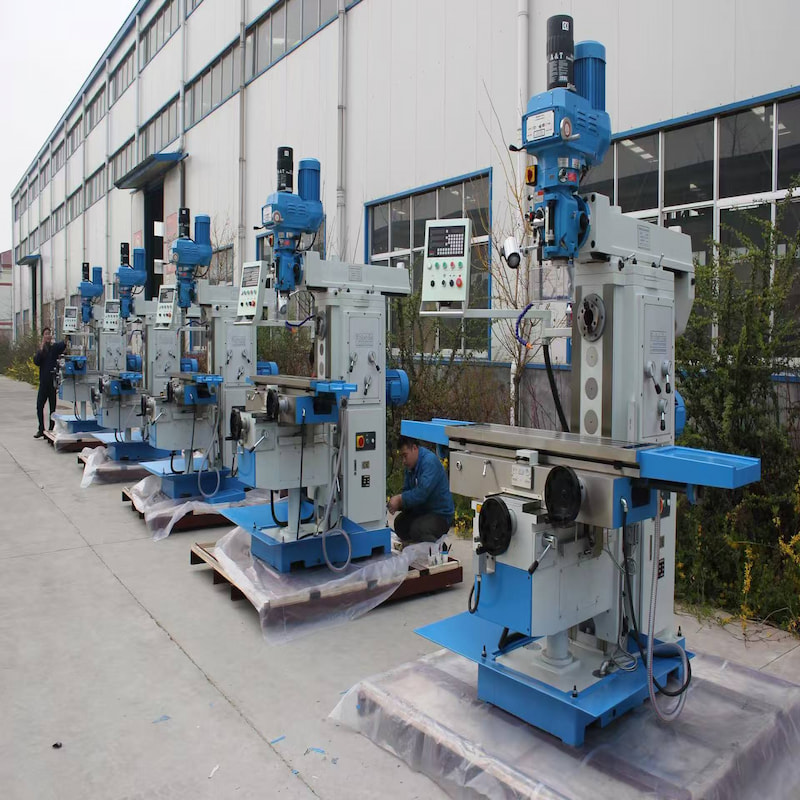

factory show

Professional Production Base, Strength in Precision Manufacturing

Heavy machinery Factory Exhibition cnc machine High-quality lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer
Heavy machinery manufacturer

1. What is the guaranteed flatness of the long worktable?

Overall flatness ≤ 0.04 mm, local flatness 0.02 mm.

2.Can keyways be machined on long shafts?

Yes. In conjunction with an indexing head and tailstock, multiple keyways can be milled on long shafts.

3.Is it suitable for machining aluminium profiles?

It is highly suitable; multiple aluminium profiles can be machined simultaneously in a single set-up.

4.Is there an automatic lubrication system?

Yes, a centralised lubrication system covers the guideways of all three axes.

5.Can a CNC system be retrofitted?

It can be upgraded to CNC; the Siemens 808D is recommended.
