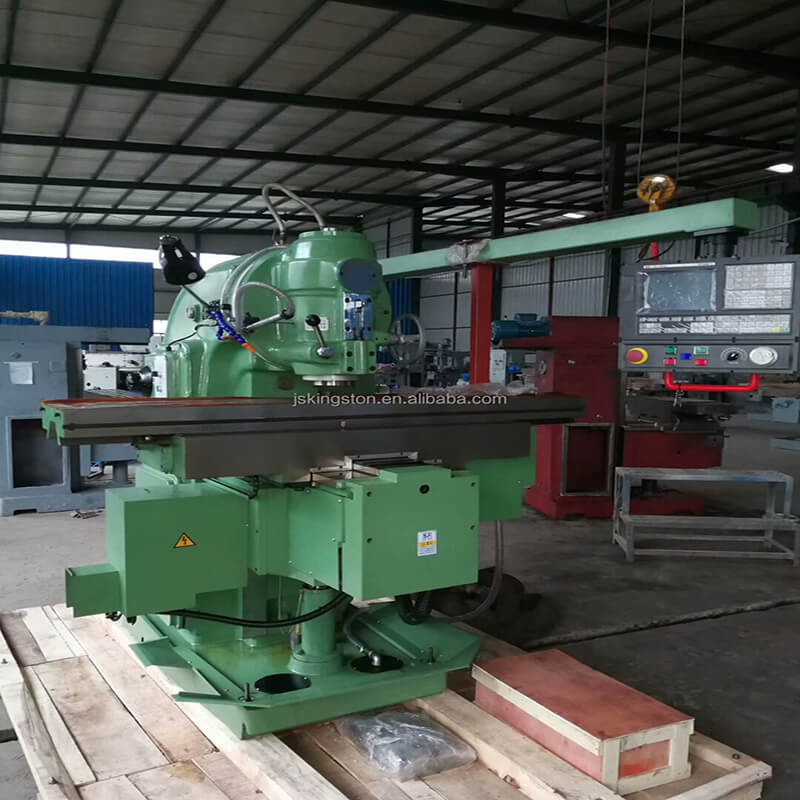

High Vertical Travel Milling Machine for Deep Cavities X5032H

X5032h High Rigidity Vertical Milling Machine

Enhanced Travel Vertical Milling Equipment

Stable Vertical Milling Machine for Steel

High Vertical Travel Milling Machine for Deep Cavities X5032H

X5032h features enhanced vertical travel and high rigidity structure. It improves processing range and stability for heavy‑duty precision machining.The X5032H vertical milling machine features a high column providing 460 mm vertical travel (440 mm motorized). Designed for mold and die work, it allows deep cavity milling without head interference.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
3400Kg

Inquire Now

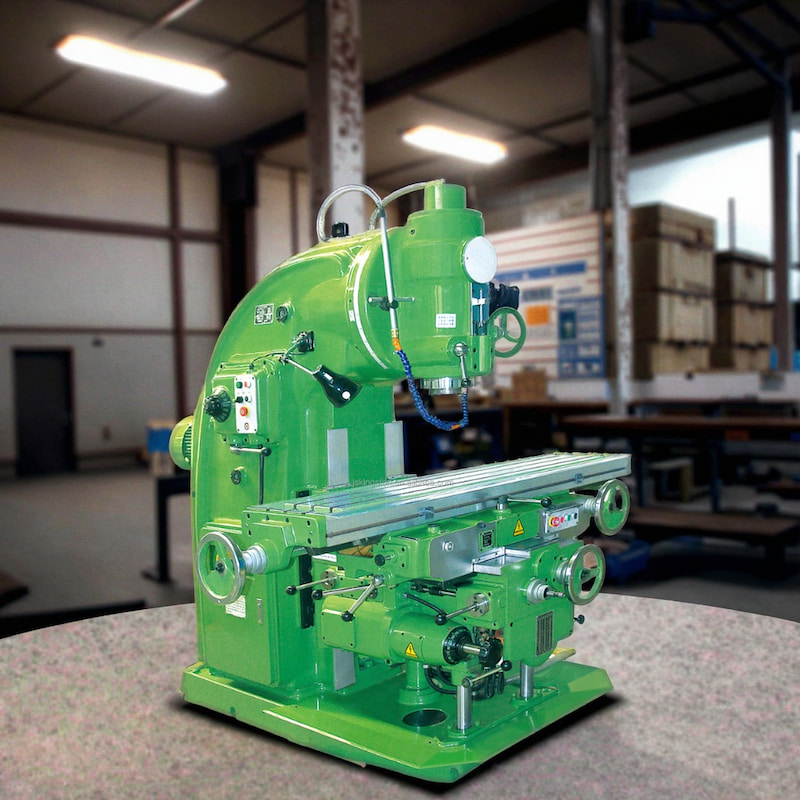

High Rigidity Vertical Milling Machine with Enhanced Travel

1.Deep cavity machining specialist: The ideal choice for the mould industry, capable of machining cavities over 400 mm deep, thereby reducing the need for EDM processes.

2.Stable lifting mechanism: The vertical lead screw has been reinforced to φ50 mm and is equipped with a counterweight balancing system, ensuring smooth lifting.

3.Wide-span guideways: The column guideways have been widened to enhance anti-tipping stability during high-stroke operations.

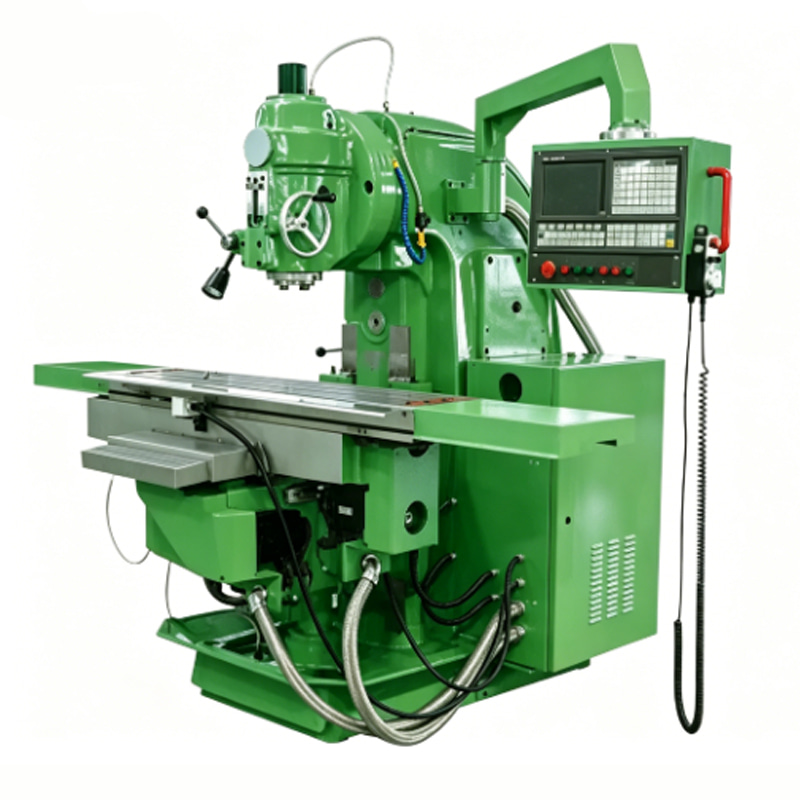

4.Optional CNC: Can be upgraded to a three-axis CNC system to enable automatic deep-cavity milling.

specification

Specification	Unit	X5032H	X5032BH
Table size	mm	320X1325	320X1600
T-slots(NO.Width/Pitch)		3/18/70
Longitudinal travel(manual/auto) Cross travel(manual/auto)	mm mm	700/680 /240	900/880
Longitudinal travel(manual/auto) Cross travel(manual/auto)	mm mm	700/680 /240	900/880
Vertical travel(manual/auto)	mm	460/440
Rapid feed speed XYIZ	mm/min	2300/1540/770
Spindle bore diameter	mm	29
Spindle taper	-	7:24 ISO50

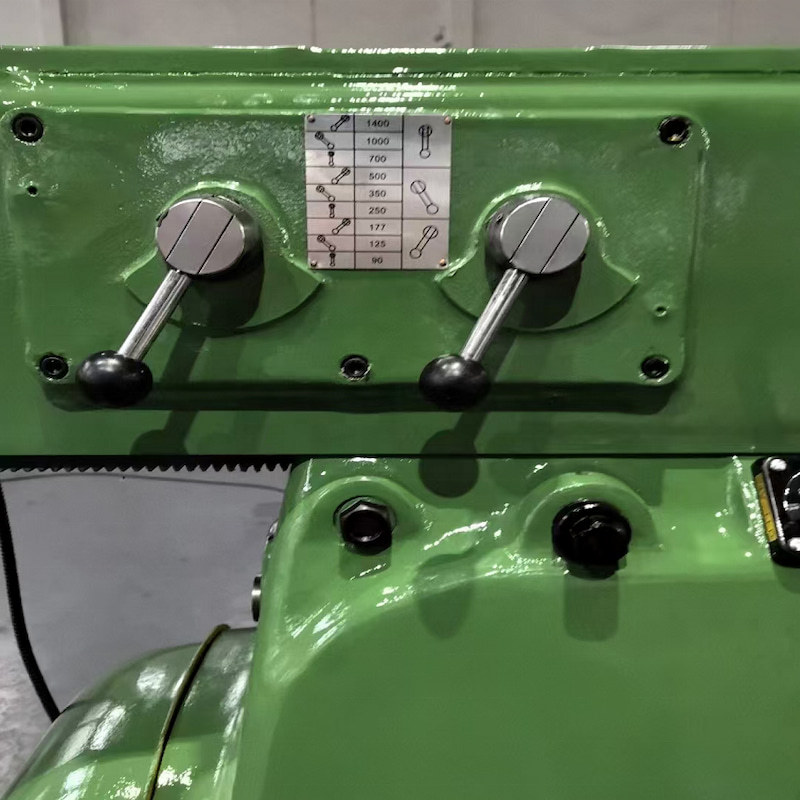

Spindle speed range	r/min	30-1500
Spindle speed step	steps	18steps
Stroke of spindle quill	mm	70

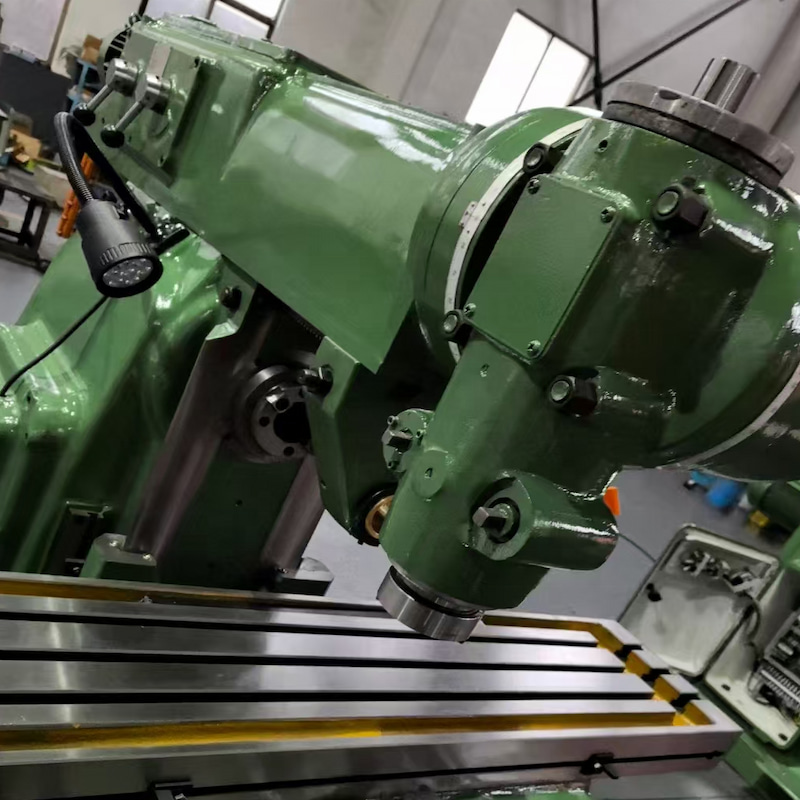

Max.swivel angle of vertical milinghead	-	±45°
Distanice between spindle riuse and table surface	TITI	30-490
Distance betwen spinde axs and colurmn guideway	TIT	350
Feed motor power	kw	1.5
Main motor Power	kw	7.5
Overall size(L×W×H)	mm	2294×1770×2084	2294×2050×2084
Net weight/Gross weight	kg	3000/3300	3100/3400

Product Advantages

The ideal tool for deep cavity machining
Capable of machining cavities over 400 mm deep, reducing the need for EDM processes and shortening the mould manufacturing cycle.
Reinforced vertical lead screw
The lead screw diameter has been increased to φ50 mm. Equipped with a counterweight balancing system, it ensures smooth, crawl-free movement and long-lasting precision.
Wide-span guide rail design
The column guide rails have been widened to enhance anti-tipping capability during high-stroke operations, providing superior stability during heavy-duty cutting.
CNC Upgrade Capability
Provides an interface for CNC retrofitting, allowing upgrade to a 3-axis CNC system to enable automatic deep cavity milling.

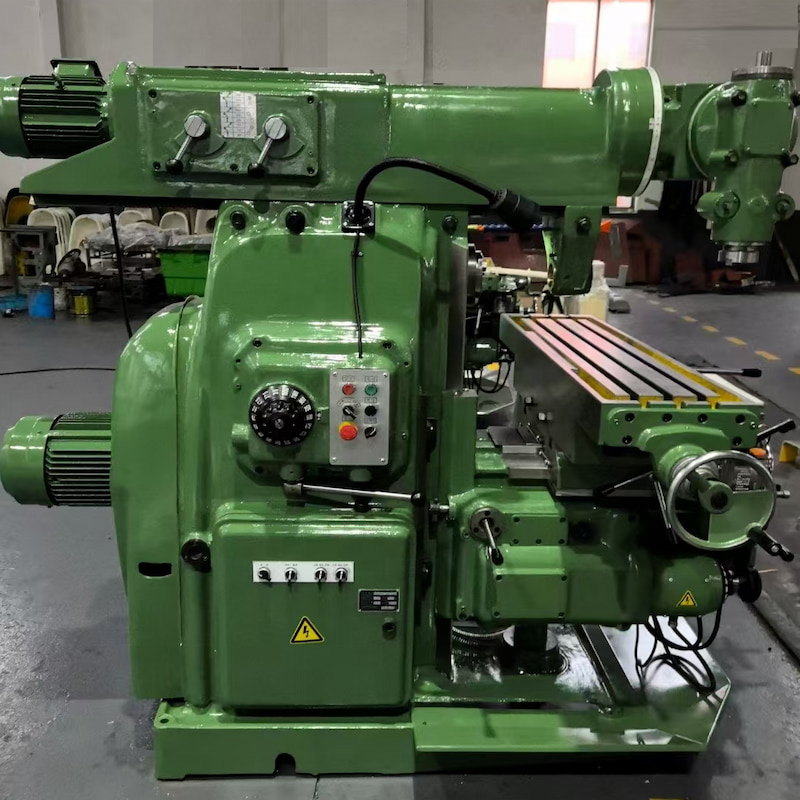

150 mm taller column
Vertical travel of up to 460 mm, an increase of 90 mm over the standard model; distance from spindle face to worktable: 30–490 mm.
