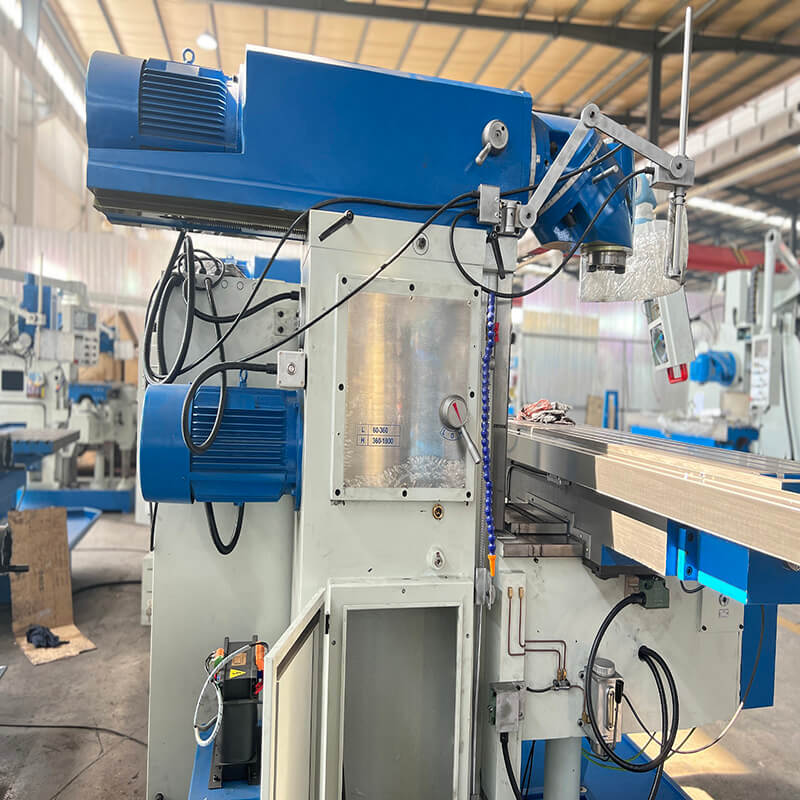

Compact Vertical Metal Milling Equipment

Stable Vertical Milling Machine for Workshop

General Purpose Vertical Milling Machine

Precision Vertical Knee-Type Milling Machine X5032

X5032 vertical milling machine combines compact structure and high precision. It is easy to operate and ideal for small and medium precision parts machining.The X5032 is a reliable vertical milling machine with 7.5kW spindle power and a 320×1325 mm table. Its ±45° swiveling head and 18-speed gear drive suit a wide range of general machining tasks.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
4250Kg

Inquire Now

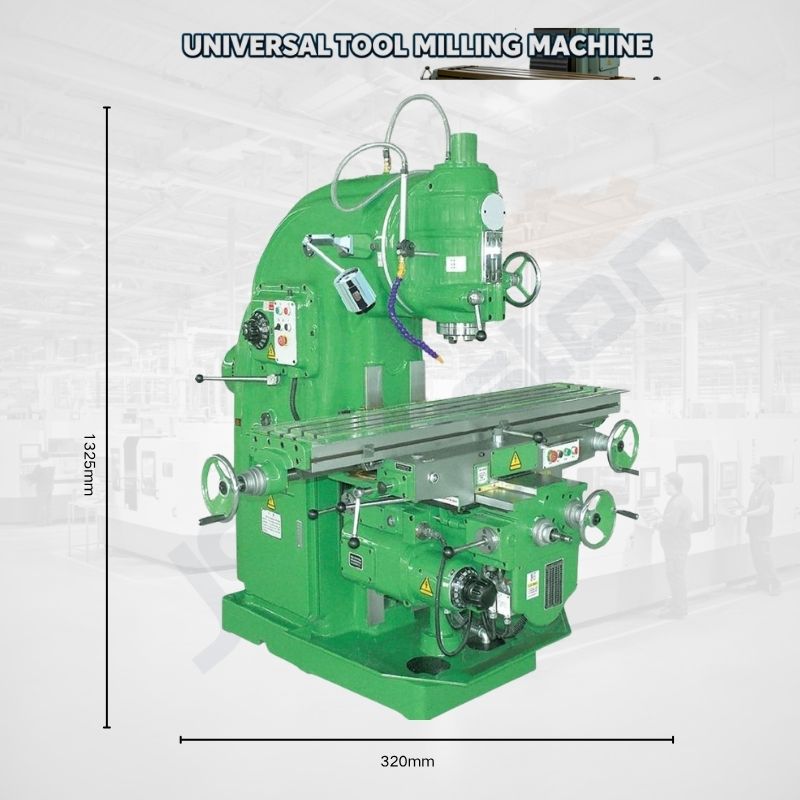

Standard Vertical Knee-Type Milling Machine for General Machining X5032

1.A proven classic model: The X5032 is widely used in China, with its reliability proven over many years in the market and high compatibility of spare parts.

2.Powerful Gear Drive: 18-speed mechanical gearbox, 30–1500 rpm, delivering high torque at low speeds, making it suitable for heavy-duty cutting.

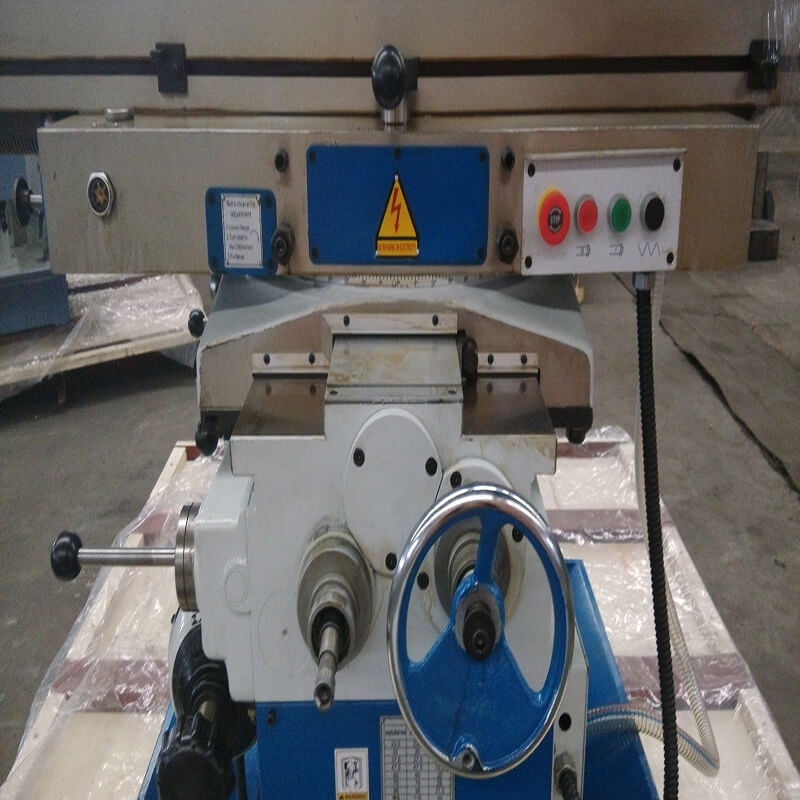

3.Easy to Operate: Centralised control panel with a single joystick controlling XYZ feed directions, ensuring a low learning curve.

4.Extensive Range of Accessories: Optional extras include a rotary table, indexing head, parallel-jaw vice and milling chuck, offering excellent expandability.

specification

Specification	Unit	X5032	X5032B	X5032H	X5032BH
Table size	mm	320X1325	320X1600	320X1325	320X1600
T-slots(NO.Width/Pitch)		3/18/70
Longitudinal travel(manual/auto) Cross travel(manual/auto)	mm mm	700/680	900/880	700/680 /240	900/880
Longitudinal travel(manual/auto) Cross travel(manual/auto)	mm mm	255		700/680 /240	900/880
Vertical travel(manual/auto)	mm	370/350		460/440
Rapid feed speed XYIZ	mm/min	2300/1540/770
Spindle bore diameter	mm	29
Spindle taper	-	7:24 ISO50
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18steps
Stroke of spindle quill	mm	70
Max.swivel angle of vertical milinghead	-	±45°
Distanice between spindle riuse and table surface	TITI	30-400		30-490
Distance betwen spinde axs and colurmn guideway	TIT	350
Feed motor power	kw	1.5
Main motor Power	kw	7.5
Overall size(L×W×H)	mm	2294×1770×1904	2294×2050×1904	2294×1770×2084	2294×2050×2084
Net weight/Gross weight	kg	2900/3200	3000/3300		3100/3400

Product Advantages

Proven Classic Model
Market-proven for decades – widely available spare parts, easy maintenance, the evergreen of machining workshops.
Practical Working Range
Longitudinal 680 mm, cross 240 mm, vertical 350 mm – meets most part processing needs without wasted travel.
Intuitive Easy Operation
Centralized control panel, one handle controls XYZ feed direction – low learning curve, ideal for batch training.
Rich Expandable Attachments
Rotary table, dividing head, vise, milling chuck available – configure as needed, one machine multiple uses.
High Cost-Performance Investment
Balanced performance and affordable price – ideal for small job shops and repair workshops, fast ROI.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

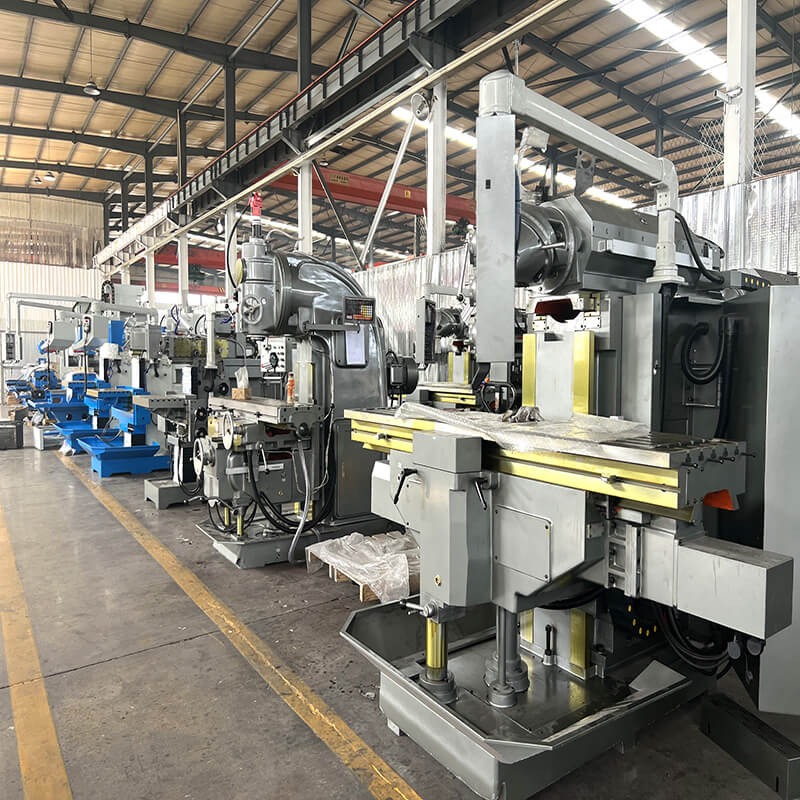

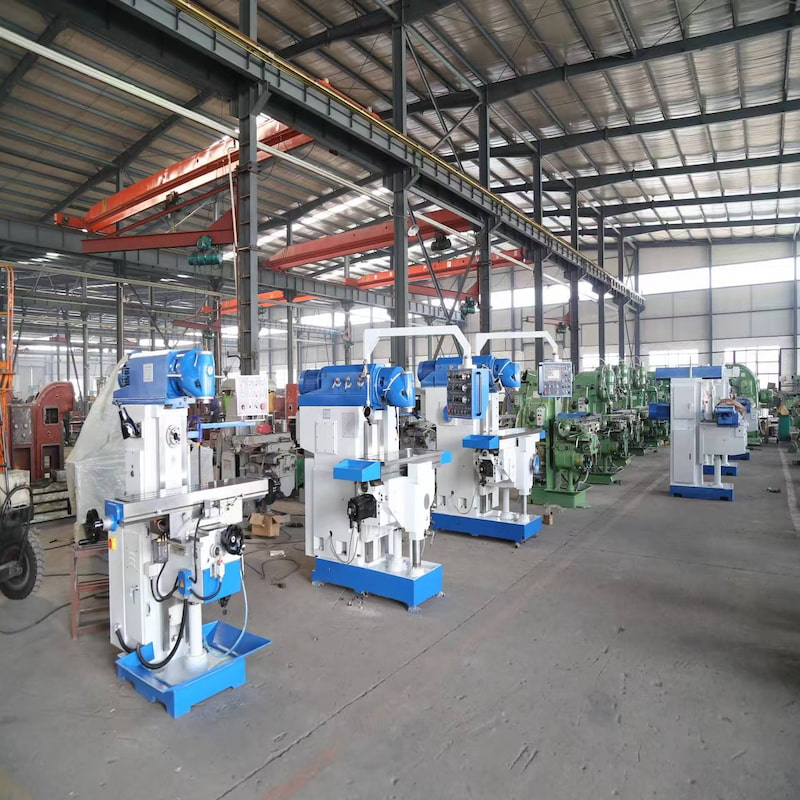

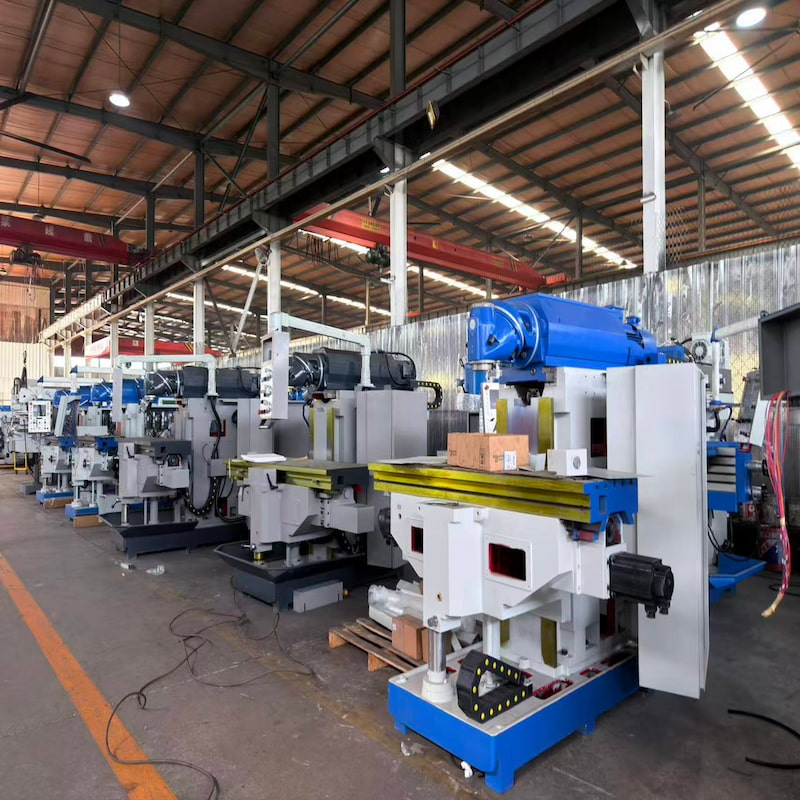

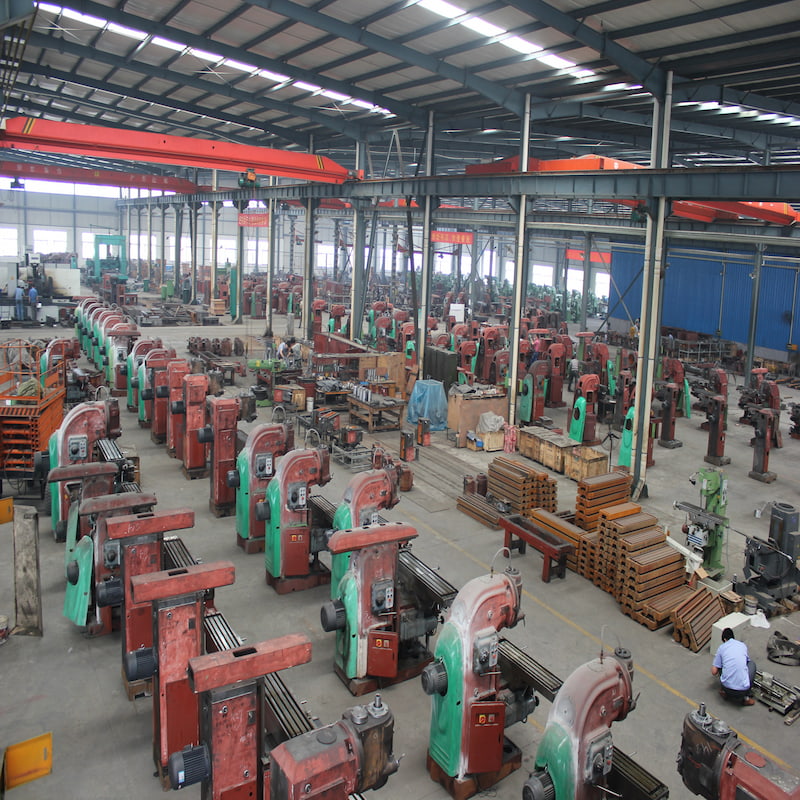

factory show

Professional Production Base, Strength in Precision Manufacturing

Heavy machinery Factory Exhibition cnc machine High-quality lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer
Heavy machinery manufacturer

1. What are the main differences between the X5032 and X5040?

The worktable size and motor power; the X5040 is larger and more powerful, whilst the X5032 is more economical.

2.Is it suitable for machining aluminium alloy?

It is very suitable; the high-speed setting of 1500 rpm is sufficient for the precision machining of aluminium alloy.

3.Can a digital readout be fitted?

Yes, we recommend fitting a three-axis digital readout to improve positioning efficiency.

4.Are the guide rails hard rails or linear rails?

Hard rails, quenched and ground, offering excellent wear resistance.

5.What is the packaging and shipping method?

 Fumigation-free wooden crates, suitable for export.
