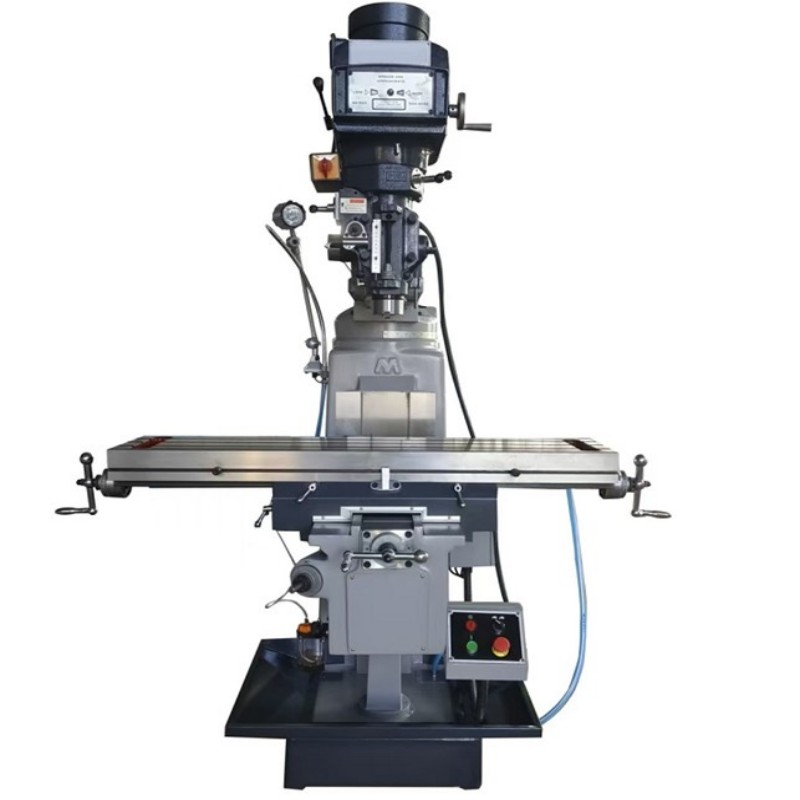

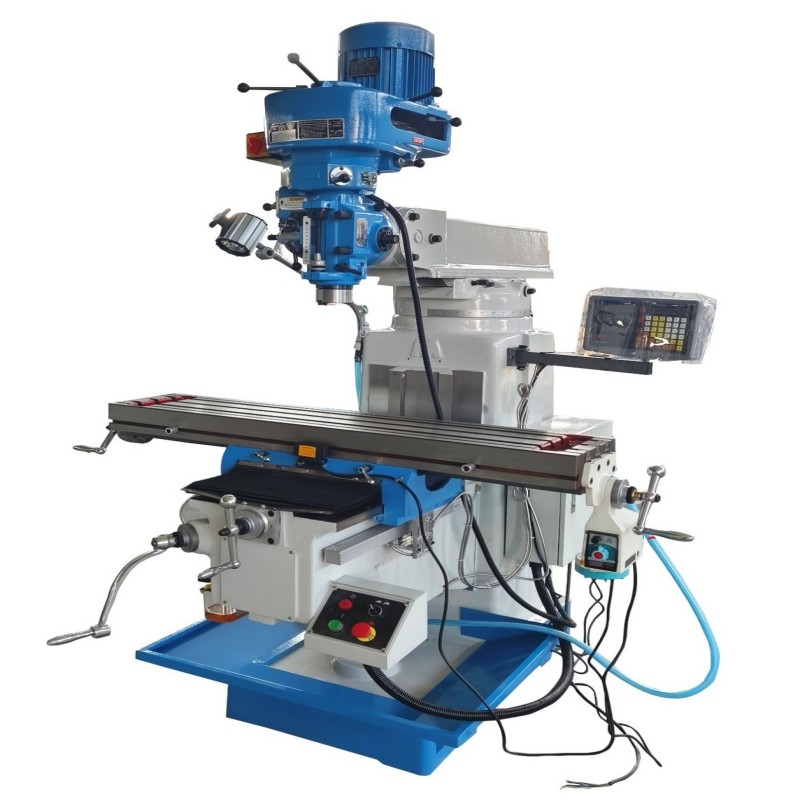

X6325 X6330 Vertical Turret Milling Machine for Metal Milling Drilling Tapping

X6325 X6330 Vertical Turret Milling Machine for Metal Milling Drilling Tapping

X6325 and X6330 turret milling machines are classic universal vertical milling equipment for machining workshops. They are widely used for milling, drilling, reaming, tapping and slotting on molds, hardware and mechanical parts. The machine body is made of high-strength cast iron with stress relief aging treatment, featuring stable rigidity and good precision retention. It has a wide spindle speed range, suitable for steel, cast iron, aluminum and other metals.The worktable supports 3-axis auto feed for flexible operation. Compared with X6325, X6330 has larger table travel and wider processing range. This is a well-proven standard model with easily available spare parts, simple operation and low maintenance. It fits single piece and small-batch precision machining. DRO, power feed unit and coolant system are optional.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
1280Kg

Inquire Now

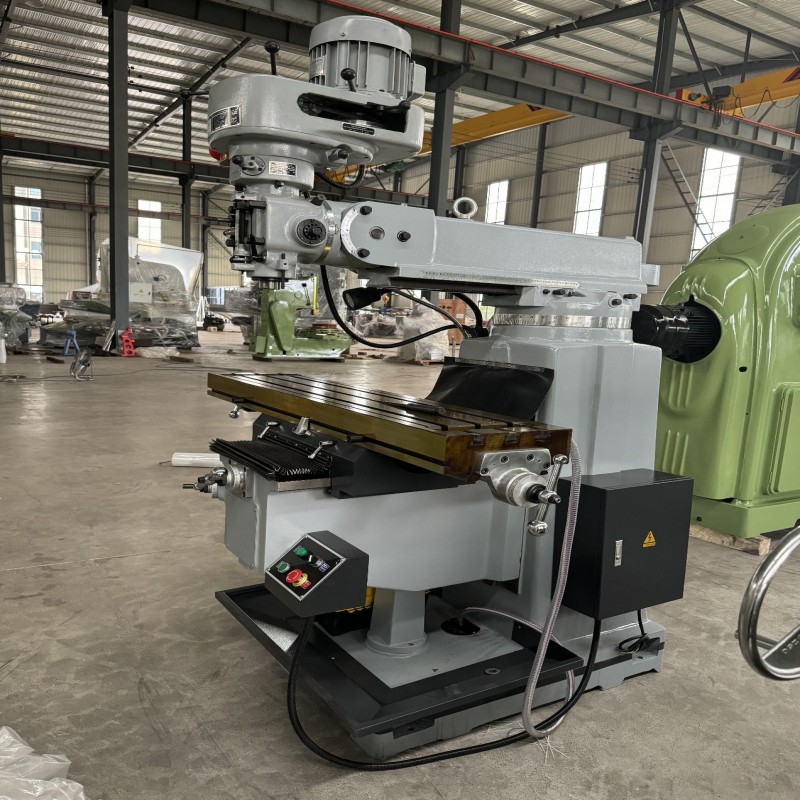

X6325 X6330 Turret Milling Machine

This turret milling machine is widely used in mold making, hardware processing, mechanical spare parts, fixture production and workshop maintenance. It is suitable for milling, drilling, tapping and slotting of various metal workpieces. Perfect for small & medium machining factories, repair shops and technical schools. It can handle common jobs of general precision machining.

specification

	X6325	X6330
Worktable size	1270*254mm	1370*305mm
X-axis travel	800mm	800mm
Y-axis travel	400mm	400mm
Z-axis travel	400mm	500mm
Spindle quill diameter	86mm	86mm
Spindle quill travel	127mm	127mm
Spindle speed	80–5440 rpm (16 speeds)	80–5440 rpm (16 speeds)
Spindle taper	R-8	R-8
Spindle motor power	3HP	3.7kW
Max distance from spindle nose to worktable	450mm	450mm
Overall dimension (L×W×H)	160016502200mm	160016502200mm
Net weight	1280kg	1280kg

Product Advantages

Wide Spindle Speed Range
Spindle speed 80–5440rpm with 16 speeds, suitable for cutting steel, cast iron, aluminum and plastic, meets different machining requirements.
High Rigid Cast Iron Structure
Whole machine adopts high-quality cast iron with aging treatment, stable structure, good vibration resistance and long-term precision retention.
Two Models for Different Work Sizes
The variable speed control allows operators to match spindle speed precisely to material and cutting conditions, from low-speed steel roughing to high-speed aluminum finishing.
Versatile Multi-function Machining
Supports milling, drilling, reaming, tapping and slotting. Ideal for single piece and small batch processing.
Standard Mature Design & Easy Operation
Classic turret milling machine with R-8 spindle taper. Spare parts are easy to source, simple to operate and maintain.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

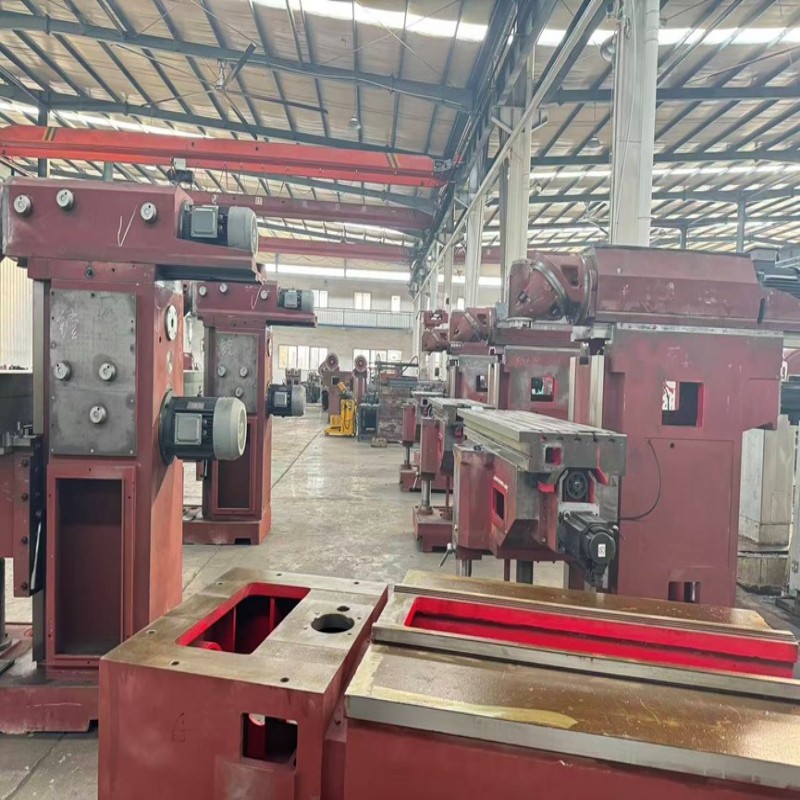

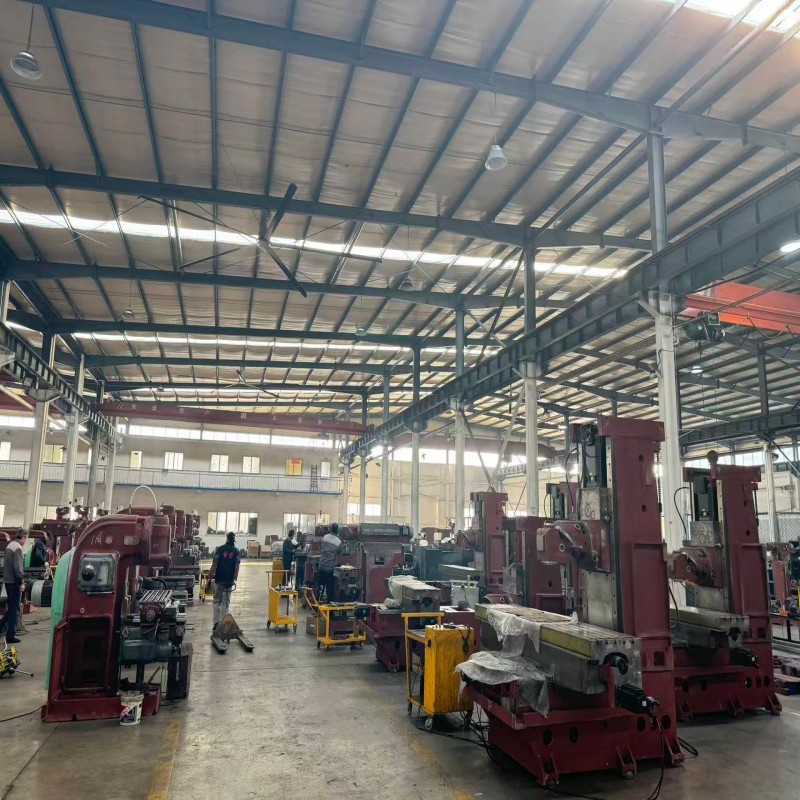

factory show

Professional Production Base, Strength in Precision Manufacturing

Multi‑Function Universal Milling Equipment Factory Exhibition High-quality milling High-quality lathe

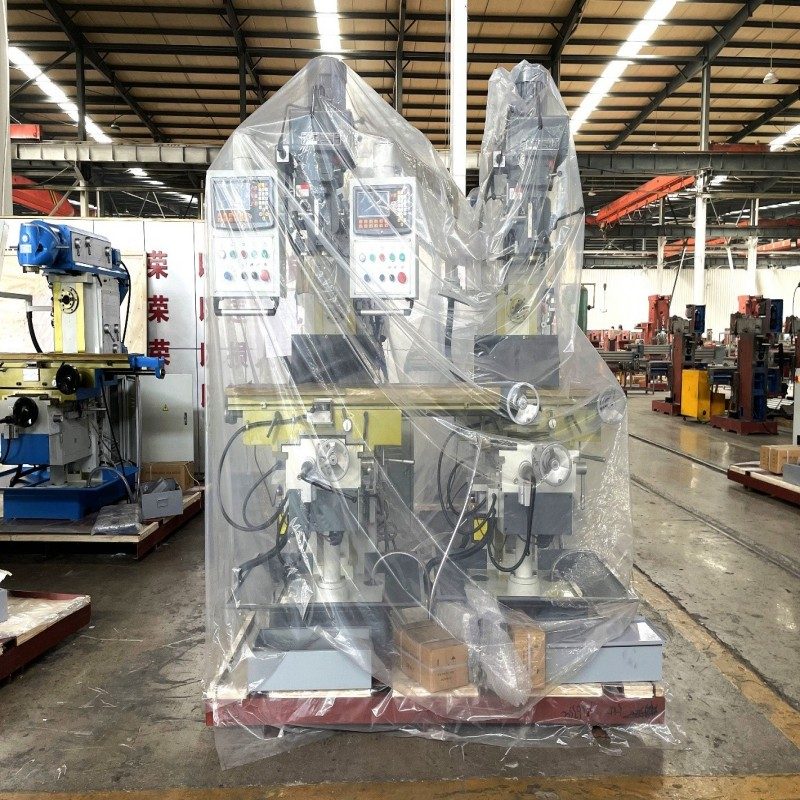

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Stable Universal Metal Milling Machine
Heavy machinery manufacturer

Q1: What materials can this turret milling machine process?

A1: It can process steel, cast iron, aluminum, copper and other metal materials, also suitable for hard plastic. It supports milling, drilling, tapping, slotting and reaming.

Q2: What optional accessories are available for this milling machine?

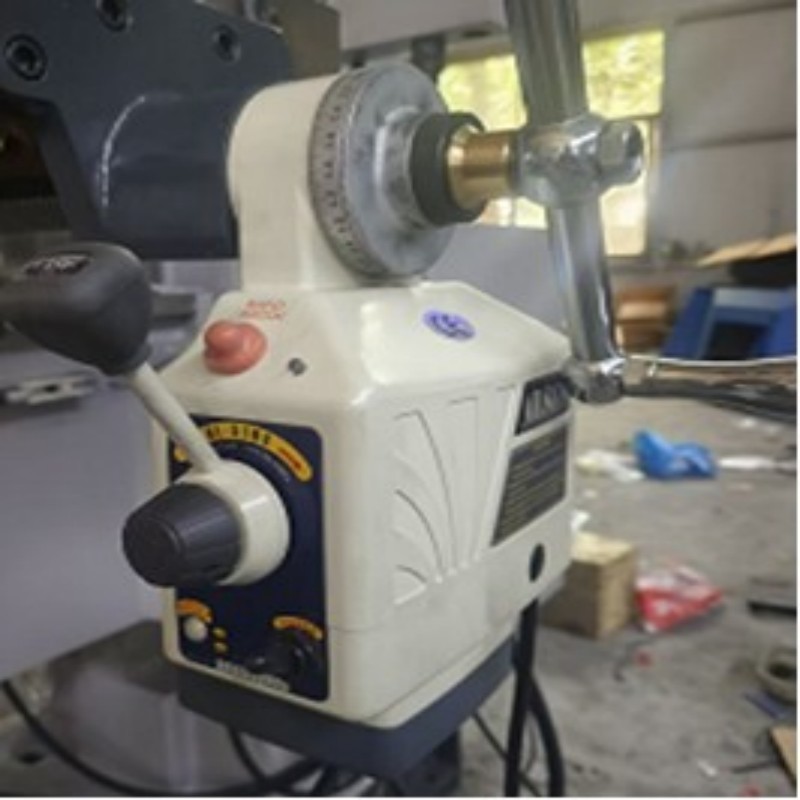

A2: We can supply DRO digital readout system, 3-axis power feed unit, coolant system, vice and tool sets as optional extras.

Q3: What is the difference between R8 spindle and ISO40 spindle?

A3: R8 spindle is suitable for light and medium cutting, with fast tool change. ISO40 spindle has higher rigidity, bigger cutting load, ideal for heavy cutting work.

Q4: Is this milling machine easy to operate and maintain?

A4: Yes, it is a classic manual turret mill. The operation is intuitive. Spare parts are widely available in the market, maintenance cost is low.
