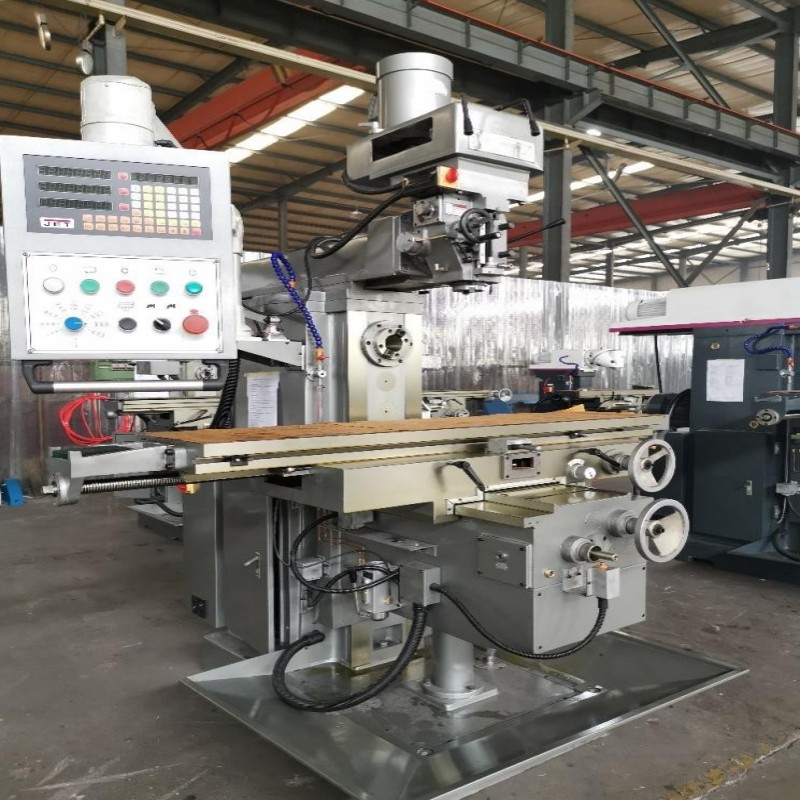

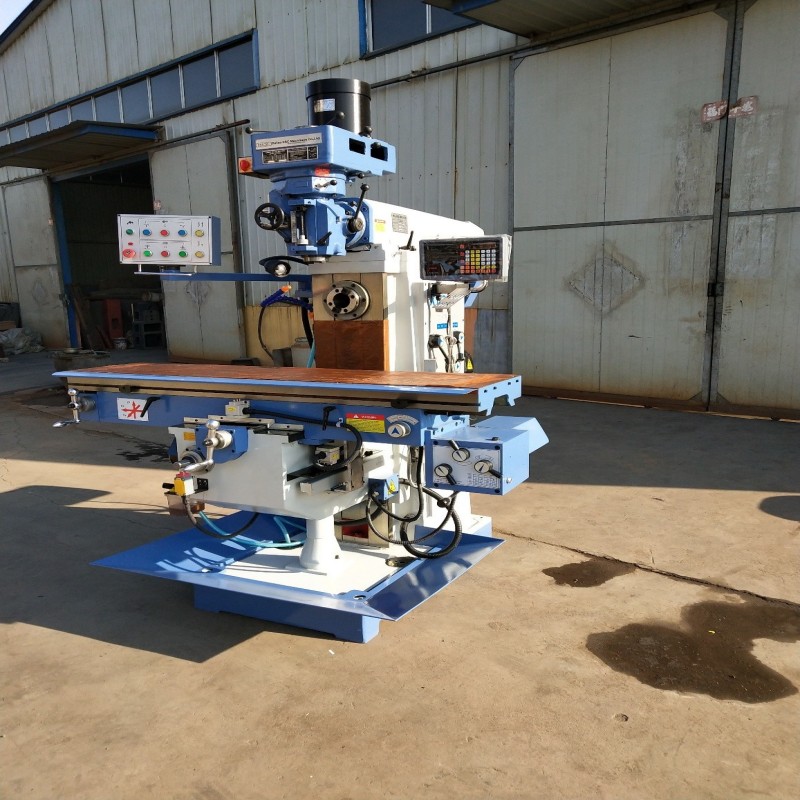

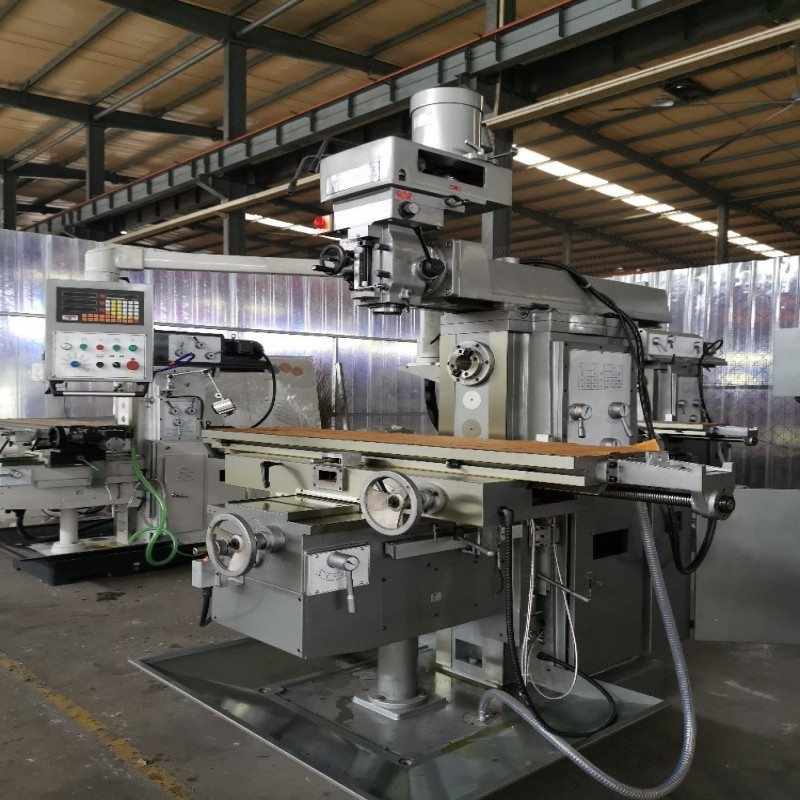

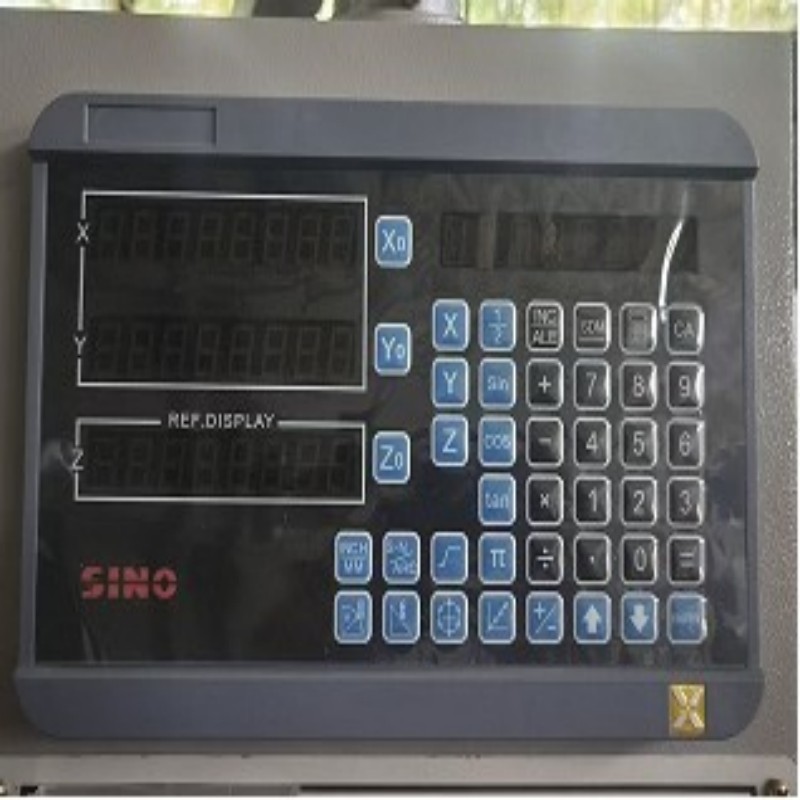

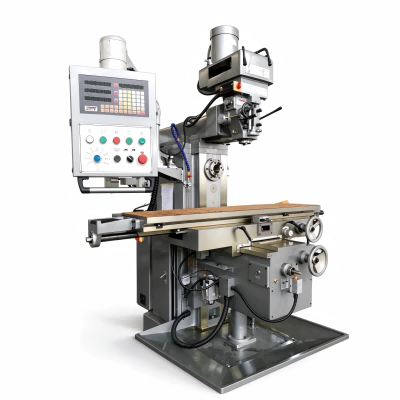

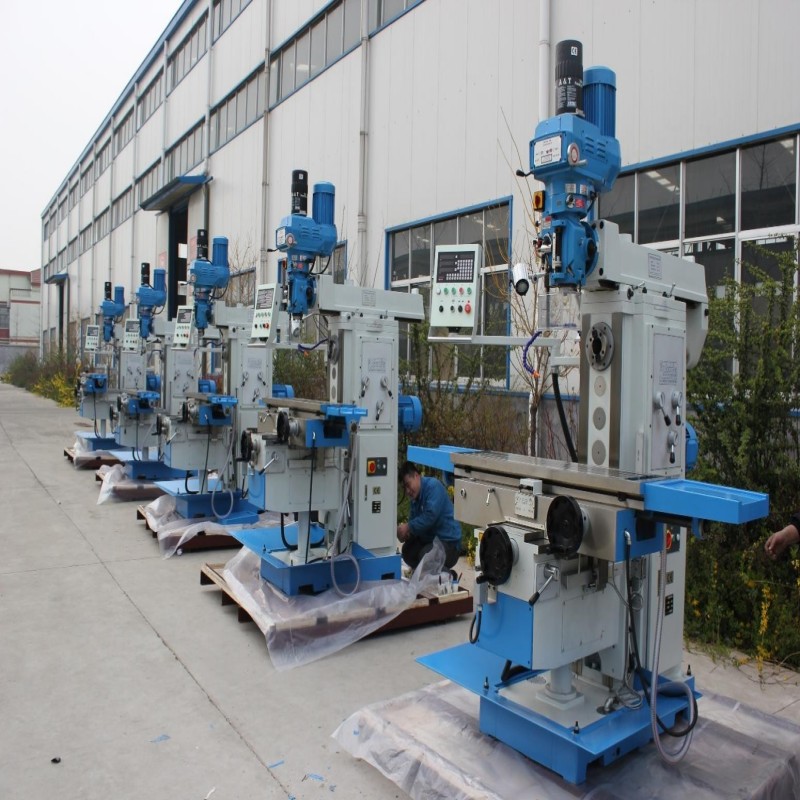

Specifications |
Unit |
X6336 |
|
Spindle Taper |
|
7:24 ISO 40 (V) / 7:24 ISO 50 (H) |
|
Distance from Vertical Spindle Nose to Table |
mm |
135 - 535 |
|
Distance from Vertical Spindle Center to Column |
mm |
150 - 550 |
|
Distance from Vertical Spindle Nose to Table |
mm |
0 - 350 |
|
Distance from Horizontal Spindle Center to Overarm |
mm |
230 |
|
Spindle Diameter |
mm |
105 |
|
Spindle Speed Range |
r.p.m |
(16steps)66 - 4540 (V) (12steps)60-1800(H) |
|
Worktable Size |
mm |
1500 × 360 |
|
Worktable Travel (X / Y / Z) |
mm |
1000 - 1200 / 320 / 450 |
|
Longitudinal / Cross Power Feed Speed |
mm/min |
(8steps)22-555 (Rapid 830) |
|
Power Table Lifting Speed |
mm/min |
590 |
|
Z-axis Leadscrew Diameter |
mm |
55 |
|
Table T-slot (Number / Width / Pitch) |
|
3 / 18 / 80 |
|
Overarm Travel |
mm |
500 |
|
Motor Power |
KW |
3.7 (V) / 4 (H) |
|
Table Power Feed Motor Power |
W |
1100 |
|
Coolant Pump Motor Power |
W |
90 |
|
Machine Weight |
kg |
2380 |
|
Overall Dimension |
mm |
2370 × 1740 × 2360 |
