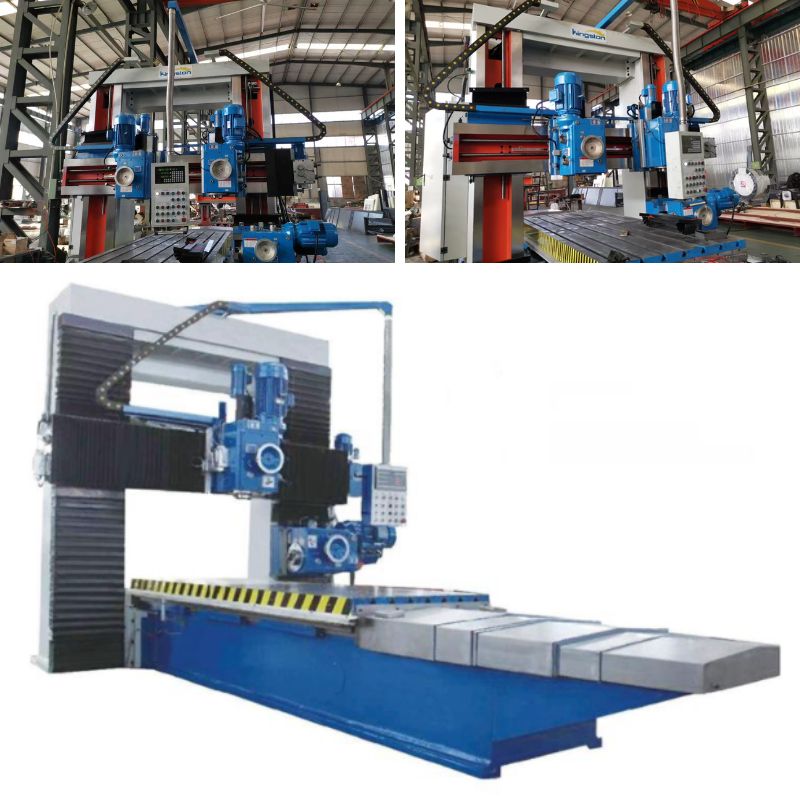

X2008 Gantry Type Milling Machine with Competitive Price

X2008 Gantry Type Milling Machine with Competitive Price

X2008 gantry milling machine features high rigidity and heavy cutting capacity. It is designed for large workpiece machining with stable performance.The X2008 gantry milling machine offers a compact solution for milling large plates and frames. With 2000 mm longitudinal travel, 1100 mm width capacity, and a 7.5kW spindle, it handles medium-sized workpieces.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30

Inquire Now

High Rigidity Gantry Metal Milling Machine

1.Stable gantry structure: Fixed crossbeam gantry with high rigidity, suitable for heavy-duty machining.

2.Wide clearance: Column spacing of 1140 mm, workpiece clearance width of 1100 mm, and height of 800 mm.

3.±35° swivelling milling head: The vertical milling head can swivel 35° to the left and right, allowing inclined surfaces to be machined without tilting the workpiece.

4.6-speed spindle: 82–505 rpm, ISO 50 taper, high torque, suitable for cast iron and steel workpieces.

5.Stepless table feed: Steplessly adjustable feed speed, up to 1400 mm/min.

specification

Specification		Unit	X2008
Max.travel	Width	mm	2000	3000
	Length	mm	1100
	Height	mm	800
Distance between columns		mm	1140
Table size	Length	mm	2000	3000
	Width	mm	800
Table feeding speed	Feed		(ininite)
	Rapid travel		1400
Spindle taper			7:24 ISO50
Spindle speed step		r/min	82-505
Swivel angle of milling head Feed speed of milling head		mm/min	±35° 65/320/890
Milling head travel		mm	350
Power of spindle motor		kw	7.5
Power of table motor		kw	4
Overall size	Length	mm	4000	6000
	Width	mm	3000
	Height	mm	2300

Product Advantages

High Rigidity Gantry Structure
Fixed beam gantry design – good rigidity, suitable for heavy cutting, large plates processed without deformation.
Wide Through Capacity
Column spacing 1140 mm – workpiece pass width 1100 mm, height 800 mm, accommodates medium-large workpieces.
±35° Swiveling Milling Head
Vertical head rotates ±35° – processes bevels without tilting workpiece, convenient and fast.
Variable Speed

Table feed speed infinitely variable, max 1400 mm/min – flexible operation.
Pneumatic Tool Lock Standard
Pneumatic tool locking device – fast and effortless tool changes, improved convenience.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

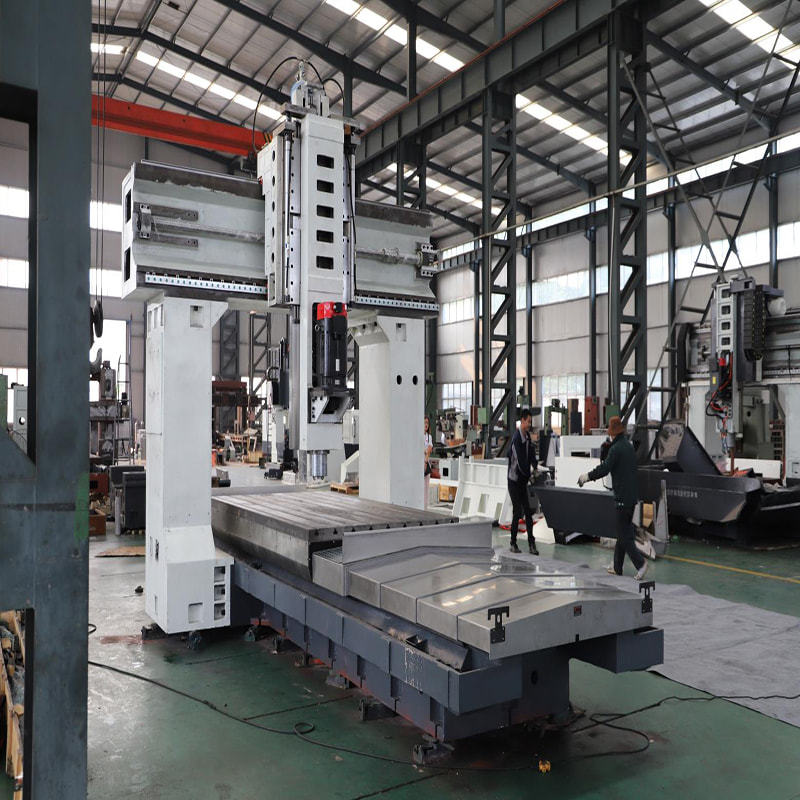

factory show

Professional Production Base, Strength in Precision Manufacturing

Multi‑Function Universal Milling Equipment Factory Exhibition cnc machine High-quality lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Stable Universal Metal Milling Machine
Heavy machinery manufacturer

1. What are the maximum dimensions of the workpieces the X2008 can machine?

Maximum 2000 × 1100 × 800 mm (L × W × H).

2.Is a pneumatic tool clamping system included?

A pneumatic tool clamping system is included as standard, making tool changes convenient.

3.Can a digital readout (DRO) be fitted?

Yes, a DRO is available as an option to improve positioning accuracy.

4.Is it suitable for mould machining?

It is suitable for roughing and semi-finishing of medium to large moulds.

5. Is a foundation required?

We recommend a 200 mm thick concrete foundation secured with anchor bolts.
