XH4030 XH6030 Heavy Duty Multi-purpose Cnc Gantry Mill Machine

XH4030 XH6030 Heavy Duty Multi-purpose Cnc Gantry Mill Machine

XH4030 and XH6030 are ultra-large heavy-duty CNC gantry machining centers, engineered for super-large size, super-heavy load industrial processing. Adopting closed rigid double-column gantry structure and overall high-quality cast iron components, the whole machine undergoes multiple aging treatments to eliminate internal stress. With ultra-wide cross span and ultra-long travel design, they are capable of one-time clamping and multi-face machining, ideal for large molds, heavy equipment frames, large steel structure parts and extra-large mechanical components.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
63Ton

Inquire Now

XH4030 XH6030 Heavy Duty Multi-purpose Cnc Gantry Mill Machine

Equipped with industrial high-end CNC system and high-power servo drive system, the two gantry models feature fast response, high positioning accuracy and

stable long-term continuous operation. The high-rigidity heavy-duty spindle provides powerful metal cutting force, adapting to high-hardness materials and high-intensity repetitive processing.

Reasonable overall layout, fully enclosed safety protection and intelligent lubrication system greatly improve working efficiency and equipment durability.

They are core essential equipment for heavy industry, large-scale manufacturing and customized oversized part processing.

specification

Specification	unit	XH6030	XH4030
table width	mm	2200	2200
table length	mm	6000	4000
Max.load of table	KG	22000	15000
T-slots(width/distance/number)		2820011	2820011
X-axis Travel	mm	6200	4200
Y-axis Travel	mm	3150	3150
Z-axis Travel	mm	1000	1000
Distance from spindle nose to worktable	mm	250-1250	250-1250
Distance between two columns	mm	3000	3000
Spindle taper		BT50-190	BT50-190
Spindle motor	KW	22/26	22/26
Spindle speed	rpm	6000	6000
Magazine capacity		24	24
Feed speed(×/Y/Z axis)	mm/min	1-8000	1-8000
Rapid feed speed(×/Y/Z axis)	m/min	10/12/10	10/12/10
Positioning accuracy-X	mm	0.040	0.025
Positioning accuracy-Y	mm	0.020	0.020
Positioning accuracy-Z	mm	0.020	0.020
Repeatability Positioning accuracy-X	mm	0.025	0.016
Repeatability Positioning accuracy-Y	mm	0.014	0.014
Repeatability Positioning accuracy-Z	mm	0.013	0.013
Dimension	mm	1450058005600	1030058005600
Weight	T	57	45

Product Advantages

1.Super Large Working Coverage

Extra-long and ultra-wide travel design meets one-stop machining of oversized integral workpieces.
2.Closed Rigid Gantry Design

High-strength overall structural layout greatly improves shock resistance and long-running stability.
3.Dual Processing Capacity

Balanced performance for heavy rough cutting and high-precision finishing to satisfy mixed production needs.
4.Industrial Intelligent Configuration

Compatible with various auxiliary devices and automated expansion, adapting to modern factory production mode.
5.Strong Scene Adaptability

Widely used in heavy machinery, large mold, petrochemical equipment and heavy engineering manufacturing.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

cnc gantry cutting machine

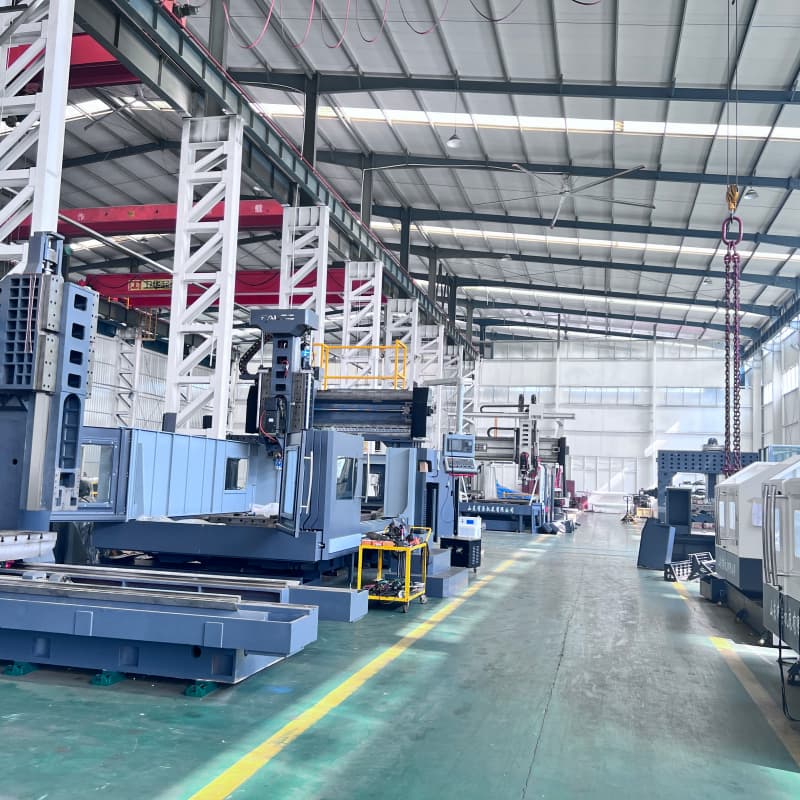

factory show

Professional Production Base, Strength in Precision Manufacturing.

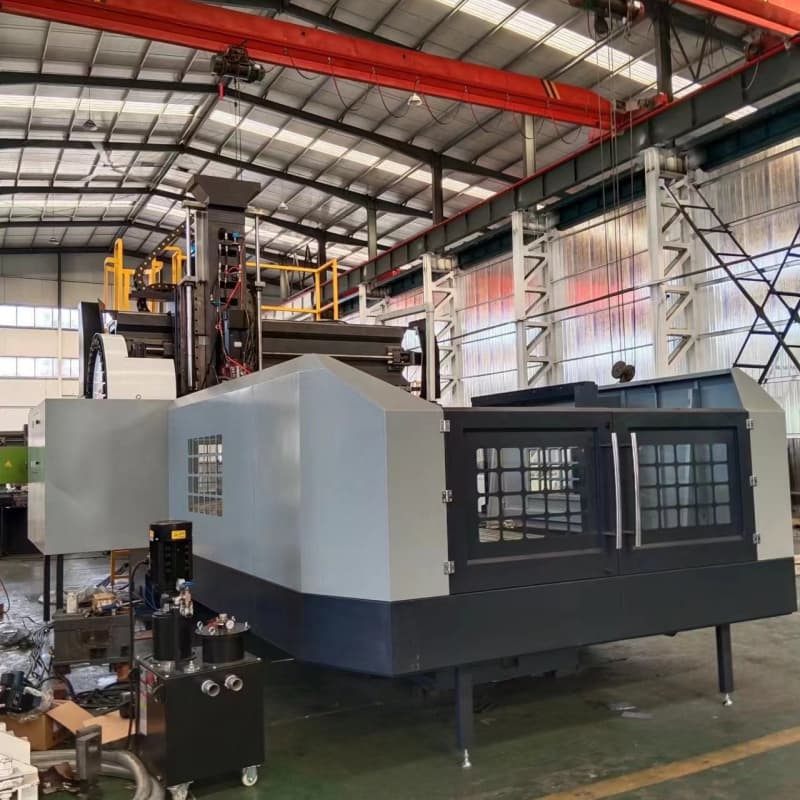

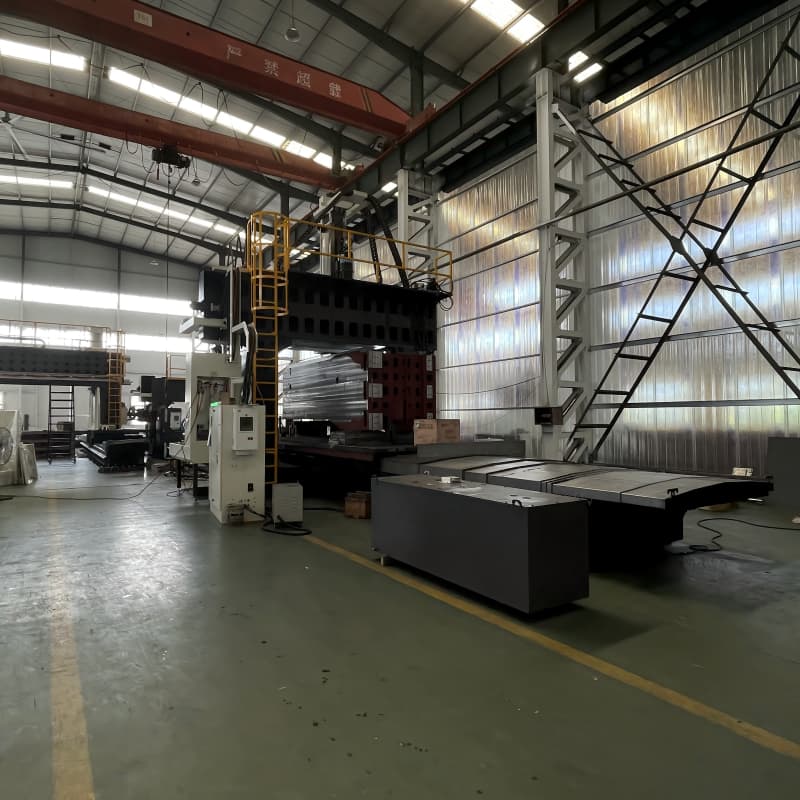

big cnc milling machine Double Column Milling Machine

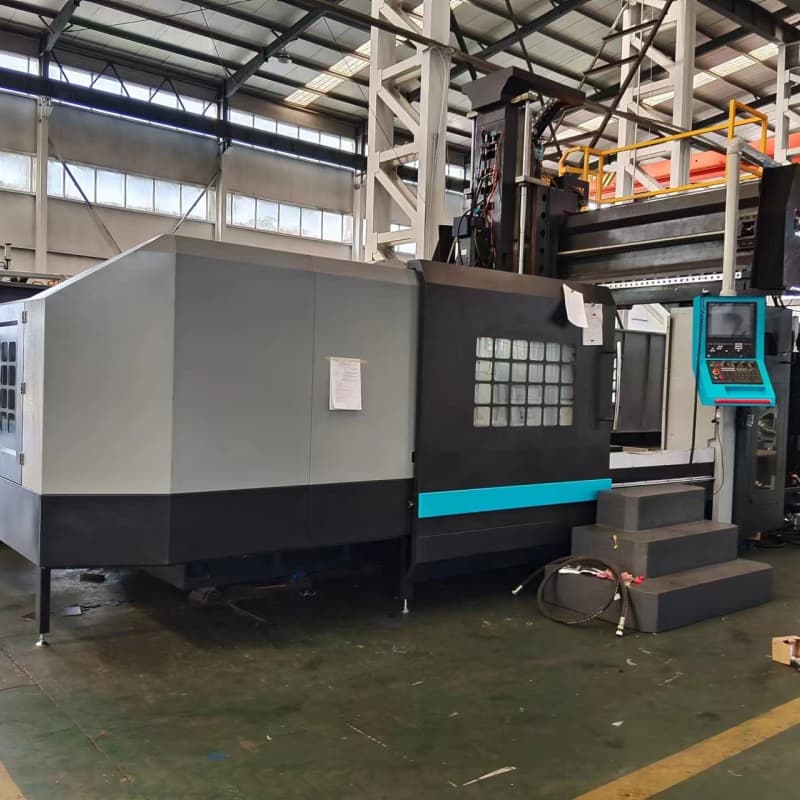

cnc drilling and milling machine industrial cnc milling machine

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Large Size Fixed Beam Machining Center

cnc milling machine operation

Q: What are the advantages of XH4030 and XH6030 gantry machine?

A: They adopt enlarged gantry structure, super wide span design and heavy-duty base, with stronger load capacity and overall structural rigidity.
Q: Are these gantry models suitable for extra-large mold processing?

A: Yes, the ultra-long travel and reinforced worktable design fully meet the processing demands of large molds, base plates and structural parts.
Q: How to ensure stable precision during long-hour operation?

A: High-precision transmission parts plus overall aging treatment effectively relieve internal stress, keeping long-term accuracy and structural stability.
Q: What working modes can this gantry machining center support?

A: It supports heavy roughing, precision finishing, drilling, boring and tapping, realizing one-clamping multi-process composite machining.
Q: What industrial fields are these two gantry machines mainly applied to?

A: Widely used in heavy equipment, large mechanical parts, automobile molds, petrochemical accessories and heavy engineering manufacturing.
