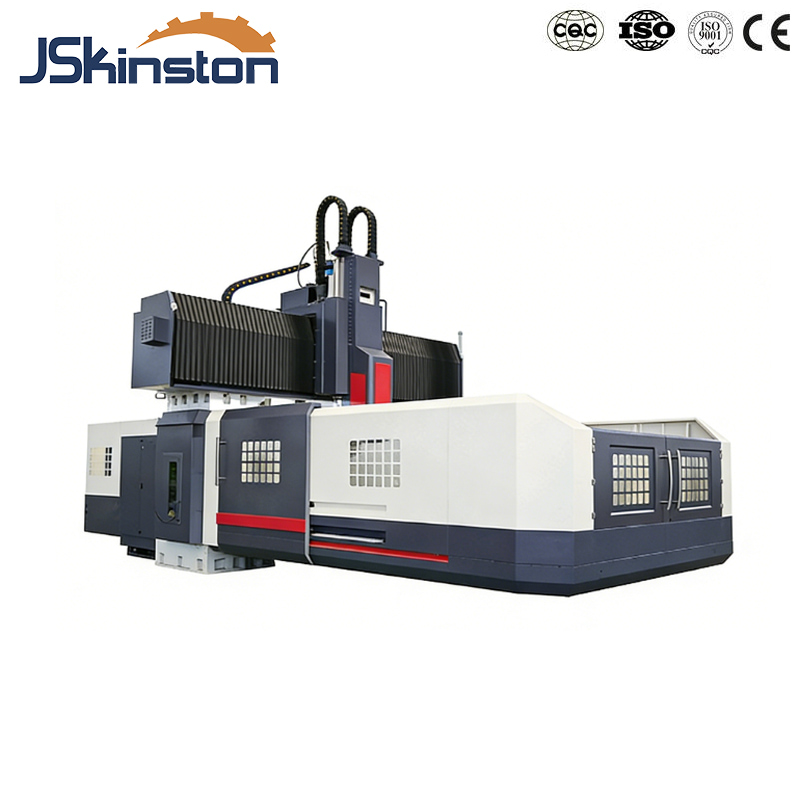

Factory Supply XH2014 XH2519 Cnc Gantry Type Milling Machining Center

Factory Supply XH2014 XH2519 Cnc Gantry Type Milling Machining Center

XH2014 and XH2519 CNC gantry machining centers are heavy-duty large-scale processing equipment engineered for extra-large workpieces and heavy cutting demands. Adopting a high-strength gantry fixed beam and integral cast iron structure, the whole machine undergoes strict aging treatment to eliminate internal stress, delivering ultra-high structural rigidity and strong vibration resistance. It is specially designed for oversized parts, large molds, heavy mechanical components and complex multi-surface machining, perfectly fitting heavy industry high-load production requirements.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
20Ton

Inquire Now

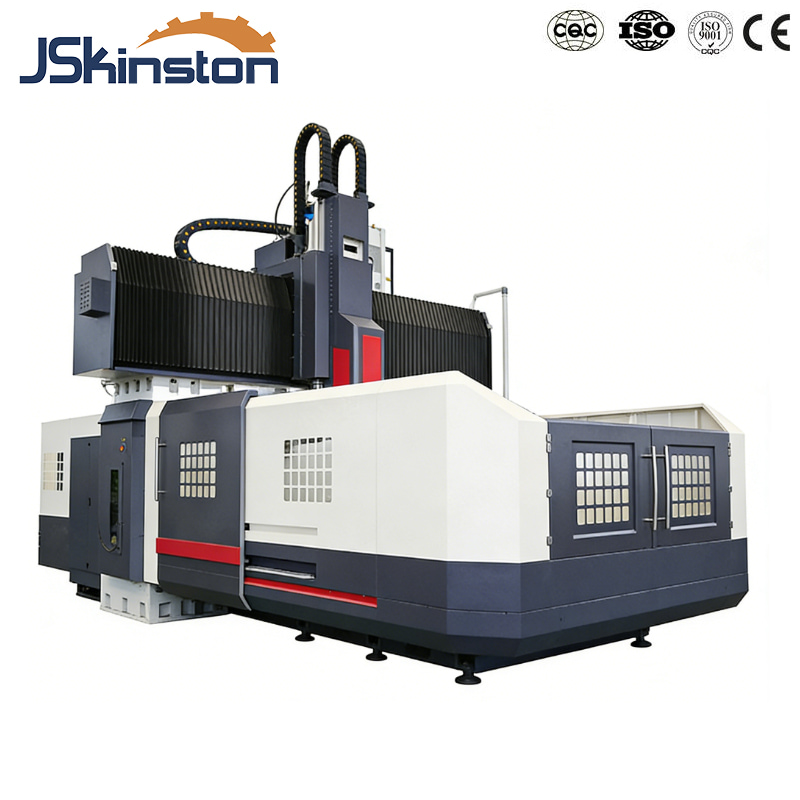

Factory Supply XH2014 XH2519 Cnc Gantry Type Milling Machining Center

Equipped with advanced CNC system and high-precision servo drive system, this gantry series features rapid response, accurate positioning and stable long-duration operation. The reinforced spindle and optimized transmission structure provide powerful cutting capacity for various high-hardness metal materials.

With large travel range, heavy load capacity and intelligent processing control, XH2014 and XH2519 are widely applied in engineering machinery, large mold manufacturing, aerospace equipment and heavy equipment customization.

specification

Specification	unit	XH2519	XH2014
table width	mm	1500	1200
table length	mm	2500	2000
Max.load of table	KG	7000	5000
T-slots(width/distance/number)		221609	221407
X-axis Travel	mm	2600	2100
Y-axis Travel	mm	1900	1400
Z-axis Travel	mm	900	800
Distance from spindle nose to worktable	mm	150-1050	150-950
Distance between two columns	mm	1900	1400
Spindle taper		BT50-190	BT50-190
Spindle motor	KW	15/18.5	15/18.5
Spindle speed	rpm	6000	6000

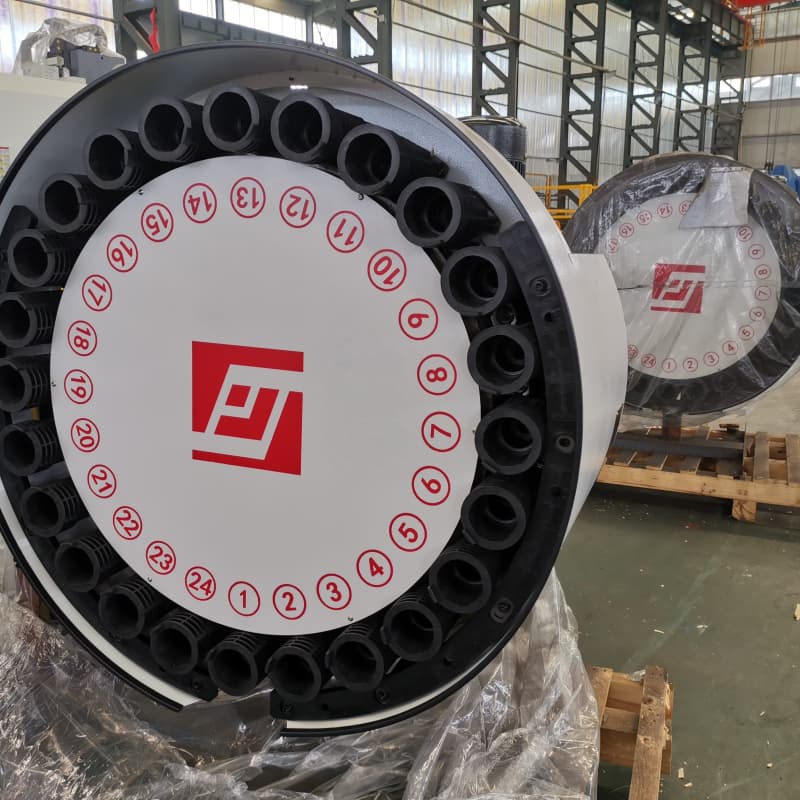

Magazine capacity		24	24
Feed speed(×/Y/Z axis)	mm/min	1-8000	1-8000
Rapid feed speed(X/Y/Z axis)	m/min	12/12/10	12/12/10
Positioning accuracy-X	mm	0.018	0.016
Positioning accuracy-Y	mm	0.015	0.015
Positioning accuracy-Z	mm	0.015	0.015
Repeatability Positioning accuracy-X	mm	0.012	0.012
Repeatability Positioning accuracy-Y	mm	0.010	0.010
Repeatability Positioning accuracy-Z	mm	0.010	0.010
Dimension	mm	730043004900	630038004700
Weight	T	20	15

Product Advantages

Ultra-High Gantry Rigidity
Integral thickened cast iron frame and fixed beam design ensure stable operation under long-term heavy cutting.
Large Travel & Heavy Load
Super-large working stroke and heavy-duty worktable meet the machining needs of extra-large and heavy workpieces.
Strong Heavy Cutting Performance
High-power high-rigidity spindle realizes efficient roughing and high-precision finishing for hard metals.
High-Precision Transmission System
Precision ball screw and linear guide design guarantee outstanding positioning accuracy and processing stability.
Wide Heavy Industry Application
Suitable for large mold, engineering parts, aerospace components and non-standard heavy part production.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

cnc gantry cutting machine

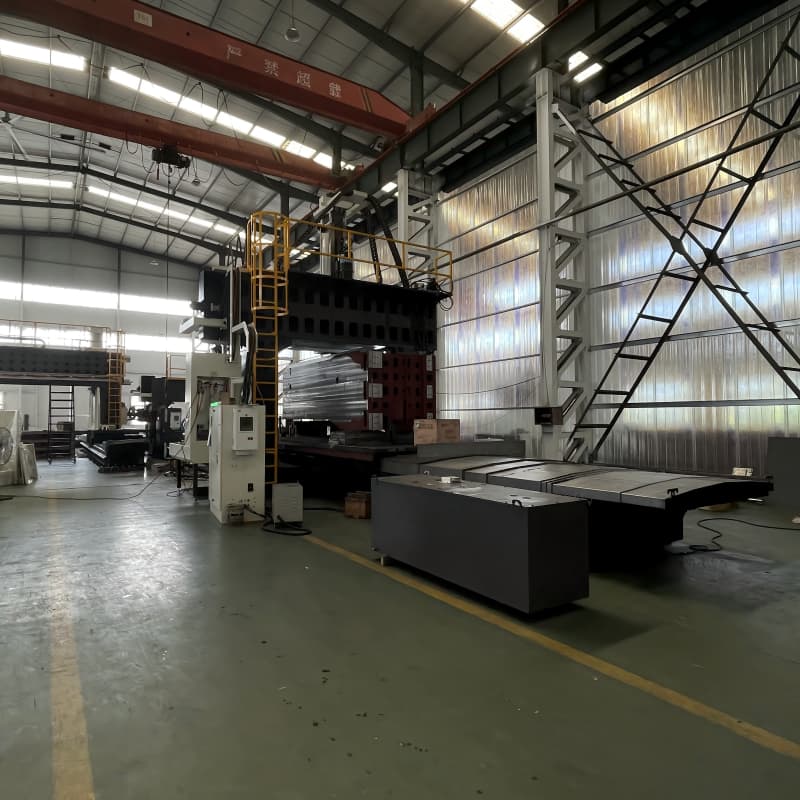

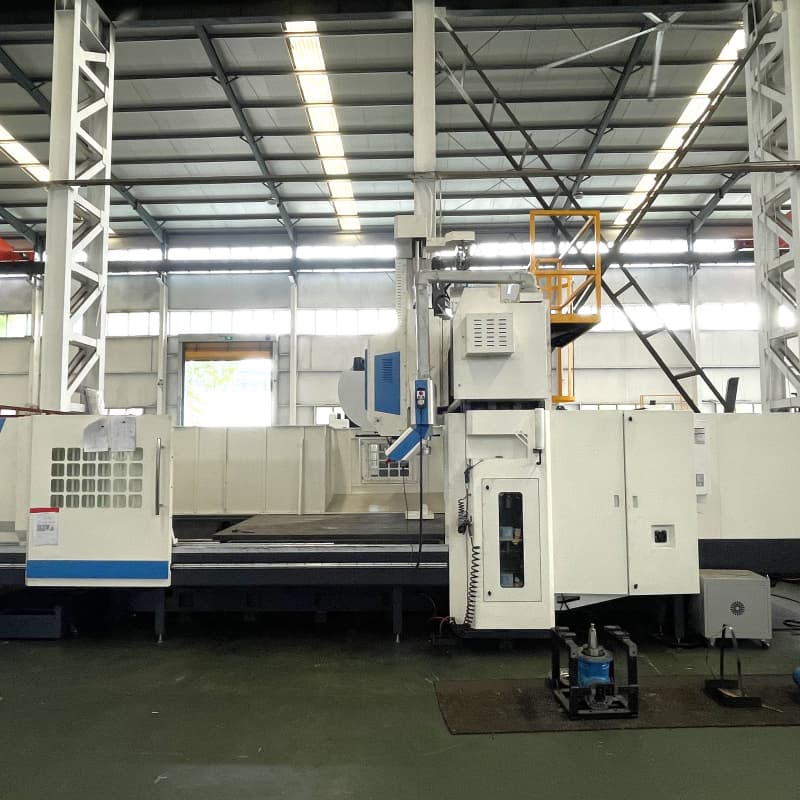

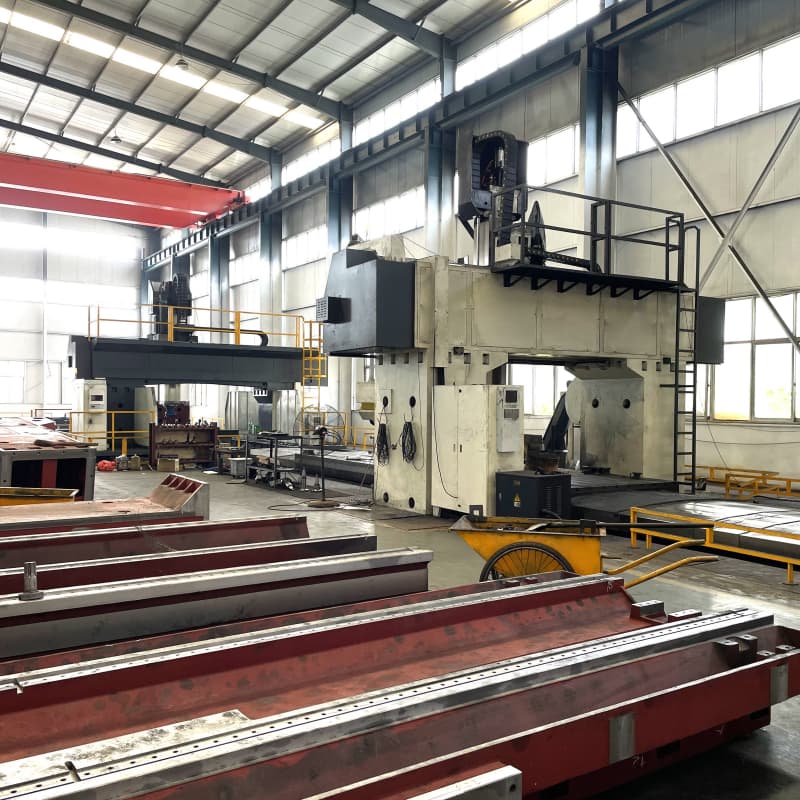

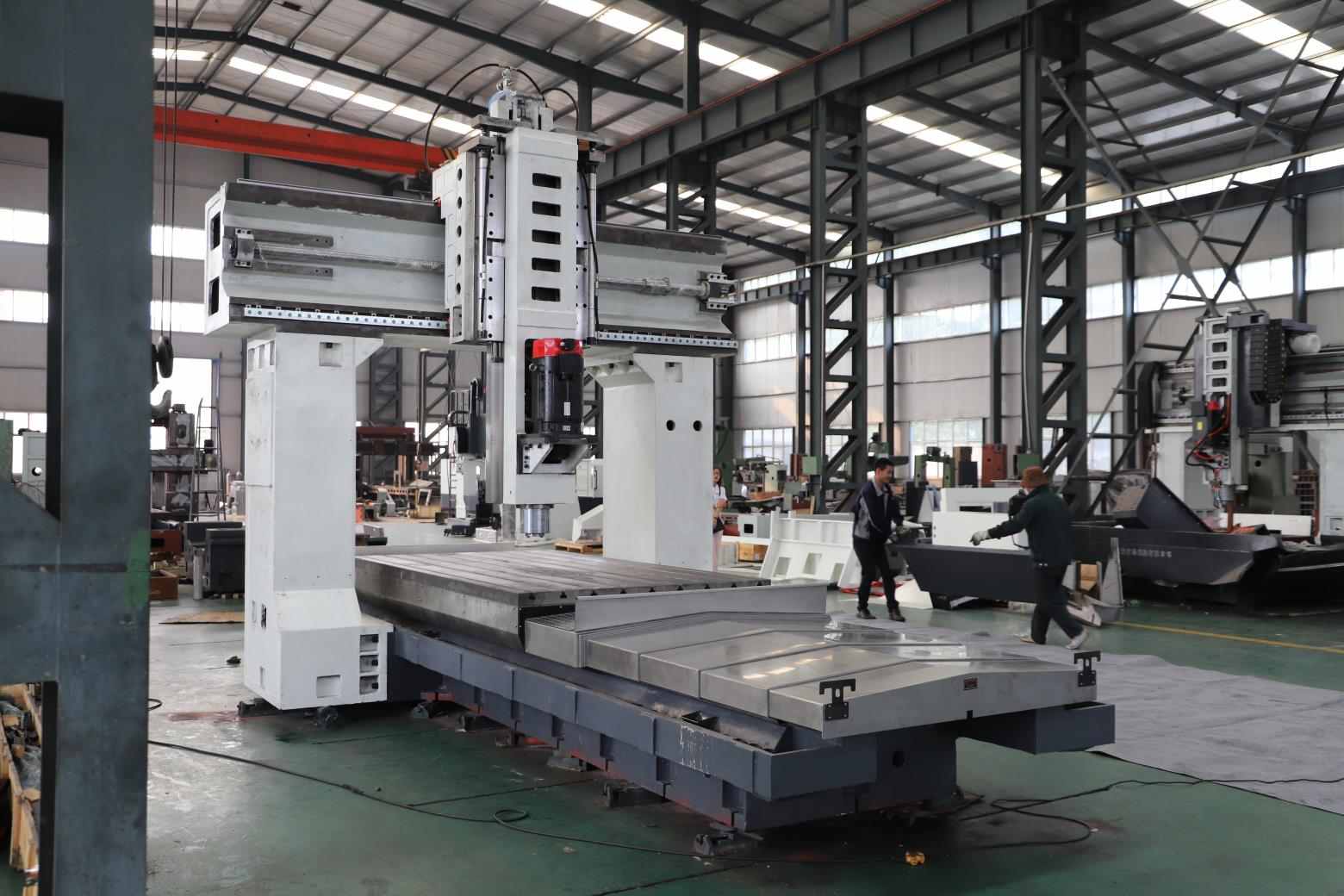

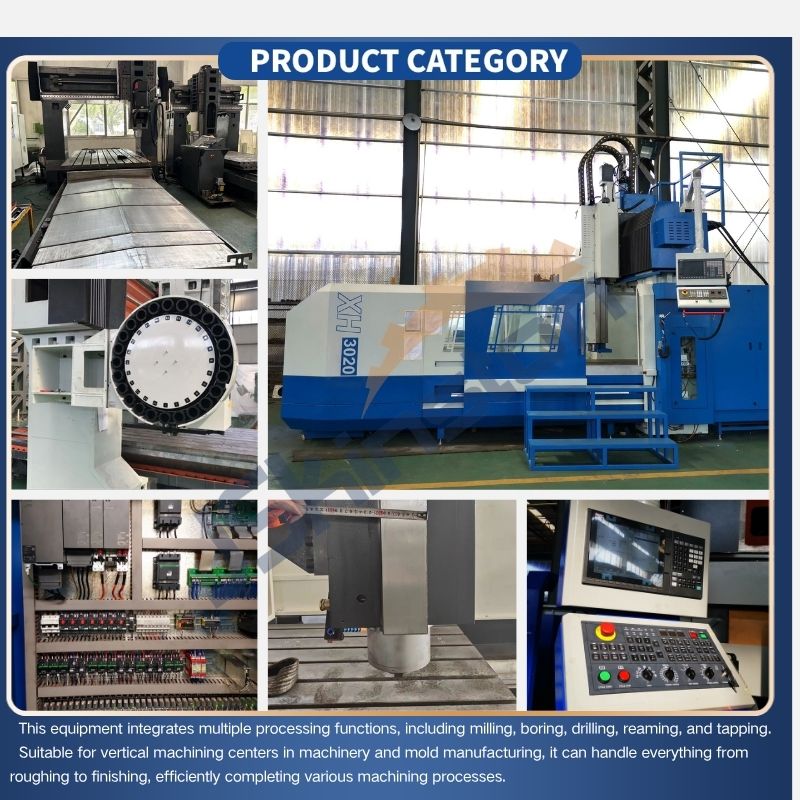

factory show

Professional Production Base, Strength in Precision Manufacturing.

5 axis gantry cnc machine gantry type vertical machining center

cnc beam saw machine gantry 5 axis cnc machine

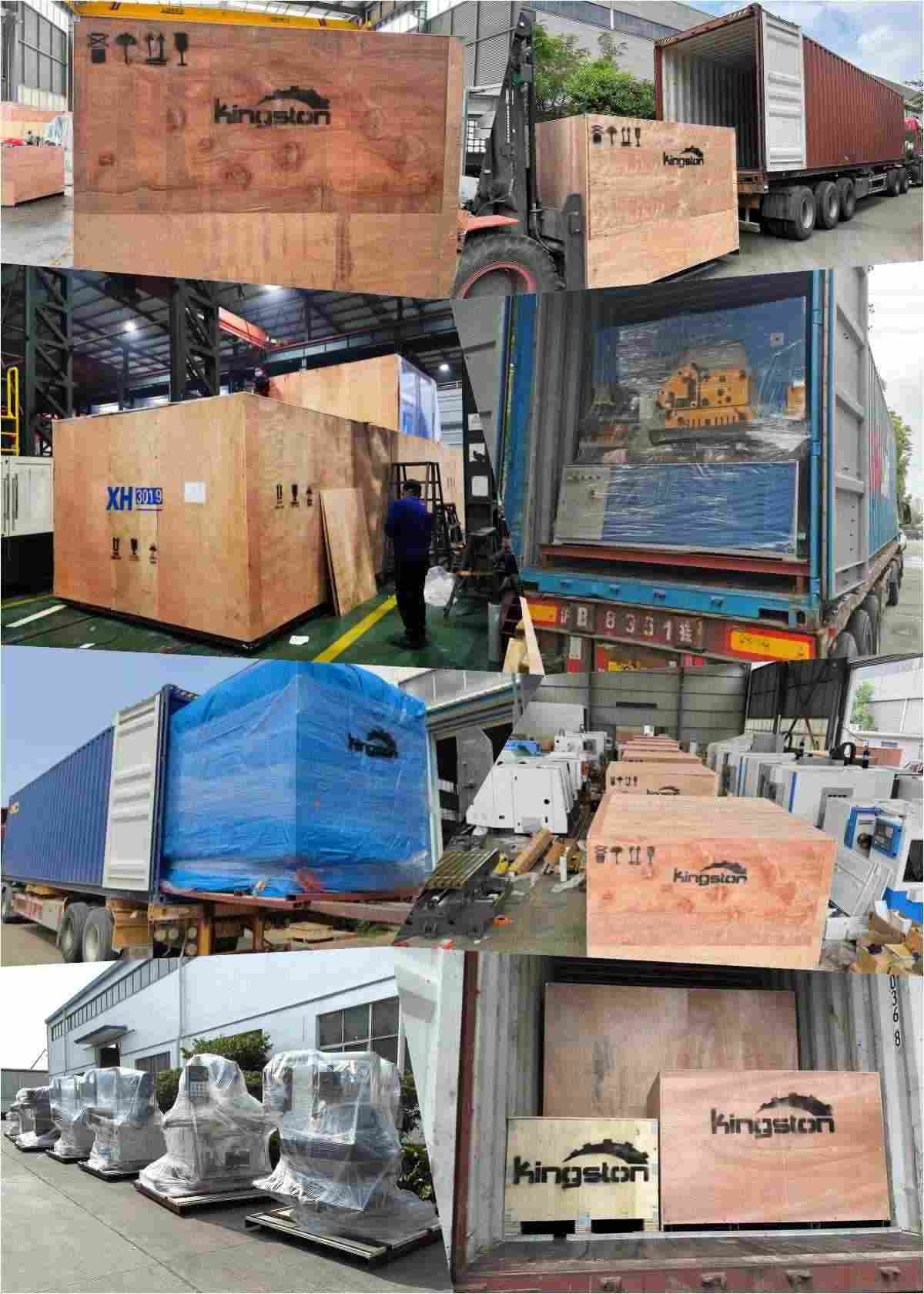

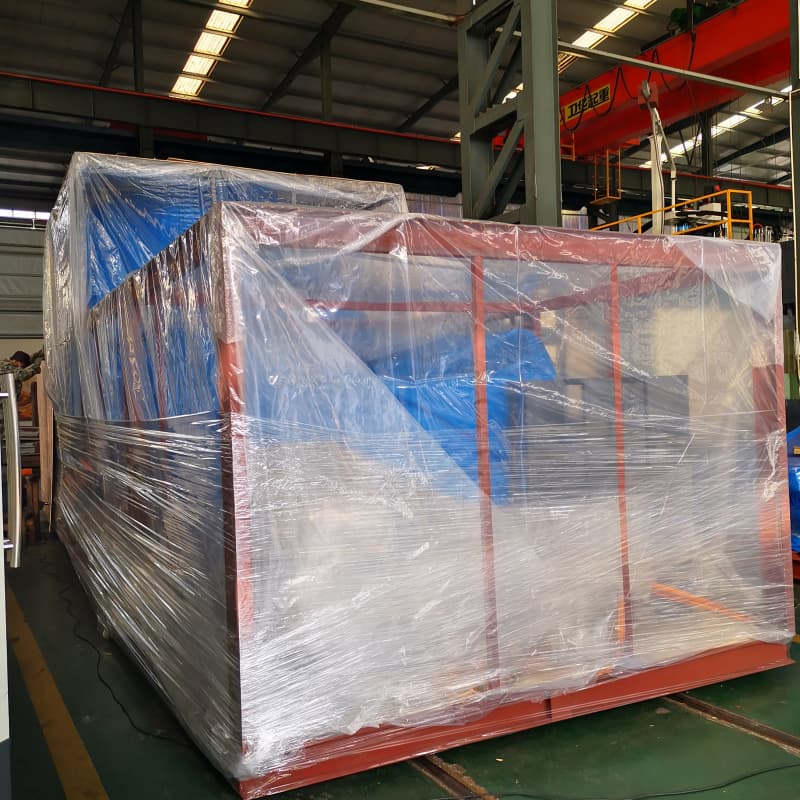

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

cnc beam cutting machine

fixed gantry cnc

Q: What are the core strengths of gantry type machining center?

A: It features ultra-large working area, integral heavy-duty frame and super high rigidity, suitable for extra-large size workpiece processing.
Q: What kind of cutting conditions can gantry CNC machine adapt to?

A: It performs steadily in heavy stock removal, precision finishing and long-time continuous heavy load industrial production.
Q: How to guarantee high precision on large workpieces?

A: Precision ground guideways, high-precision ball screws and overall aging treatment effectively prevent deformation and ensure consistent accuracy.
Q: What multi-functional processing can this gantry center realize?

A: It integrates milling, drilling, boring, tapping and compound machining to finish multiple procedures in one clamping.
Q: Which fields prefer to use gantry machining equipment?

A: Widely used in large mold, engineering machinery, aerospace, heavy equipment and new energy industry component processing.

Hot Tags :

Factory Supply XH2014 XH2519 Cnc Gantry Type Milling Machining Center

Gantry Machining Center

Fixed Gantry CNC Mill

Large Gantry CNC Machines

Related Products

Factory Supply XH2014 XH2519 Cnc Gantry Type Milling Machining Center

Large Carrying Capacity High Quality XH3022 Gantry-type Cnc Milling Machine

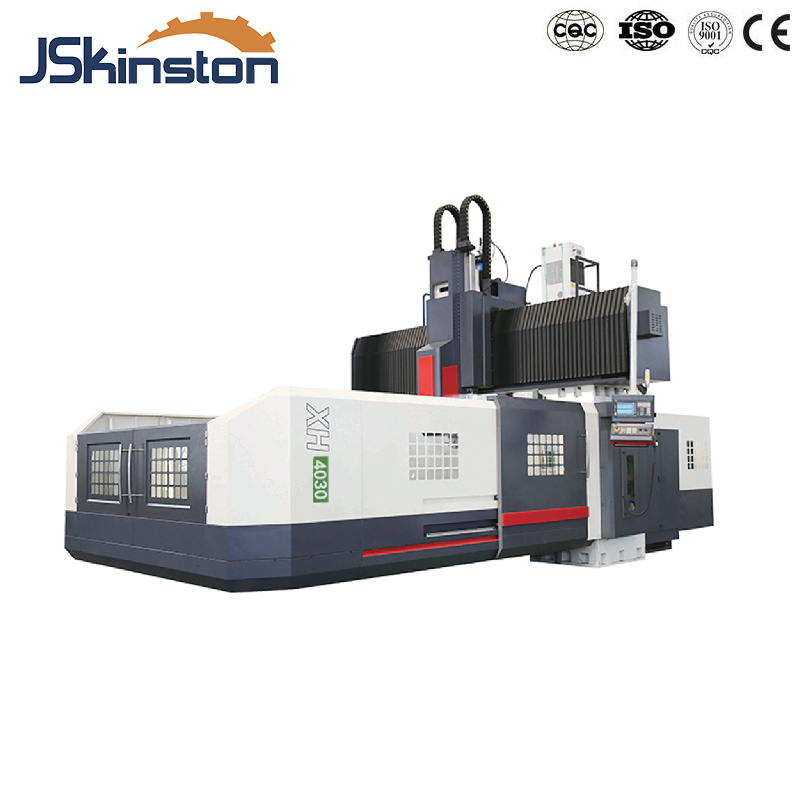

XH4030 XH6030 Heavy Duty Multi-purpose Cnc Gantry Mill Machine
