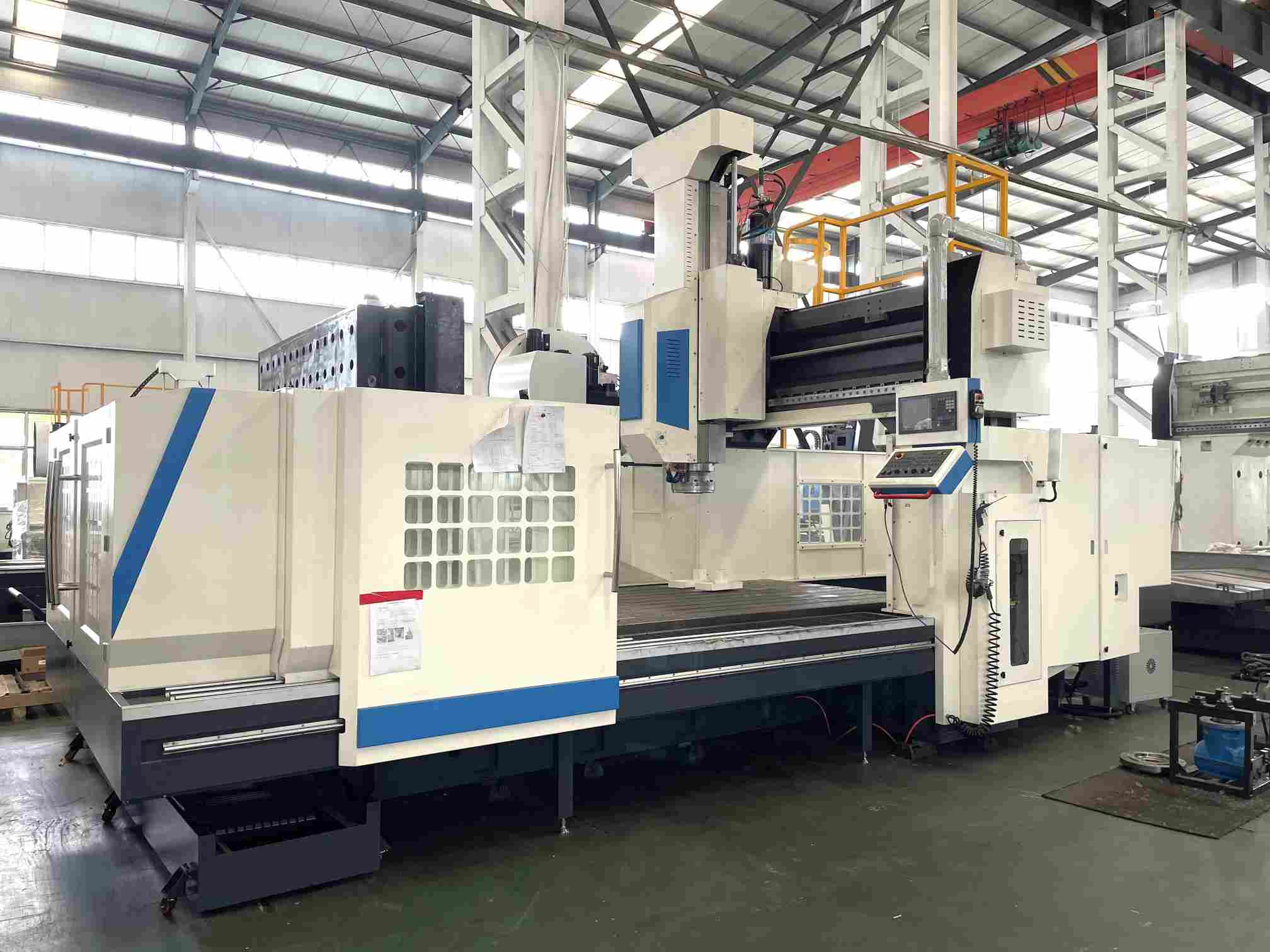

XH6038 and XH8038 are ultra-large heavy-duty CNC gantry machining centers, developed for super-large size, high-load and high-standard industrial processing. Featuring a reinforced closed double-column gantry structure and integral heavy cast iron body, all key components go through strict aging treatment to release internal stress. The ultra-wide span and super-long travel design allow one-time clamping and multi-angle composite machining, perfectly suitable for large injection molds, heavy equipment bases, large structural parts and extra-large custom workpieces.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
90Ton

Inquire Now

Energy Saving Design Efficient XH6038 XH8038 CNC Gantry Milling Machine

This series is equipped with high-performance CNC system and heavy-duty servo drive modules, realizing high-precision positioning and stable heavy-load operation.

The high-torque heavy-duty spindle offers strong cutting ability for thick metal and high-hardness materials, covering high-efficiency roughing and high-precision finishing.

With integrated centralized lubrication, fully enclosed protection and humanized operation design, the machines maintain stable performance under long-time

high-intensity operation, serving as key production equipment for heavy industry, large mold factories and large-scale equipment manufacturing.

specification

Specification	unit	XH8038	XH6038
table width	mm	3000	3000
table length	mm	8000	6000
Max.load of table	KG	40000	35000
T-slots(width/distance/number)		2820015	2820015
X-axis Travel	mm	8200	6200
Y-axis Travel	mm	4200(4600、5800)	4200(4600、5800)
Z-axis Travel	mm	1200	1200
Distance from spindle nose to worktable	mm	250-1450	250-1450
Distance between two columns	mm	3800(4200、5200)	3800(4200、5200)
Spindle taper		BT50-190	BT50-190
Spindle motor	KW	22/26	22/26
Spindle speed	rpm	4000	4000
Magazine capacity		24	24
Feed speed(×/Y/Z axis)	mm/min	1-8000	1-8000
Rapid feed speed(×/Y/Z axis)	m/min	10/12/10	10/12/10
Positioning accuracy-X	mm	0.050	0.040
Positioning accuracy-Y	mm	0.030	0.030
Positioning accuracy-Z	mm	0.020	0.020
Repeatability Positioning accuracy-X	mm	0.035	0.030
Repeatability Positioning accuracy-Y	mm	0.025	0.025(0.26、0.26)
Repeatability Positioning accuracy-Z	mm	0.014	0.014
Dimension	mm	200076006200	1500076006200
Weight	T	90	75

Product Advantages

1.Ultra-wide Heavy-load Platform

Super large table size and strong bearing capacity, meeting the processing demands of ultra-heavy and oversized workpieces.
2.Reinforced Gantry Rigidity

Optimized box-type wall structure greatly restrains cutting vibration and improves overall structural stability.
3.High-efficiency Material Removal

High-power spindle and optimized cutting parameters, realizing high-volume metal removal for heavy industrial tasks.
4.Precision Persistence Design

Reasonable heat dissipation and structural balance design effectively reduce thermal deformation and keep long-term accuracy.
5.Diversified Industry Coverage

Extensively applied in large mold processing, heavy engineering machinery, energy equipment and heavy steel part production.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

cnc gantry cutting machine

factory show

Professional Production Base, Strength in Precision Manufacturing.

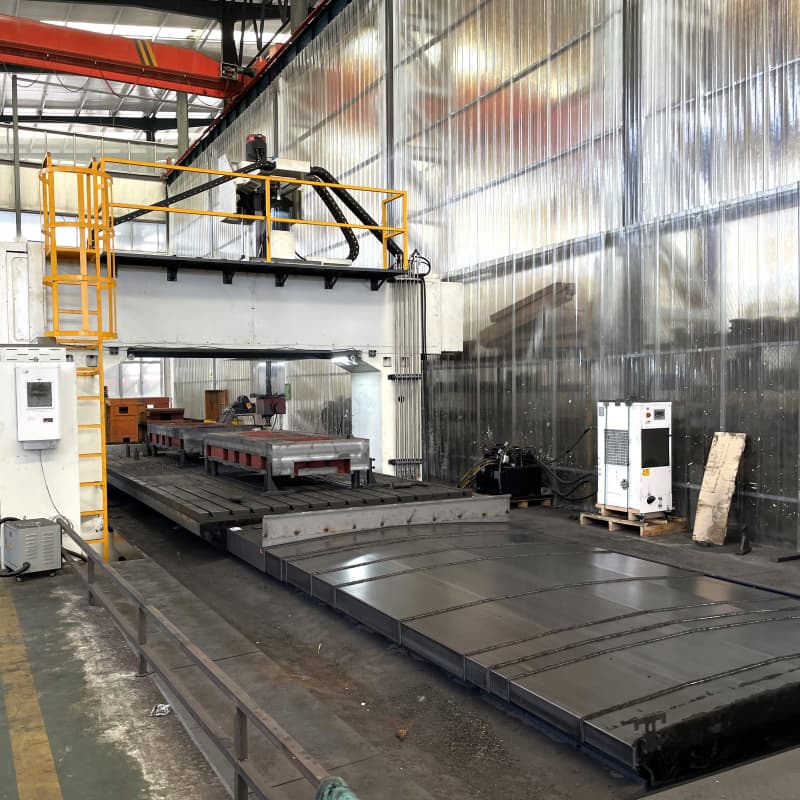

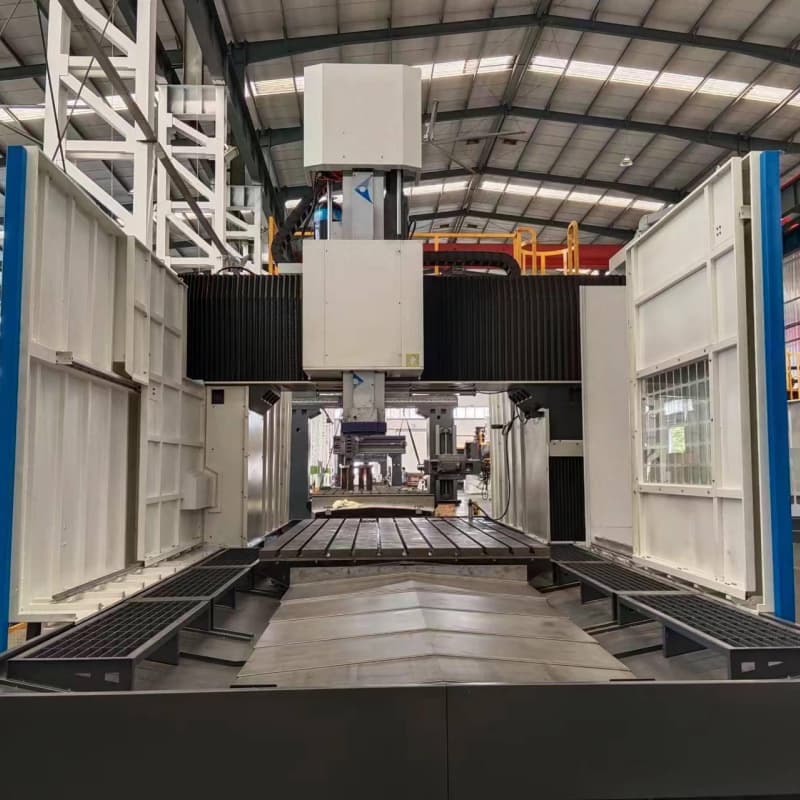

single spindle machining center NC Gantry Machining with Strong Bearing Capacity

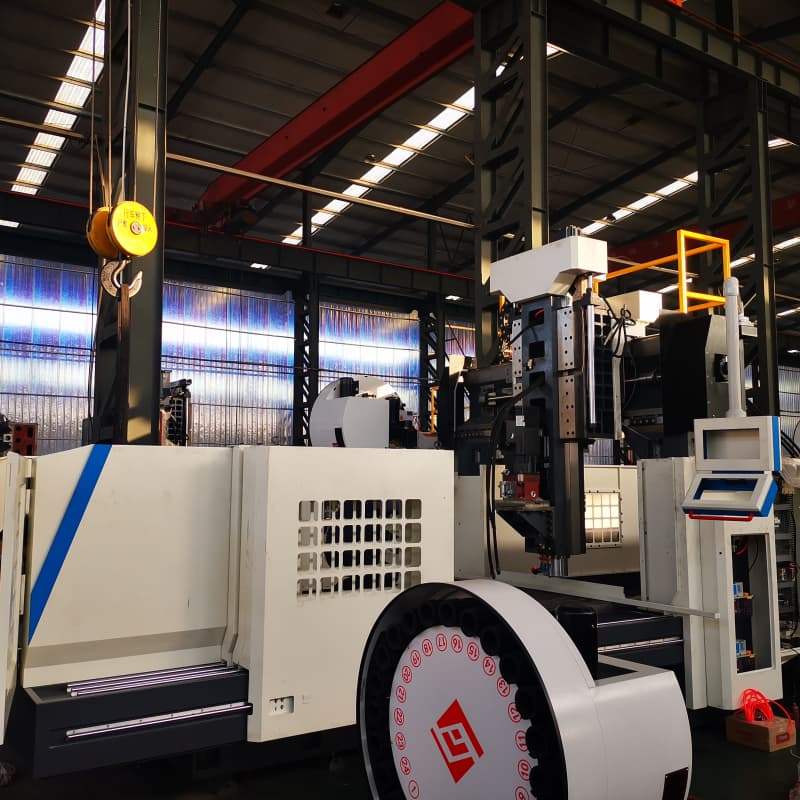

cnc drilling and milling machine industrial cnc gantry milling machine

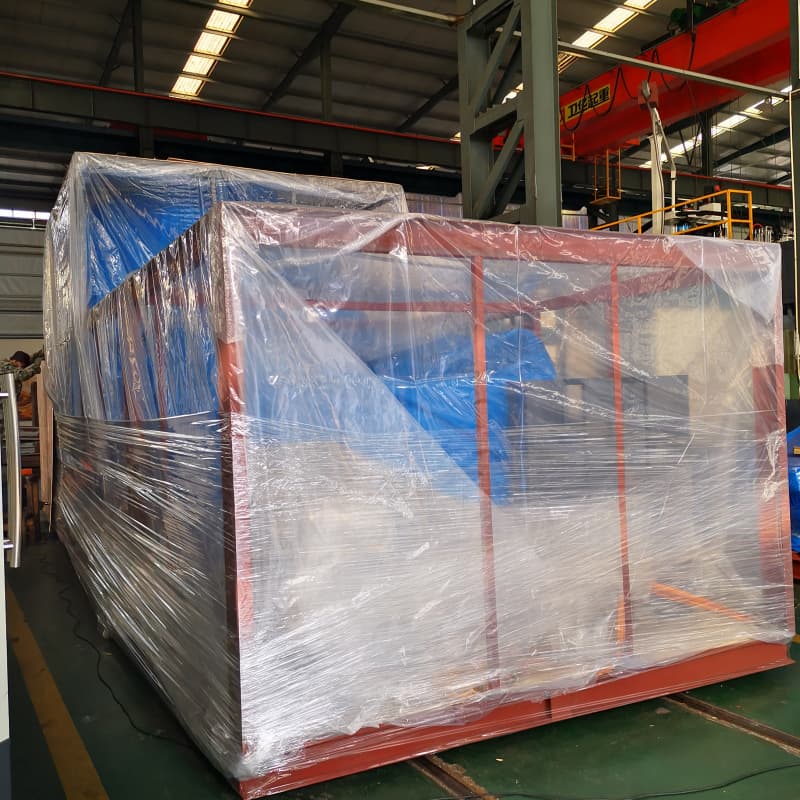

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

High-rigidity Cnc Gantry Milling Machine

cnc milling machine operation

Q: What are the key structural features of XH6038 and XH8038 gantry machining centers?

A: They adopt heavy-duty integral gantry frame, ultra-wide guide rail span and reinforced base, providing super strong rigidity and load-bearing capacity for heavy cutting.
Q: Can these gantry models handle extra-large and heavy workpieces?

A: Yes, with extra-long X/Y/Z working travel and high-load worktable, they can stably clamp and process large-scale structural parts, heavy molds and oversized base plates.
Q: How do these machines balance processing efficiency and precision?

A: Equipped with high-power high-torque spindle and precise servo drive system, they achieve efficient roughing and high-precision finishing in one machine, reducing workpiece clamping times.
Q: What advantages do they have in long-term continuous operation?

A: Optimized heat dissipation design, wear-resistant core components and automatic lubrication system effectively reduce failure rate and ensure stable operation for 24-hour industrial production.
Q: Which industries are XH6038 and XH8038 suitable for?

A: Widely applied in heavy machinery manufacturing, large mold processing, aerospace components, engineering machinery and high-precision large-part production fields.
