Large Carrying Capacity High Quality XH3022 Gantry-type Cnc Milling Machine

The XH3022 CNC gantry machining center is a high-spec oversized gantry machine tailored for large-scale industrial manufacturing and complex heavy-component machining. Built with a closed double-column gantry layout and high-density cast iron construction, it achieves exceptional structural toughness and outstanding anti-shock performance. Designed with extended working travels and extreme load-bearing capacity, it easily handles extra-large molds, structural steel components and heavy engineering workpieces that standard machines cannot process.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
23Ton

Inquire Now

Large Carrying Capacity High Quality XH3022 Gantry-type Cnc Milling Machine

Integrated with intelligent CNC control and industrial-grade servo systems, the XH3022 delivers consistent dynamic accuracy and reliable continuous operation under heavy loads. The upgraded spindle unit and rigid mechanical layout balance high removal rate and fine surface finish, covering both heavy stock removal and high-precision finishing tasks. It is widely adopted in heavy equipment, new energy industry components, large mold workshops and customized heavy-duty part production.

With optimized gantry motion design, sealed protection and humanized operation system, XH3022 becomes core processing equipment for heavy industry, large mold factories and large-scale non-standard part manufacturing.

specification

Specification	unit	XH3022
table width	mm	1500
table length	mm	3000
Max.load of table	KG	8000
T-slots(width/distance/number)		221609
X-axis Travel	mm	3100
Y-axis Travel	mm	1900
Z-axis Travel	mm	900
Distance from spindle nose to worktable	mm	150-1050
Distance between two columns	mm	1900
Spindle taper		BT50-190
Spindle motor	KW	15/18.5
Spindle speed	rpm	6000

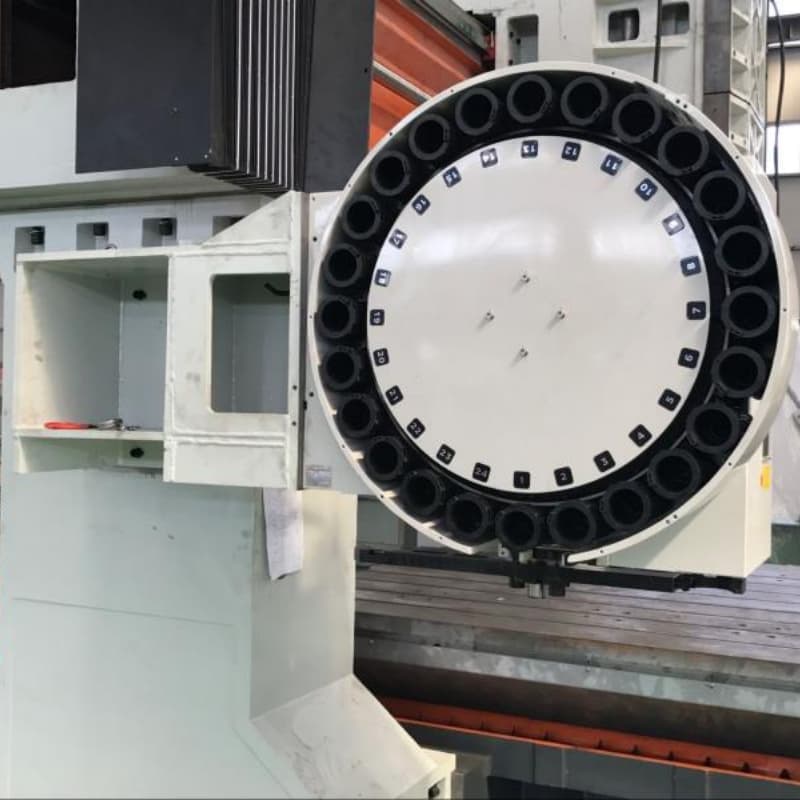

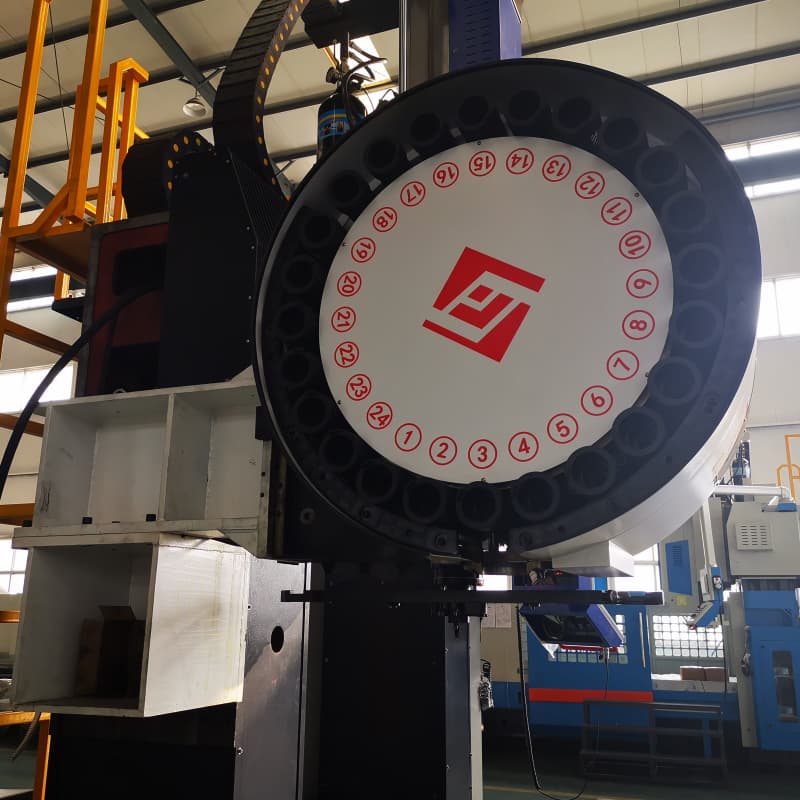

Magazine capacity		24
Feed speed(×/Y/Z axis)	mm/min	1-8000
Rapid feed speed(X/Y/Z axis)	m/min	12/12/10
Positioning accuracy-X	mm	0.020
Positioning accuracy-Y	mm	0.015
Positioning accuracy-Z	mm	0.015
Repeatability Positioning accuracy-X	mm	0.012
Repeatability Positioning accuracy-Y	mm	0.010
Repeatability Positioning accuracy-Z	mm	0.010
Dimension	mm	830043004900
Weight	T	23

Product Advantages

Ultra-High Gantry Rigidity
Integral thickened cast iron frame and fixed beam design ensure stable operation under long-term heavy cutting.
Large Travel & Heavy Load
Super-large working stroke and heavy-duty worktable meet the machining needs of extra-large and heavy workpieces.
Strong Heavy Cutting Performance
High-power high-rigidity spindle realizes efficient roughing and high-precision finishing for hard metals.
High-Precision Transmission System
Precision ball screw and linear guide design guarantee outstanding positioning accuracy and processing stability.
Wide Heavy Industry Application
Suitable for large mold, engineering parts, aerospace components and non-standard heavy part production.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

cnc gantry cutting machine

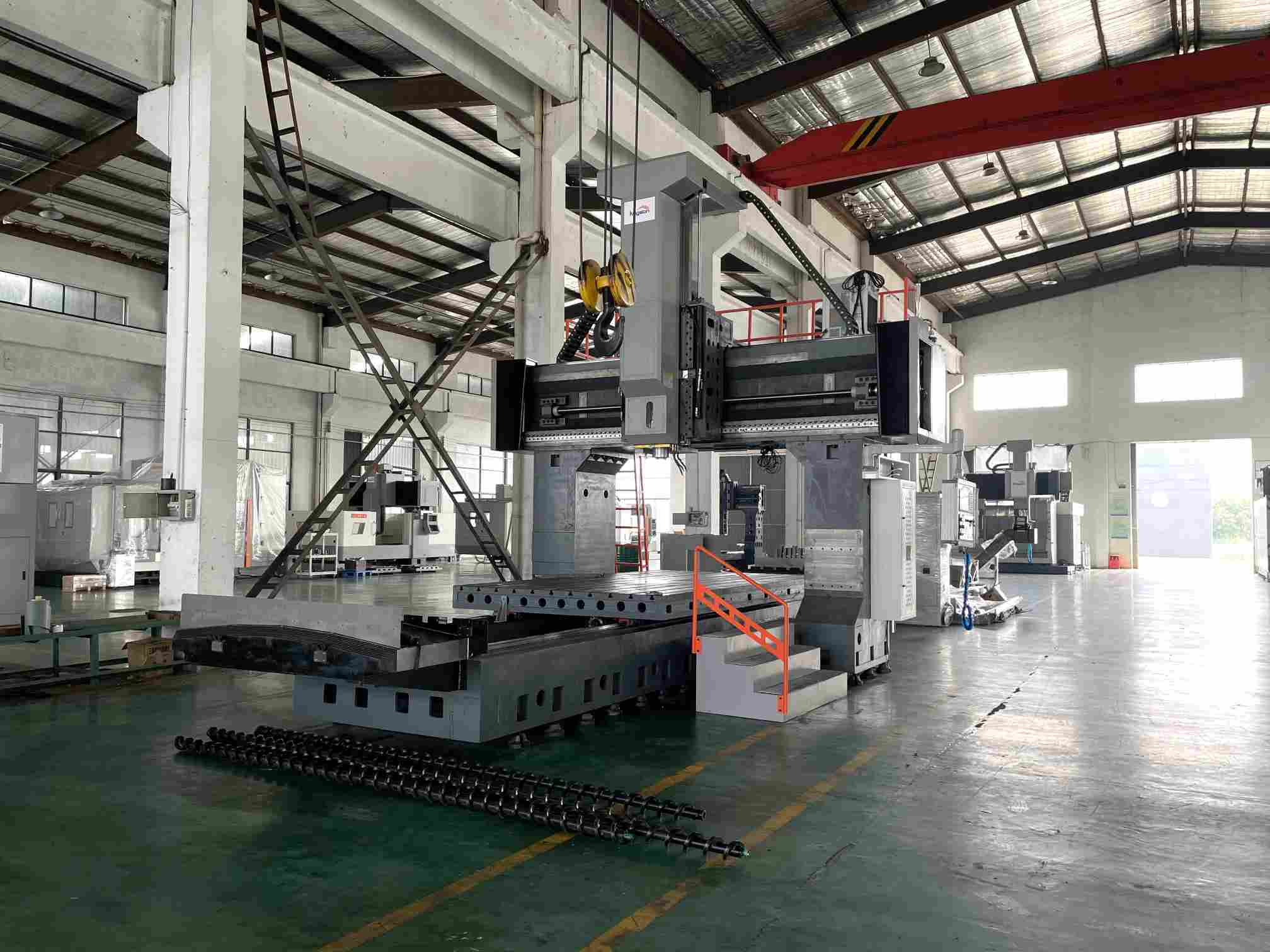

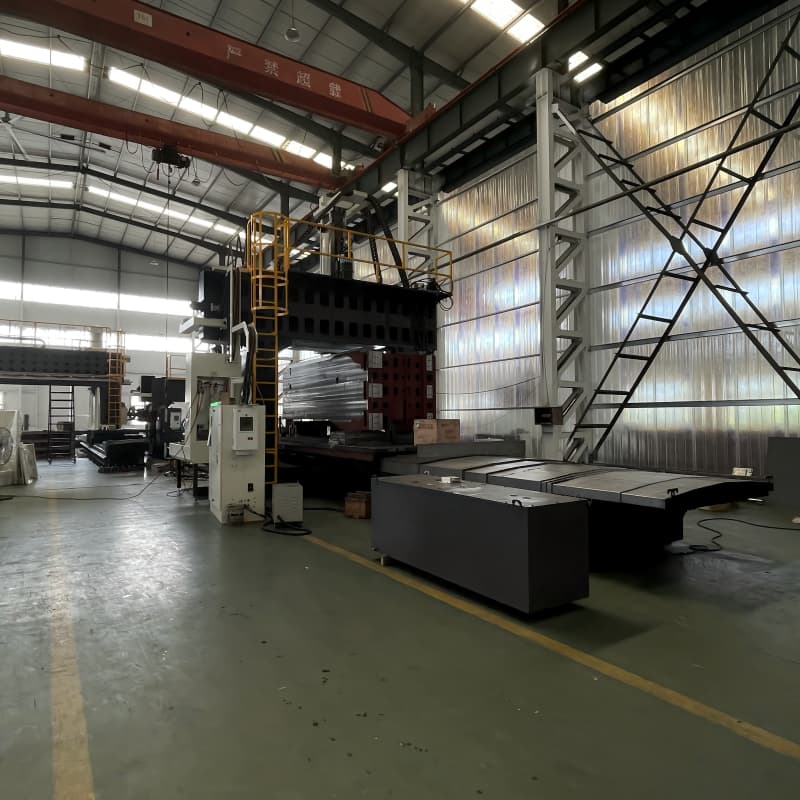

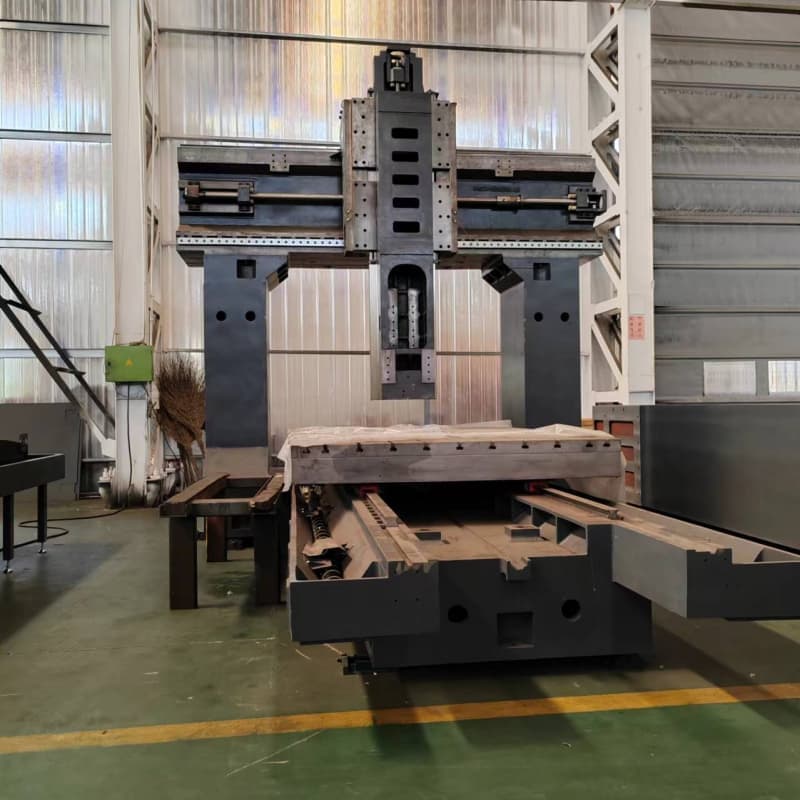

factory show

Professional Production Base, Strength in Precision Manufacturing.

gantry type cutting controller gantry type vertical machining center

cnc beam saw machine gantry 5 axis cnc machine

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

cnc beam cutting machine

fixed gantry cnc

Q: What makes gantry machining centers ideal for oversized parts?

A: It has an extra-large working stroke and heavy-load worktable design, capable of holding and processing super-large and heavy workpieces steadily.
Q: How does this gantry machine maintain structural stability?

A: The whole heavy cast iron gantry structure undergoes strict stress relief treatment, minimizing deformation under long-term heavy cutting conditions.
Q: Can this gantry center meet both roughing and finishing needs?

A: Equipped with high-power spindle and matched servo system, it balances high-efficiency rough cutting and high-precision finishing performance.
Q: What optional functions can be upgraded for this machine?

A: It supports multi-axis configuration, automatic tool changer, centralized chip removal system and full protection cover for different production demands.
Q: Why is it widely chosen for heavy industry processing?

A: With strong overall rigidity, large processing range and reliable continuous operation ability, it greatly improves production efficiency for heavy machinery manufacturing.
