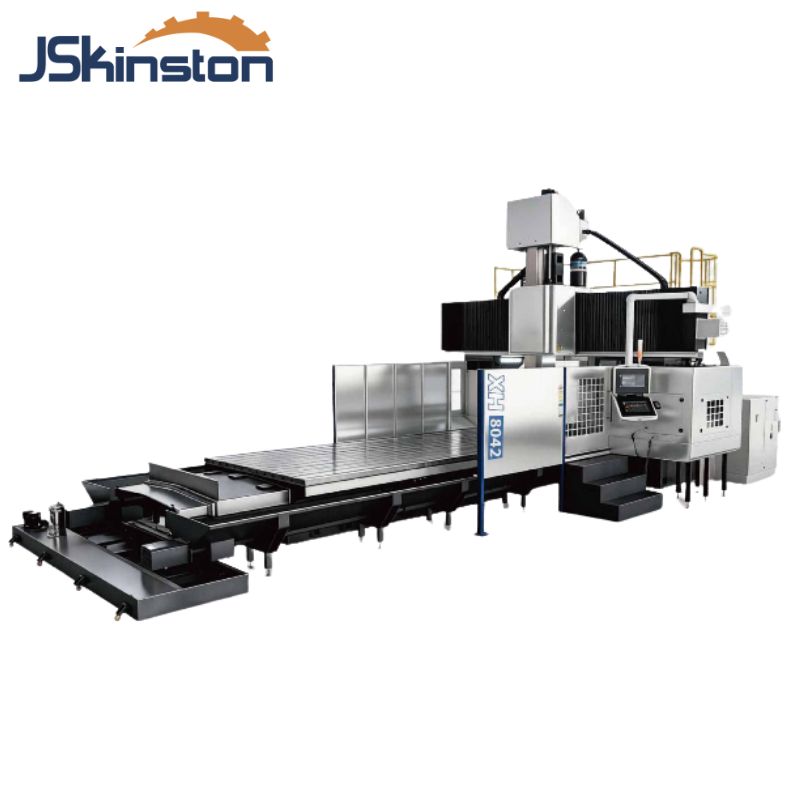

Big Sized High Precision XH10042 CNC Fixed Beam Gantry-type Machine Center

High-precision Cnc Gantry Milling Machine

Big Sized High Precision XH10042 CNC Fixed Beam Gantry-type Machine Center

The XH10042 fixed beam gantry machining center is an ultra-large heavy-duty CNC machine designed for super-large workpieces and extreme heavy-load machining. Adopting advanced fixed beam gantry structure and integral thick cast iron frame, it features ultra-high structural rigidity, excellent stability and minimal deformation. Fixed beam design ensures consistent precision during long travel movement, perfectly suited for one-time clamping and multi-surface processing of oversized molds, large mechanical frames and heavy structural components.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30

Inquire Now

Big Sized High Precision XH10042 CNC Fixed Beam Gantry-type Machine Center

smooth transmission and reliable continuous operation. The high-torque heavy-duty spindle provides powerful cutting performance for high-hardness metals and thick material roughing.

Equipped with centralized automatic lubrication, full safety protection and intelligent heat control structure, it maintains stable long-cycle operation. It is the ideal core equipment for heavy industry, large mold manufacturing, energy equipment and ultra-large non-standard parts production.

specification

Specification	unit	XH10042
table width	mm	3000
table length	mm	10000
Max.load of table	KG	45000
T-slots(width/distance/number)		22*180（C)/200(NC)/240(J)/180(B)/15
X-axis Travel	mm	10200
Y-axis Travel	mm	4600
Z-axis Travel	mm	1250/1500
Distance from spindle nose to worktable	mm	250-1500/250-1750
Distance between two columns	mm	4200
Spindle taper		BT50-210
Spindle motor	KW	22/26
Spindle speed	rpm	4000/3000（Z:1500)
Magazine capacity		24
Feed speed(×/Y/Z axis)	mm/min	1-8000
Rapid feed speed(X/Y/Z axis)	m/min	8/12/10
Positioning accuracy-X	mm	0.060
Positioning accuracy-Y	mm	0.030
Positioning accuracy-Z	mm	0.025
Repeatability Positioning accuracy-X	mm	0.044
Repeatability Positioning accuracy-Y	mm	0.020
Repeatability Positioning accuracy-Z	mm	0.015

Product Advantages

Fixed Beam Structural Advantage
Constant rigid beam design avoids structural offset, ensuring stable precision in full stroke range.
Extreme Heavy Load Capacity
Reinforced worktable and overall strengthening structure support super heavy workpiece bearing and processing.
High-Efficiency Heavy Cutting
High-power spindle and optimized mechanical configuration realize high stock removal for heavy industrial tasks.
Durable Anti-Deformation Performance
Complete stress relief and balanced structural design effectively reduce thermal deformation and vibration.
Super Large Machining Range
Ultra-long and ultra-wide travel meets integral processing requirements of extra-large industrial components.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Large Scale Machining

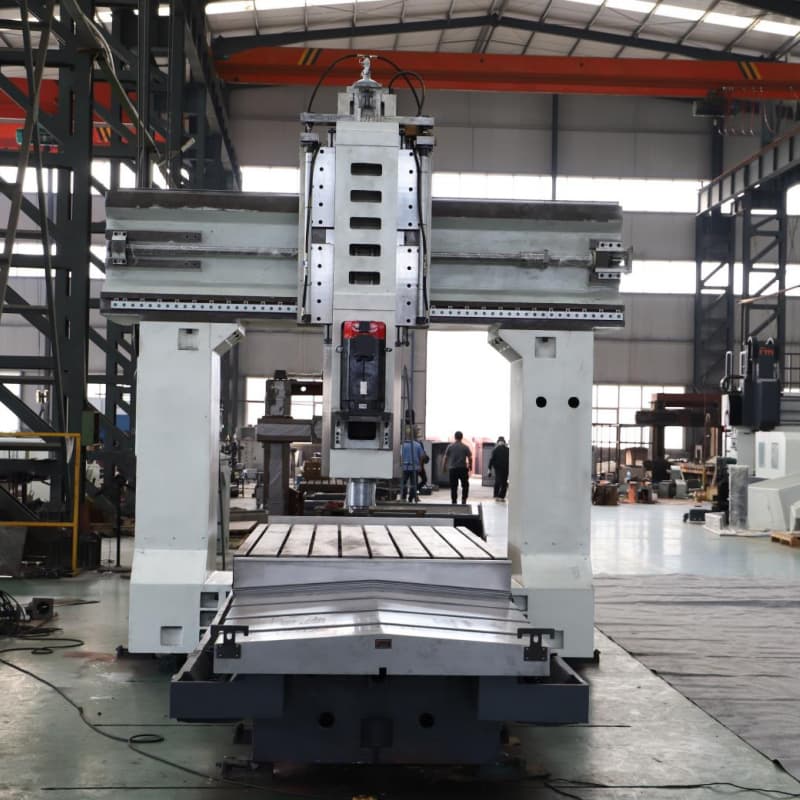

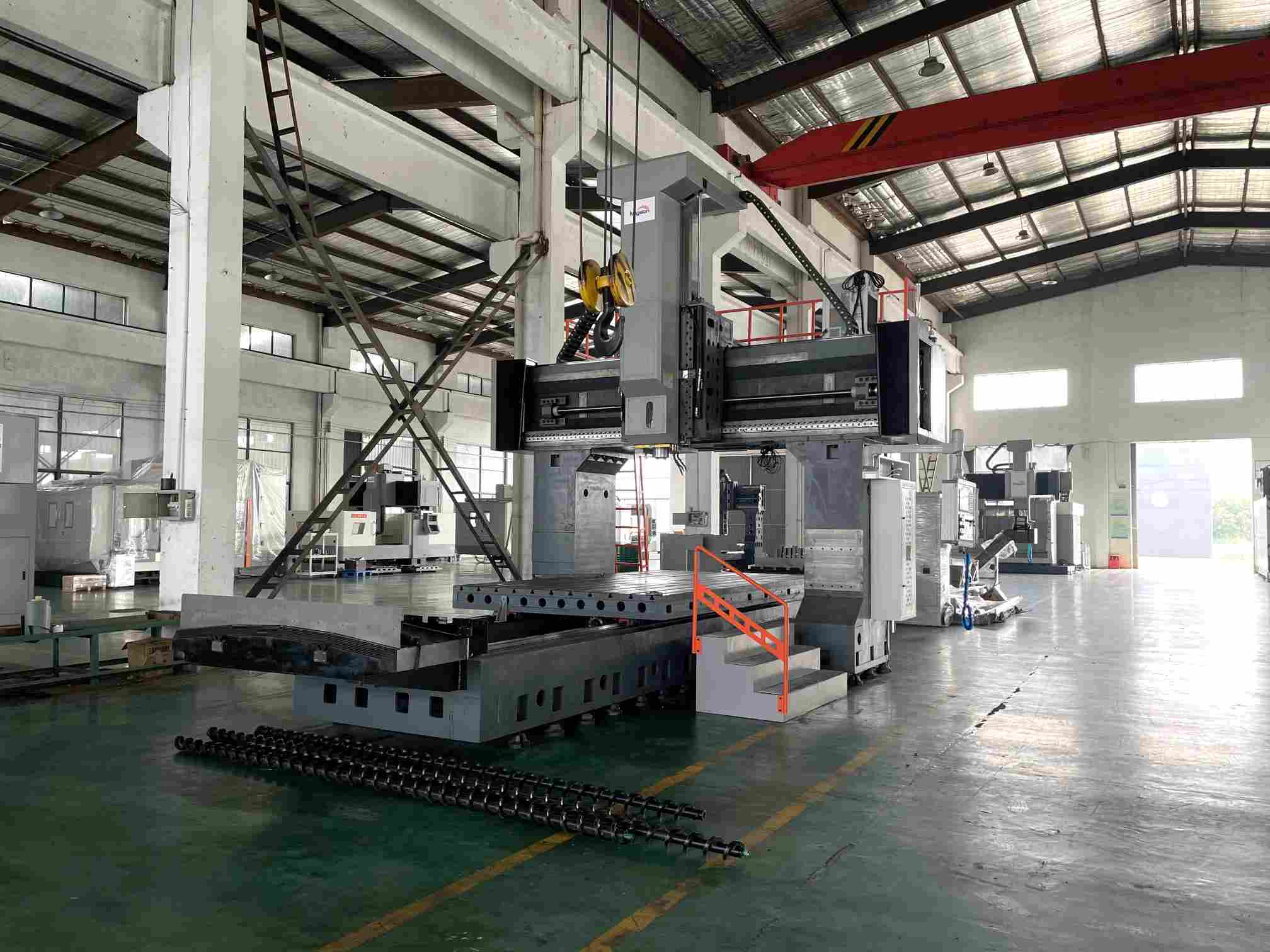

factory show

Professional Production Base, Strength in Precision Manufacturing.

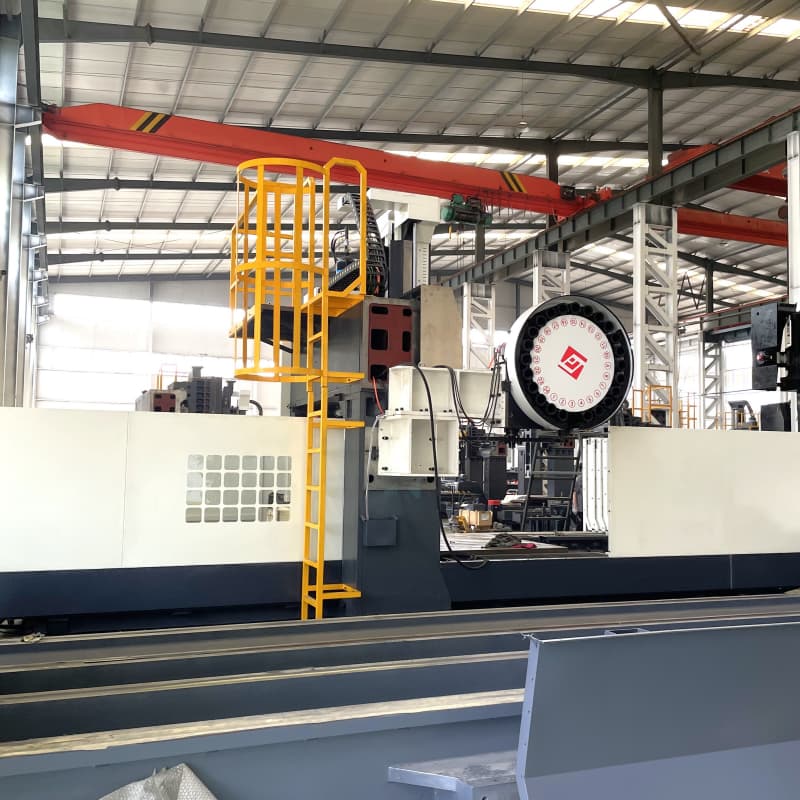

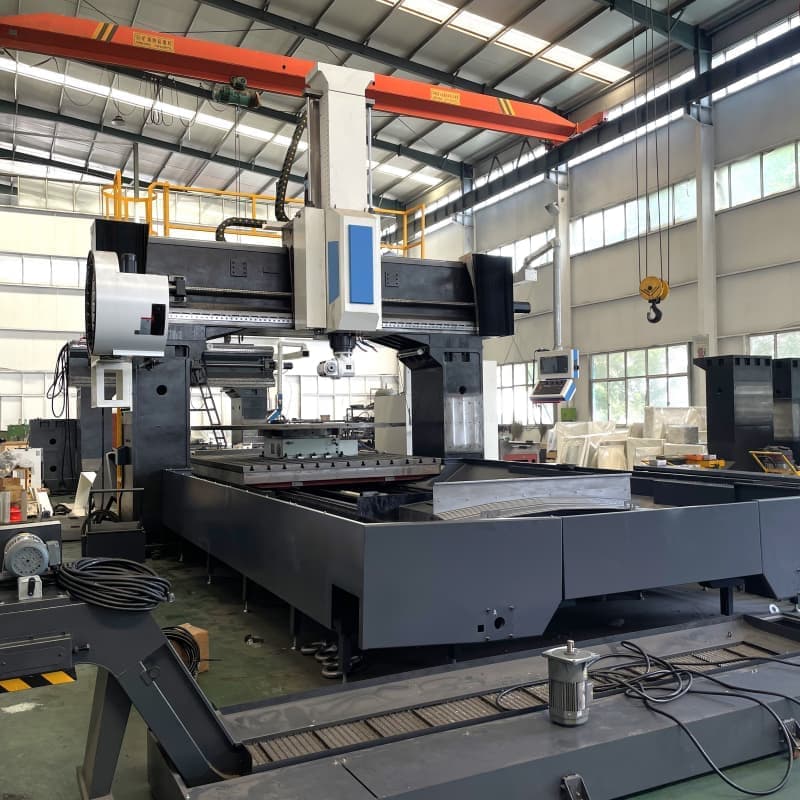

5 axis gantry cnc machine CNC vertical machining center

Heavy Workpiece Industrial Machinery gantry 5 axis cnc machine

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Gantry Machining Center Series

fixed gantry cnc machine

Q: What is the highlight of fixed beam gantry structure?

A: The fixed beam design ensures permanent structural stability, smaller operation deviation and outstanding dynamic performance during high-speed cutting.
Q: Does XH10042 support super-large size workpiece machining?

A: It features ultra-wide and super-long travel range, perfectly adapted to oversized plates, large structural parts and extra-heavy mold processing.
Q: What benefits does the reinforced fixed frame bring?

A: It greatly weakens cutting vibration, improves surface machining quality and maintains long-term geometric accuracy under heavy load.
Q: Is this fixed beam gantry center suitable for intensive production?

A: Matched with high-performance servo system and intelligent control system, it realizes stable continuous operation and high production output.
Q: What comprehensive processing functions can it complete?

A: It can finish milling, drilling, boring, tapping and contour machining, reducing repeated clamping and improving overall processing efficiency.
