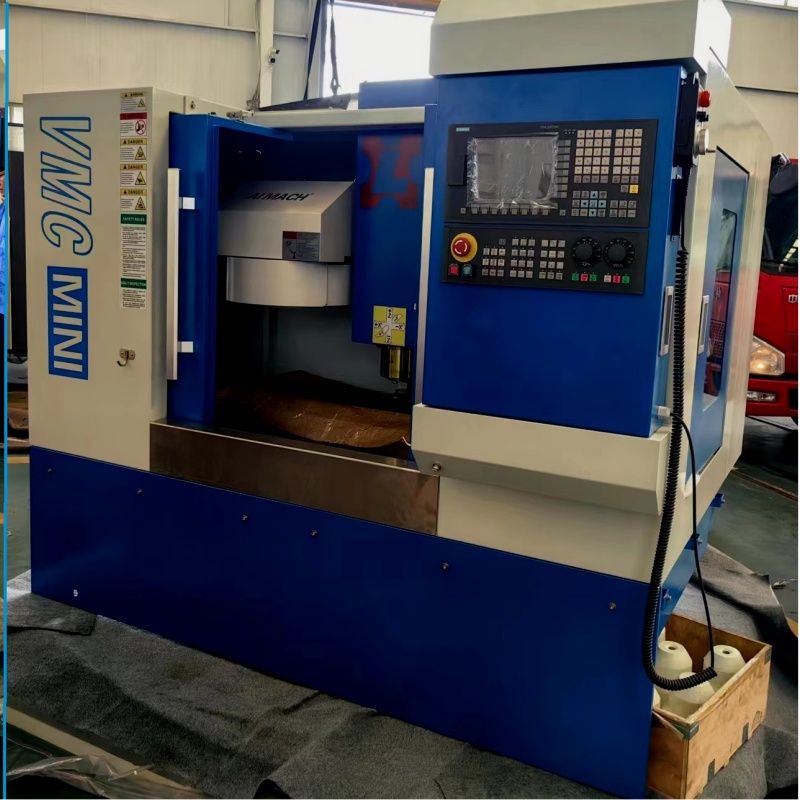

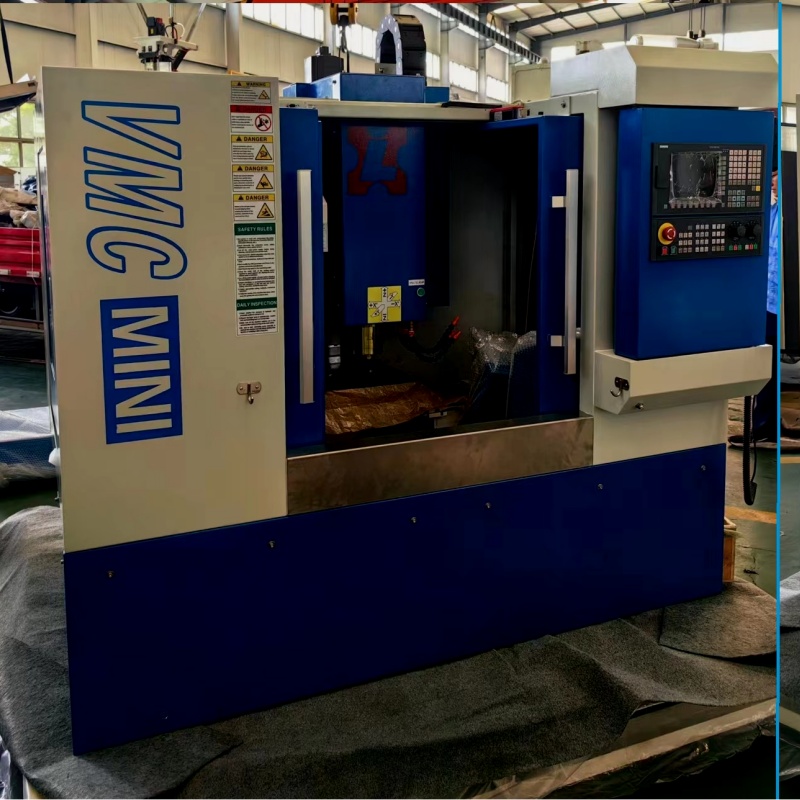

Space Saving Compact VMC mini CNC Vertical Milling Center for Small Workshops

Space Saving Compact VMC mini CNC Vertical Milling Center for Small Workshops

Easy to operate and cost-effective, our mini CNC machining center offers an affordable entry into CNC machining. The user-friendly control system simplifies operation and reduces learning costs, while its compact structure lowers energy consumption and maintenance expenses. It is the best choice for small-batch production, prototype making, sample processing, and startup manufacturers looking for high-efficiency small machining solutions.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai/Qingdao
Lead Time :
30
Weight :
1800kg

Inquire Now

Space Saving Compact VMC mini CNC Vertical Milling Center for Small Workshops

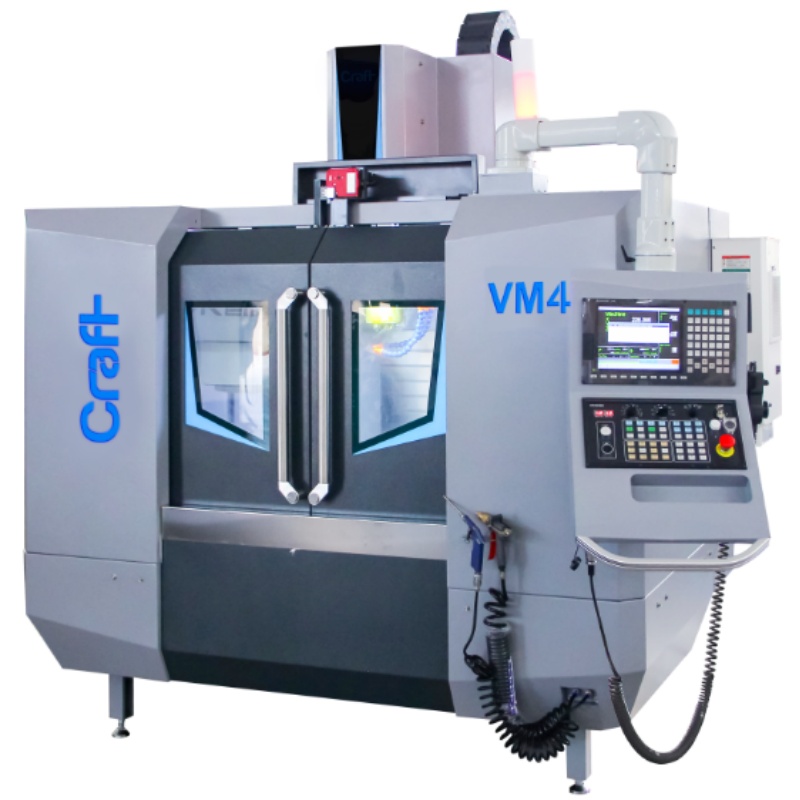

metal milling machine center

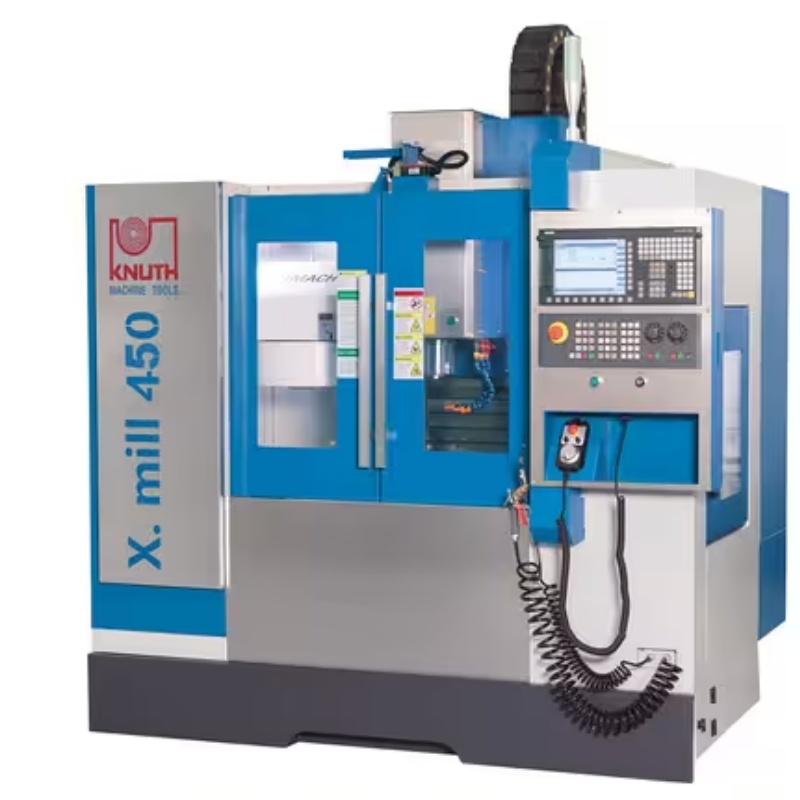

Electric Spindle CNC Machining Center

Mini CNC Machining Center – Stability & Durability

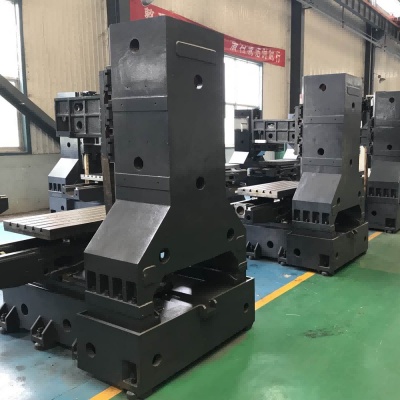

Constructed with heavy-duty cast iron structure for excellent rigidity and stable running, effectively reducing vibration during long-term operation.
Equipped with high-quality linear guide rails and precision ball screws, ensuring strong wear resistance and long service life.
Optimized spindle and heat dissipation design minimize thermal deformation, maintaining consistent machining accuracy over time.
Stable control system and reliable configuration guarantee low failure rate and smooth daily light-duty production.
Simple maintenance structure reduces upkeep cost, making it a durable choice for long-term precision manufacturing.

specification

Specification	Unit	VMC mini
Table size	mm	700*260
T Slots	-	3-14-80
Max table load	Kg	200
Table travel X	mm	450
Table travel Y	mm	260
Table travel Z	mm	420
Spindle nose to table surface	mm	80-500
Spindle center to column surface	mm	330
Spindle speed range and driving method	rpm	8000 belt driving
Spindle taper	/	BT40
Spindle diameter	mm	120
Cutting feed speed	mm/min	1-10000
X/Y/Z Rapid feed speed	m/min	18/18/12
Hiwin lead screw		X：2508、Y：2508、Z：2506
Hiwin linear guide		X：25mm、Y：30mm、Z：30mm
Magazine capacity	T	12
Magazine type		Straw hat type
Max tool diameter(No adjacent tool)	mm	Φ90/150
Controller		GSK 25i
Spindle motor power	Kw	3.7/5.5
Positioning accuracy(JIS standard)	mm	±0.004
Repeatability Positioning accuracy(JIS standard)	mm	±0.003
Net weight	kg	1800
Overall size	mm	216020502350

Product Advantages

Featured Product: Mini CNC Machining Center

As our flagship mini machining center, this machine combines compact design, stable structure and reliable precision in one.

Built with heavy-duty cast iron and high-quality guide rails, it ensures low vibration and long service life.

The optimized spindle and heat dissipation system maintain consistent accuracy during continuous light-duty production.

Easy to operate and maintain, it is the top choice for small workshops, precision parts manufacturing and long-term daily processing.

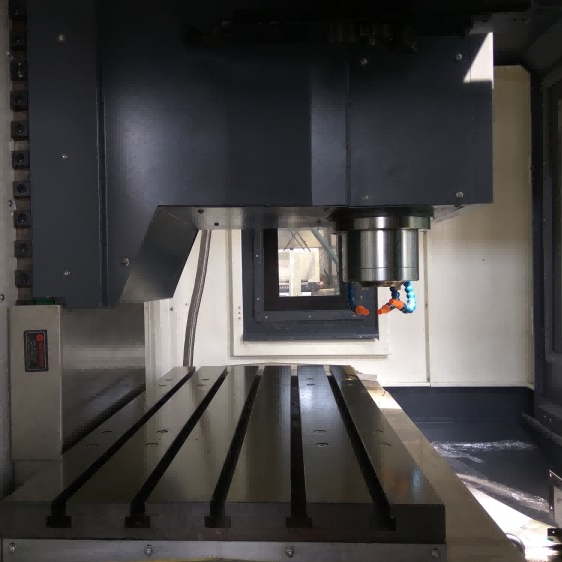

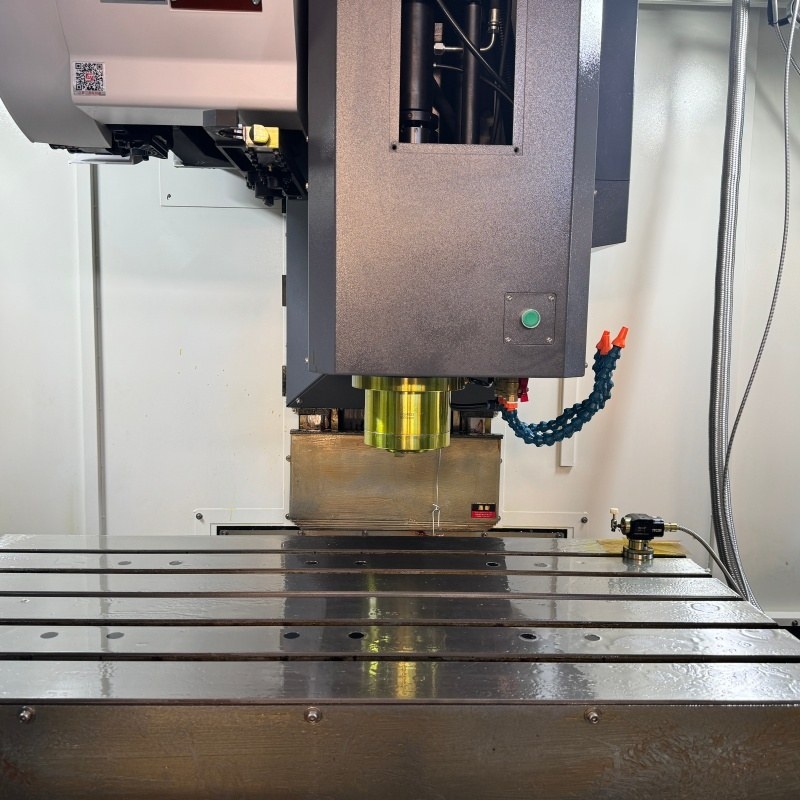

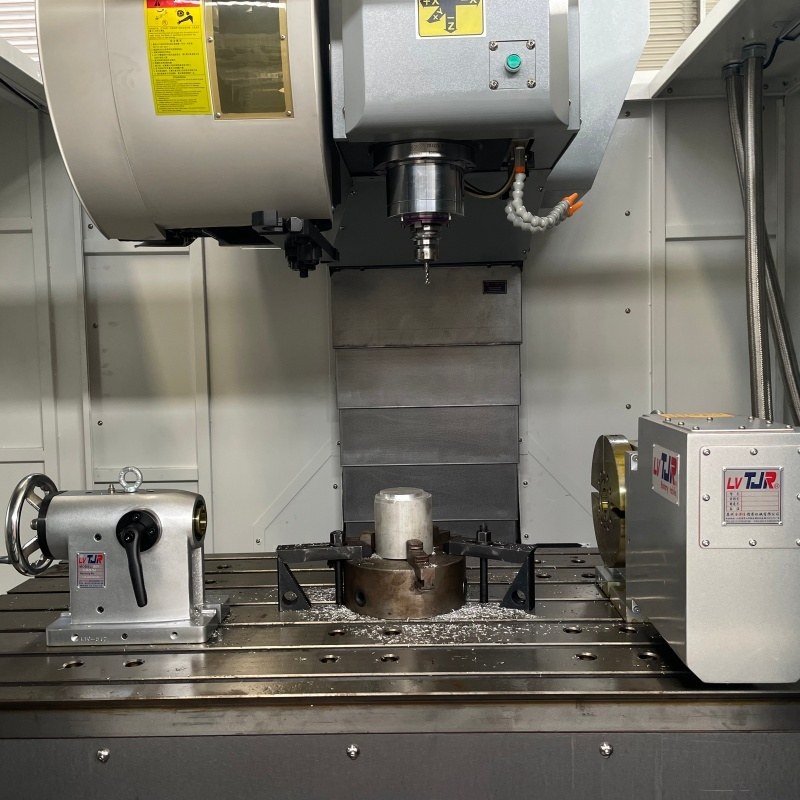

Details presentation

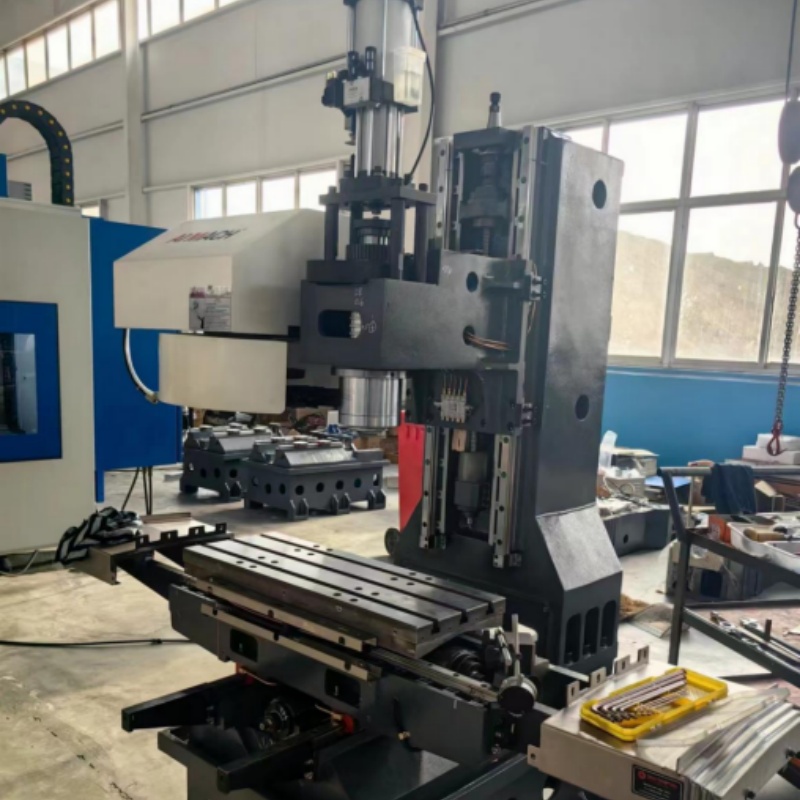

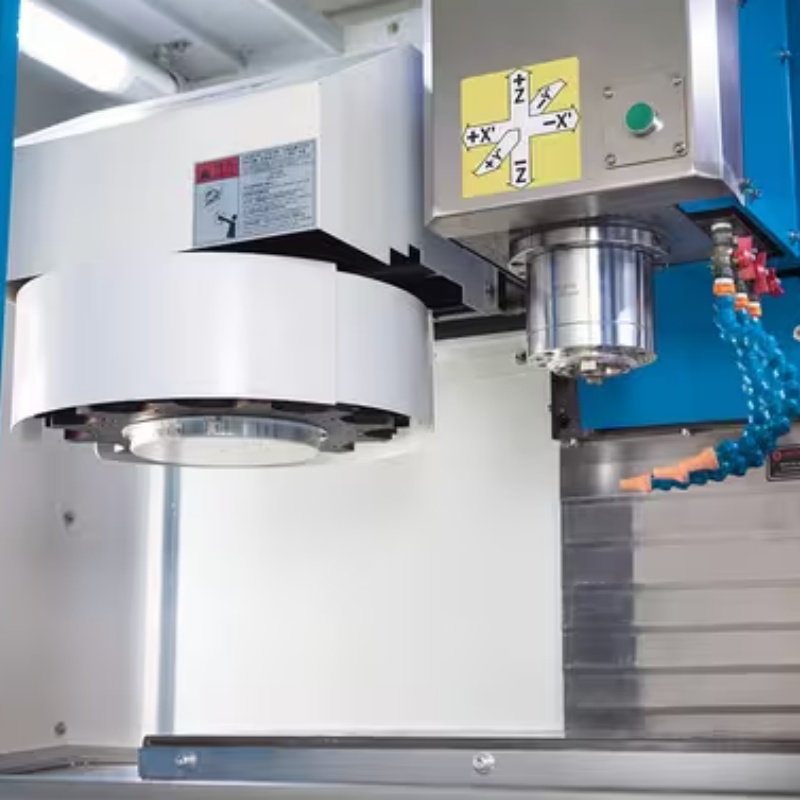

High Precision Milling Center Small Milling Machine

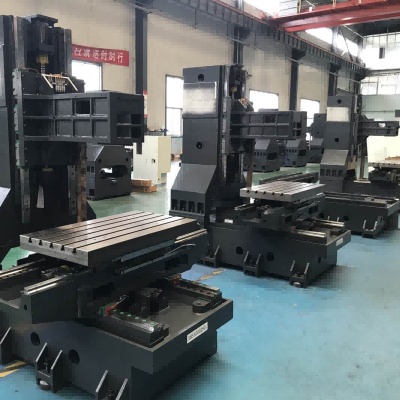

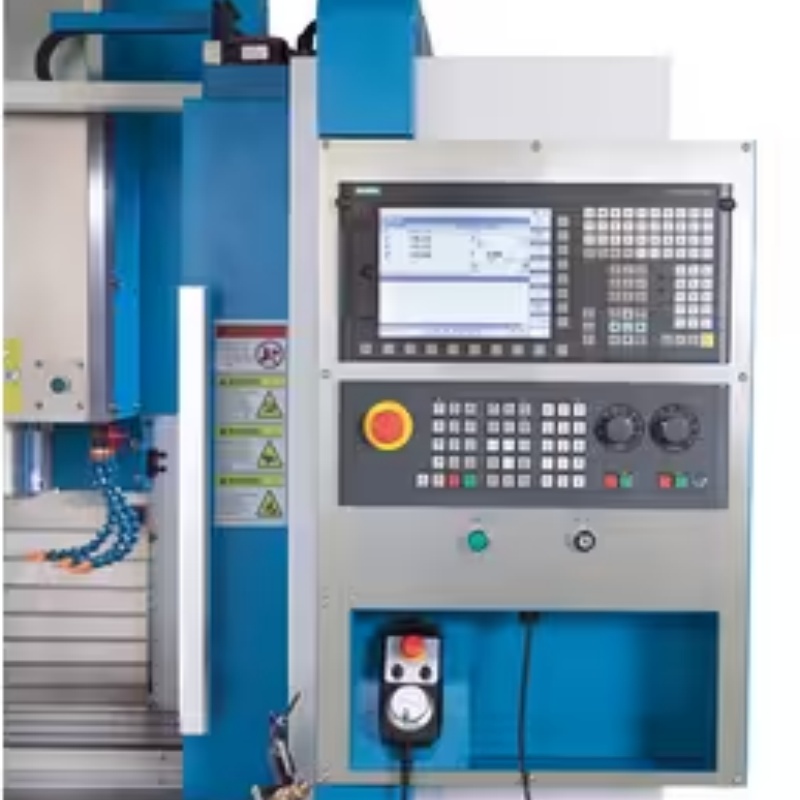

CNC turning milling center High Precision Milling Center

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose u

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Heavy Duty Machining Center

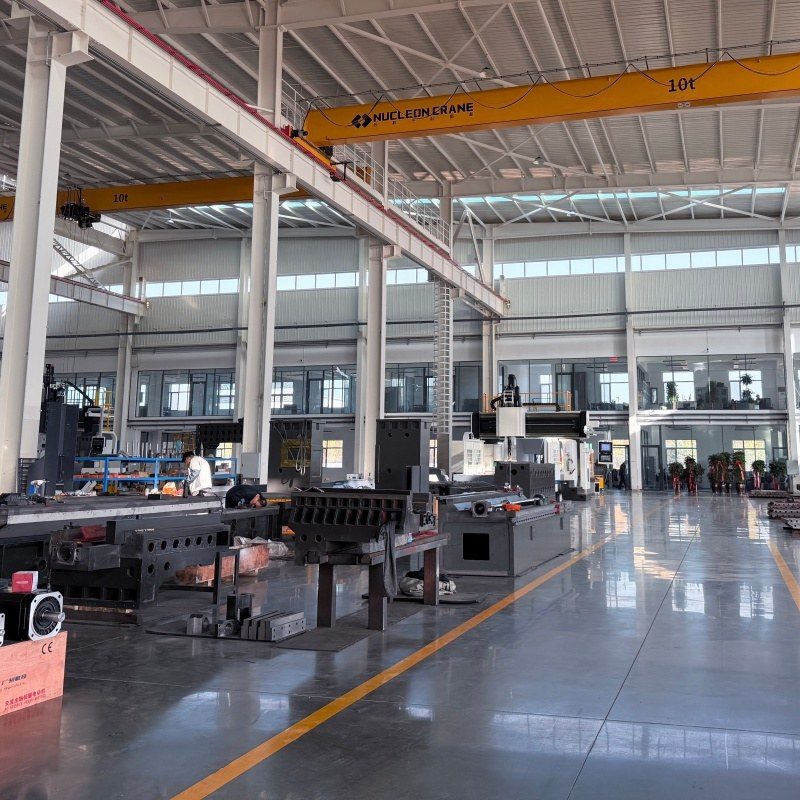

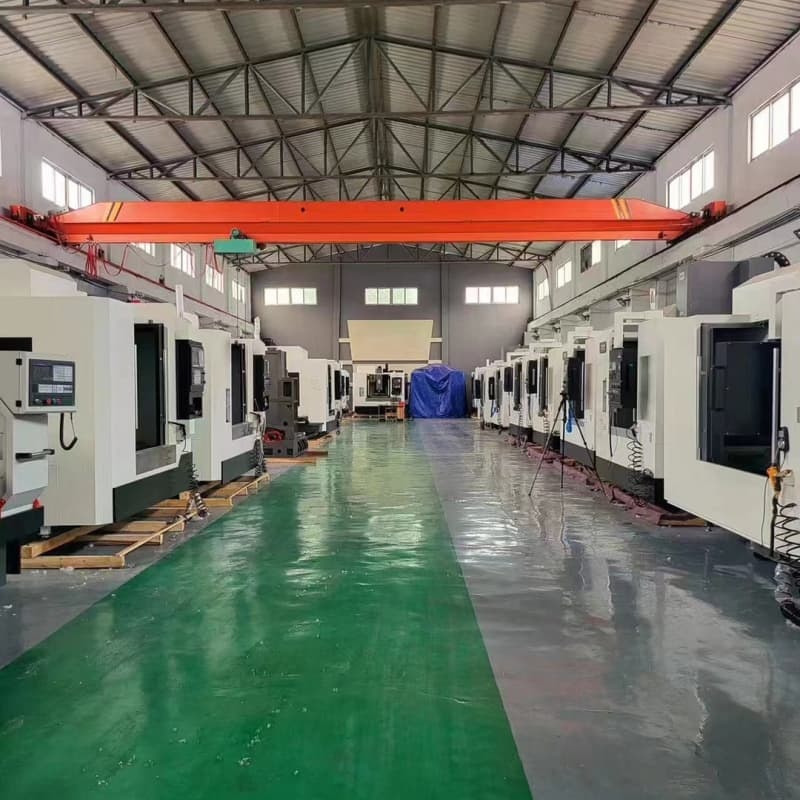

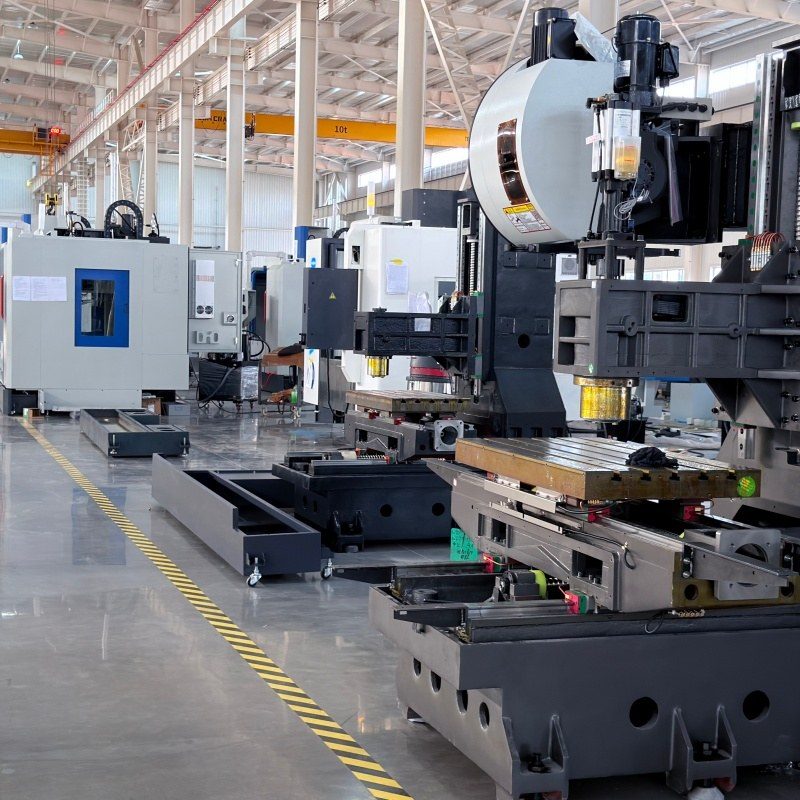

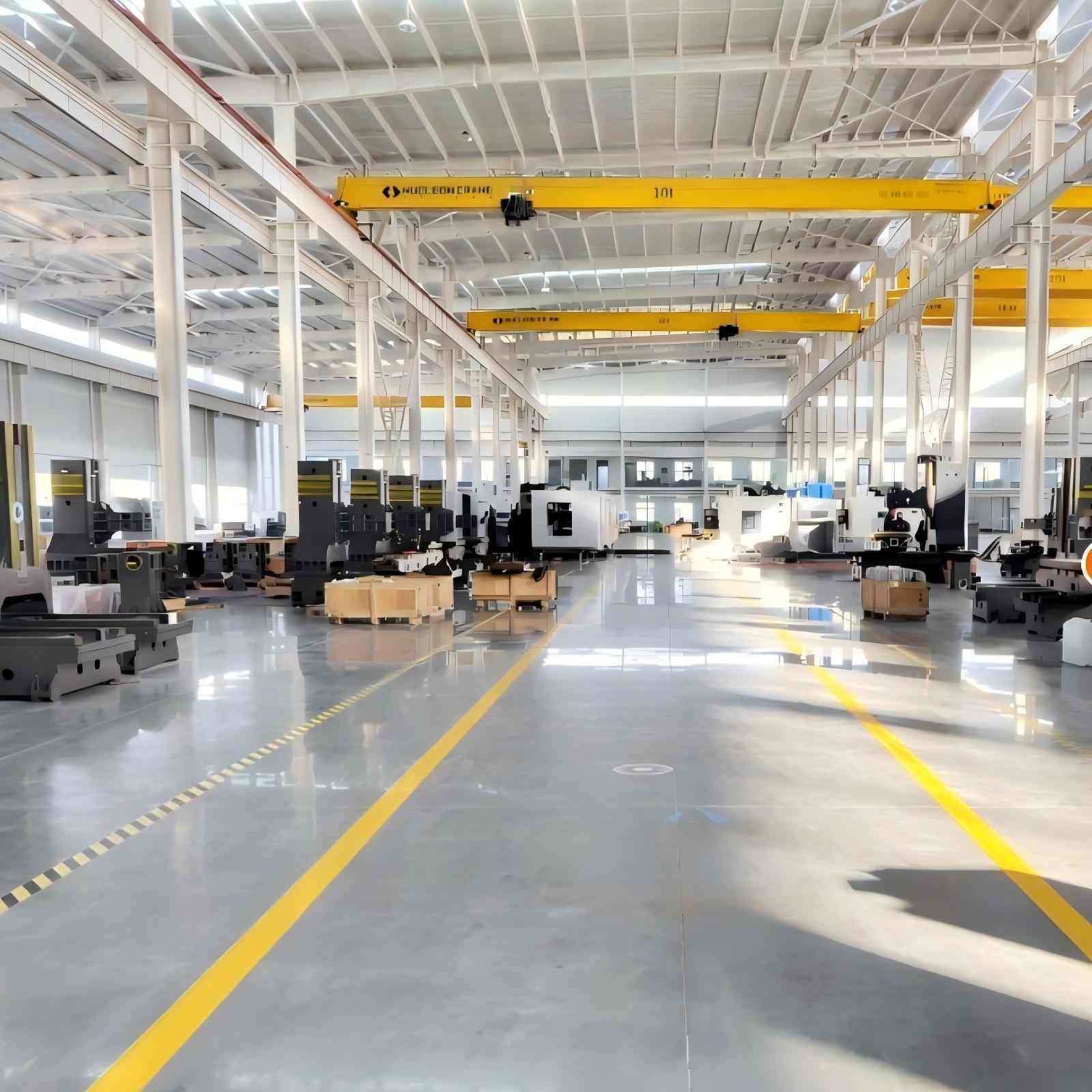

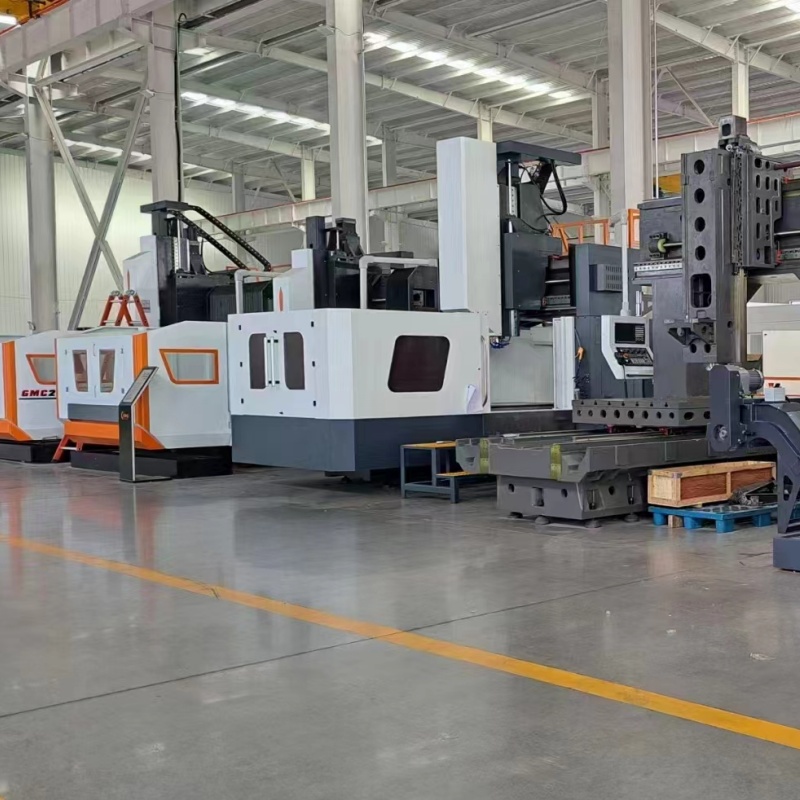

factory show

Professional Production Base, Strength in Precision Manufacturing

Heavy VMC machinery Factory Exhibition cnc milling machine High-quality VMC lathe

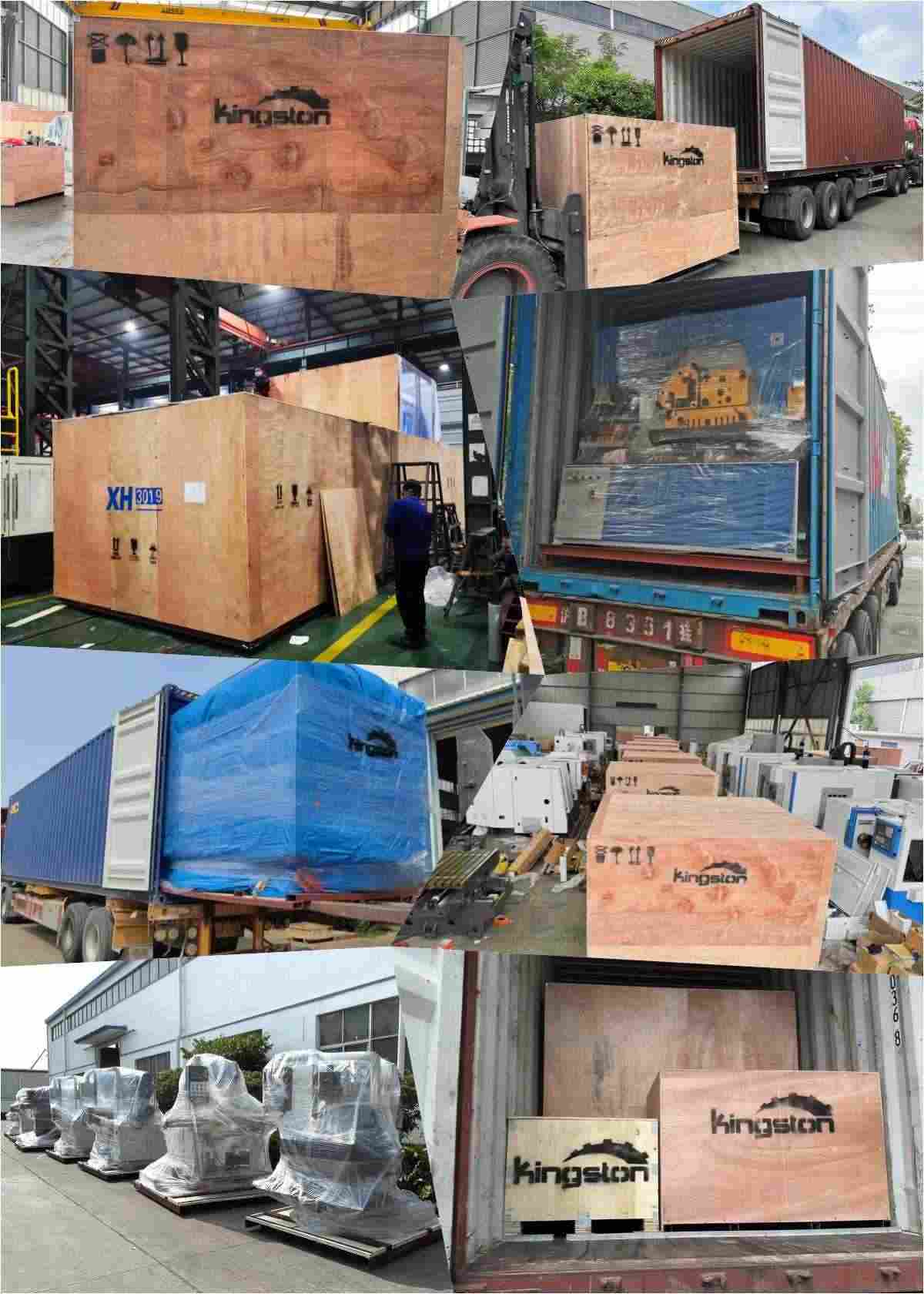

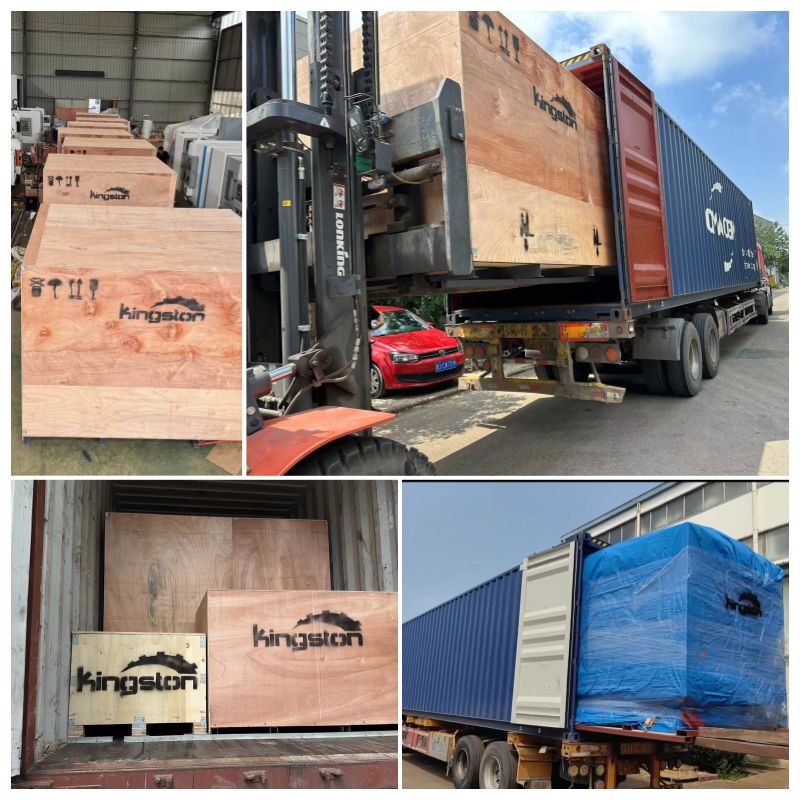

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Small Vertical Machining Center

Heavy machinery manufacturer

1. Q: What materials can this CNC machining center process?

A: It is suitable for processing various metal materials, including steel, stainless steel, aluminum alloy, copper, mold steel, etc., widely used in parts processing and mold manufacturing.

2. Q: What brand CNC system does the machine use?

A: The machine adopts well-known brand CNC system, which features stable performance, high compatibility, user-friendly interface and convenient programming.

3. Q: How about the machining accuracy and repeat positioning accuracy?

A: With high-precision ball screws and strict assembly testing, the machine ensures high positioning accuracy and good repeatability, keeping stable precision in long-term running.

4. Q: Is this machine suitable for mold processing?

A: Yes. It has large stroke, strong rigidity and high spindle power, which is very suitable for mold cavity, mold base and precision mold parts processing.

5. Q: How long is the warranty and after-sales service?

A: We provide standard warranty period. During the warranty, we offer free online technical support, fault diagnosis and maintenance guidance.
