Heavy Duty High Performance VMC855 Cnc Mill Multi-angle Machining Center

Heavy Duty High Performance VMC855 Cnc Mill Multi-angle Machining Center

The VMC855 Vertical CNC Machining Center is a high-performance equipment designed for large and medium-sized precision workpiece processing, integrating large travel, high rigidity and versatility. With its 850×500×550mm travel range, it can easily handle various large workpieces, while the heavy-duty cast iron bed and high-precision components ensure stable operation and accurate machining even under heavy-load cutting. Equipped with a high-speed spindle and reliable configuration, it delivers efficient processing and low failure rate, and its compatibility with mainstream CNC systems makes it widely applicable in aerospace, auto parts, large mold and heavy hardware industries, serving as a cost-effective core equipment for enterprises pursuing high efficiency and precision.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai/Qingdao
Lead Time :
30
Weight :
5500kg

Inquire Now

Different from the traditional focus on processing efficiency and structural stability, the VMC855 vertical machining center focuses on the balance between precision and practicality, aiming to solve the pain points of difficult processing of large workpieces and high operational costs for enterprises. It adopts a reinforced bed structure to effectively resist deformation during heavy-load cutting, and matches the adaptive adjustment of spindle speed according to processing needs, which not only ensures the surface quality of workpieces but also reduces the loss of materials. It is widely used in the mass production of medium and large-sized parts, filling the gap of high-efficiency processing of large workpieces, and becoming an ideal choice for enterprises to improve production efficiency and reduce operational costs.

specification

Specification	Unit	VMC855
Table size	mm	1000*550
T Slots	-	5-18-90
Max table load	Kg	500
Table travel X	mm	800
Table travel Y	mm	550
Table travel Z	mm	550
Spindle nose to table surface	mm	120-670
Spindle center to column surface	mm	590
Spindle speed range and driving method	rpm	8000 belt driving
Spindle taper	/	BT40
Spindle diameter	mm	150
Cutting feed speed	mm/min	1-10000
X/Y/Z Rapid feed speed	m/min	30/30/24

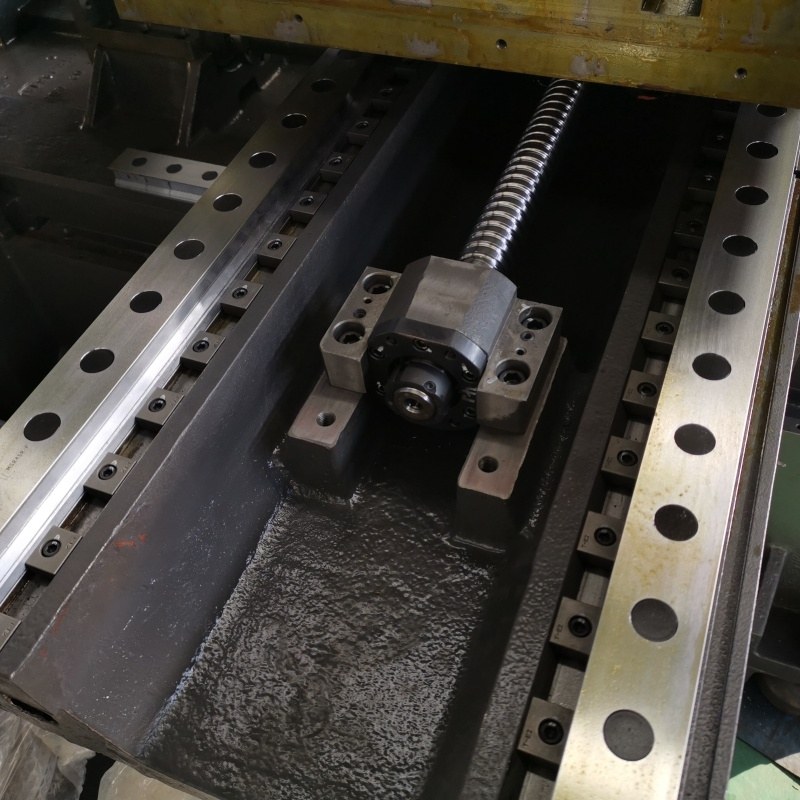

Hiwin lead screw		4016
Hiwin linear guide		X：35（4） Y：45（4） Z：45（6）
Magazine capacity	T	24
Magazine type		Disc type
Max tool diameter(No adjacent tool)	mm	φ80/150
Controller		FANUC 0i MF3B
Spindle motor power	Kw	7.5/11
Positioning accuracy(JIS standard)	mm	±0.004
Repeatability Positioning accuracy(JIS standard)	mm	±0.003
Net weight	kg	5500
Overall size	mm	280026502250

Product Advantages

Energy-Saving Design

VMC855 adopts an optimized power control system, reducing energy consumption while ensuring stable processing performance, lowering long-term operational costs.
Intelligent Operation

Equipped with user-friendly CNC control interface, supporting parameter memory and fault prompt, improving operation efficiency and reducing misoperation.
High Compatibility

Supports custom tool configuration and processing program editing, adapting to diverse special-shaped workpiece processing needs.
Durable & Reliable

Key components undergo strict quality inspection, with strong wear resistance and corrosion resistance, extending equipment service life.

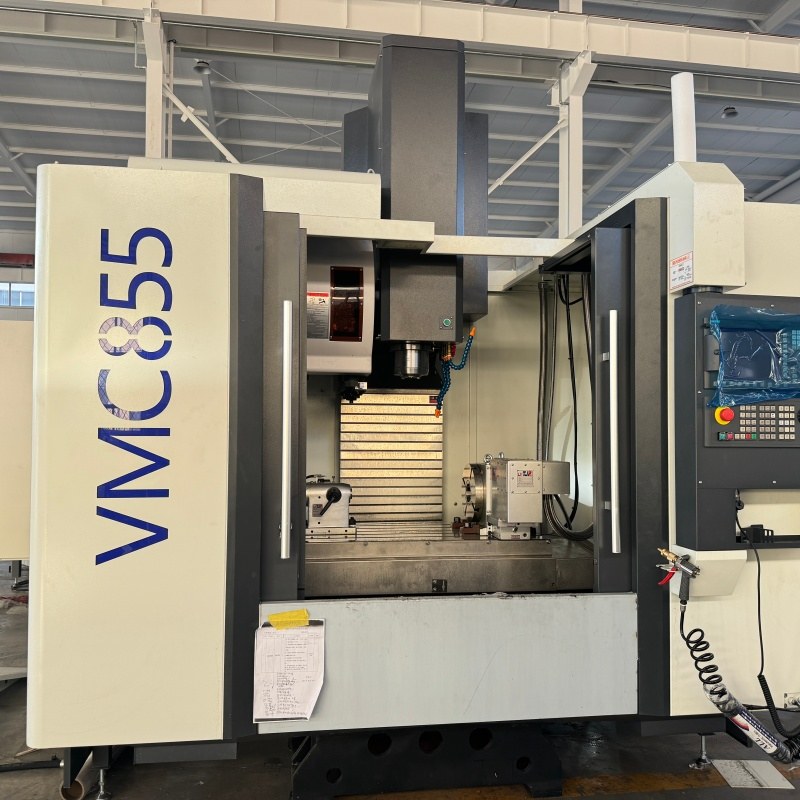

Details presentation

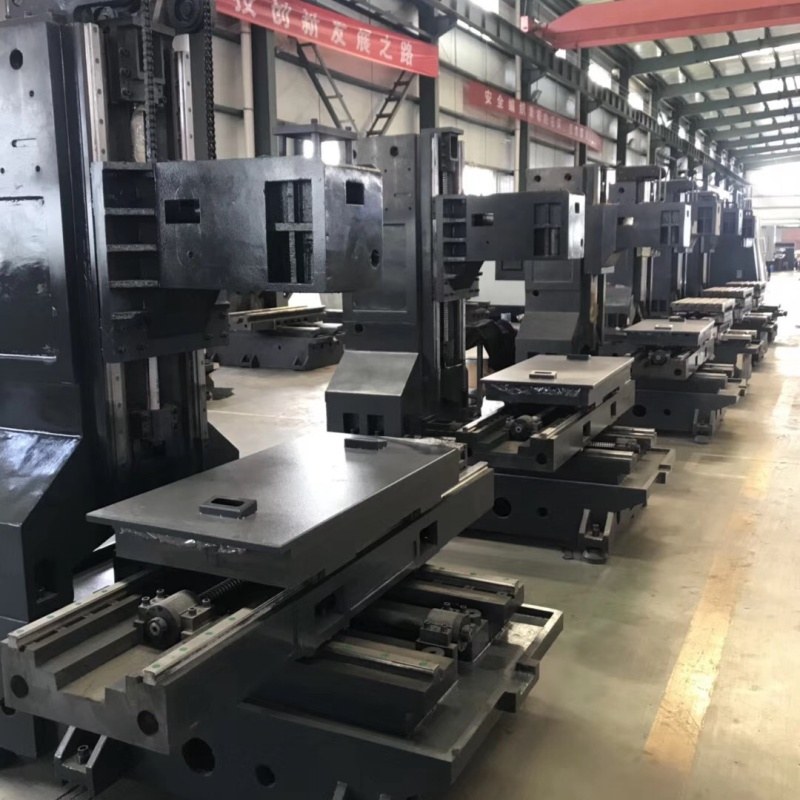

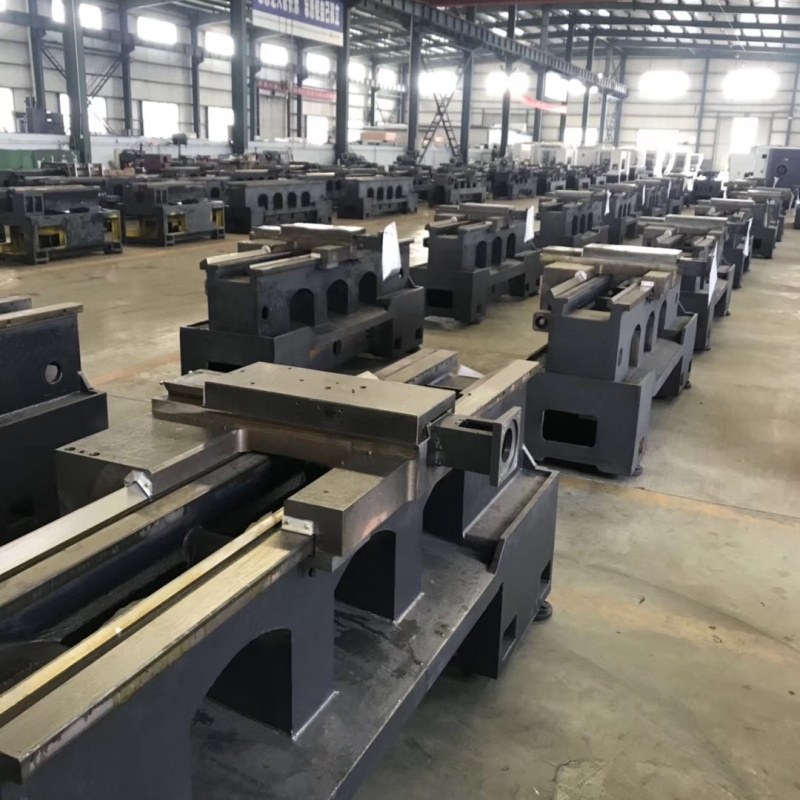

CNC milling machine for metel mold Competitive price VMC855 machine

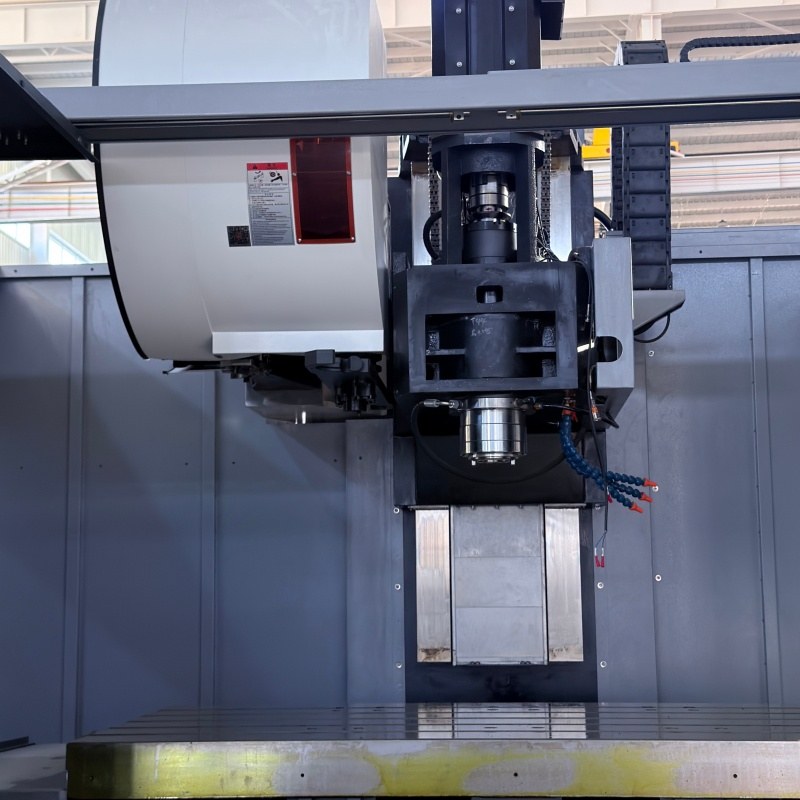

CNC turning milling center vertical-machining-center

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose u

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

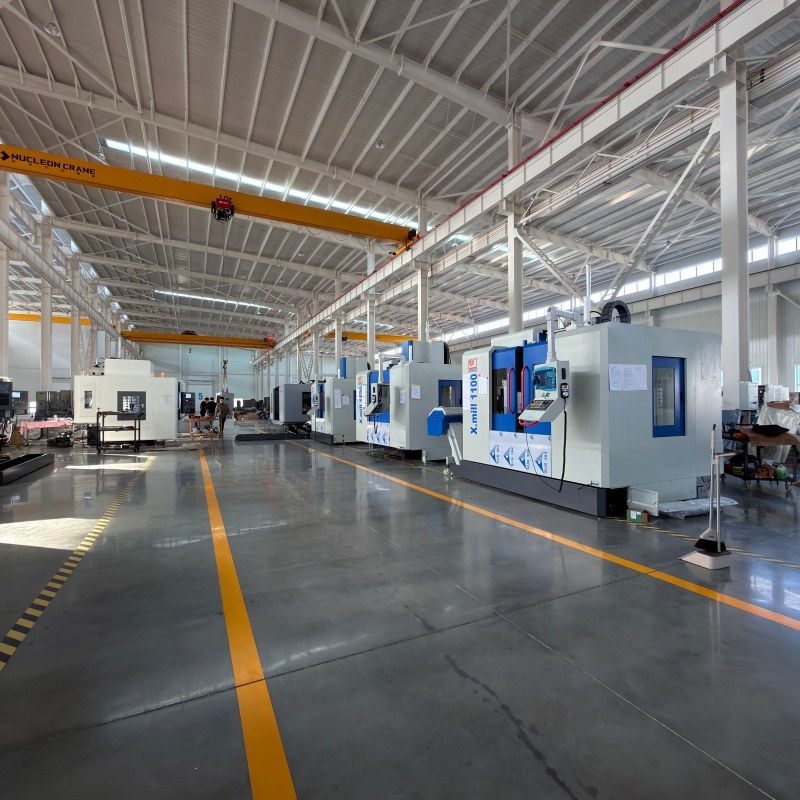

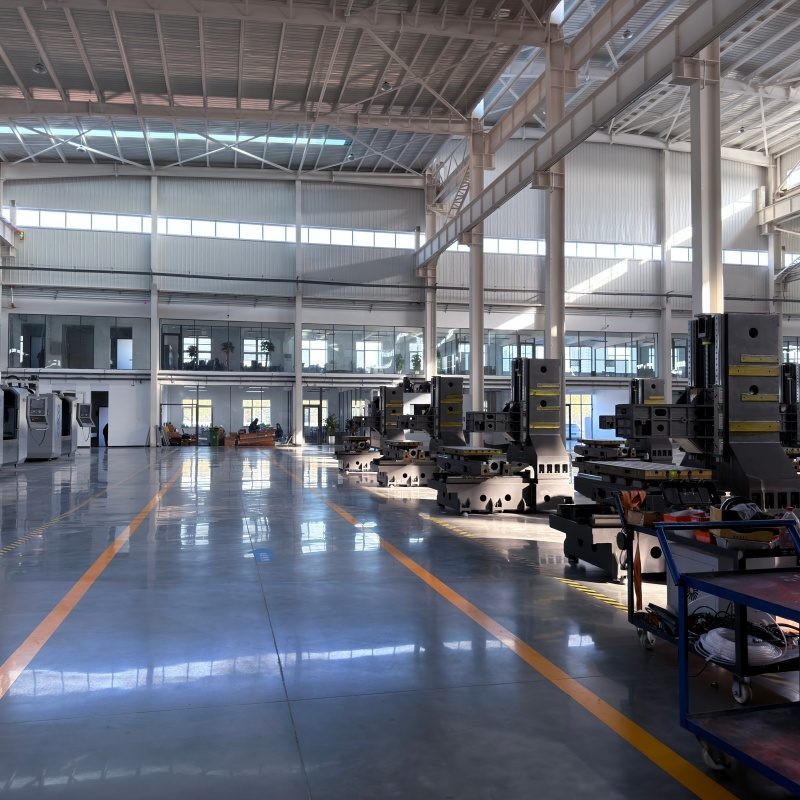

factory show

Professional Production Base, Strength in Precision Manufacturing

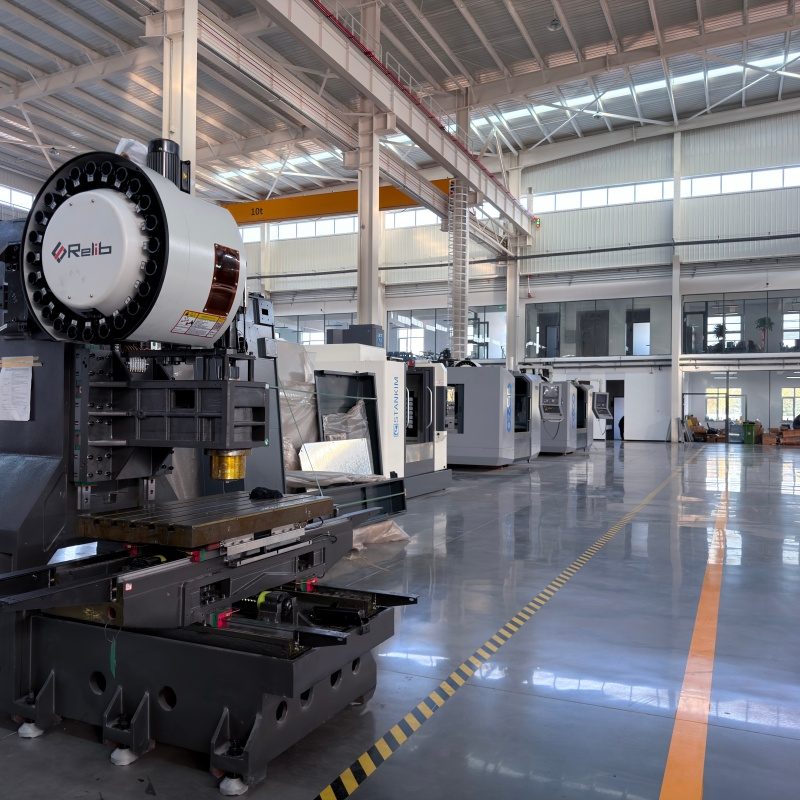

Heavy VMC machinery vertical-machining-center-price vertical double spindle machining center

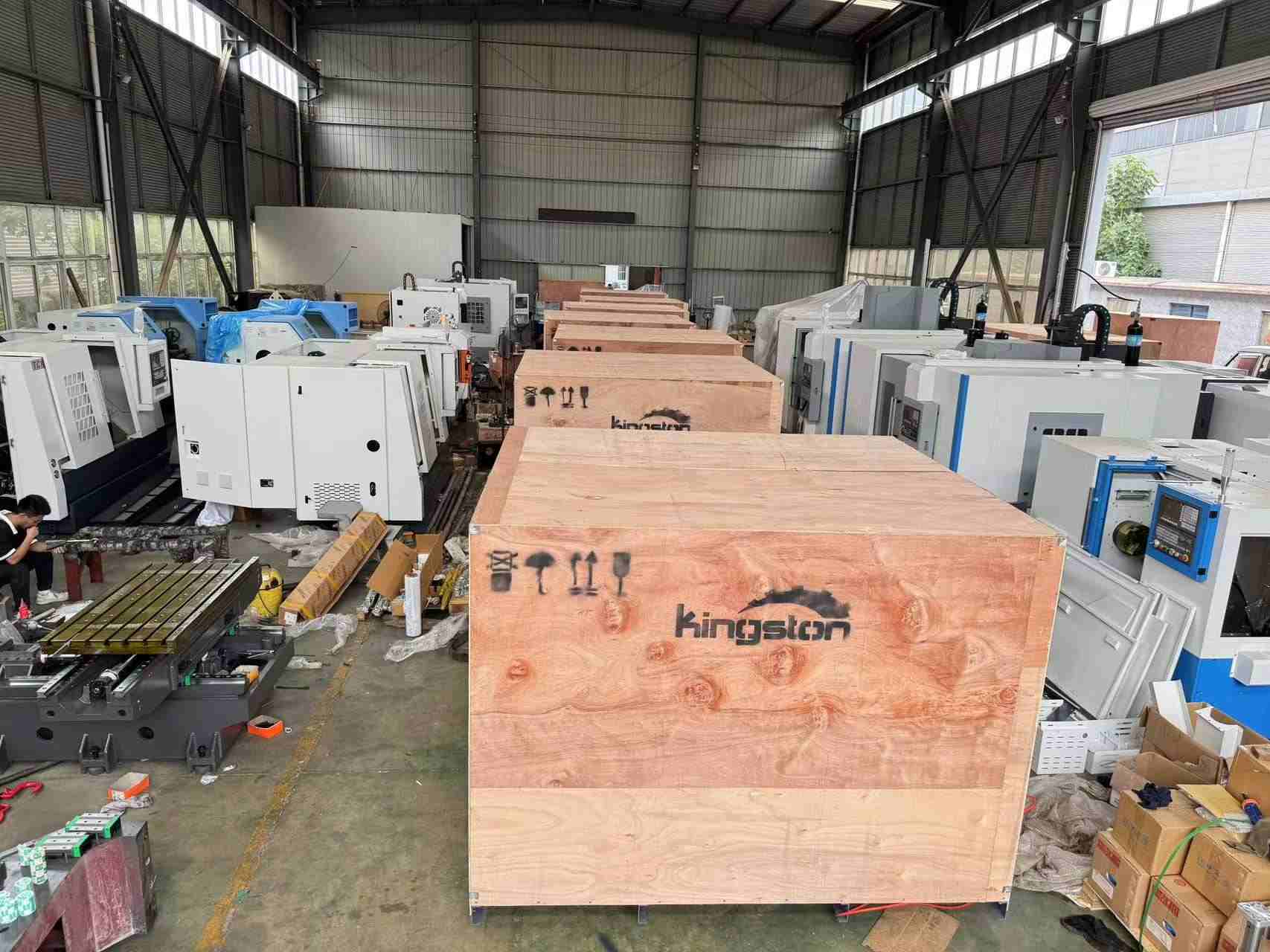

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Long service life VMC855 center vertical-machining-center-cnc

Heavy machinery manufacturer

Q: What is the spindle speed range of this machining center?

A: The spindle speed can be adjusted steplessly, with a wide speed range, suitable for both high-speed finishing and heavy-duty rough machining.

Q: How efficient is the automatic tool change function?

A: Equipped with a high-speed automatic tool changer, the tool change time is short, which greatly improves the overall processing efficiency and reduces manual operation.

Q: Can the machine be connected to an automatic production line?

A: Yes, it supports connection with automatic loading and unloading equipment, which can realize unmanned operation and adapt to large-scale mass production.

Q: What chip removal solution does this machining center adopt?

A: It is designed with reasonable chip removal structure and circulating cooling system, to keep the processing area clean and prolong tool service life.

Q: What makes this machining center better than ordinary models?

A: It features reinforced body structure, imported core components and optimized transmission design, delivering higher rigidity and better processing stability.
