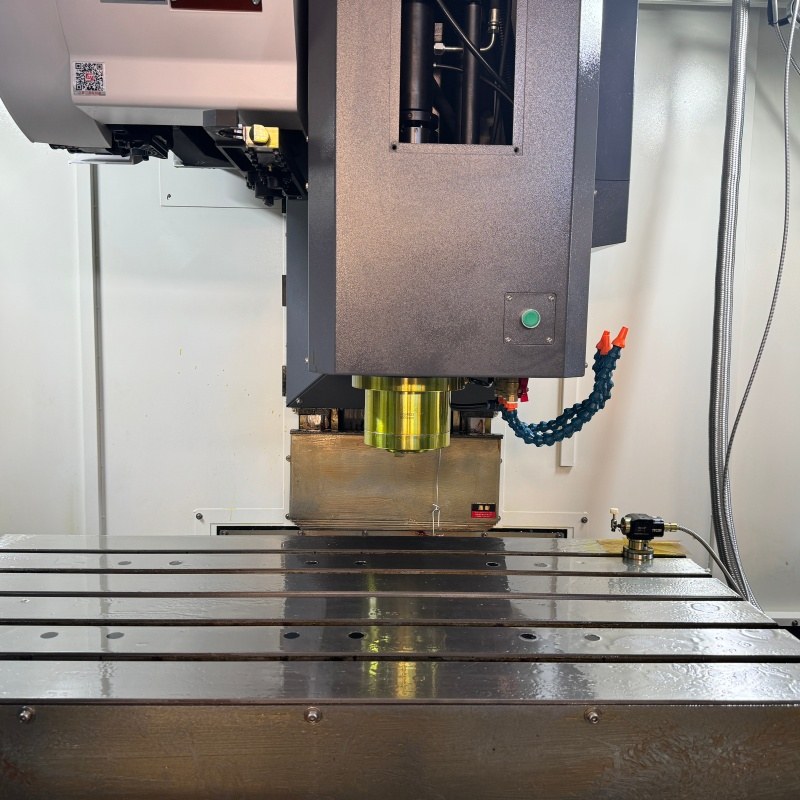

Integrated VMC1580 Cnc Machine Center for Precision Manufacturing
Committed to long-term stable production and comprehensive processing upgrade, the VMC1580 integrates mature core configurations and humanized design concepts. Every key moving part is precisely calibrated and tested to ensure smooth transmission, low vibration and low noise during daily operation. It not only guarantees durable and reliable running performance, but also takes safety, environmental protection and convenient daily management into consideration, becoming a cost-effective high-end equipment for medium and large processing enterprises to expand production capacity.
specification
|
Specification
|
Unit
|
VMC1580 (BT40）
|
VMC1580 （BT50）
|
|
Three-axis linear guide model
|
Three-axis linear guide model
|
|
Table size
|
mm
|
1700*800
|
1700*800
|
|
T Slots
|
-
|
5-22-135
|
5-22-135
|
|
Max table load
|
Kg
|
1500
|
1500
|
|
Table travel X
|
mm
|
1500
|
1500
|
|
Table travel Y
|
mm
|
800
|
800
|
|
Table travel Z
|
mm
|
700
|
700
|
|
Spindle nose to table surface
|
mm
|
150-850
|
150-850
|
|
Spindle center to column surface
|
mm
|
850
|
850
|
|
Spindle speed range and driving method
|
rpm
|
12000
|
8000
|
|
Spindle taper
|
/
|
BT40
|
BT50
|
|
Spindle diameter
|
mm
|
120
|
155
|
|
Cutting feed speed
|
mm/min
|
1-12000
|
1-12000
|
|
X/Y/Z Rapid feed speed
|
m/min
|
20/20/18
|
20/20/15
|
|
Motor rating X、Y、Z
|
m/min
|
5.4/5.4/5.4
|
5.4/5.4/5.4
|
|
Magazine capacity
|
T
|
24
|
24
|
|
Magazine type
|
|
Disc type
|
Disc type
|
|
Max tool diameter(No adjacent tool)
|
mm
|
φ80/130
|
φ80/130
|
|
Controller
|
|
Fanuc 0i MF3B
|
Fanuc 0i MF3B
|
|
Spindle motor power
|
Kw
|
11/15
|
15/18.5
|
|
Positioning accuracy
|
mm
|
±0.005
|
±0.005
|
|
Repeatability Positioning accuracy(JIS standard)
|
mm
|
±0.004
|
±0.004
|
|
Net weight
|
kg
|
14500
|
14800
|
|
Overall size
|
mm
|
4300*3200*3100
|
4300*3200*3100
|
Product Advantages
-
1.Ultra-Large Stroke Design
With an expanded working stroke far beyond standard models, it efficiently holds extra-large workpieces, complex structural parts and oversized molds, fully satisfying mass production and large-scale machining demands.
-
2.Heavy-Duty High-Rigidity Structure
Integral thickened cast iron bed plus professional stress relief treatment effectively weaken cutting vibration, maintaining perfect stability and anti-deformation performance under long-term heavy cutting.
-
3.High-Torque Powerful Cutting Capacity
Equipped with high-power main shaft and upgraded transmission parts, it provides steady strong cutting force, easily handling various high-hardness metal materials and heavy roughing tasks.
-
4.Intelligent Control & Easy Operation
Matched with advanced intelligent CNC system, it supports flexible parameter setting, automatic program operation and real-time fault reminder, helping operators improve efficiency and avoid manual mistakes.
-
5.Comprehensive Protection & Low Maintenance
Full surrounding safety shield and automatic centralized lubrication system reduce component wear and oil pollution, greatly simplifying daily maintenance and cutting long-term operating costs.
JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD
Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.
-
Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
-
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
-
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.
Our certification
Authoritative Certifications, Stable and Reliable Quality.

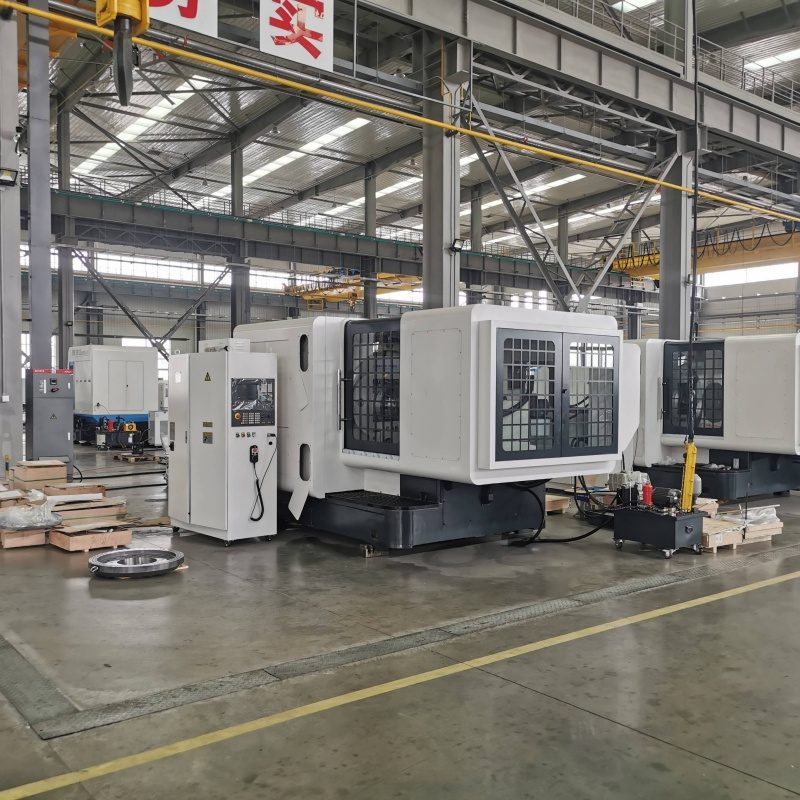

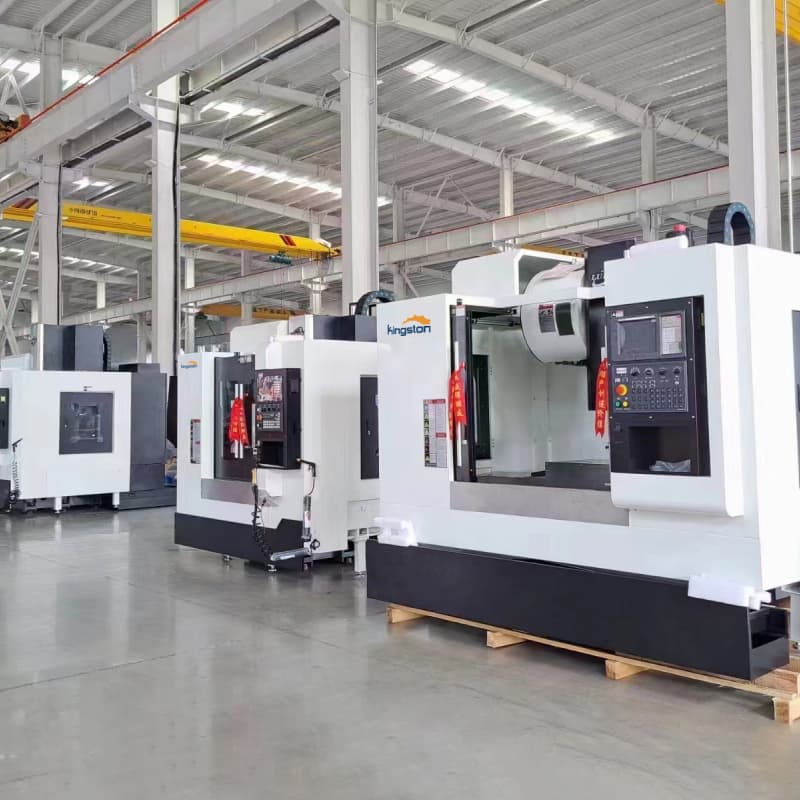

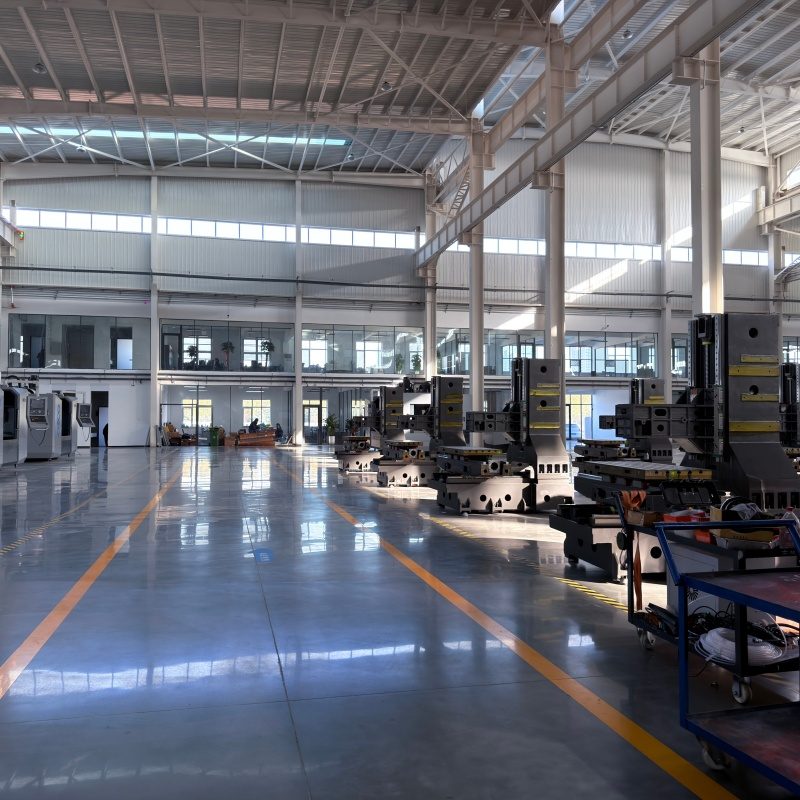

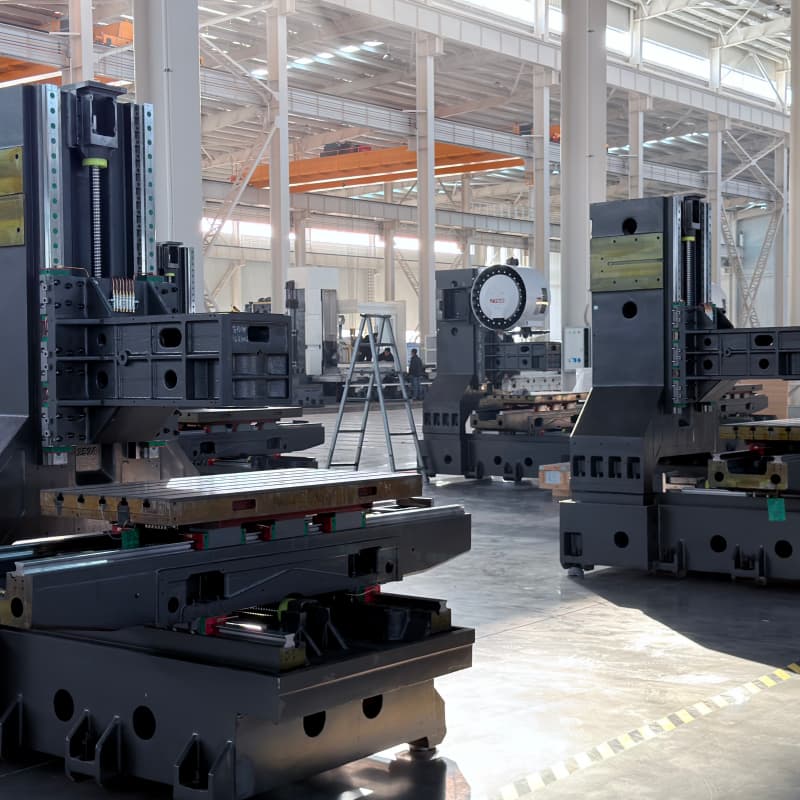

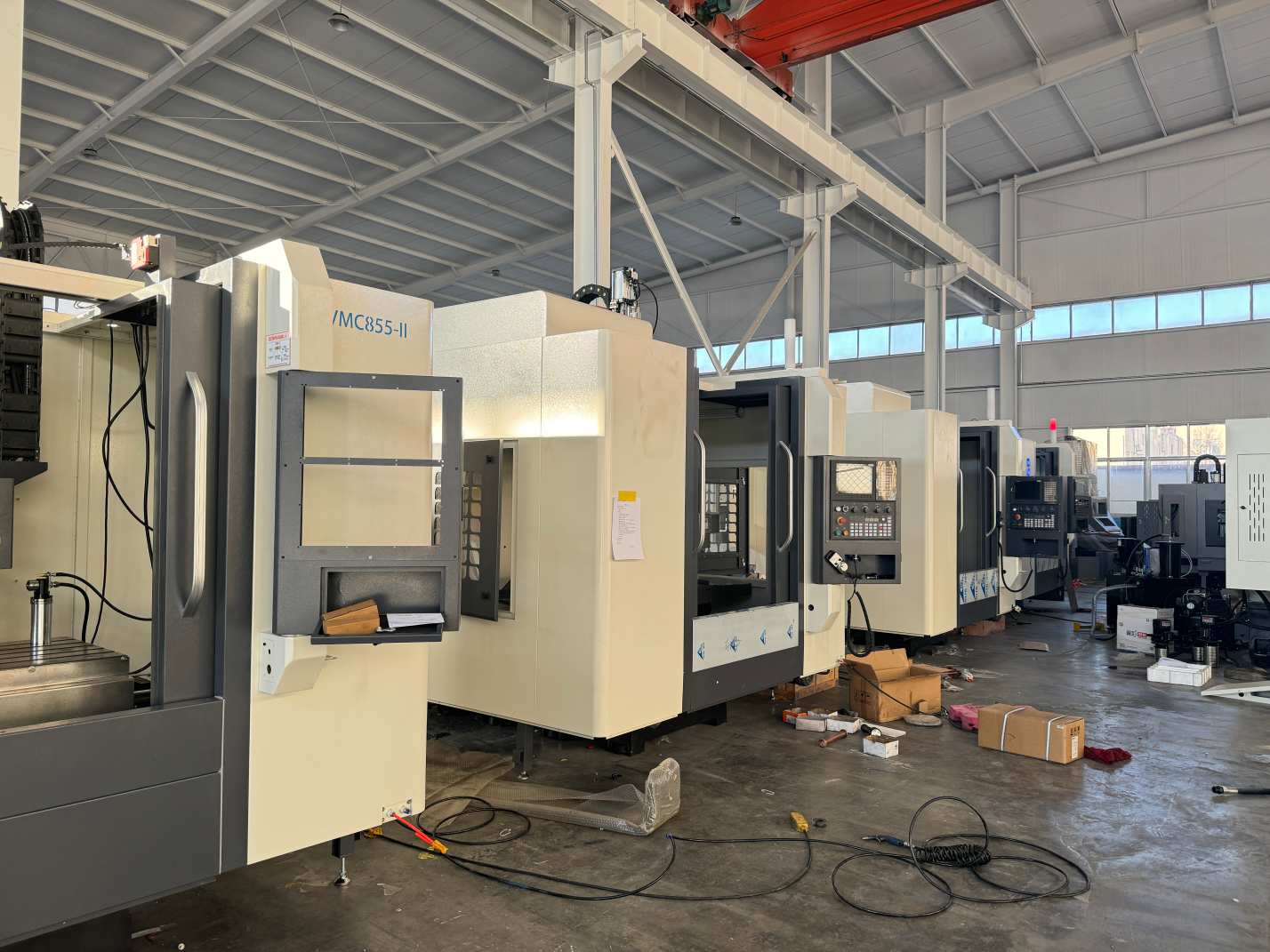

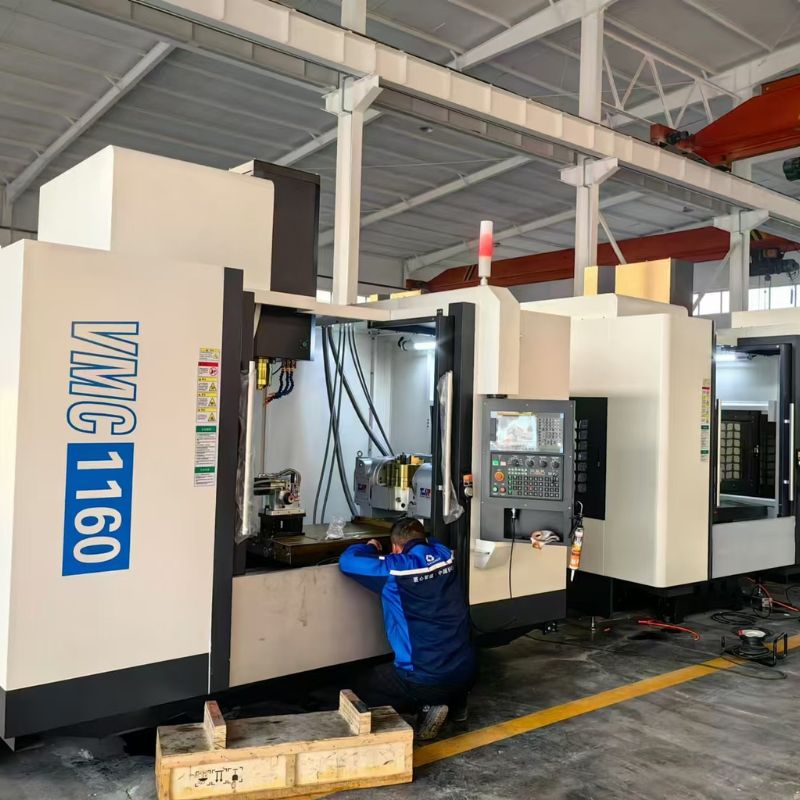

factory show

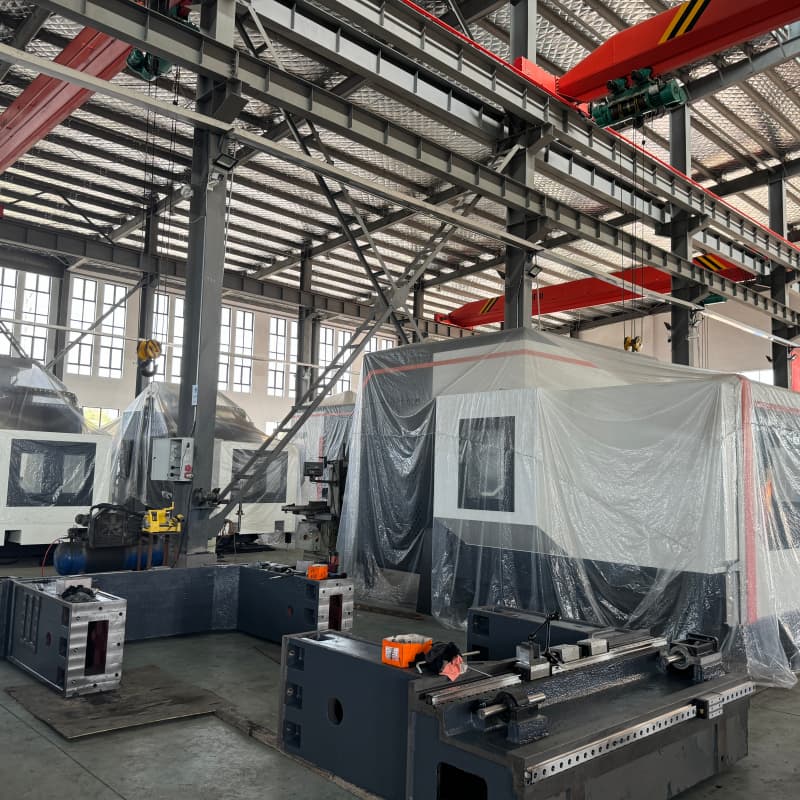

Professional Production Base, Strength in Precision Manufacturing

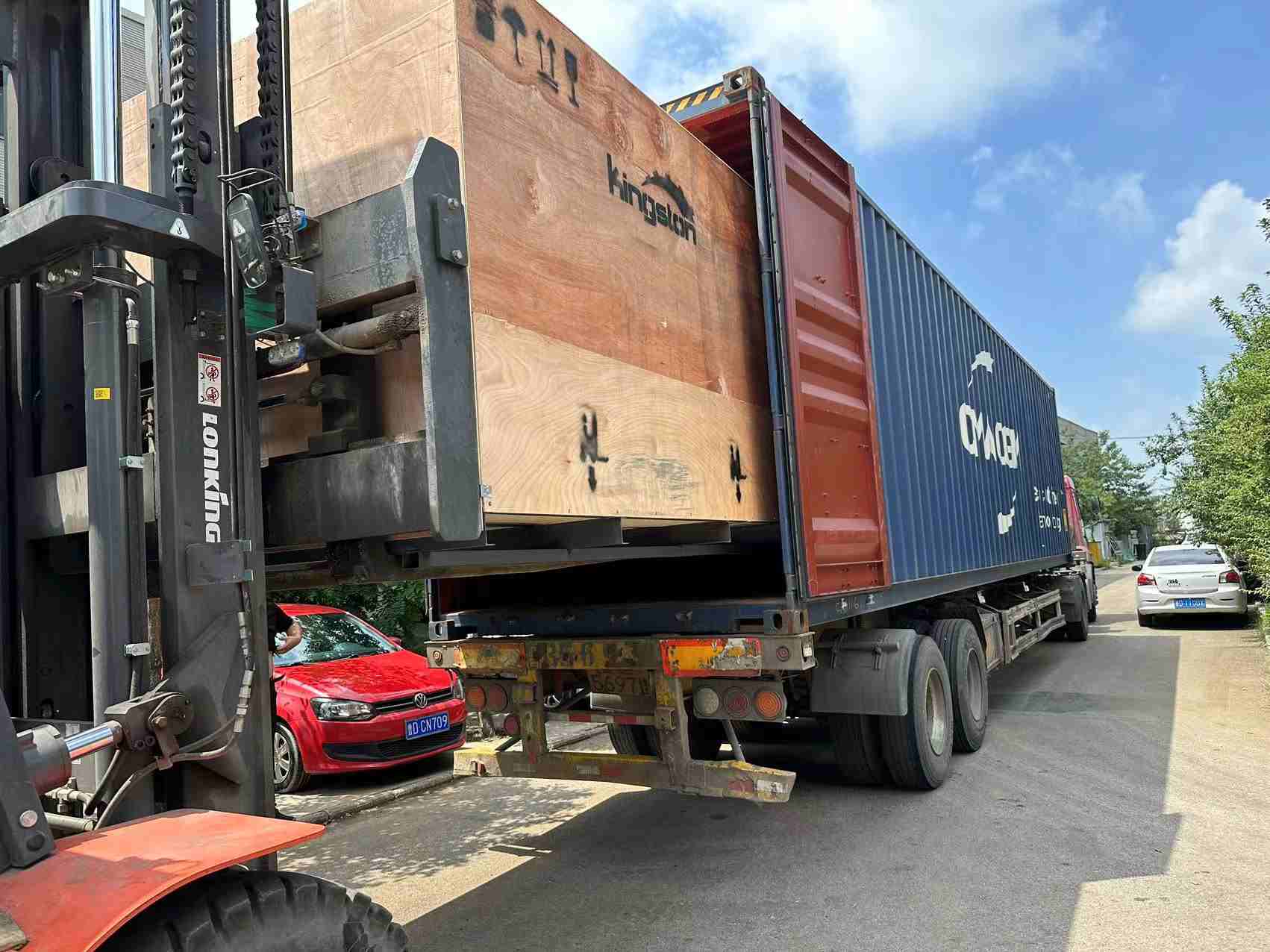

Safe & Professional Transportation, On-Time Delivery Guaranteed
-
Q: What is the working travel of VMC1580?
A: It comes with extra-large X/Y/Z travel, suitable for oversized workpieces and large mold processing.
-
Q: Is VMC1580 designed for heavy cutting?
A: Heavy H300 cast iron structure and widened four-guide design offer super high rigidity for heavy load cutting.
-
Q: What spindle is equipped on VMC1580?
A: Matched with BT50 high-power high-torque spindle, stable output for hard steel and tough materials.
-
Q: How about the table load capacity of VMC1580?
A: Reinforced thickened worktable bears heavy weight, meeting long-time continuous processing demands.
-
Q: What are the main application fields of VMC1580?
A: Mainly for large molds, automotive parts, engineering machinery and heavy mechanical processing.
