XQ6432A/C High Precision Universal Ram Milling Machine Rotary Table ±45°

XQ6432A/C High Precision Universal Ram Milling Machine Rotary Table ±45°

The XQ6432A/C is a high-precision universal ram milling machine featuring a built-in rotary table that swivels ±45°. This advanced design combines the versatility of a movable ram with the angular positioning capability of a rotary table, enabling operators to machine complex angles, circular slots, and multi-sided workpieces in a single setup. The "A/C" designation indicates enhanced precision grades and the inclusion of the rotary table function, making this model ideal for tool rooms, mold making, precision engineering, and educational institutions.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
1950Kg

Inquire Now

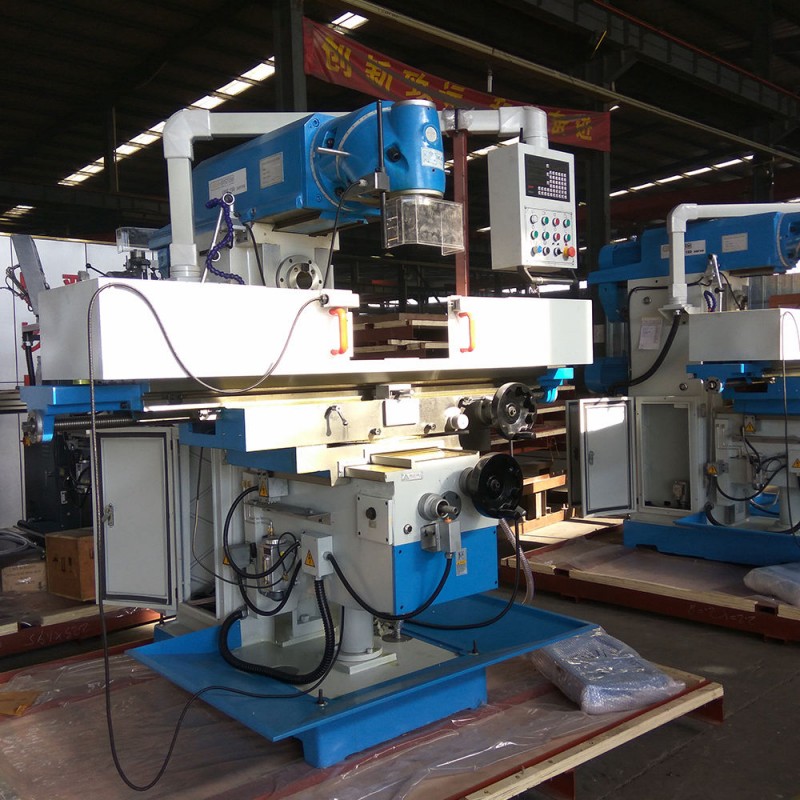

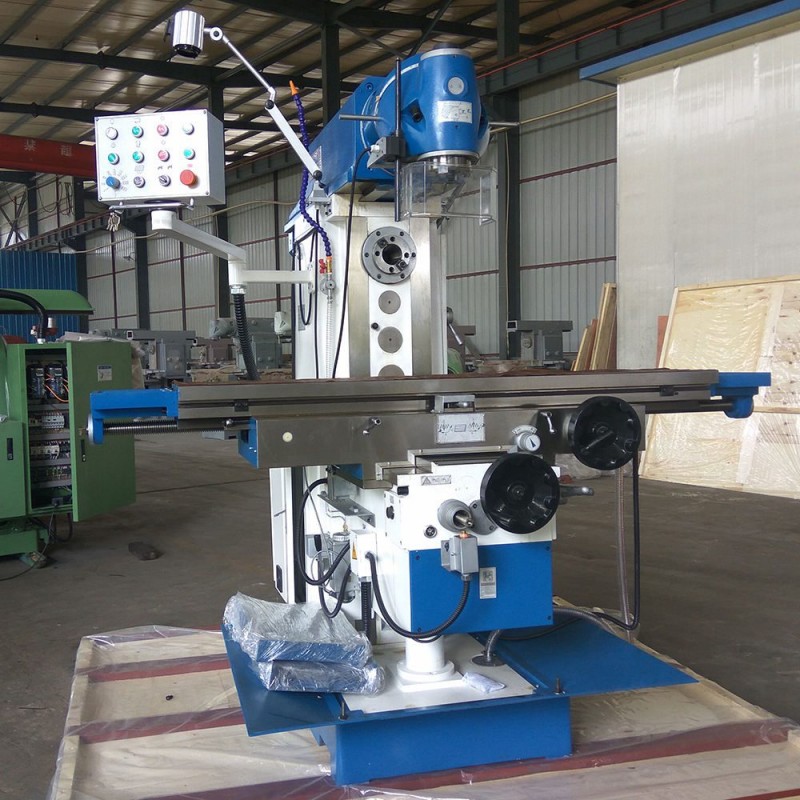

XQ6432A/C Ram Milling Machine

The XQ6432A/C high precision universal ram milling machine combines the versatility of a movable ram with a ±45° swiveling rotary table. This unique design allows operators to machine complex angles, circular features, and multi-sided workpieces in a single setup, eliminating costly repositioning and special fixtures.

Applications:

1.Mold and die making: Complex cavity machining, inclined surfaces

2.Tool rooms: Precision fixtures, jigs, custom tooling

3.Aerospace components: Compound angle features, circular slots

4.Heavy equipment repair: Re-machining worn components

5.Vocational training: Teaching advanced milling and angular positioning techniques

specification


Specification	Unit	XQ6432A	XQ6432C
Table size	mm	1370×320
T-slots(NO./width/pitch)	mm	3/14/80
Max table travel-XYIZ	mm	820/300/400	1000/380/400
Spindle taper		7:24 ISO40
Max rotary angle of table
Distance between spindle center line and table surface	mm	65-465
Distance between spindle nose and table surface	mm	250-650
Distance from horizontal spindle center line to am surface	mm	180
Spindle speed range	rpm	(V)11 steps 45-1660;(H)12 steps 35-1500
Arm travel	mm	400
Table feed(X/Y/Z)	mm/min	XY:30-830 Z:23-625
Table rapid speed		1335/1335/1000
Main motor power	Kw	2.2 or 3(V) 3(H)
Torque of X/Y/Z axis AC servo motor	Nm	15
Cooling pump motor power	W	40
Flow of cooling pump	L/m	12
Overall size	mm	1820×1680×1860
Net weight	Kg	1900	1950

Product Advantages

500mm Ram Travel
Extends spindle reach beyond the table edges for oversized workpieces, eliminating the need to reposition heavy parts.
High Precision Construction
Precision-ground guideways and high-grade spindle bearings deliver exceptional accuracy for tool room and mold making applications.
NT40 Spindle Taper
Provides excellent rigidity and torque for heavy-duty cutting on steel, cast iron, and hard alloys.

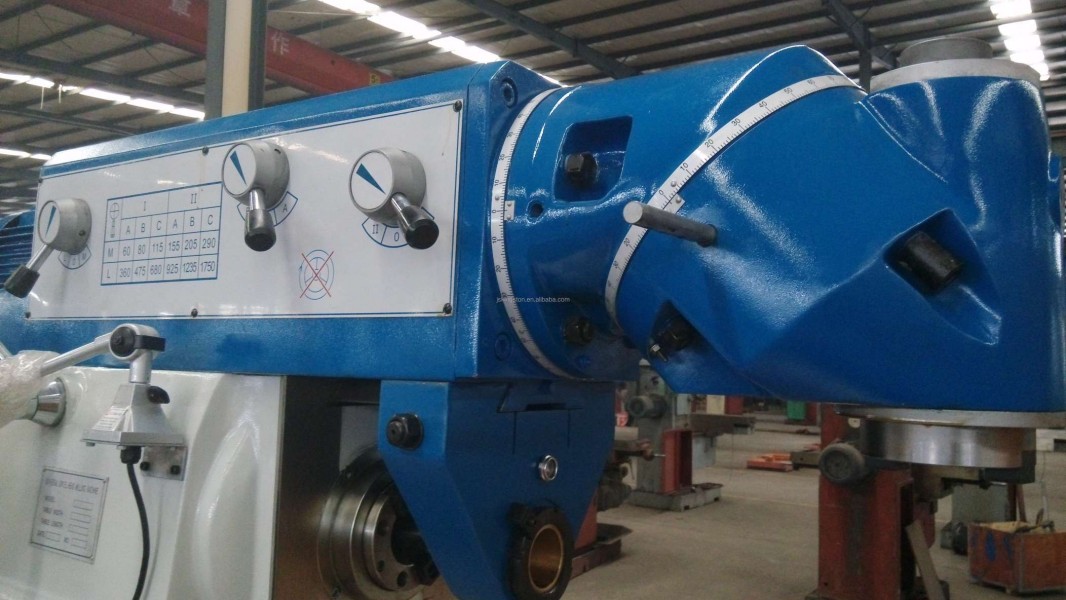

±90° Swiveling Milling Head
The head swivels 90 degrees left and right, combining with the rotary table to enable compound angle machining from multiple axes.
±45° Rotary Table
The built-in rotary table swivels 45 degrees left and right, allowing precise angular positioning for machining inclined surfaces, circular slots, and multi-sided workpieces without special fixtures.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

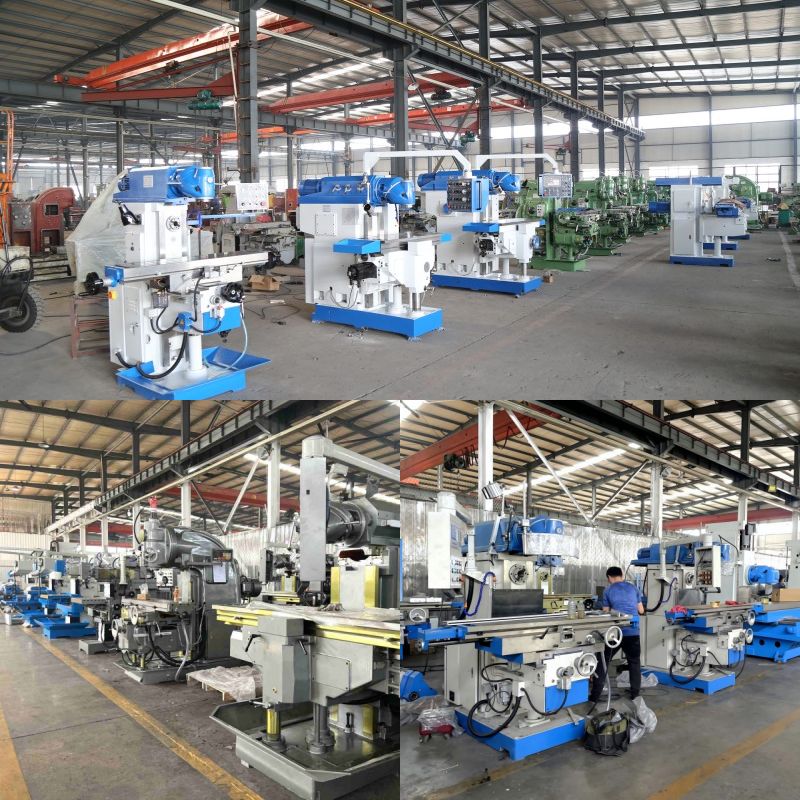

factory show

Professional Production Base, Strength in Precision Manufacturing

Industrial Ram Milling Machine Multi‑Function Universal Milling Equipment

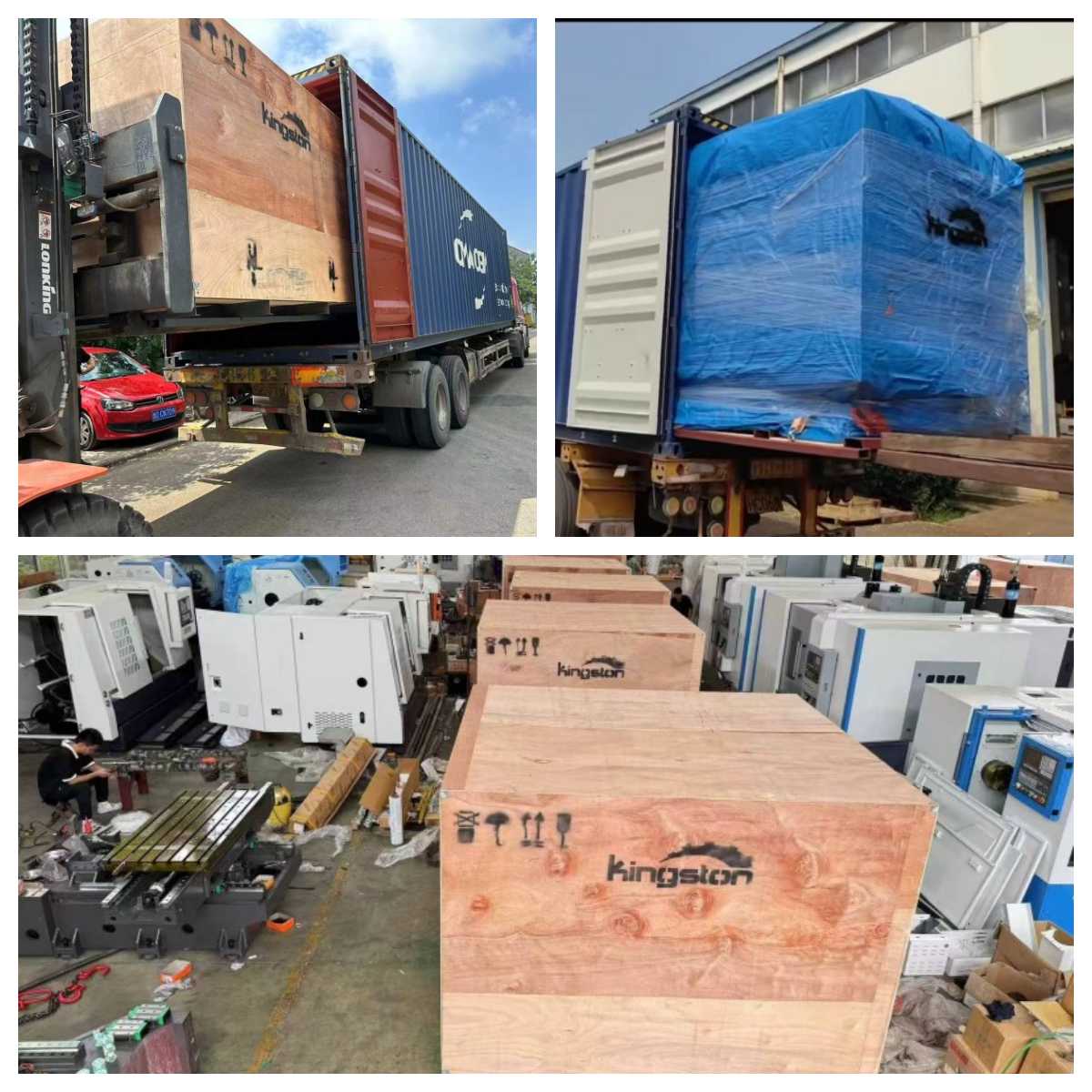

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

drilling and milling machine
Heavy machinery manufacturer

1. What is a universal milling machine?

A universal milling machine has a swiveling worktable and movable ram, allowing helical grooving, spiral gears, and compound angle machining.

2.How to maintain guideways for long-term accuracy?

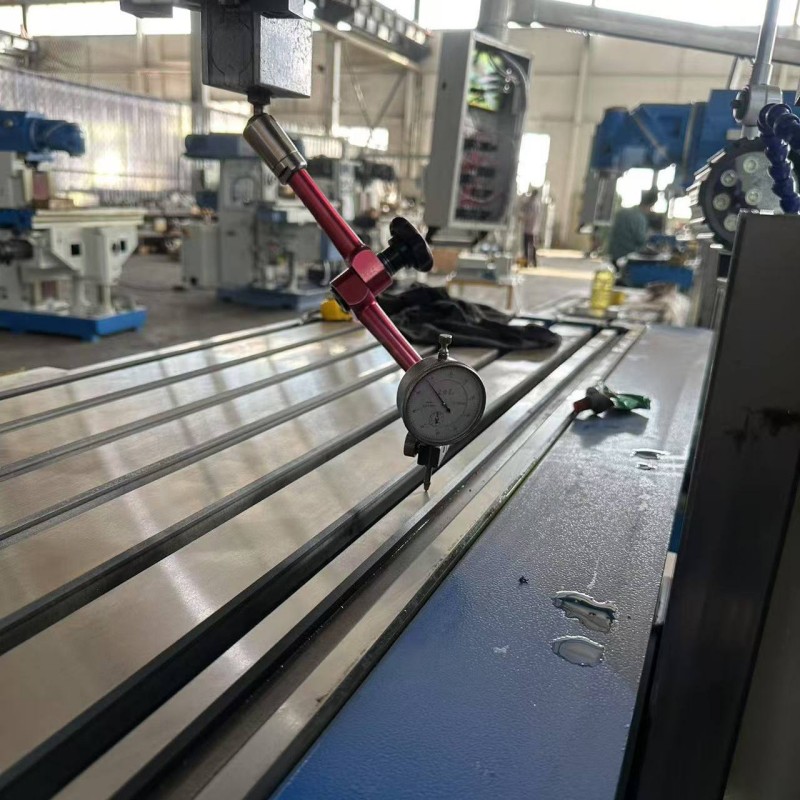

Clean, lubricate regularly, and wipe away chips after each use. Annual inspection ensures ±0.005mm accuracy over years.

3.Can it do both horizontal and vertical milling?

Yes, it accepts both horizontal arbors and vertical heads. Switching takes less than 30 minutes.

4.What safety precautions are needed?

Wear safety glasses, secure workpieces, keep hands away from cutters, use emergency stop, and ensure chip guards are in place.

5.How to choose spindle speed for different materials?

Low speed (60-300 rpm) for steel roughing; medium (300-1000 rpm) for stainless steel; high (1000-1800 rpm) for aluminum, brass, and plastics.
