XL6436C/CL High Quality Universal Ram Milling Machine Manufacturer Supplier

XL6436C/CL High Quality Universal Ram Milling Machine Manufacturer Supplier

The XL6436C/CL is a high quality universal ram milling machine designed for precision machining and maximum versatility. Featuring a movable ram, swiveling milling head, and optional extended table length (CL model), this machine handles complex milling operations including angular cutting, dovetail machining, and large workpiece processing with ease. As a professional manufacturer and supplier, we ensure strict quality control, reliable performance, and competitive pricing for workshops worldwide.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
2800Kg

Inquire Now

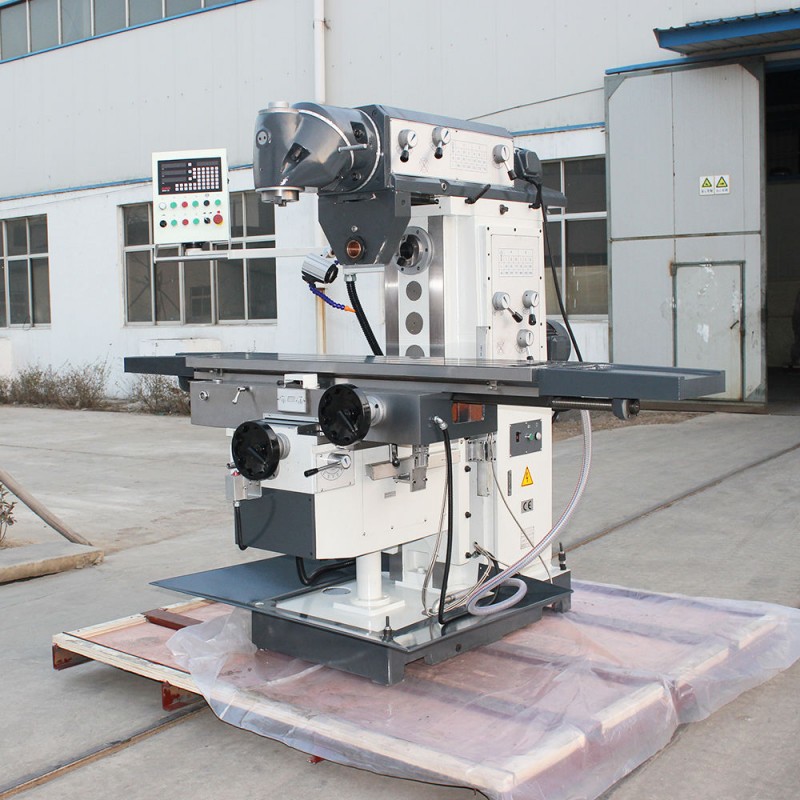

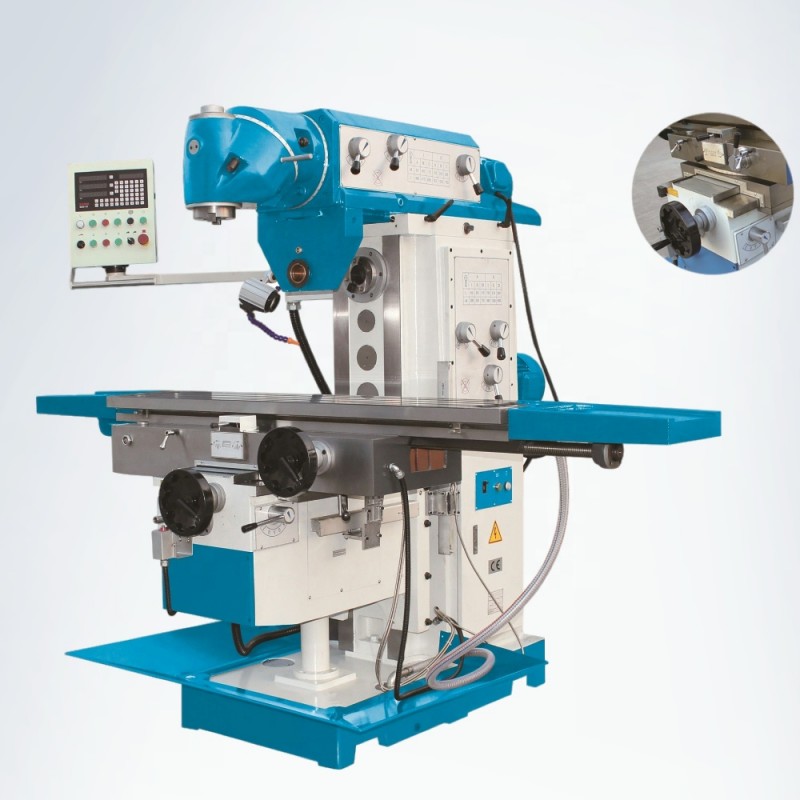

XL6436C/CL Ram Milling Machine

The XL6436C/CL universal ram milling machine delivers quality, versatility, and reliability at a competitive price.

Core Features:

1. Heavy-Duty Construction – Ribbed cast iron structure for vibration damping and long-term accuracy.

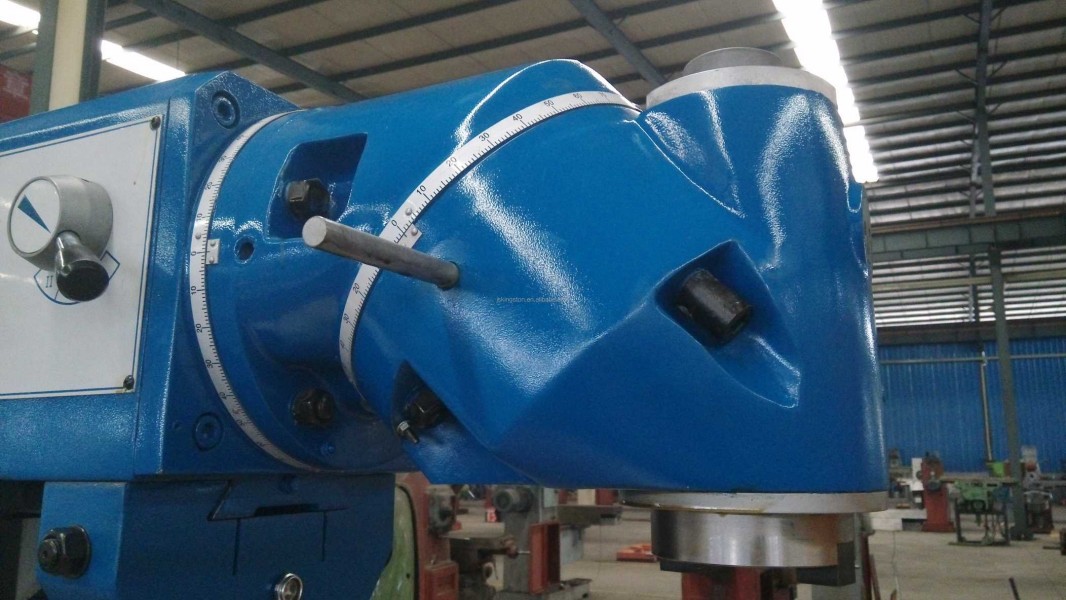

2. Versatile Ram & Head – 500mm ram travel and ±90° head swivel for complex angle machining.

3. CL Model Option – Extended 1800mm table for longer workpieces.

4. Precision Guideways – Hardened and ground for smooth movement and wear resistance.

5. OEM & Customization – Available with digital readout, power feed, or CNC retrofit options.

specification


Specification	Unit	XL6436C	XL6436CL
Table size	mm	1325×360	1600×360
Table travel(X/Y/Z)	mm	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30-750/20-500/15-375
Spindle taper		7:24 ISO50(H)卧7:24 ISO50(V)立
Arm travel	mm	550
Distance between spindle nose and table surface	mm	175-625
Distance between horizontal nose and table surface	mm	0-450
Distance between spindle axis and arm surface	mm	200

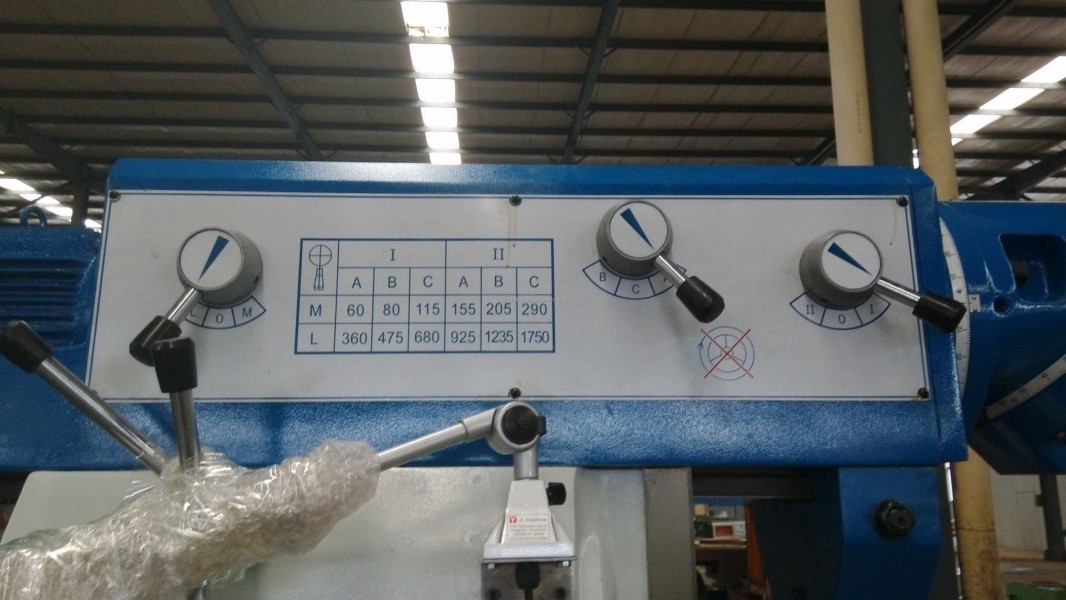

Spindle speed range	r.pm	12steps 60-1750(V)立 12steps 60-1800(H)卧
T-slots (NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5(H)4(V)
3 to feed Ac servo motor torque	N.m	15
Overall size	mm	2245×2100×2000	2520×2100×2000
Net weight	kg	2750	2800

Product Advantages

Professional manufacturer
with years of milling machine experience.
Strict quality control
Each machine tested before delivery.
Competitive factory pricing
No middleman markups.
Global shipping
Safe packaging and on-time delivery.
After-sales support
Technical assistance and spare parts supply.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

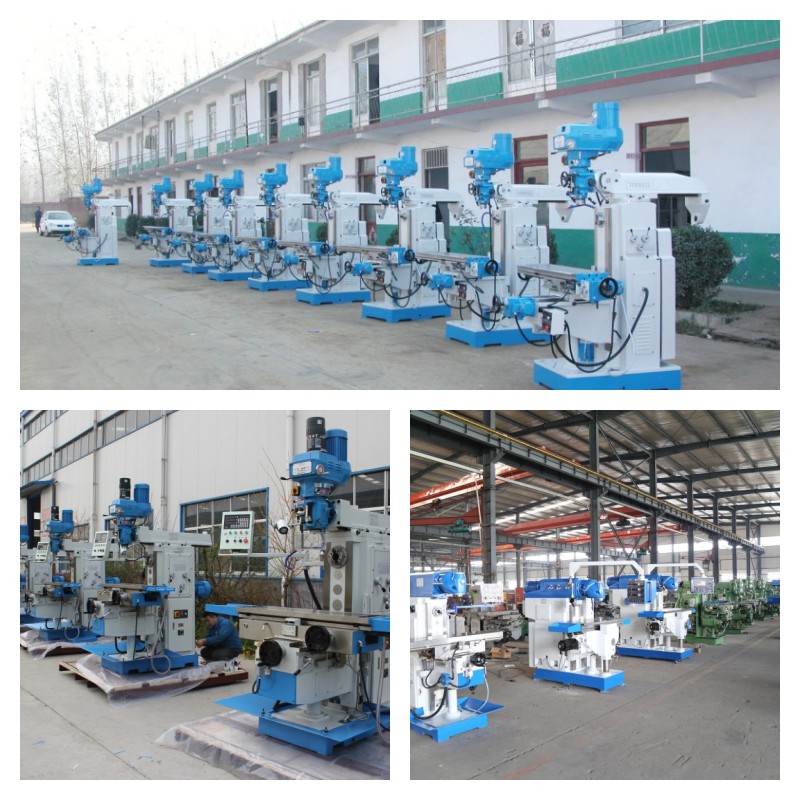

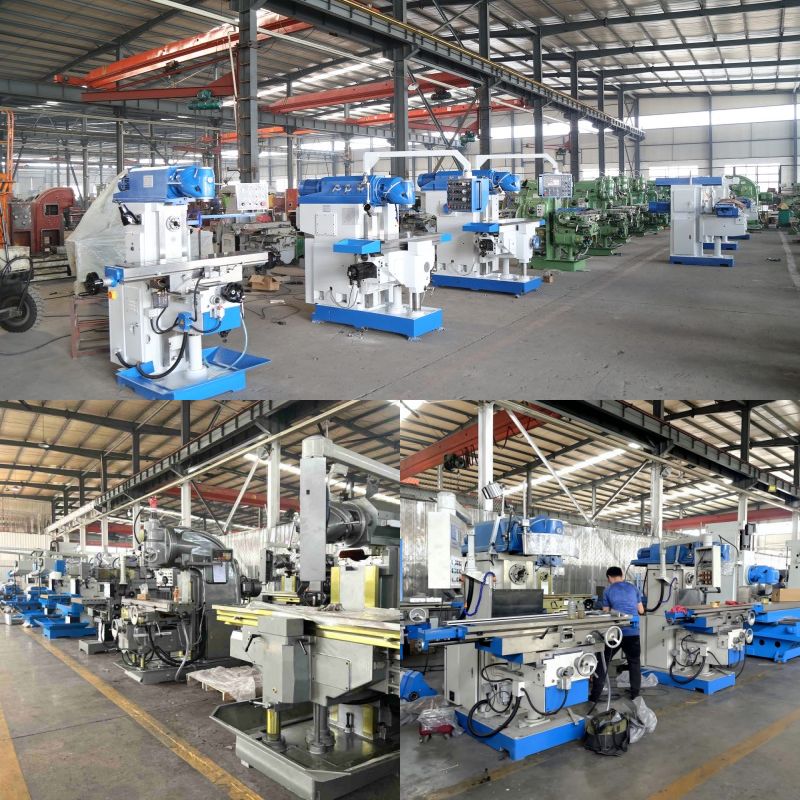

factory show

Professional Production Base, Strength in Precision Manufacturing

Industrial Ram Milling Machine with Auto Feed horizontal milling machine

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

High Quality Universal Ram Milling Machine
Heavy machinery manufacturer

1. What is the main difference between XL6436C and XL6436CL?

The main difference is the table length. The XL6436C has a 1500mm table, while the XL6436CL features an extended 1800mm table for machining longer workpieces.

2.What spindle taper does this machine use?

The XL6436C/CL is equipped with an NT40 (ISO 40) spindle taper, providing excellent rigidity and torque for heavy-duty milling operations.

3.What materials can it machine?

Steel, stainless steel, cast iron, aluminum, brass, copper, titanium, and plastics.

4.Can it drill holes?

Yes, it performs drilling, boring, tapping, face milling, end milling, and slotting.

5.Ram mill vs knee mill – what's the difference?

Ram mill has movable horizontal ram for extended reach; knee mill has vertical knee adjustment but fixed head position.
