XL6230/C in Stock Universal Conventional Milling Machine Hot Selling for Metalworking

XL6230/C in Stock Universal Conventional Milling Machine Hot Selling for Metalworking

The XL6230/C is a versatile universal conventional milling machine, ideal for metalworking shops, tool rooms, and maintenance facilities. Featuring a swiveling turret head and movable ram, this machine handles vertical and horizontal milling operations with ease. The "C" model offers enhanced rigidity and precision. In stock and ready for immediate shipment, the XL6230/C is a hot-selling choice for businesses seeking reliable, affordable milling solutions.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
3000Kg

Inquire Now

XL6230/C Ram Milling Machine

The XL6230/C universal conventional milling machine is in stock and hot selling worldwide. Order now for fast delivery and reliable metalworking performance.

Selling Points:

1. In Stock – Ready for immediate shipment, no waiting.

2. 2-in-1 Function – Vertical and horizontal milling in one machine.

3. Heavy-Duty – Cast iron construction for rigidity and accuracy.

4. Swiveling Head – ±90° for compound angle cutting.

5. Best Value – High quality at a competitive price.

specification


Specification	Unit	XL6230	XL6230C
Table size	mm	1270×300	1370×300
T-slots (NO./width/pitch)	mm	3/14/80
Max. table travel-X/Y/Z	mm	720/300/400	1000/380/400
Spindle taper		7:24 ISO40
Distance between spindle nose and table surface	mm	90-490
Spindle speed range	rpm	11 steps 45-1660
Max swivel angle of milling head	/	360°
Table feed (XY/Z)	mm/min	XY:30-830 Z:23-625
Table rapid speed		1335/1335/1000
Main motor power	Kw	3
Torque of XYIZ axis AC servo motor	Nm	15
Overall size	mm	1730×1760×1700	1830×1760×1700

Product Advantages

NT40 Spindle Taper
Provides excellent rigidity and torque for heavy cutting on steel, cast iron, and hard alloys.
Wide Speed Range (60-1800 rpm)
12-step gearbox allows operators to select optimal speeds for roughing and finishing different materials.
Precision Ground Guideways
Ensures smooth table movement and maintains accuracy over years of heavy use.
Easy Manual Controls
User-friendly levers and dials make operation simple for both beginners and experienced machinists.
Trusted Hot-Selling Model
Proven reliability with thousands of units sold worldwide – a favorite among metalworking professionals.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

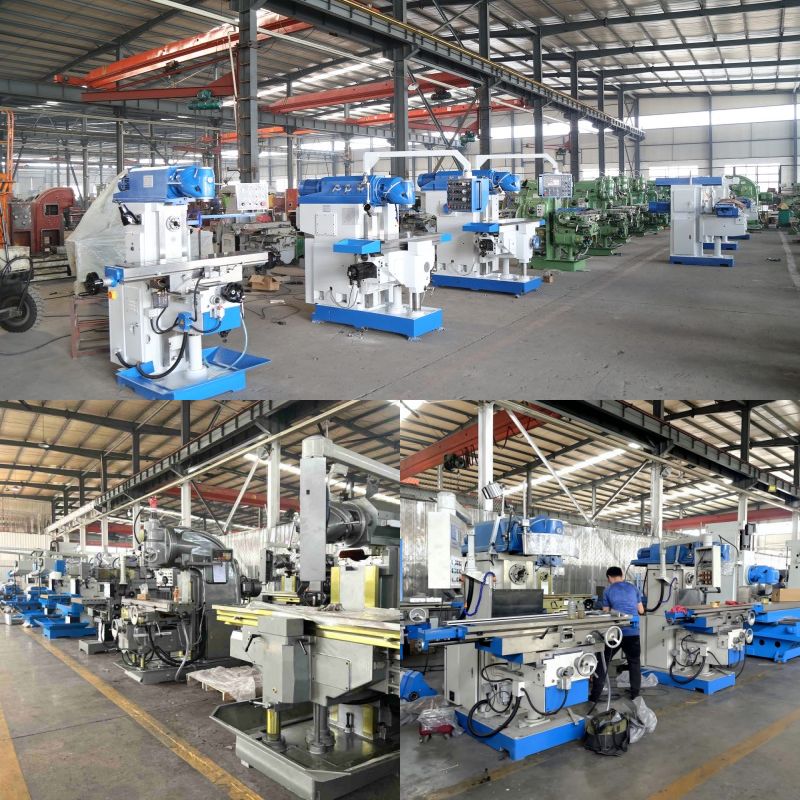

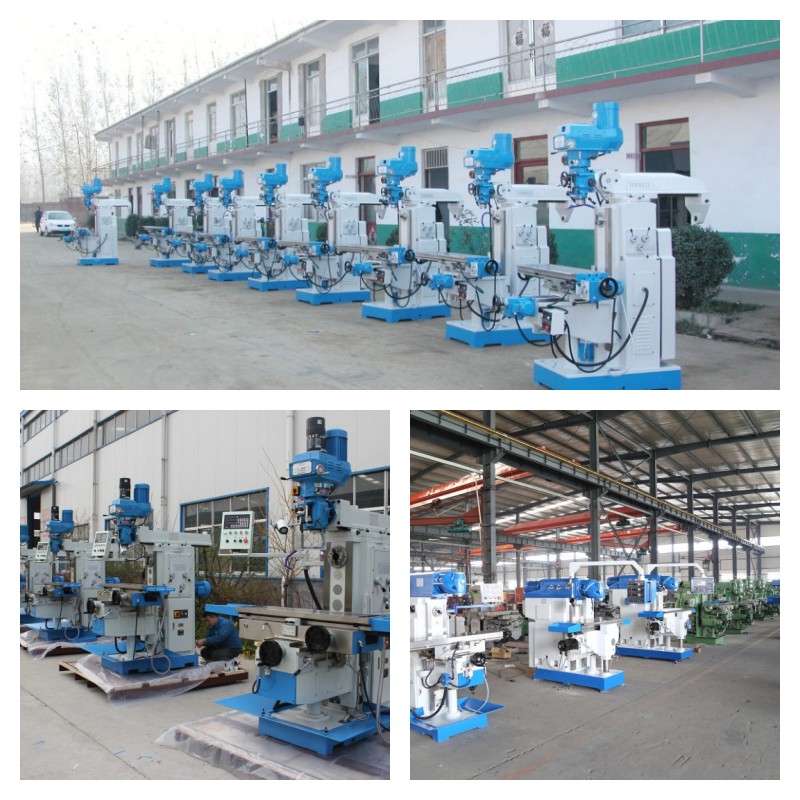

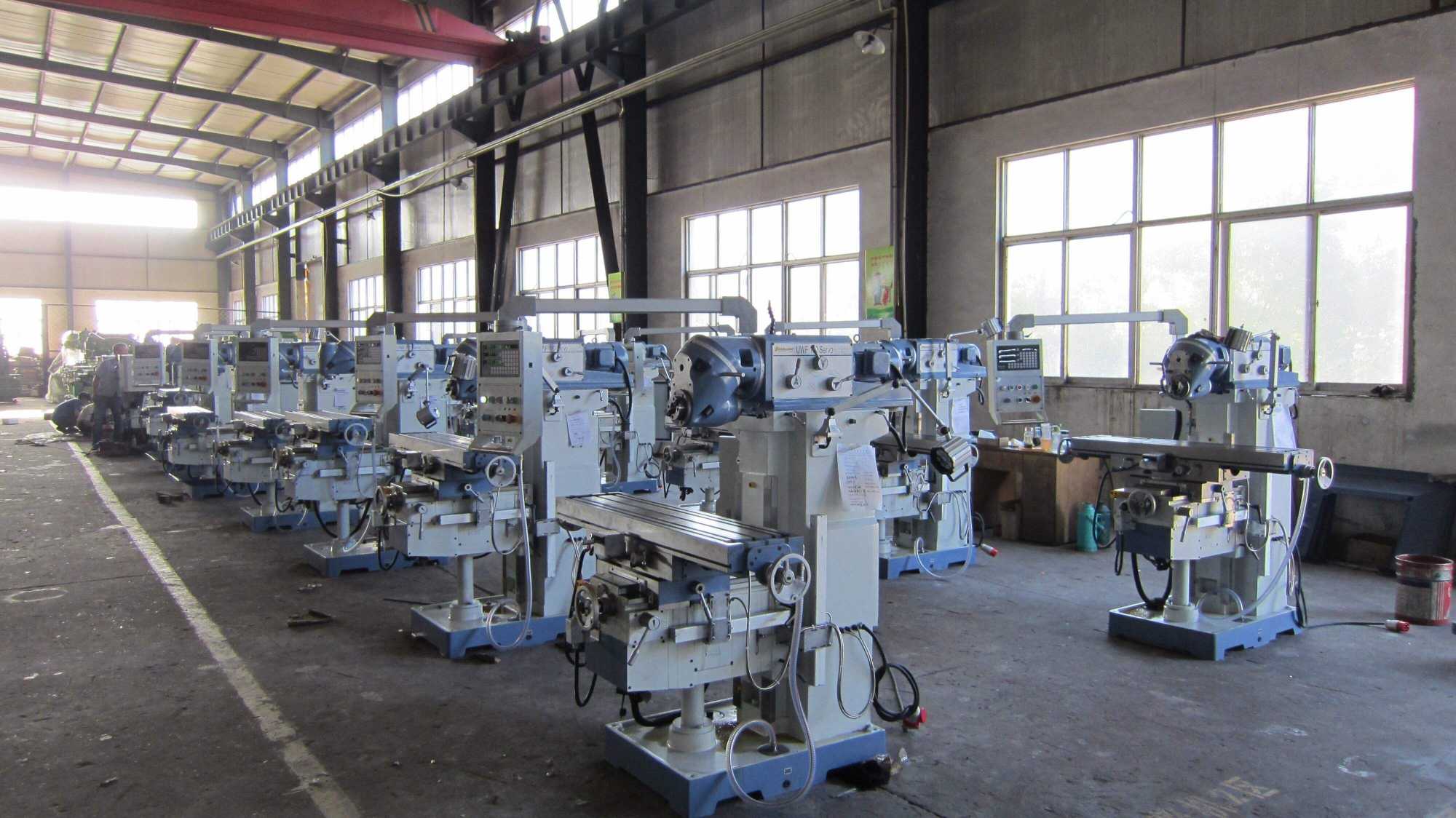

factory show

Professional Production Base, Strength in Precision Manufacturing

Milling Machine Multi‑Function Universal Milling Equipment High-quality milling Vertical and Horizontal Milling Machine

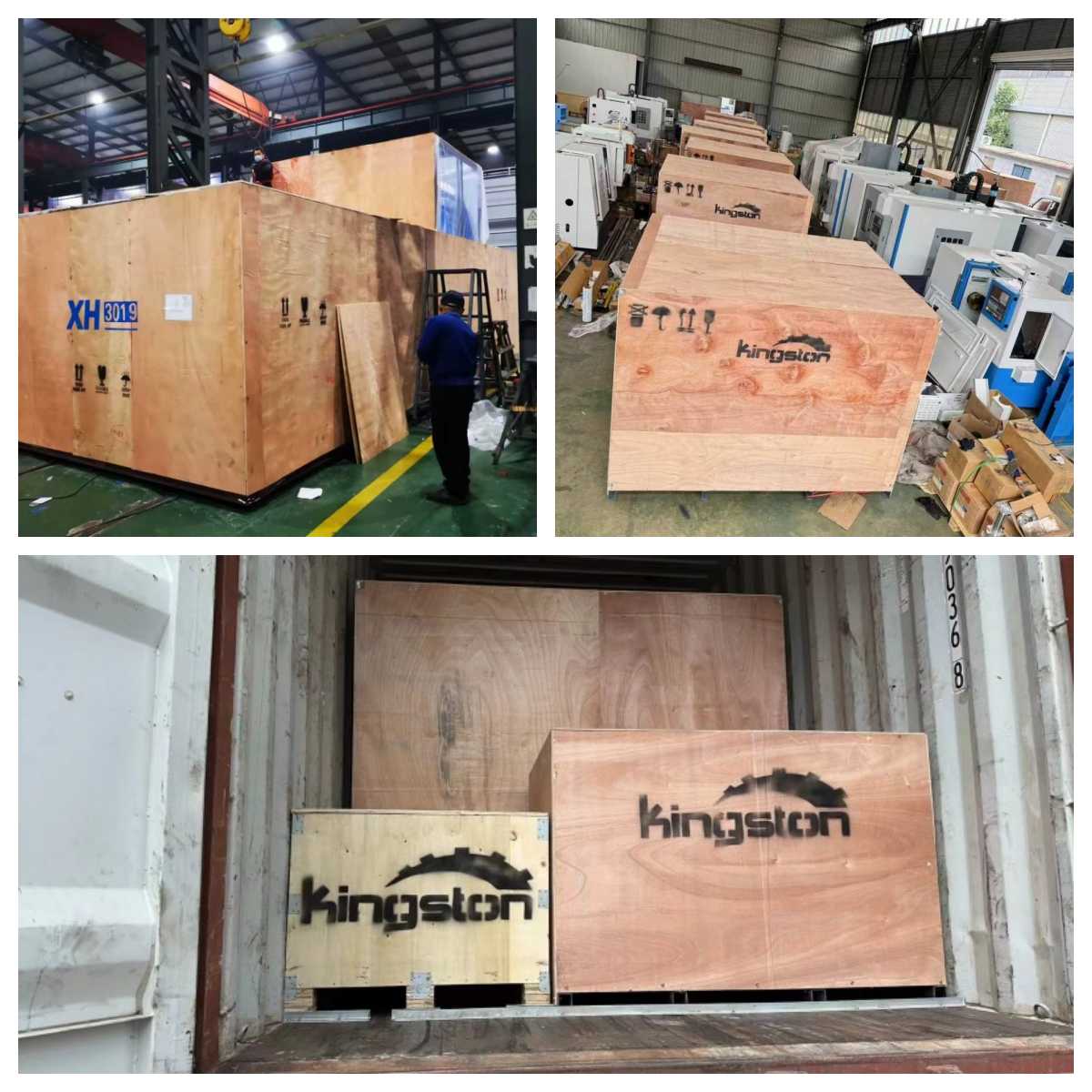

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Universal Ram Milling Machine
Heavy machinery manufacturer

1. Does it come with a coolant system?

Yes, the XL6230/C is equipped with a standard coolant system including pump, tank, and adjustable nozzles for effective chip removal and tool cooling.

2.What power supply is required?

The machine requires a 380V, 50Hz, three-phase power supply. Voltage conversion options are available for different regions upon request.

3.What materials can it machine?

Steel, stainless steel, cast iron, aluminum, brass, copper, titanium, and plastics.

4.Can it drill holes?

Yes, it performs drilling, boring, tapping, face milling, end milling, and slotting.

5.Is assembly required upon delivery?

The machine comes partially assembled. Simple final assembly (installing the table, ram, and control panel) and basic calibration are required. We provide detailed instructions and video support.
