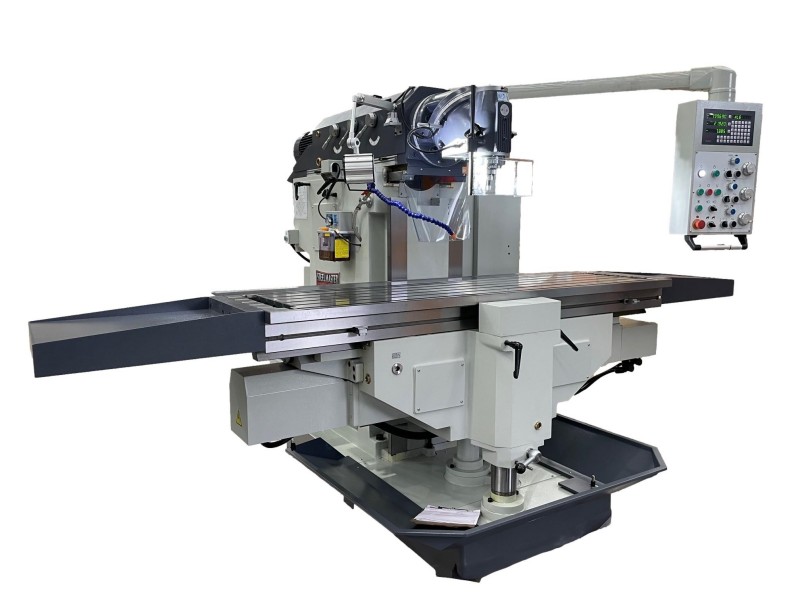

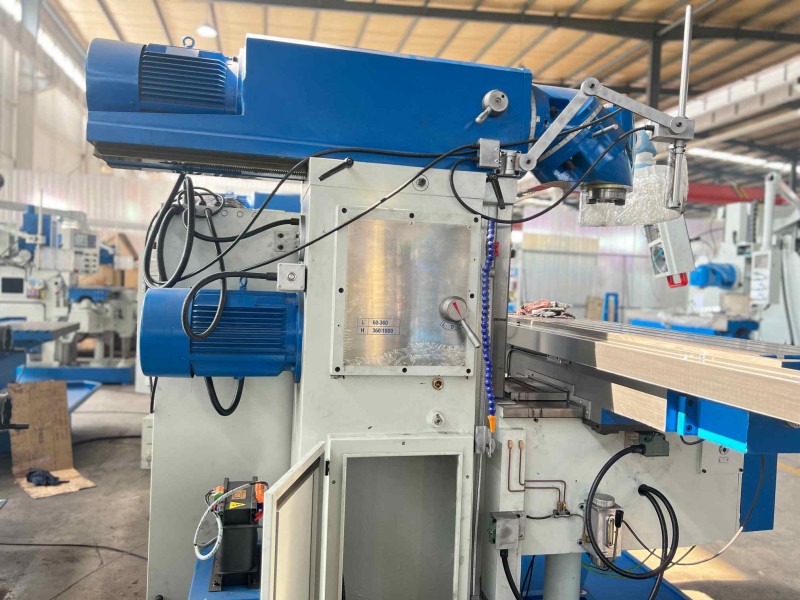

High Precision Universal Ram Milling Machine X5750/A

The X5750/A is a heavy-duty ram milling machine designed for large workpieces and complex machining operations. Featuring a robust movable ram that extends horizontally and a swiveling milling head, this machine delivers exceptional reach and angle-cutting capability for tool rooms, maintenance shops, mold-making facilities, and heavy equipment repair centers. The "A" series represents an advanced configuration with enhanced rigidity and precision compared to standard models.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
4500Kg

Inquire Now

Flexible Ram Milling Machine with Servo Feed

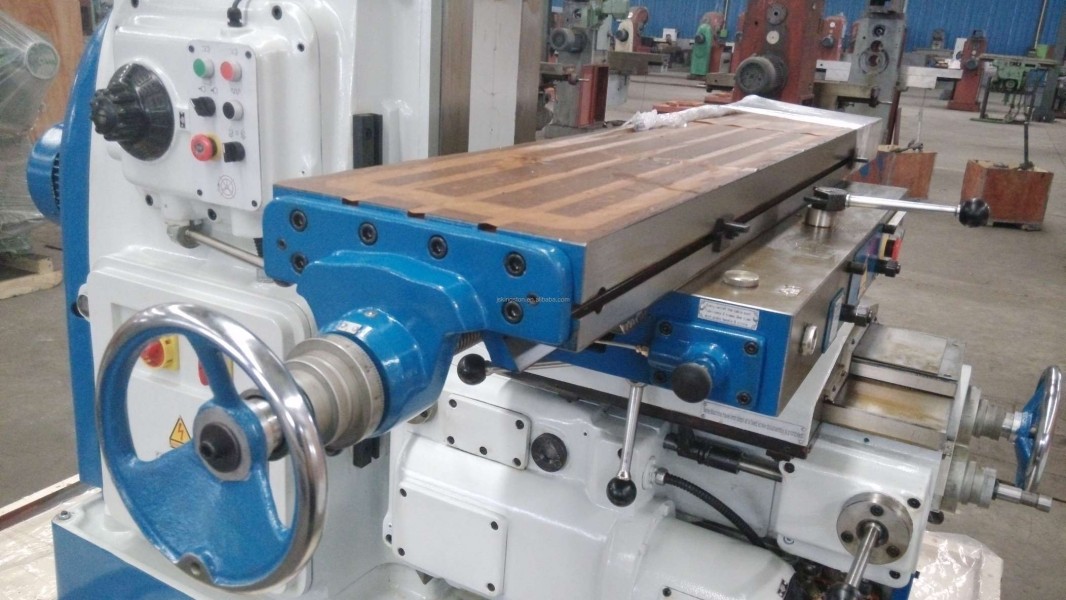

1.The extra-large 500×2000mm table handles big workpieces, while the 600mm ram travel allows the spindle to reach well beyond the table edges, ideal for machining oversized components.

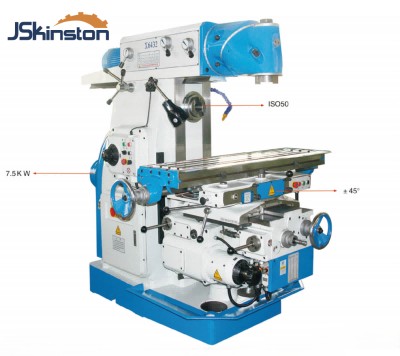

2.Equipped with a powerful 7.5 kW (10 HP) motor and NT50 spindle taper, the X5750/A delivers high torque and rigidity for aggressive material removal on steel, cast iron, and hard alloys.

3.The milling head swivels ±90° left/right and tilts ±45° forward/back, enabling compound angle cutting, dovetail machining, and complex contouring without special fixtures.

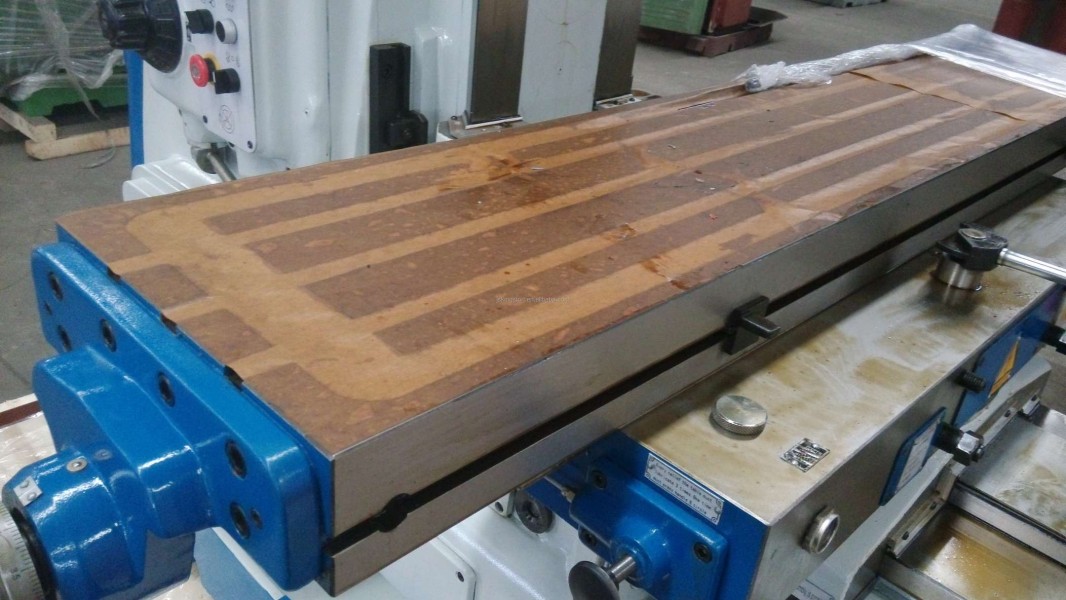

4.Built with heavy cast iron ribbed construction and precision-ground guideways, the X5750/A provides excellent vibration damping and long-term accuracy for demanding tool room applications.

5.Ideal for face milling, end milling, drilling, boring, slotting, and angular cutting on large molds, heavy equipment parts, and custom fabrications.

specification


Specification	Unit	X5750	X5750A
Table size	mm	500×1600	500×2000
T-slots (NO./width/pitch)	mm	5/18/80
Table travel (XY/Z)	mm	1200/700/500	1400/700/500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO50
Spindle speed range	rpm	(27)30-2050
Table feed (XY/Z)	mm/min	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	50-550
Distance from spindle center line to column	mm	45-745
Main motor power	Kw	7.5
Feed motor	Kw	AC servo motor XY:18 NM ; Z:27NM
Max load	Kg	1800
Overall size	mm	2625×2460×2080	2625×2860×2080
weight	kg	4200	4500

Product Advantages

600mm Ram Travel
Extends spindle reach beyond table edges for oversized workpieces without repositioning.
NT50 Spindle Taper
Delivers high torque and rigidity for aggressive cutting on steel, cast iron, and hard alloys.
±90° Head Swivel
Machines compound angles and inclined surfaces in a single setup, eliminating special fixtures.
Ribbed Cast Iron Construction
Absorbs vibration for smoother finishes, longer tool life, and consistent accuracy.
18-Speed Gearbox
Wide speed range for optimal cutting from heavy roughing to precision finishing.
