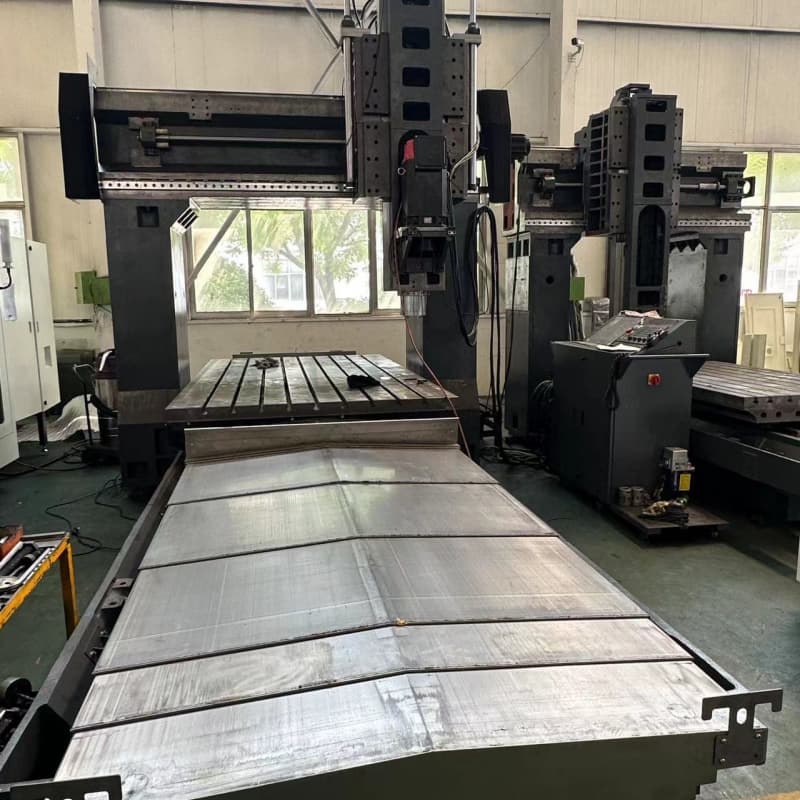

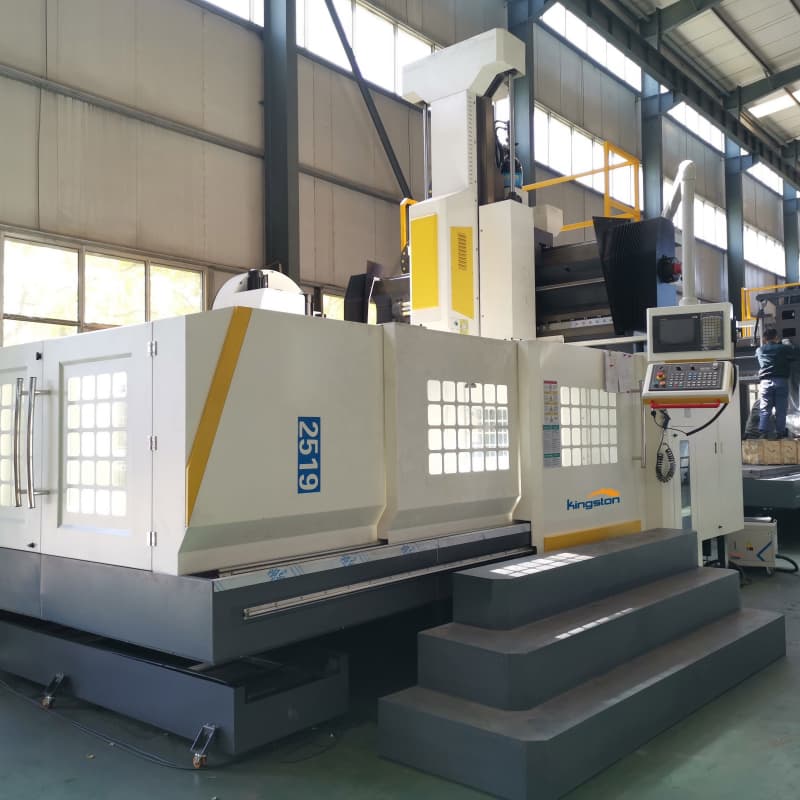

Kingston 2026 New 5-Axis CNC Gantry Milling Center For Complex Contour 3D Surface

Kingston 2026 New 5-Axis CNC Gantry Milling Center For Complex Contour 3D Surface

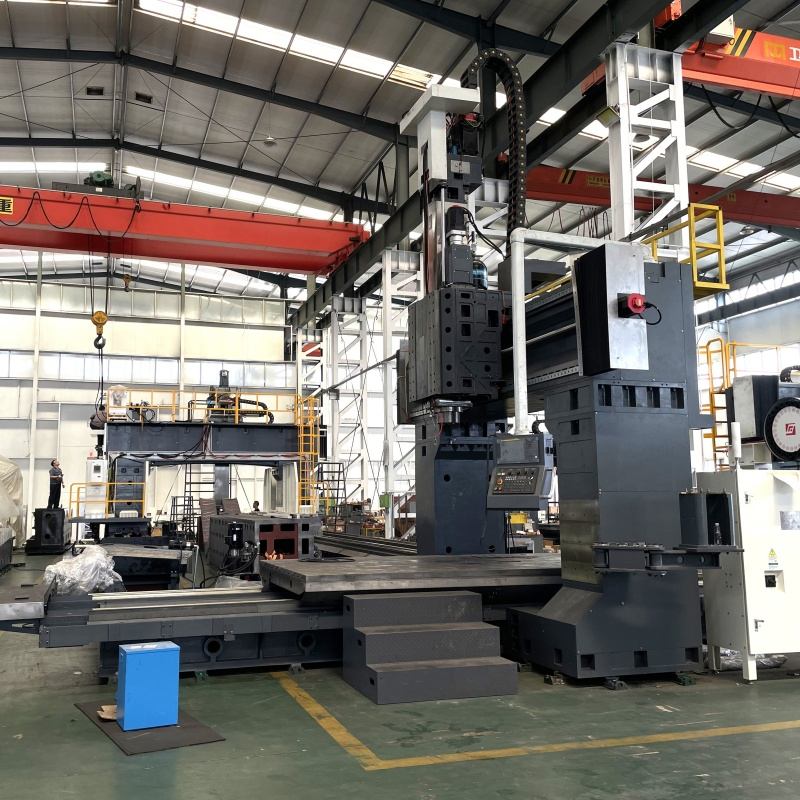

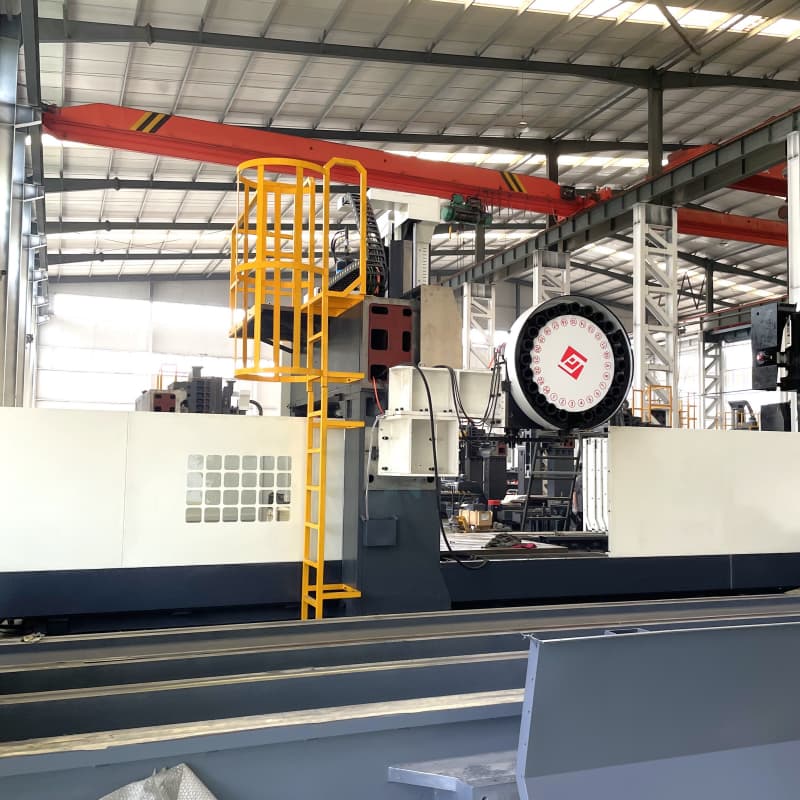

CNC Gantry Milling Machine is a high-performance CNC machine tool specifically designed for machining large, heavy, and complex workpieces. Its vertical structure and spacious worktable make it particularly suitable for oversized components that are difficult to clamp on traditional equipment. The machine utilizes a high-rigidity cast iron monolithic bed and a full closed-loop control system, maintaining micron-level accuracy even under heavy-duty cutting conditions. It can also be equipped with a five-axis milling head to handle complex surfaces. This equipment is widely used in industries such as wind power, aerospace, heavy machinery, and mold manufacturing, efficiently processing key components like wing panels, wind turbine hubs, and engineering machinery frames. It serves as a core solution for enhancing production capacity and undertaking high-value-added projects in the large-scale equipment manufacturing sector.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
84Ton

Inquire Now

Features

High Precision Heavy Duty CNC Gantry Machining Machine for Efficient Machining

1.The Longmen machine tool features strong steel properties, symmetrical structure and high stability. By optimizing the structure of the basic components, it enhances the dynamic performance of the product, achieving a perfect combination of high power, large torque, high efficiency and high precision processing.

2.The machine tool can be equipped with water outlet at the spindle center and variable speed according to the user's requirements, ensuring the processing accuracy and the stability of various technical indicators.

3.Applicable to large-scale and heavy processing fields such as ships, metallurgy, petroleum processing, mining machinery, power and energy, construction machinery, and heavy industrial machinery.

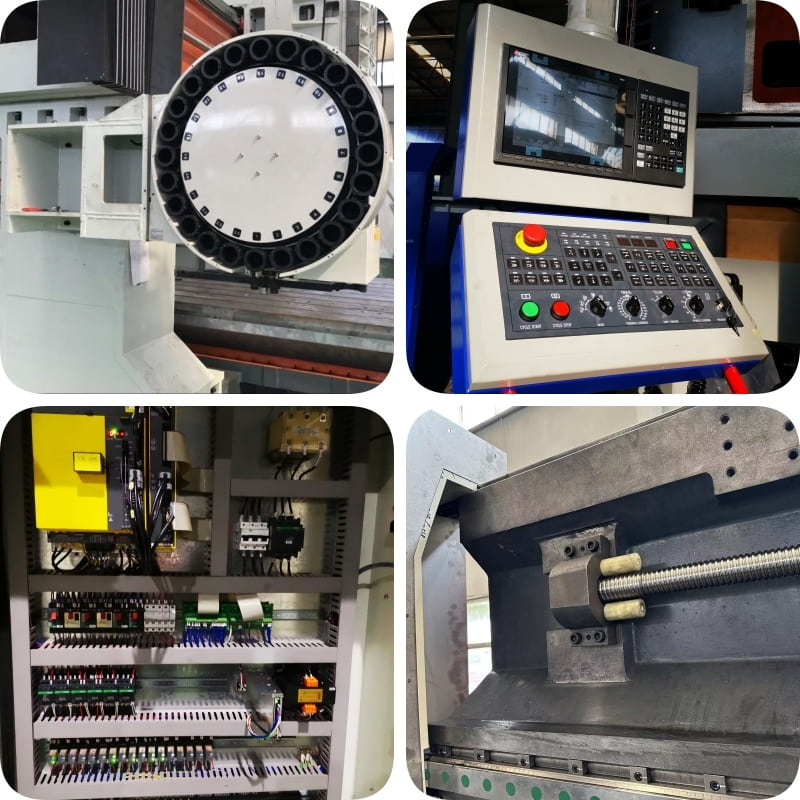

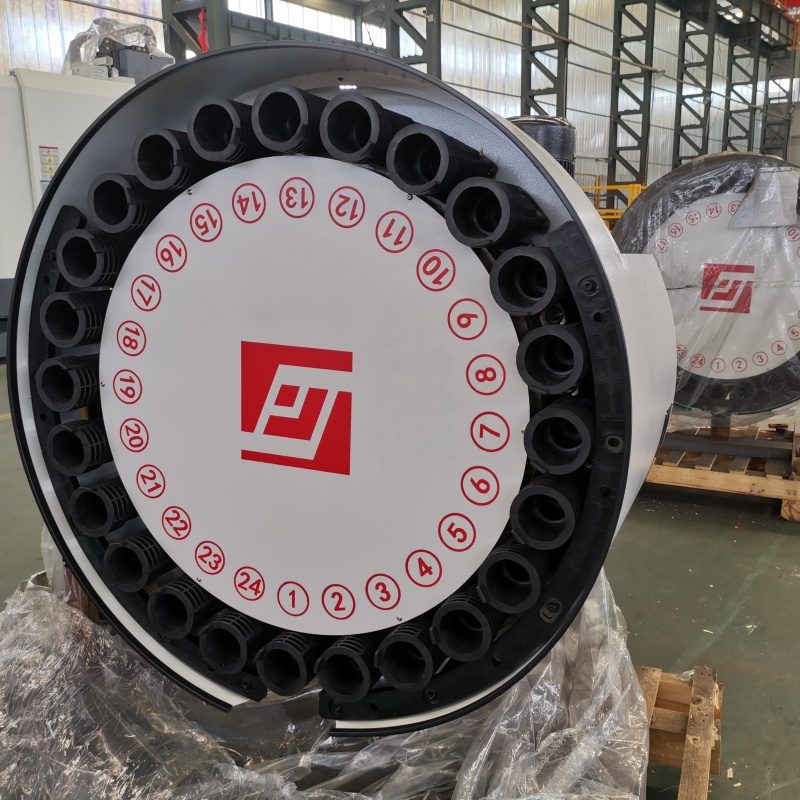

4.Standard configuration: Siemens 828D system, 24 mechanical arm tool magazines, double spiral chip conveyor, chain chip conveyor.

5.The CNC system can be imported or domestic configuration according to the needs of users.

6.Optional configuration: FANUC Oi MF, MitsubishiM80, KND, GSK, SYNTEC,Fagor.

specification

Specification	Unit	XH1516	XH1520
table width	mm	1300	1300
table length	mm	1600	2000
max. load of table	kg	1600	2200
T slots(width/distance/number)		221309	221309
X axis Travel	mm	1600	2000
Y axis Travel	mm	1500	1500
Z axis Travel	mm	750/500	750/500
Distance from spindle nose to worktable	mm	150-900/650	150-900/650
Distance between two columns	mm	1600	1600
Spindle motor	kw	11/15	11/15
Spindle speed	rpm	6000/3000	6000/3000
Mumber of tool magazine	T	24	24
Overall dimension	mm	470033003500/3750	470033003500/3750
Weight	T	12.5	14

Product Advantages

Heavy & Rigid
Massive cast iron construction handles tons of weight for stable, powerful cuts.
Big Work Area
Open design easily fits large parts like molds, frames, and plates.
Precise & Fast
Advanced drives and feedback systems ensure high accuracy at high speeds.
Highly Flexible
Can be fitted with multi-axis heads and automation for complex tasks.
Industry Essential
The go-to machine for aerospace, energy, and heavy equipment sectors.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

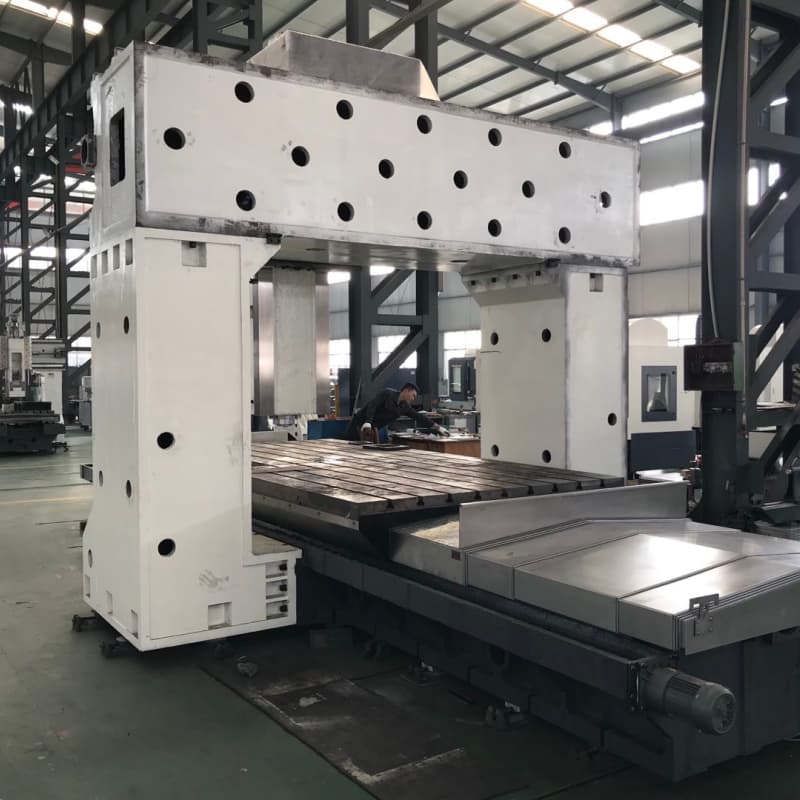

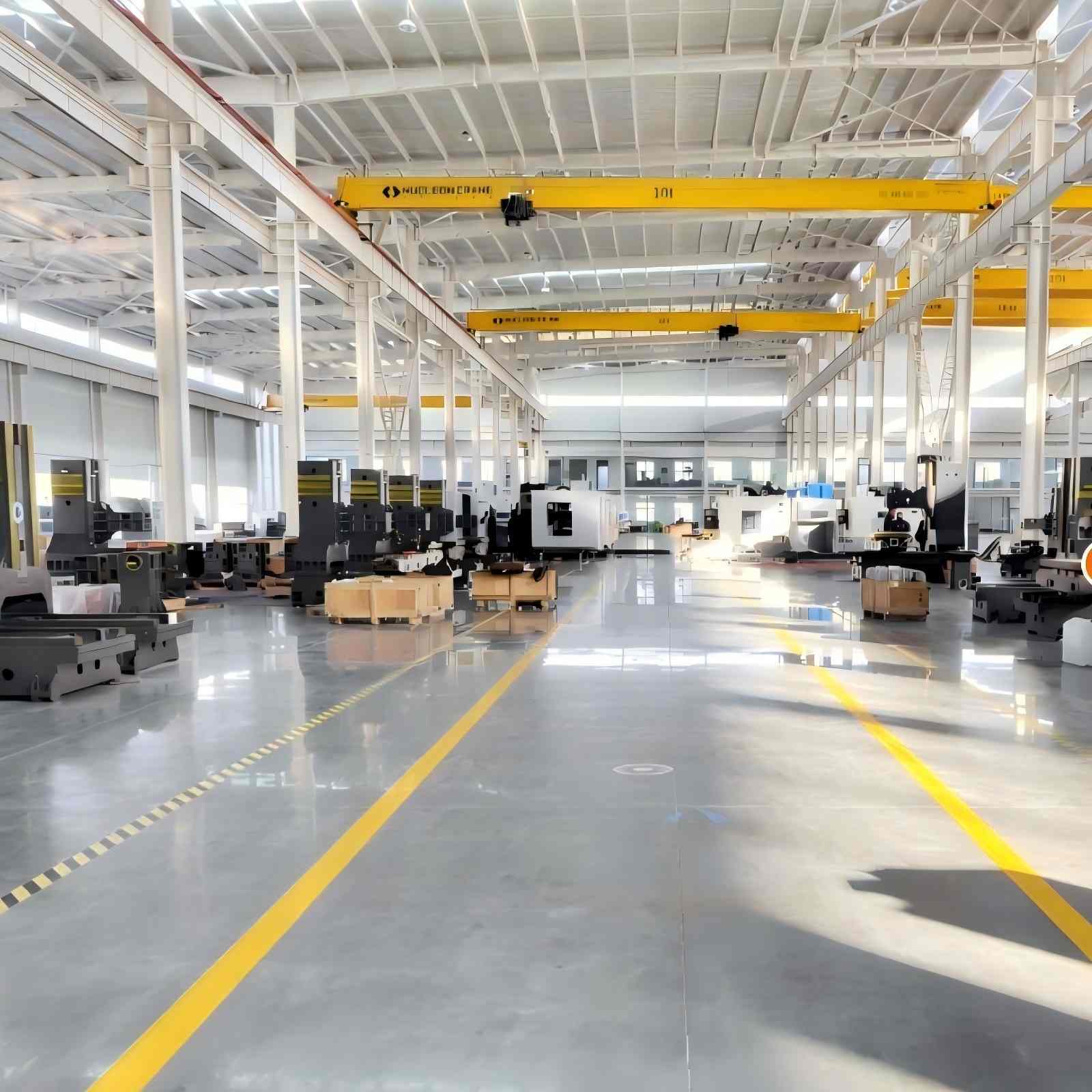

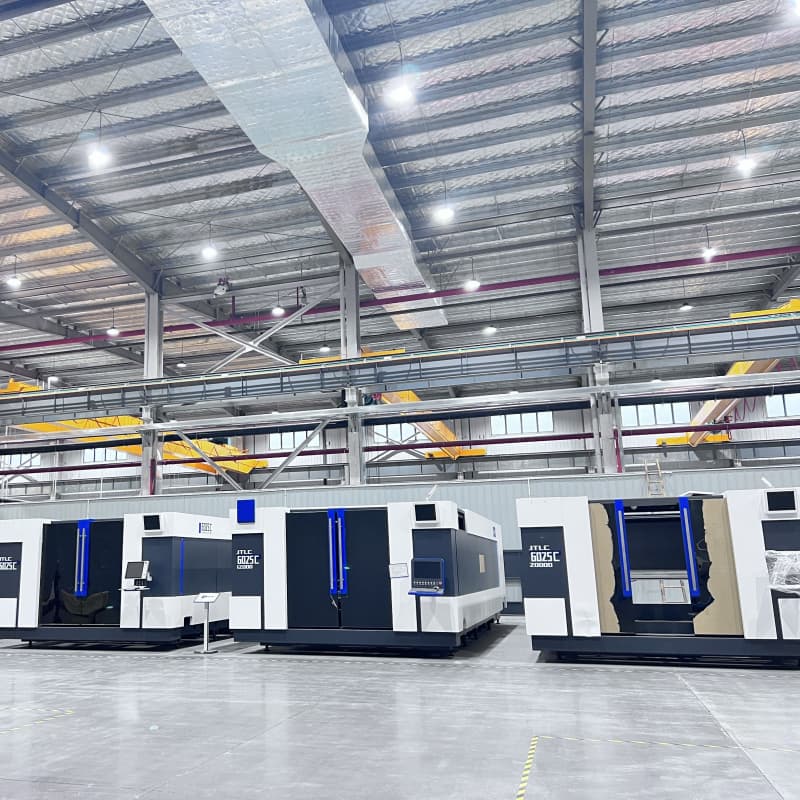

factory show

Professional Production Base, Strength in Precision Manufacturing.

factory factory

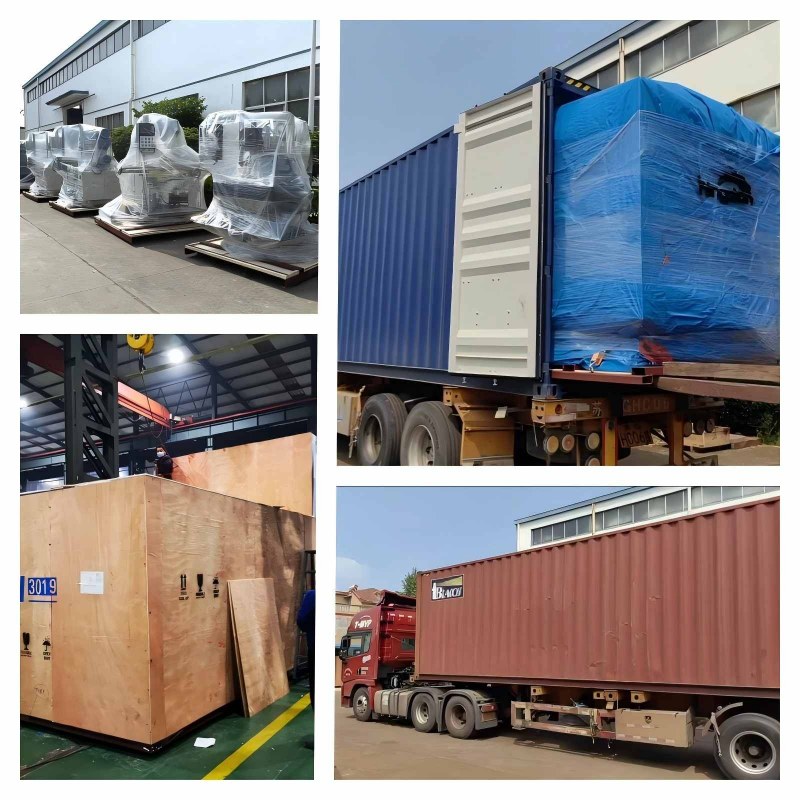

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

packing

1.What are the control system options for your gantry milling machines?

We offer flexible configurations: Fanuc, Siemens, or Mitsubishi CNC systems are available, all with user-friendly interfaces. You can also choose customized systems according to your production requirements.

2.Can the gantry milling machine be customized?

Yes. We support customization based on your needs, including worktable size, spindle power, axis travel, and auxiliary devices (e.g., automatic tool changers, chip removal systems). Our R&D team will design the optimal solution for you.

3.what are the differences between a gantry milling machine and a conventional vertical milling machine?

Workpiece size: Gantry mills handle large workpieces; vertical mills are for small to medium parts.
Structure stability: Gantry design offers stronger rigidity, suitable for heavy cutting.
Processing efficiency: Gantry mills often have multi-axis linkage and can process multiple surfaces at once, while vertical mills are mostly single-axis or 3-axis processing.

4.How to maintain the gantry milling machine daily?

Lubrication: Regularly add lubricating oil to guide rails and spindles to reduce wear.
Cleaning: Remove chips and dust after each operation to prevent accumulation.
Inspection: Check the tightness of bolts and the status of electrical components weekly to ensure stable operation.
