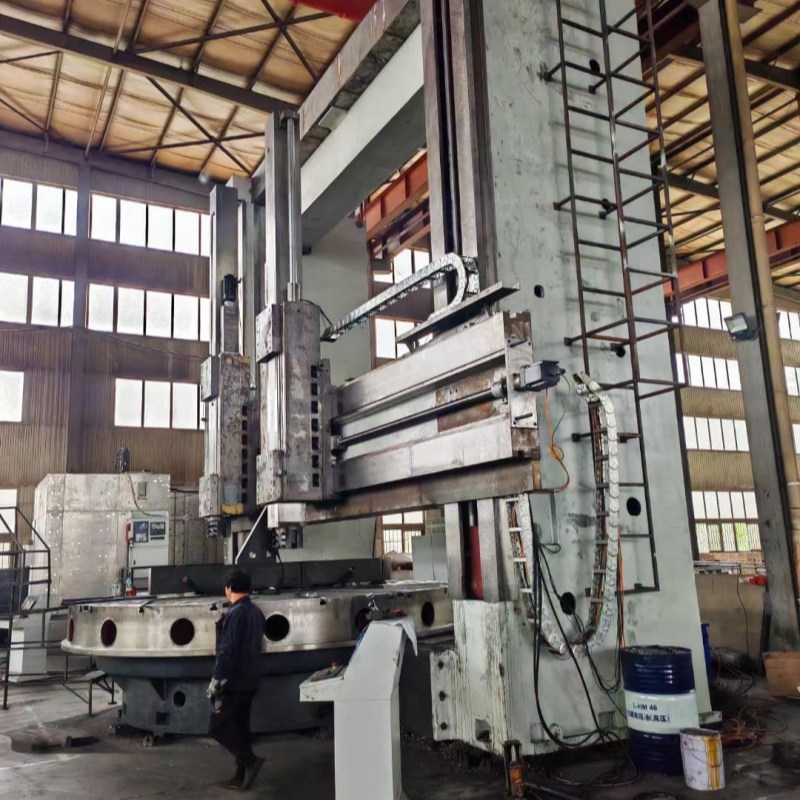

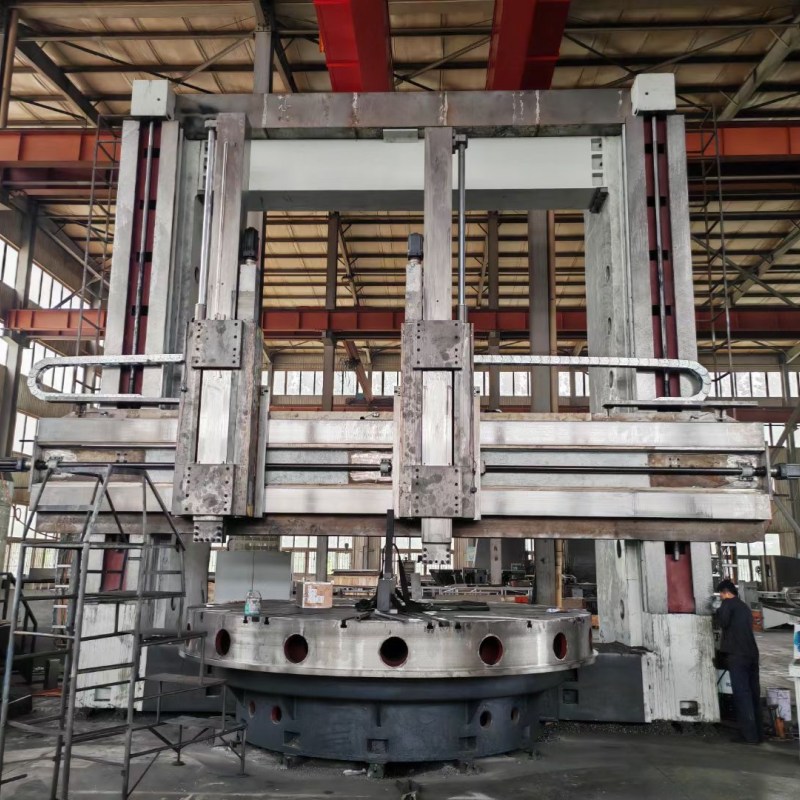

High Precision Heavy Duty CNC Vertical Lathe for Efficient Machining

High Precision Heavy Duty CNC Vertical Lathe for Efficient Machining

Vertical lathes are mainly used to process large and heavy workpieces with large diameters and short lengths and workpieces that are difficult to clamp on horizontal lathes. A heavy-duty lathe with a vertical spindle, mainly used for processing large-diameter, short-length workpieces such as discs, rings, and hubs. It features strong load capacity, high rigidity, stable machining accuracy, easy clamping, and high efficiency. Widely used in wind power, metallurgy, engineering machinery, molds, automotive parts and other industries.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
84Ton

Inquire Now

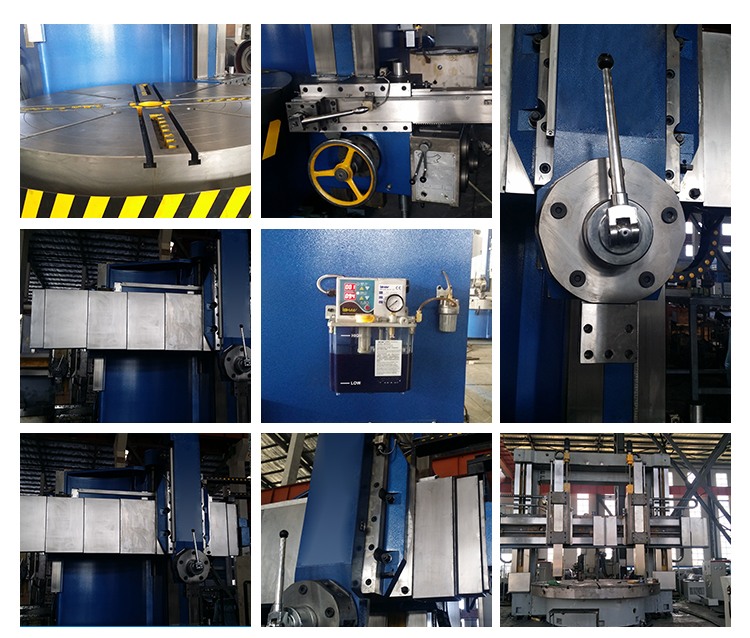

Features

High Precision Heavy Duty CNC Vertical Lathe for Efficient Machining

1.High precision adjustable radial clearance double row short cylindrical roller bearing is used for the spindle of the worktable, and the constant current hydrostatic guide rail is used for the worktable, which makes the worktable have the characteristics of high rotation accuracy, large bearing capacity and small thermal deformation.
2.According to the needs of users, the machine tool can be equipped with constant temperature cooling device and independent hydraulic station system, which can ensure the machining accuracy and the stability of various technical indexes.

3.The guide rail surfaces of column, beam and ram are quenched, ground and manually grinded, with good contact surface and high precision.

4.Servo motor and ball screw are used to drive the machine tool, and the beam is equipped with a closed shield, which increases the safety and amenity of the machine tool.

5.The CNC system can be imported or domestic configuration according to the needs of users.

6.Optional configuration: electric tool table, semi enclosed cover, cooling chip removal device and two-speed stepless speed regulation.

specification

Specification		Unit	C5240	C5250	C5263
Max dia		mm	4000	5000	6300
able dia		mm	3200/3600	4500	5700
Max workpiece height		mm	1600/2000/2500	2500/3150	3150/3500
Max workpiece weight		t	32	65	65
Max torque of table		KN.m	80	100	200
Table rotate speed range (16step)	16(step)	r/min	2-63	0.42-42	0.42-42
Max cutting force of the vertical holder		KN	40	50	63
Vertical toolholder move limit		°	±30°	±30°	±30°
Range of feed rates (18step)		mm/ min	0.24-145	0.2-145	0.1-500
Horizontal travel of rail head		mm	2150	2765	3400
Ram travel of rail head		mm	1000/1250	1250/1600	1600/1800
Fast moving speed of tool heads		mm/ min	1550	1550	1550
Knife rod cross- section size(W.D.)		mm	40×50	50×50	50×50
Main motor power		KW	DC/AC:75	DC/AC:90	DC/AC:90
Overall size of machine		cm	690×510×480/520/570	1000×700 ×723/853	1150×790×853/933
Weight of machine		t	52	81/84	112
Ram section		mm	240×240	280×280	280×280

Product Advantages

High Precision Machining:
With a high-rigidity bed, precision spindle and FANUC/SIEMENS-compatible CNC system, it achieves ±0.005mm machining accuracy for high-precision workpieces.
Heavy-Duty Loading:
Vertical structure with 800-5000mm optional worktable, bearing 5-100 tons of workpieces, suitable for large/heavy parts processing.
Efficiency & Energy Saving:
Variable frequency motor for stepless speed regulation, optional automatic tool changer, saving 15-20% energy.
Easy Operation & Maintenance:
With multi-language interface, integrated electrical-hydraulic design, long-life components and global after-sales service for hassle-free operation and maintenance.
Controllable quality:
The processing process is accurately controlled through the CNC system to ensure product quality and reduce the scrap rate.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

factory show

Professional Production Base, Strength in Precision Manufacturing

Heavy machinery Factory Exhibition cnc machine High-quality lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer
Heavy machinery manufacturer

1.What is a vertical lathe mainly used for?

It is mainly used for processing large, heavy, short and thick workpieces, such as discs, flanges, gears, rings and molds. It can perform turning, boring, grooving and facing with high stability.

2.What’s the difference between vertical lathe and horizontal lathe?

Vertical lathe has a vertical spindle, workpiece stands on the table, more stable for heavy and big parts. Horizontal lathe is for long shafts and small parts.

3.Can vertical lathe be customized?

Yes. We can customize table diameter, turning diameter, spindle power, hydraulic system, guard and automatic tools as your needs.

4.What control systems can be used for CNC vertical lathe?

We can install Fanuc, Siemens, GSK and other systems according to customer requirements. Easy to operate and stable.

5.What is the maintenance of vertical lathe?

Regular lubrication, clean chips and dust, check screws and wires, keep the guide rail clean and well lubricated.
