A spinning press is an advanced metal plastic forming machine specifically designed for metal processing. By applying pressure to the metal billet (sheet or tube) through a rotating core mold and controlled rollers, it causes the metal to undergo continuous and localized plastic deformation, eventually forming an axisymmetric hollow rotating body part. It combines the strength of forging with the precision of cutting, and is an efficient, resource-saving, and high-quality advanced manufacturing equipment.
Order(MOQ) :
1Product Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30Weight :
84TonFeatures
High Precision Heavy Duty CNC Metal Spinning Machine for Efficient Machining
1.Spinning has strong adaptability to various metals. Besides the common metals such as steel, aluminum, stainless steel and copper, for metals with high deformation resistance and poor ductility, such as tungsten, as long as the appropriate spinning forming process is selected, the required shape can also be spun. This is also an important reason why the spinning process is becoming more and more widely used.
2.The basic types of forming methods in the spinning process are as follows: stretching spinning, shearing spinning, spinning contraction, spinning expansion, cylindrical thinning spinning, and double-wheel spinning flanging.
3.Standard configuration: Siemens 828D, Siemens servo motor and drive, asynchronous servo spindle motor, APEX servo reducer, etc.
4.Optional configuration: Spindle rotating oil cylinder, hydraulic station cooling air conditioner, return recording controller.
5.The CNC system can be imported or domestic configuration according to the needs of users.
specification
| Specification | Unit | KST-880 | KST-1000 |
| max. dia | mm | 800 | 1050 |
| radial stroke | mm | 400 | 450 |
| axial stroke | mm | 600 | 650 |
| roller thrust | kn | 40 | 40 |
| tailstock force | kn | 20 | 20 |
| spindle power | kn | 18.5 | 22 |
| spindle speed | rpm | 50-1000 | 50-1000 |
Product Advantages
Why choose us
Mature And Stable Technology
Support Customized Solutions
Complete After-sales Service
Our certification
Authoritative Certifications, Stable and Reliable Quality.
factory show
Professional Production Base, Strength in Precision Manufacturing
Packing and shipping
Safe & Professional Transportation, On-Time Delivery Guaranteed
FAQ
1.What is this machine used for?

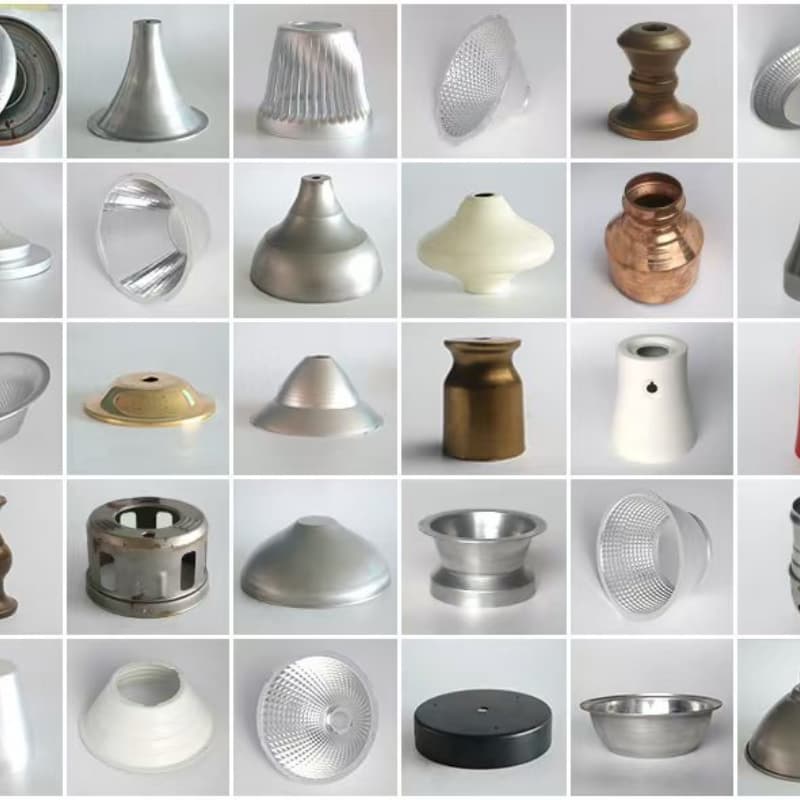

This is a Metal Spinning Lathe. It cold-forms rotating metal discs (blanks) over a mandrel (tool) using pressure from rollers to create axisymmetric hollow parts ideal for lighting, cookware, trophies, vessels, end caps, horns, and more. Perfect for small-batch custom and artistic production.
2.Is it CNC controlled?
We offer two main types:Full CNC Spinning Machine: Standard with Siemens or FANUC system for programmable roller paths. Best for complex shapes and batch production.
3.What are the core components? How is quality ensured?
4.What materials can be processed? How is the surface finish?
Materials: Aluminum, copper, mild steel, stainless steel (annealed), brass, and other ductile metals.
Surface: Spinning can produce excellent mirror or textured finishes, often eliminating the need for polishing. Material work-hardens during the process.
5.What is the MOQ? Is this machine right for me?
Machine MOQ is 1 unit.
Ideal For: Metal art manufacturers, lighting factories, cookware brands, custom gift suppliers, and aerospace/automotive component suppliers (for prototypes or low-volume complex parts).
Order(MOQ)1
Product OriginChina
ColorCustomized
Shipping PortShanghai
Lead Time30
Weight84Ton
