Hot Sale Precision molding surface grinder Machine KST512AHD PLC Control

Hot Sale Precision molding surface grinder Machine KST512AHD PLC Control

The KST512AHD precision molding surface grinder is a hot-selling high-performance automatic grinding machine specially developed for mold processing, precision parts manufacturing and metal surface finishing. Adopting professional PLC intelligent control system, this machine integrates high rigidity structure, hydraulic automatic feeding and high-precision grinding technology, perfectly balancing processing accuracy, operational efficiency and long-term stability, becoming the preferred equipment for mold workshop and precision machinery processing.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
5000

Inquire Now

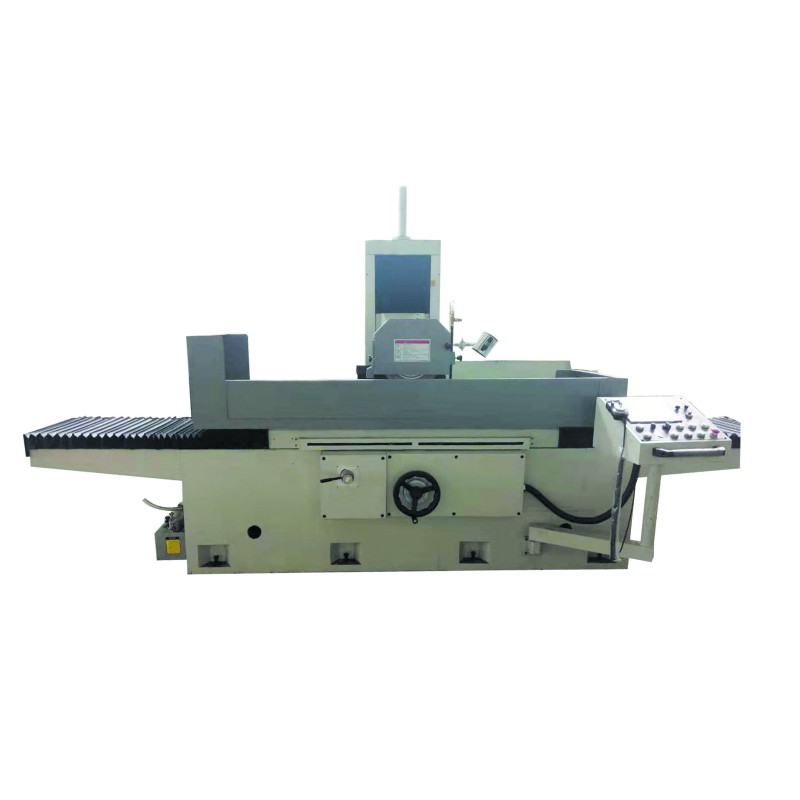

KST512AHD Precision molding surface grinder Machine

The main body is made of high-quality cast iron with strict annealing stress relief treatment, which effectively avoids structural deformation and ensures ultra-high overall rigidity and vibration damping performance. The slideway is pasted with wear-resistant resin sheet and processed by precision hand scraping, realizing ultra-smooth sliding movement, outstanding wear resistance and maintaining long-term running accuracy without deviation. The integral high-precision spindle adopts dynamically balanced design and high-grade bearing configuration, featuring low noise, high rotational precision and strong load-bearing capacity, laying a solid foundation for fine grinding.

1.PLC Intelligent Automatic Control

Industrial PLC control realizes one-click parameter setting, automatic hydraulic feeding and cycle grinding, saving labor and improving working efficiency greatly.

2.High Rigidity & Ultra Precision Structure

High-quality cast iron body with stress relief treatment, matched with precision spindle and wear-resistant slideway, ensures stable operation and long-term high grinding accuracy.

3.Wide Application & Cost-Effective

Perfect for mold steel, hardware parts and precision component flat surface grinding, with easy operation and low maintenance cost, ideal for mold processing and precision machining workshops.

specification


Technical Parameters			Unit	KST-512AHD
Processing capacity	Table size		mm	1200×500
	Max.Grinding Length		mm	1300
	Max.Grinding Width		mm	540
	Distance from table surface to spindle center		mm	600
	Maximum work load		kgs	800
Table	Number of T-slot		mm×n	14×3
	table Speed		m/min	5-25
	Front and rear hand wheel feed	1 square	mm	0.02
		1 lap	mm	5
	Front and rear automatic feed		mm	0.5-12
	Fast forward and backward movement	50HZ	mm/min	1250
		60HZ	mm/min	1500

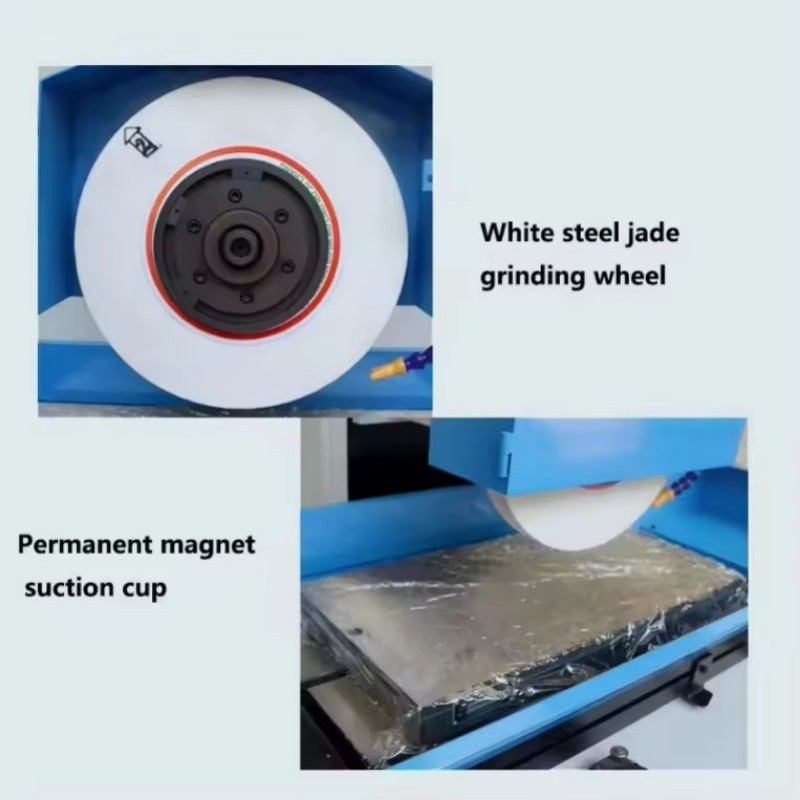

Wheel	Wheel size		mm	φ355×(20-40)×φ127
	Spindle speed	50HZ	R.P.M	1450
		60HZ	R.P.M	1740
Up and down mechanism	Up and down the handwheel feed	1 square	mm	0.002
		1 turn	mm	0.5
	Automatic feed		mm	0.005-0.04
Motor	Rapid up and down movement		mm/min	230
	Spindle motor		HP	7.5×4
	Up and down the drive motors		W	1/2×4
	Hydraulic motor		HP	3×6
	Cooling motor		NM	1/8×2
	Front and rear drive motor		HP	1/4×6
Size	Machine height		mm	2400
	Floor area		mm	4700×2300
	Net weight		kgs	5000
	Gross weight		kgs	5000

product introduction

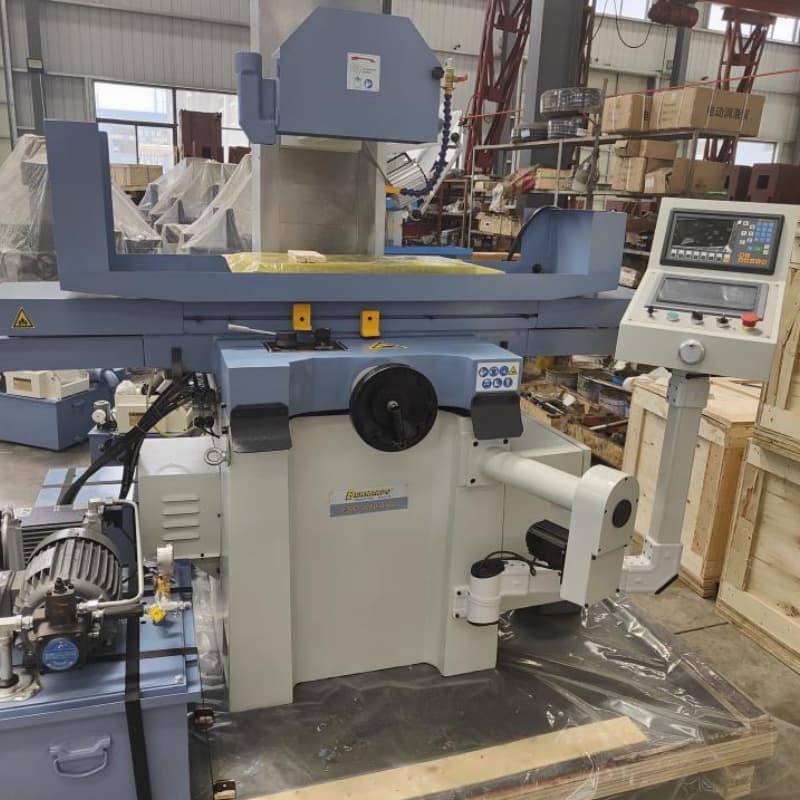

Stable Hydraulic System:

Independent hydraulic station with heat dissipation design, smooth transmission, low temperature rise, no jitter during long-time continuous grinding.
Excellent Surface Grinding Effect:

High-precision dynamic balance spindle ensures fine grinding finish, meets high-precision mold surface processing requirements.
Durable Wear-Resistant Slideway:

Adopts wear-resistant resin rail + precision hand scraping process, smooth movement, long service life and less maintenanc.

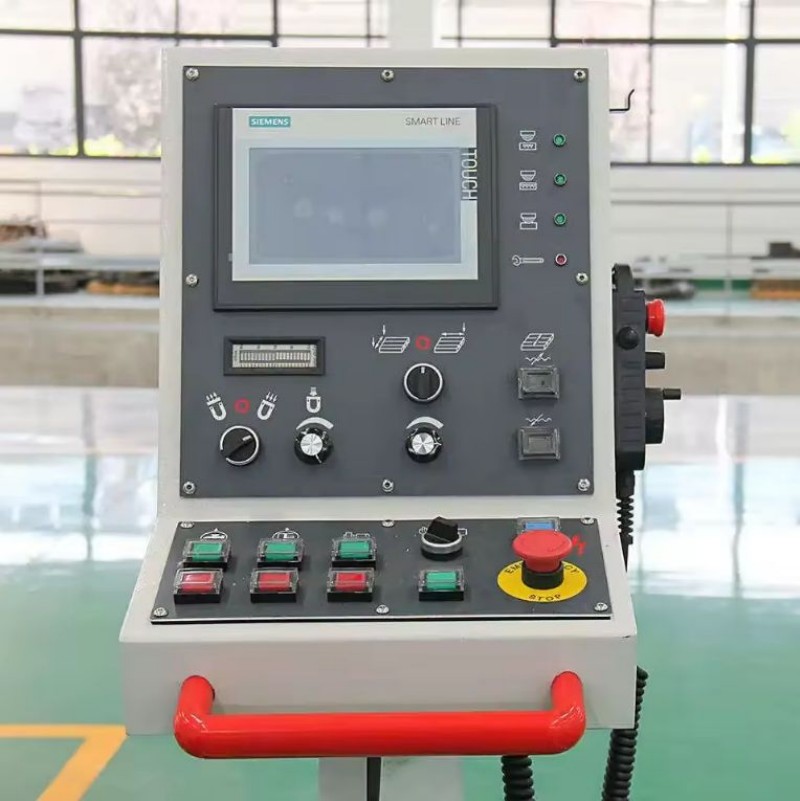

Easy Operation & Humanized Design:

User-friendly operation panel with simple parameter setting, easy for new workers to master quickly.
Long Service Life & Low Failure Rate:

Integral cast iron body with annealing treatment, anti-deformation and shockproof performance, stable running for years.
