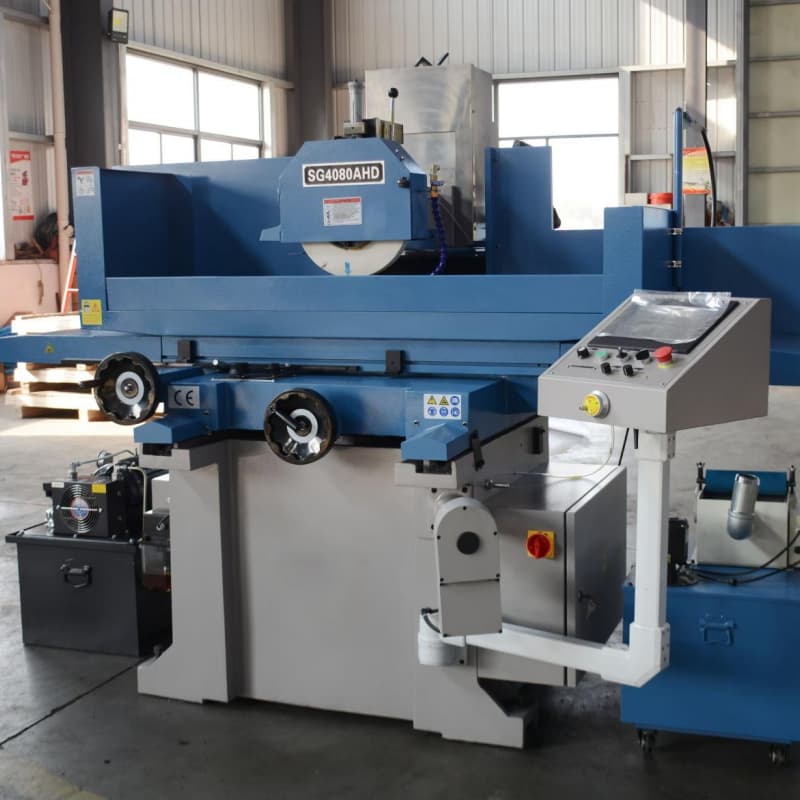

High Precision PLC surface grinder KST4080AHD for metal

The KST4080AHD High Precision PLC Surface Grinder is purpose-built for precision metal processing. Constructed with high-strength cast iron frame, the machine boasts outstanding vibration resistance and structural rigidity. It adopts mature PLC automatic control technology to realize stable reciprocating grinding, capable of delivering ultra-low surface roughness and excellent flatness for carbon steel, alloy steel, cast iron and other metal workpieces.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
2750

Inquire Now

High Precision PLC surface grinder KST4080AHD for metal

This surface grinder supports flexible switching between rough grinding and finish grinding processes to satisfy diversified machining standards. Equipped with efficient circulating cooling system, it effectively takes away grinding heat to prevent workpiece thermal deformation and protect the grinding wheel. With intuitive operation panel and adjustable grinding parameters, it is perfectly suited for batch production of mould accessories, precision machinery parts and hardware components.

specification

Parameter	Unit	Value
Table dimensions	mm	400 × 800
T-slot quantity / width	- / mm	1 / 14
Electric magnet clamping plate	mm	400 × 800
Max. travel, longitudinal	mm	830
Max. travel, cross	mm	420
Max. distance spindle / table	mm	490
Max. Work piece weight*	kg	200
Grinding wheel	mm	350 × 30 × 127
Table speed, hydraulic	m/min	6 – 18
Cross adjustment
Automatic adjustment, cross	mm/Stroke	0,5 – 10
Rapid feed, cross	mm/min	990
Adjustment per hand wheel rotation	mm/rev.	4
Scale division on hand wheel	mm	0,02
Vertical adjustment
Automatic adjustment, vertical	mm	0,01 / 0,1
Rapid feed, vertical	mm/min	360
Adjustment per hand wheel rotation	mm/rev.	2
Scale division on hand wheel	mm	0,01
Motor power of sanding spindle	kw	4,0
Spindle speed	rpm	1440
Motor power of hydraulic pump	kw	1,5
Motor power of vertical feed	kw	0,75
Accuracy	mm	0.005/300
Length	mm	2660
Depth	mm	1910
Height	mm	2230
Weight approx.	kg	2750

product introduction

High rigidity integral casting structure minimizes vibration, maintaining stable machining accuracy during long-hour continuous running.
Intelligent PLC control system realizes automated grinding cycle, lowering reliance on skilled operators and improving production consistency.
Optimized hydraulic transmission system provides smooth feed movement, ensuring superior parallelism and surface finish of finished parts.
Complete protective structure and convenient maintenance design, effectively prolonging the service life of key components and reducing downtime.
