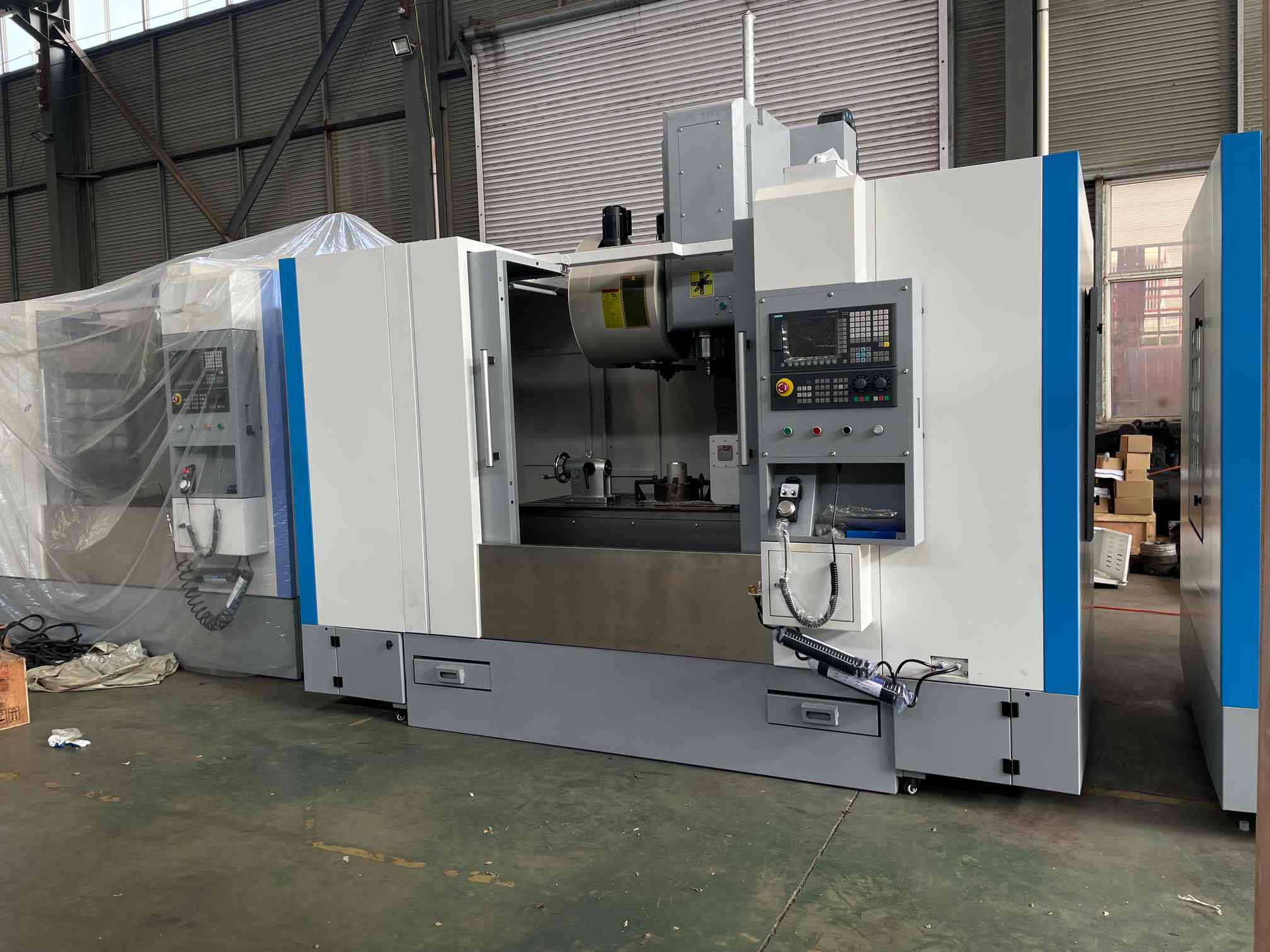

High Rigidity VMC750 Vertical Cnc Machine Center for Large Scale Manufacturing

1. High Rigidity: Widened guide, symmetric design, strong shock absorption and stable precision.
2. High Efficiency: Swift auto tool change, high-speed rigid tapping and imported stepless spindle.
3. Large Travel: X/Y/Z travels larger than same-spec, ideal for mold making.
4. Premium Configuration: Imported CNC system, NSK ball screw, spindle and bearings.
5. Durable Structure: Floating spindle, pre-tensioned ball screw, space-saving O-type layout.
6. User-Friendly: Integrated design, full safety protection, easy operation and maintenance.

Specification	Unit	VMC750
Table size	mm	1000*500
T Slots	-	3-18-90
Max table load	Kg	450
Table travel X	mm	800
Table travel Y	mm	500
Table travel Z	mm	500
Spindle nose to table surface	mm	150-650
Spindle center to column surface	mm	571
Spindle speed range and driving method	rpm	8000 belt driving
Spindle taper	/	BT40
Spindle diameter	mm	140
Cutting feed speed	mm/min	1-12000
X/Y/Z Rapid feed speed	m/min	36/36/32
Hiwin lead screw		4016
Hiwin linear guide		X：35（4）、Y：45（4）、Z：45（6）
Magazine capacity	T	24
Magazine type		Disc type
Max tool diameter(No adjacent tool)	mm	φ80/150
Controller		FANUC 0i MF3B
Spindle motor power	Kw	7.5/11
Positioning accuracy(JIS standard)	mm	±0.004
Repeatability Positioning accuracy(JIS standard)	mm	±0.003
Net weight	kg	4700
Overall size	mm	2260*2700*2700

Product Advantages

•

  Stable Structure

  H300 cast iron bed, ensuring stable operation.
•

  Reliable Precision

  Multiple tests, ensuring long-term precision.
•

  High-Efficiency Feeding

  Ball screw for fast feeding.
•

  Accurate Positioning

  Direct connection for high precision.

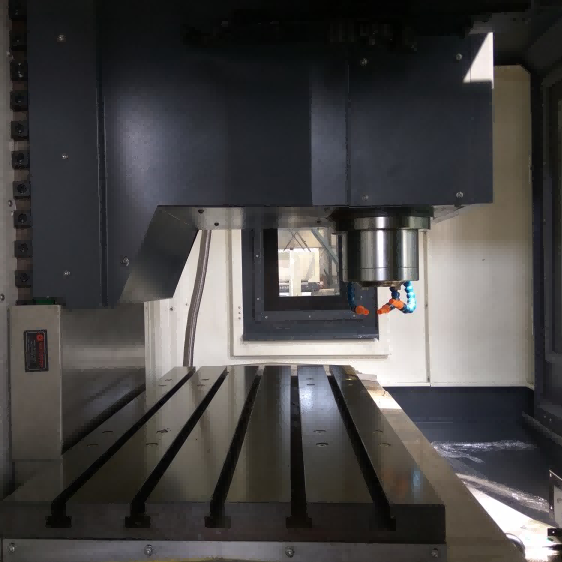

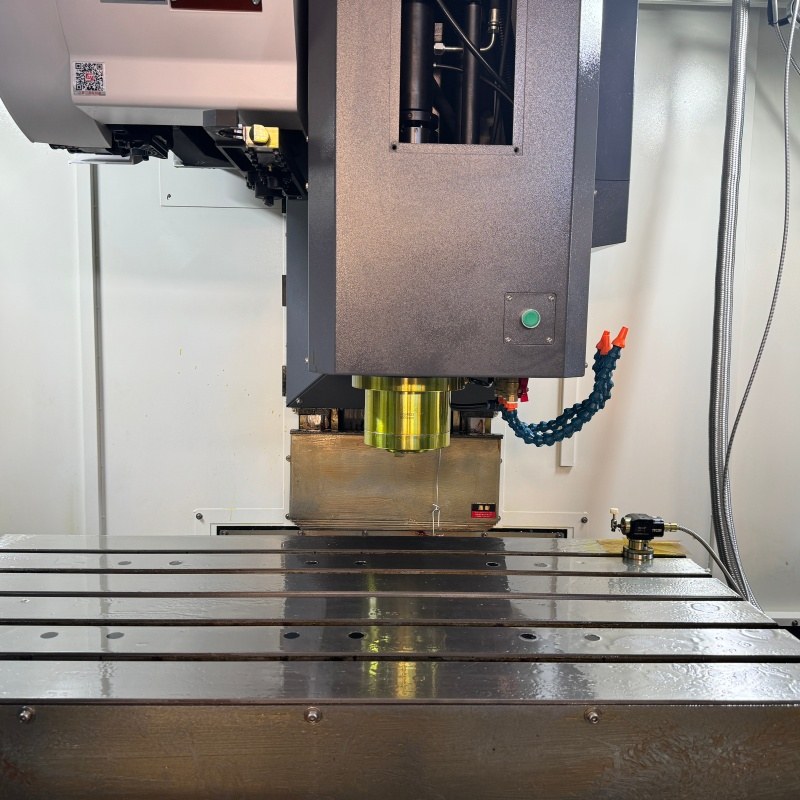

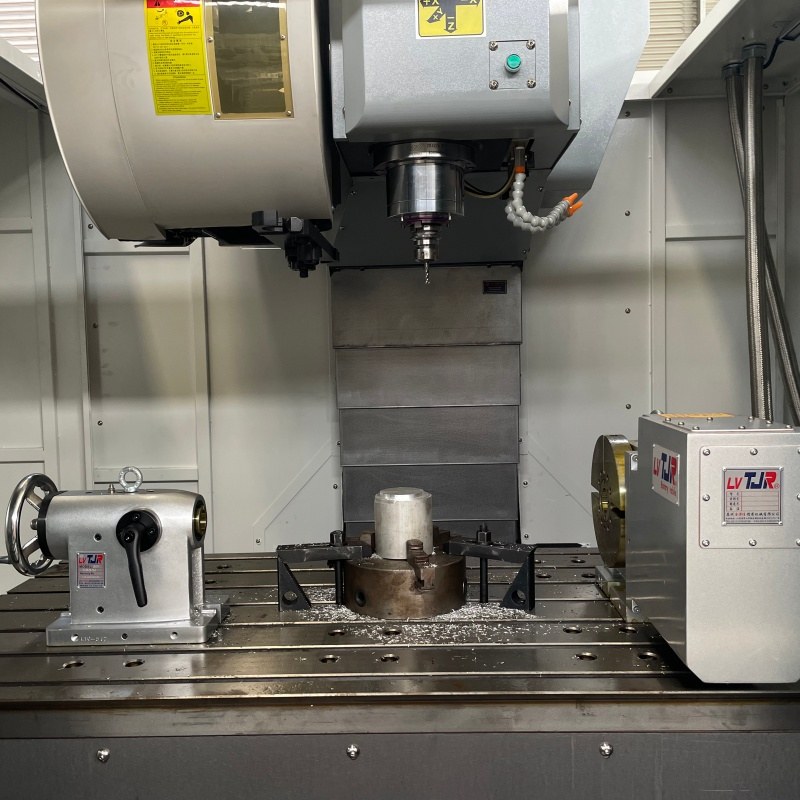

Details presentation

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose u

• Mature And Stable Technology

  With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
• Support Customized Solutions

  We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
• Complete After-sales Service

  We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

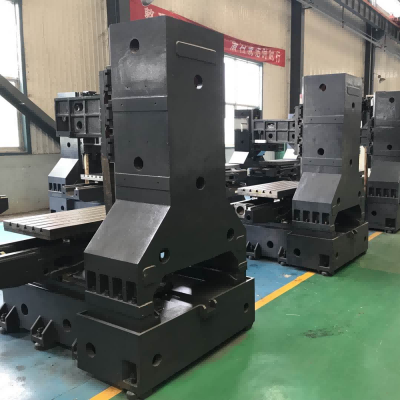

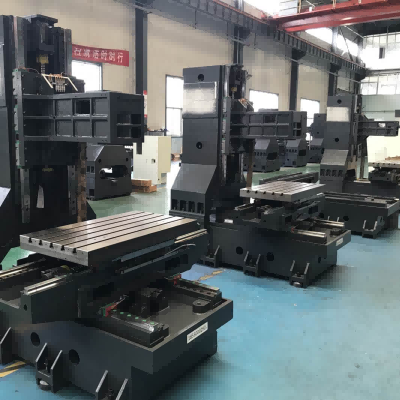

factory show

Professional Production Base, Strength in Precision Manufacturing

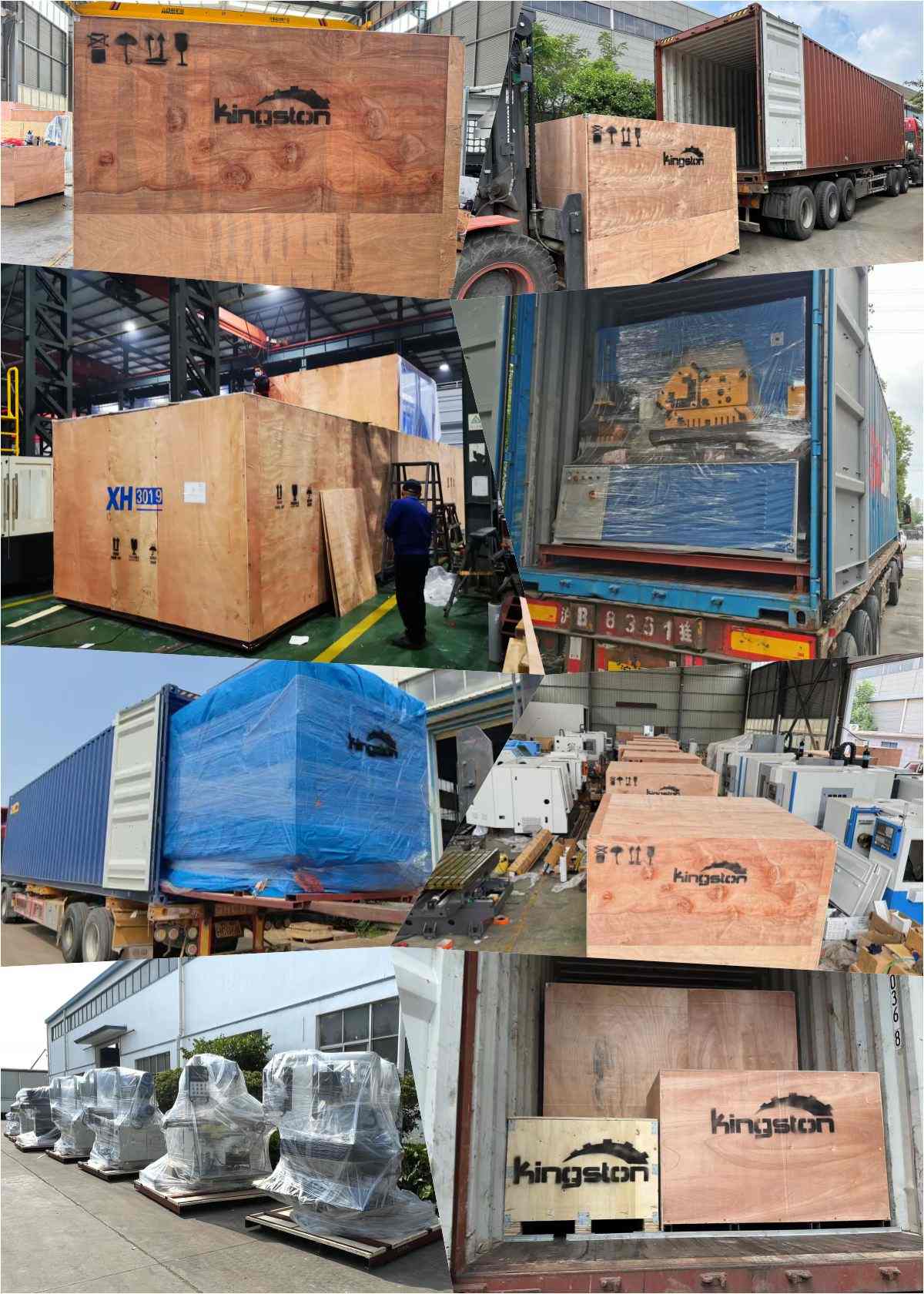

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

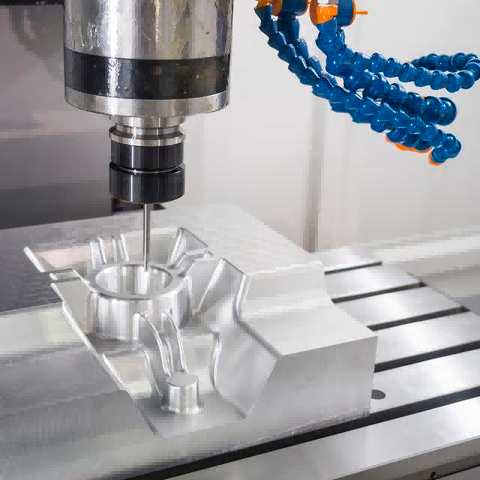

1. What materials can this CNC machining center process?
   It is suitable for processing various metal materials, including steel, stainless steel, aluminum alloy, copper, mold steel, etc., widely used in parts processing and mold manufacturing.
2. How about the machining accuracy and repeat positioning accuracy?
   With high-precision ball screws and strict assembly testing, the machine ensures high positioning accuracy and good repeatability, keeping stable precision in long-term running.
3. Is this machine suitable for mold processing?
   Yes. It has large stroke, strong rigidity and high spindle power, which is very suitable for mold cavity, mold base and precision mold parts processing.
4. Can you provide operation training and manuals?
   Yes. We will provide complete English operation manual, electrical diagram and online video guidance to help customers master operation quickly.
5. How long is the warranty and after-sales service?
   We provide standard warranty period. During the warranty, we offer free online technical support, fault diagnosis and maintenance guidance.
