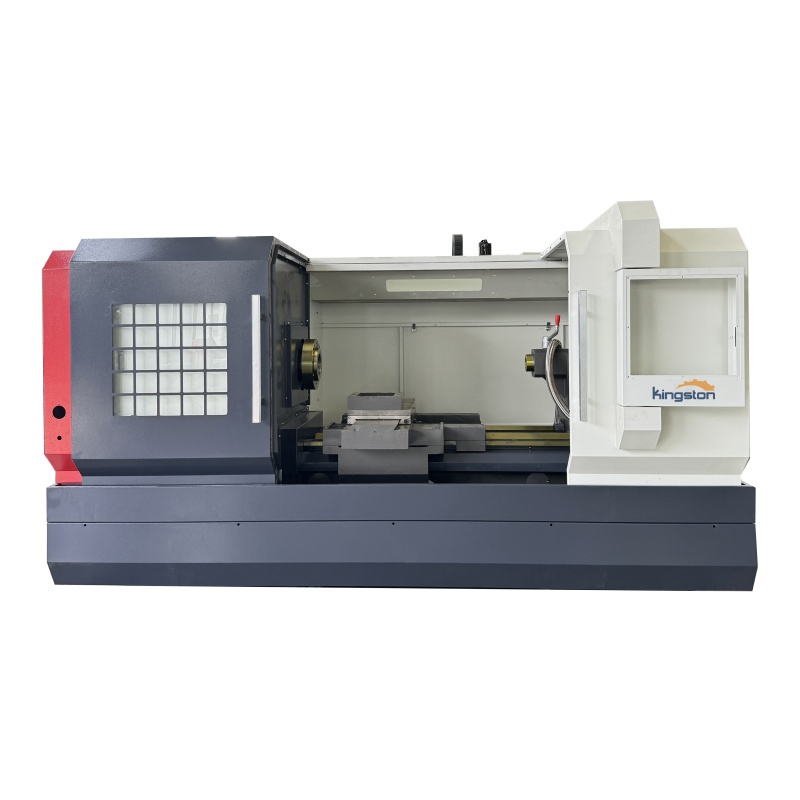

CNC Lathe, also referred to as CNC Turning Machine, is a high‑precision, high‑efficiency automatic CNC machining equipment widely used in modern manufacturing. As a professional horizontal CNC lathe and versatile CNC turning center, it is mainly used for turning various shaft‑type, disc‑type, sleeve‑type and other complex rotary parts.It has the advantages of stable performance, high machining accuracy, convenient operation and high automation, which can greatly reduce labor intensity, shorten production cycle and improve processing efficiency.Suitable for mass production and precision machining, this automatic CNC lathe is widely used in automotive, machinery manufacturing, hardware, electronics, mold, aerospace and other industries, making it the preferred CNC turning machine and core processing equipment for modern manufacturing enterprises.
Order(MOQ) :
1Product Origin :
ChinaShipping Port :
ShanghaiLead Time :
30Weight :
3400kgFeatures
PRODUCT MAIN FEATURES:
1.Fuly enclosed protection design,good waterproot.Com- pact layout,saving space
2.Perfect match of automatic transmission and independent spindle
3.Stable precision,high torque,high rigidity,good vibration resistance and high processing efficiency.
4.Modular designindependent maintenance-free spindle
structure has the characteristics of fast start and stop,stable. effcient and high-precision processing,eto.
5.There are two types of spindles independent spindle and gear box.The independent spindle has the characteristics of high speed and high precision Gearbox with high torque, heavy cuting,etc.
6.High rigidity tailstock design
specification
|
CONTENT |
UNIT |
SPECIFICATION |
|
|
|
CK6166×1500 |
|
Swing over bed |
mm |
Φ660 |
|
Swing over cross slide |
mm |
Φ442 |
|
Max. diameter of turning |
mm |
Φ544（6 position electric turret） |
|
Max. length of turning |
mm |
1284 |
|
Distance between centers |
mm |
1500 |
|
Center height |
mm |
330 |
|
Range of spindle speed |
r/min |
15～1500 |
|
Spindle nose |
mm |
D1-8 |
|
Taper of spindle bore |
|
Φ113mm(1:20)/ MT5 |
|
Spindle bore |
mm |
Φ105 |
|
X-axis travel |
mm |
370 |
|
Z-axis travel |
mm |
1284 |
|
X-axis rapid speed |
m/min |
7 |
|
Z-axis rapid speed |
m/min |
9 |
|
Power of main motor |
kW |
7.5 |
|
X-axis motor |
N.m |
10 |
|
Z-axis motor |
N.m |
15 |
|
Type of tool post |
|
electric |
|
Number of tool post |
|
4 |
|
Max. section of tool |
mm |
32×32 |
|
Diameter of tailstock sleeve |
mm |
Φ90 |
|
Travel of tailstock sleeve |
mm |
235 |
|
Taper of tailstock sleeve |
|
MT5 |
|
Overall dimension （L×W×H） |
cm |
316×180×175 |
|
Package dimension （L×W×H） |
cm |
329×205×203 |
|
Power capacity |
kVA |
20 |
|
Net weight |
kg |
3000 |
|
Gross weight |
kg |
3400 |
Product Advantages
Optional accessories:
1.Can be configured Manual chuck Hydraulic chuck Hydraulic tailstock Pneumatic chuck Pneumatic tailstock
2.4/6/8 station turrets
3.GSK Siemens/Fanuc/Syntec/KND
4.Square cutting power head.
5.Equipped with automatic bar feeder (both oil bath type and servo feeder)
Why choose us
Mature And Stable Technology
Support Customized Solutions
Complete After-sales Service
Our certification
Authoritative Certifications, Stable and Reliable Quality.

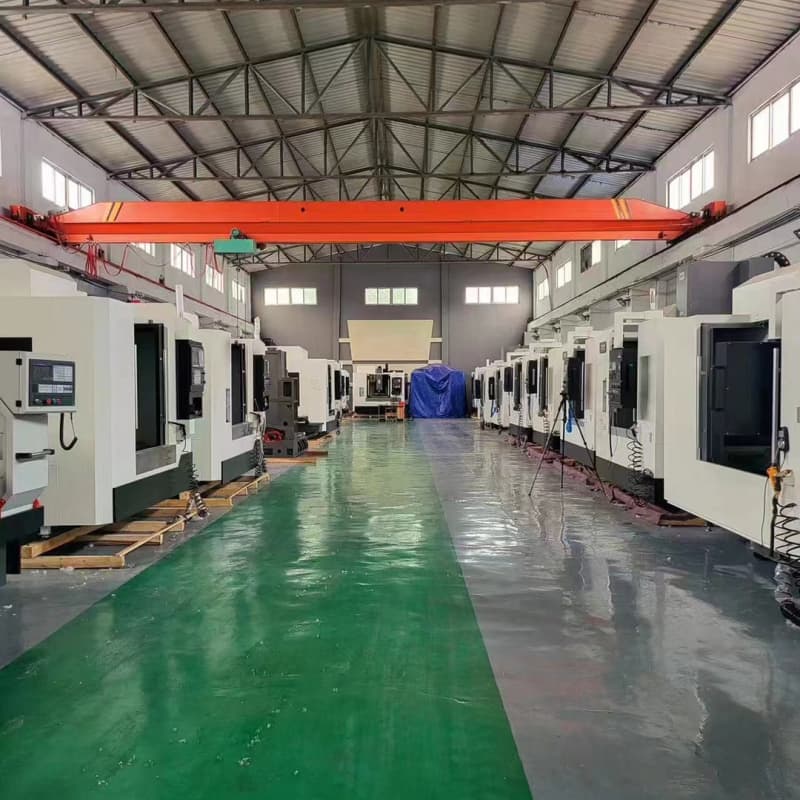

factory show
Professional Production Base, Strength in Precision Manufacturing

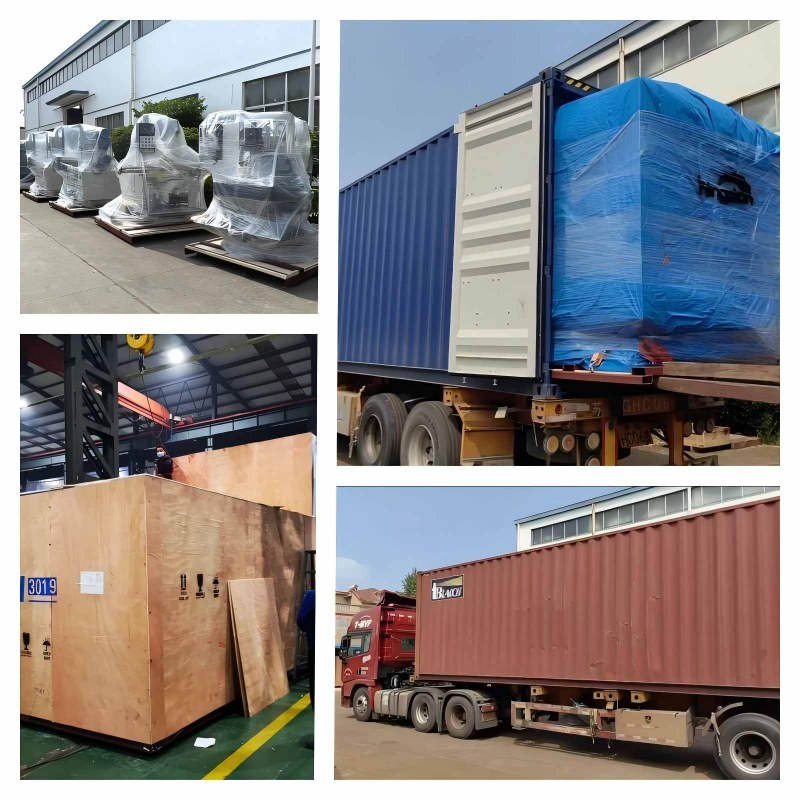

Packing and shipping
