This three roller CNC spinning equipment is equipped with three synchronously distributed spinning rollers, specially built for heavy-duty thin-wall metal forming. The multi-angle balanced extrusion eliminates workpiece offset and deformation, delivering extremely uniform wall thickness after thinning spinning.
Supported by servo hydraulic power and PLC touch screen control, it can store multiple forming programs for quick switching between different workpieces. It processes stainless steel, aluminum and copper to fabricate large venturi valves, auto wheel hubs, pressure vessel heads and big lamp reflectors with seamless one-step shaping.
The robust cast iron frame provides strong spinning force and stable long-time running performance. Compared with single and double roller models, it features higher forming precision, faster processing speed and better surface finish, perfectly matching mass production demands of HVAC, automotive, new energy and kitchenware manufacturers.
Order(MOQ) :
1Product Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
303 Rollers CNC Metal Spinning Lathe for Large Stainless Steel & Aluminum Axisymmetric Components
1.Balanced 3-Roller Symmetrical Forming
Uniform multi-angle pressure avoids part deflection, guarantees consistent wall thickness for large thin-wall metal components
2.Heavy-Duty Frame for Large Workpieces
Robust lathe bed bears strong spinning force, suitable for processing oversized stainless steel and aluminum rotary parts.
3.All-in-One Seamless CNC Forming
Completes thinning, necking and flanging in one pass, eliminates welding leakage and cuts post-processing costs.
specification
|
Item |
KST380-Ⅲ |
|
Pipe External Dia |
220-380mm |
|
Pipe Thickness range(Alloy) |
2.0-8.0mm |
|
Max length |
200-1000mm |
|
Controller |
FANUC |
|
Main Drive Motor |
~ |
|
Spindle Speed |
~ |
|
Pipe Clamping Force |
~ |
|
Fedding Force |
~ |
Product Advantages
Why choose us
Mature And Stable Technology
Support Customized Solutions
Complete After-sales Service
Our certification
Authoritative Certifications, Stable and Reliable Quality.

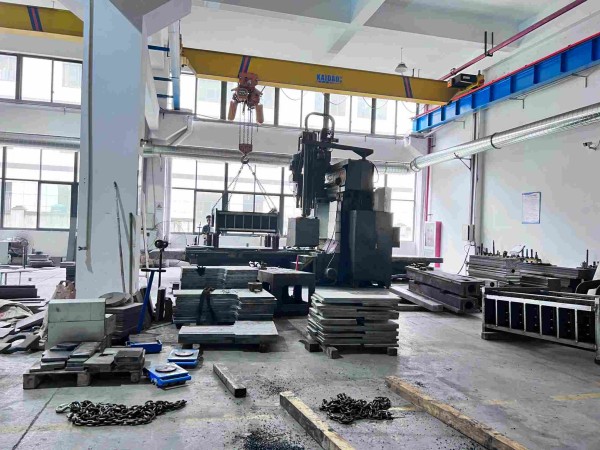

factory show
Professional Production Base, Strength in Precision Manufacturing
Packing and shipping
Safe & Professional Transportation, On-Time Delivery Guaranteed
FAQ
1.What raw materials can your CNC spinning machines process?
All our spinning lathes support aluminum, stainless steel, copper, brass and carbon steel sheets, suitable for various thickness axisymmetric blank forming.
2.What kinds of finished parts can your spinning equipment produce?
They can make venturi valves, lamp reflectors, stainless steel cookware, water tank liners, fan cones, auto exhaust shells and other seamless rotary components for HVAC, kitchenware, lighting and auto industries.
3.What large axisymmetric parts can this 3 rollers CNC spinning lathe produce?
It can fabricate large venturi valves, automotive wheel hubs, pressure vessel heads and big lamp reflectors made of stainless steel and aluminum.
4.What is the advantage of three rollers compared with double roller spinning machines?
Three symmetric rollers provide more balanced extrusion force, greatly reduce workpiece deformation and achieve more uniform wall thickness for large-size thin-wall parts.
5.What is the MOQ?
Machine MOQ is 1 unit.
Order(MOQ)1
Product OriginChina
ColorCustomized
Shipping PortShanghai
Lead Time30
