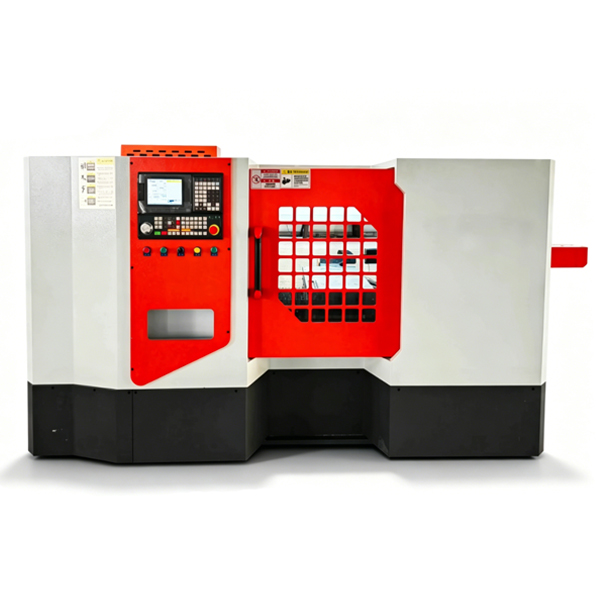

KST250S/450S Stainless Steel Venturi Metal Spinning Machine for HVAC Air Damper Production

KST250S/450S Stainless Steel Venturi Metal Spinning Machine for HVAC Air Damper Production

Name: KST250S/450S Stainless Steel Venturi Metal Spinning Machine for HVAC Air Damper Production
Availability: InStock

This stainless steel venturi metal spinning machine is specially customized for mass production of HVAC venturi valve tubes and air dampers. As a multi-function CNC spinning lathe, it integrates necking, flanging, curved surface forming and seamless deep drawing in one process to fabricate integrated hourglass-shaped venturi housings from 304/316 stainless steel sheets.

Equipped with dual servo hydraulic roller system and Siemens PLC touch screen control, the machine realizes one-time integral forming without welding seams. The finished venturi tube features ultra-smooth inner wall, low air resistance and excellent air tightness, perfectly meeting the high-standard ventilation requirements of laboratories, pharmaceutical cleanrooms and hospital operating rooms.

Adopting heavy stress-relieved cast iron frame, the equipment maintains stable precision during long batch production of HVAC air damper components. It is the dedicated forming equipment for ventilation manufacturers to produce pressure-independent venturi valves, effectively cutting secondary processing costs and improving product corrosion resistance.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
84Ton

Inquire Now

Stainless Steel Venturi Metal Spinning Machine for HVAC Air Damper Production

1.Perfectly process 304, 316 stainless steel, aluminum alloy for anti-corrosion ventilation components

2.Dedicated for HVAC venturi valve, air damper, fume hood airflow regulator mass production.

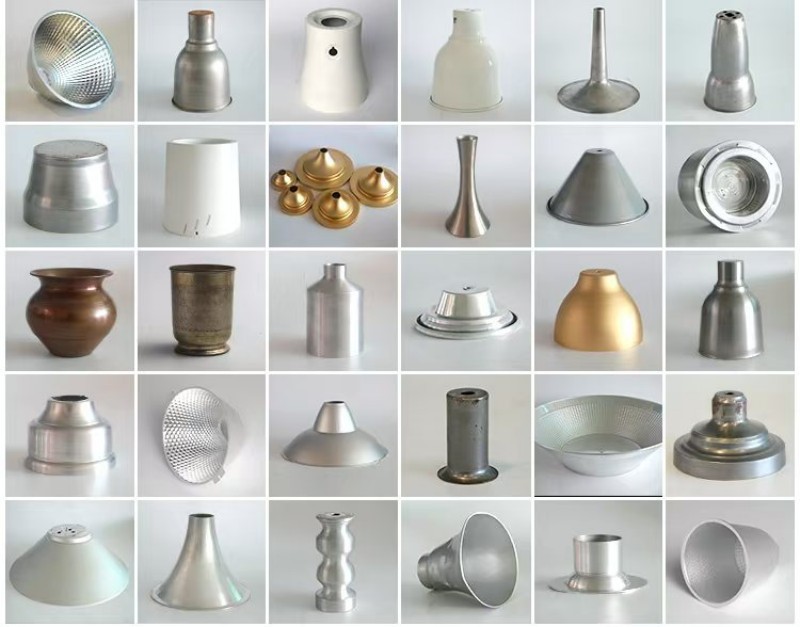

3.Multi-functional design, compatible with lamp reflector, small cookware, solar liner cone forming.

4.Customizable max spinning diameter, roller quantity and stroke for different venturi tube specifications

specification


Item		Data
Model		KST250S	KST450S
max raw material dia		250mm	450mm
cross slider dia		200mm	300mm
main power		5.5Kw	7.5Kw
main spindle speed		3500Rpm	3000Rpm
stroke	X axis	500mm	500mm
stroke	Y axis	550mm	550mm
max tail force		7Kn	7Kn
tail stroke		300mm	300mm
material	copper/alu	0.5-3.0mm	0.5-3.0mm
	ms	0.5-2.0mm	0.5-2.0mm
	ss	05-15mm	05-15mm
post station		4+1	4+1
disc return plate travel		300mm	300mm
positional accuracy		0.01mm	0.01mm
robort			optional

Product Advantages

Seamless One-Step Forming
No welding joints, smooth inner wall prevents air leakage for HVAC venturi valves.
Precise Servo CNC Control
Siemens PLC saves multiple venturi forming programs to guarantee consistent product precision.
Multi-Functional Stable Structure
Rigid cast iron frame supports venturi dampers, lamp shades and cookware production.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Certificate

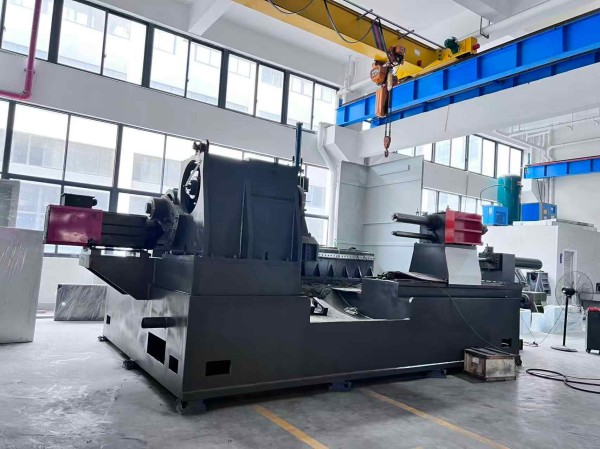

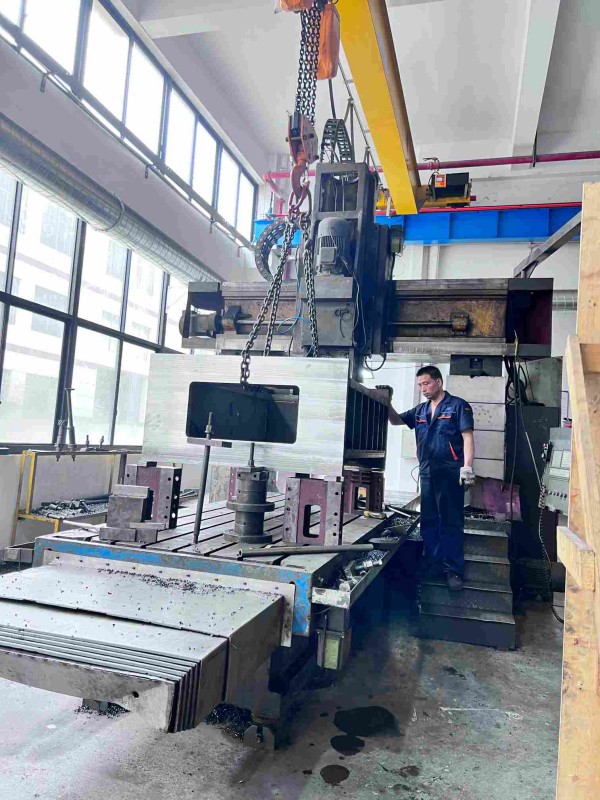

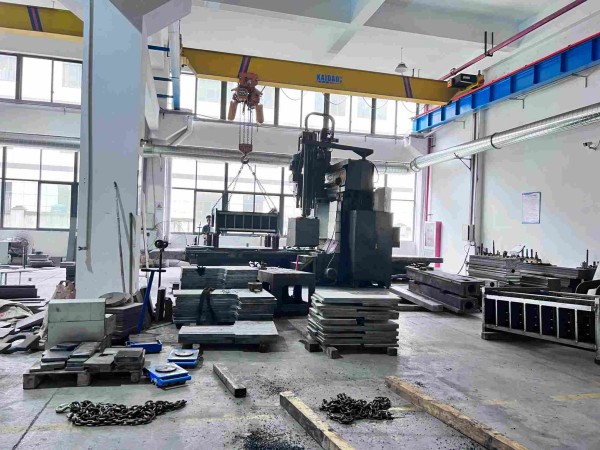

factory show

Professional Production Base, Strength in Precision Manufacturing

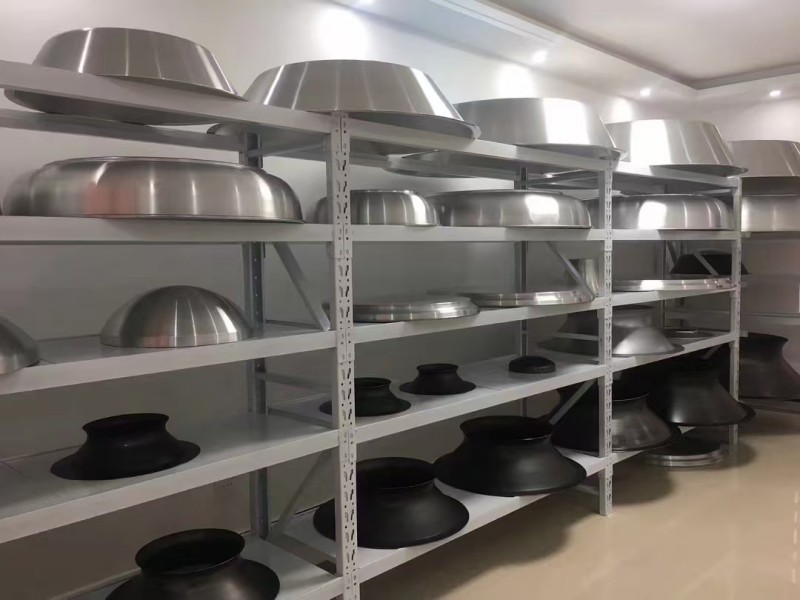

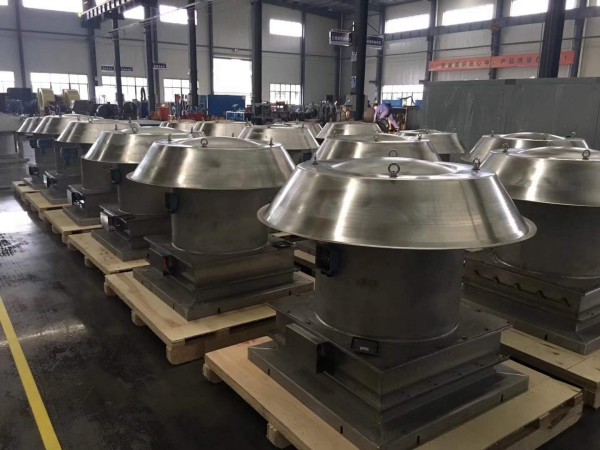

Venturi Air Damper Forming Spinning Machine CNC Spinning Machine for Stainless Steel Water Tank Cookware Metal Spinning Machine for Pot & Pan

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer Heavy machinery manufacturer

FAQ

1.What is this machine used for?

This is a Metal Spinning Lathe. It cold-forms rotating metal discs (blanks) over a mandrel (tool) using pressure from rollers to create axisymmetric hollow parts ideal for lighting, cookware, trophies, vessels, end caps, horns, and more. Perfect for small-batch custom and artistic production.

2.Is it CNC controlled?

We offer two main types:Full CNC Spinning Machine: Standard with Siemens or FANUC system for programmable roller paths. Best for complex shapes and batch production.

3.What are the core components? How is quality ensured?

Spindle Bearings: High-precision SKF/FAG bearings.

Hydraulic/Electrical: Rexroth/Siemens or equivalent brands.

Frame: One-piece cast or welded steel structure, stress-relieved for long-term stability and vibration resistance.

4.What materials can be processed? How is the surface finish?

Materials: Aluminum, copper, mild steel, stainless steel (annealed), brass, and other ductile metals.

Surface: Spinning can produce excellent mirror or textured finishes, often eliminating the need for polishing. Material work-hardens during the process.

5.What is the MOQ?

Machine MOQ is 1 unit.
