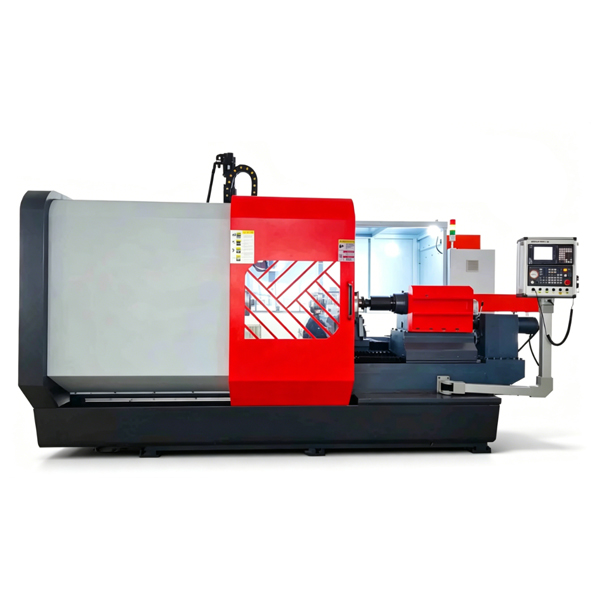

Automatic KST650S CNC Spinning Machine for Aluminum, Stainless Steel Axisymmetric Parts

The KST650S automatic CNC spinning lathe is a fully servo-controlled forming equipment customized for aluminum, 304/316 stainless steel and copper axisymmetric workpieces. It integrates necking, flanging, deep drawing and seamless one-piece forming in one workflow.

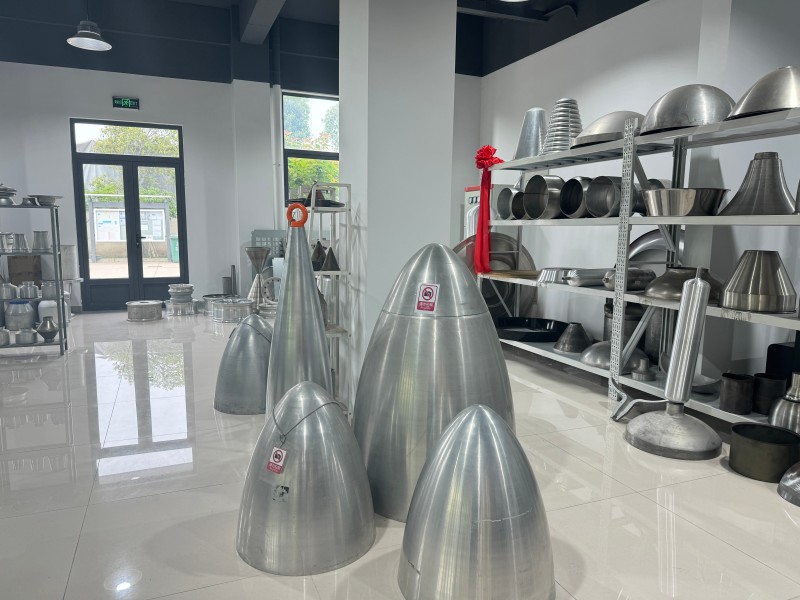

It widely manufactures venturi valves, lamp reflectors, cookware, fan cones and auto exhaust shells for HVAC, lighting, kitchenware and automotive factories. With heavy cast iron body and intelligent CNC system, it delivers stable precision, smooth workpiece surface and high efficiency for mass production. All units pass CE safety certification and support customized forming parameters for different rotary parts.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30

Inquire Now

Automatic KST650S CNC Spinning Machine for Aluminum, Stainless Steel Axisymmetric Parts

1.Fully Automatic CNC Servo Control

Stores dozens of forming programs for fast size switching; stable dimensional tolerance ensures consistent batch quality, greatly cutting manual operation cost.

2.Multi-Material & Multi-Scenario Forming

Perfectly processes aluminum and stainless steel blanks, produces venturi dampers, lamp shades, cookware and other axisymmetric parts to expand your product line.

3.Seamless One-Step Spin Forming

Forms integral rotary components without welding seams; uniform wall thickness and smooth inner surface avoid air leakage and secondary polishing work.

specification


Item		Data
Model		KST650S	KST850S	KST1050S
max raw material dia		650mm	850mm	1000mm
cross slider dia		400mm	600mm	700mm
main power		11Kw	15Ky	18.5Kw
main spindle speed		2500Rpm	2000Rpm	1500Rpm
stroke	X axis	600mm	800mm	1000mm
stroke	Y axis	500mm	550mm	600mm
max tail force		10Kn	15Kn	15Kn
tail stroke		500mm	500mm	500mm
material	copper/alu	0.5-3.5mm	0.5-5.0mm	0.5-5.0mm
	ms	0.5-2.0mm	0.5-2.5mm	0.5-3.0mm
	ss	0.5-1.5mm	0.5-2.0mm	0.5-2.5mm
post station		4/6/8	4/6/8	4/6/8
disc return plate travel		300mm	300mm	300mm
positional accuracy		0.01mm	0.01mm	0.02mm

Product Advantages

Seamless One-Step Forming
No welding joints, smooth inner wall prevents air leakage for HVAC venturi valves.
Precise Servo CNC Control
Siemens PLC saves multiple venturi forming programs to guarantee consistent product precision.
Multi-Functional Stable Structure
Rigid cast iron frame supports venturi dampers, lamp shades and cookware production.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Certificate

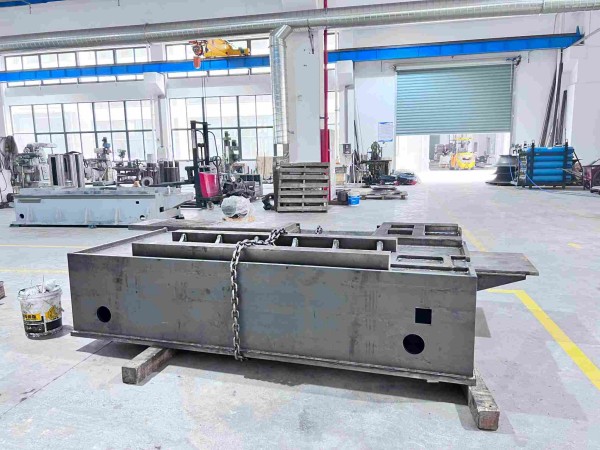

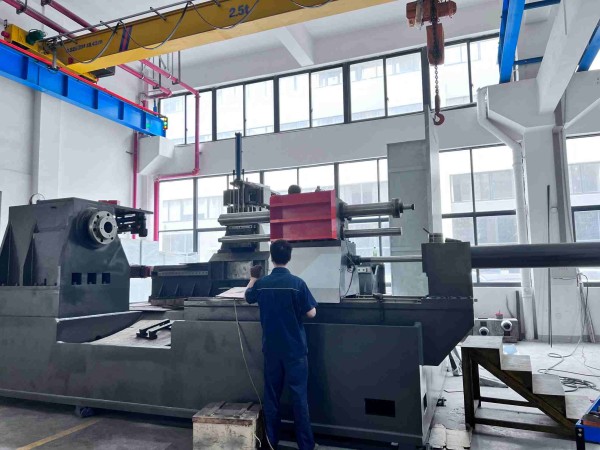

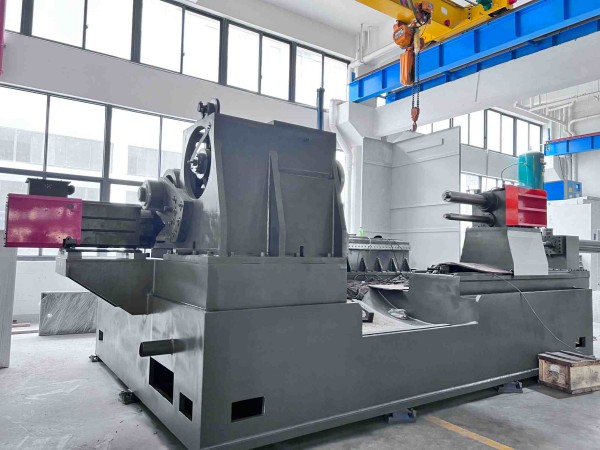

factory show

Professional Production Base, Strength in Precision Manufacturing

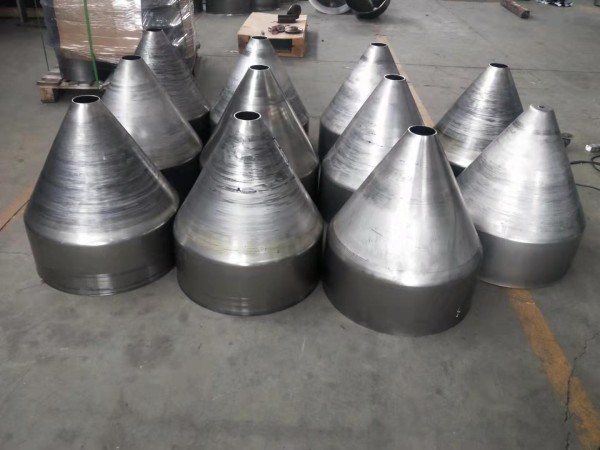

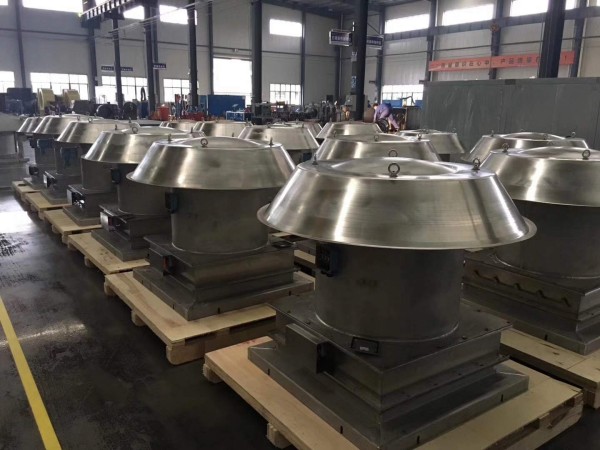

Venturi Air Damper Forming Spinning Machine CNC Spinning Machine for Stainless Steel Water Tank Cookware Metal Spinning Machine for Pot & Pan

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer Heavy machinery manufacturer

1.What raw materials can your CNC spinning machines process?

All our spinning lathes support aluminum, stainless steel, copper, brass and carbon steel sheets, suitable for various thickness axisymmetric blank forming.

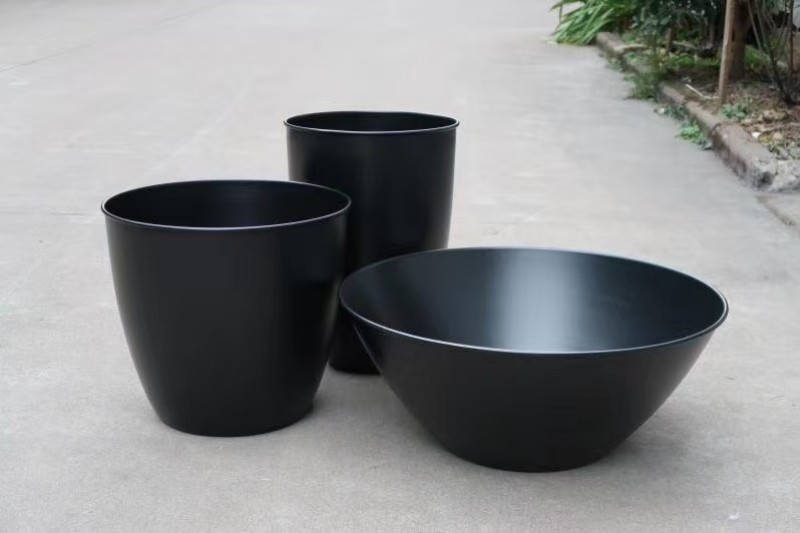

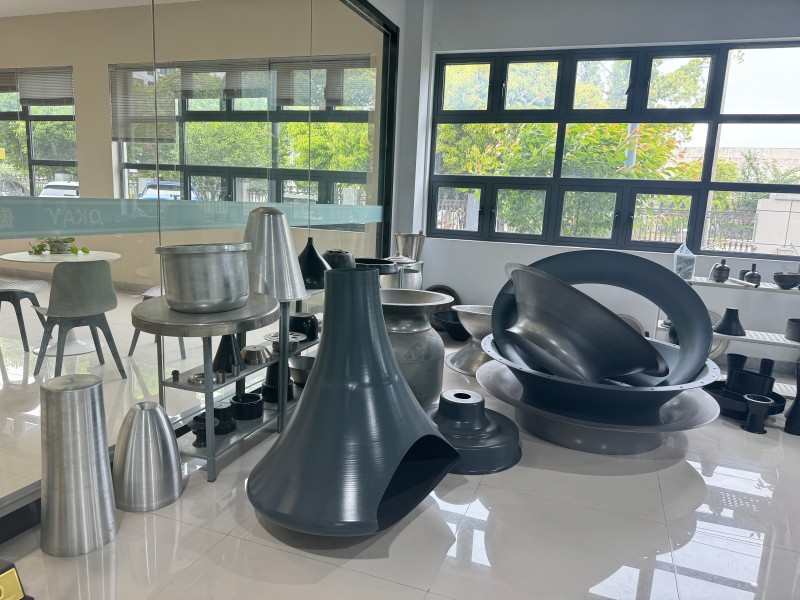

2.What kinds of finished parts can your spinning equipment produce?

They can make venturi valves, lamp reflectors, stainless steel cookware, water tank liners, fan cones, auto exhaust shells and other seamless rotary components for HVAC, kitchenware, lighting and auto industries.

3.What are the core components? How is quality ensured?

Spindle Bearings: High-precision SKF/FAG bearings.

Hydraulic/Electrical: Rexroth/Siemens or equivalent brands.

Frame: One-piece cast or welded steel structure, stress-relieved for long-term stability and vibration resistance.

4.Are your metal spinning machines easy for new workers to operate?

Yes. All models adopt PLC touch screen control, multiple forming programs can be saved for one-click switching, simple operation and low labor training cost.

5.What is the MOQ?

Machine MOQ is 1 unit.
