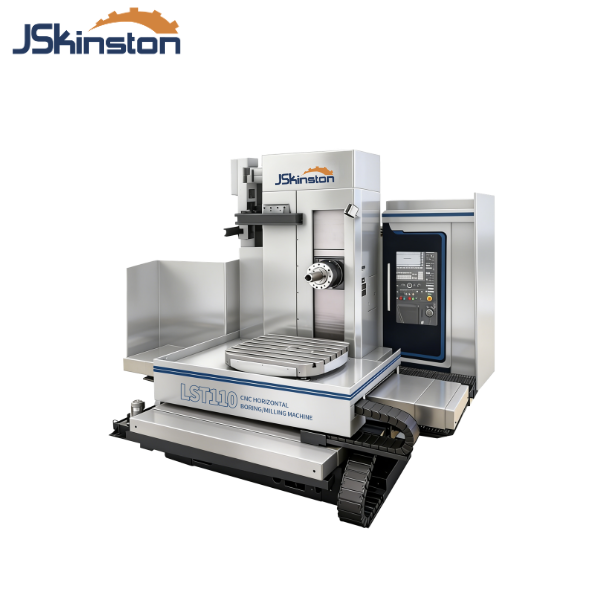

High Speed And Large Torque KST-110 Horizontal Boring And Milling Machine

This machine tool has high speed and large torque, and is suitable for small and medium-batch multi-variety production methods, with the advantages of saving process equipment, shortening production preparation cycle, improving work efficiency, reducing production costs, and enabling users to obtain higher economic benefits. It is be widely used as processing equipment in mechanical manufacturing industries such as engineering machinery, rolling stock, mining equipment, large motors, water turbines, steam turbines, ships, steel, military industry, and large environmental protection equipment.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30
Weight :
23Ton

Inquire Now

High Speed And Large Torque KST-110 Horizontal Boring And Milling Machine

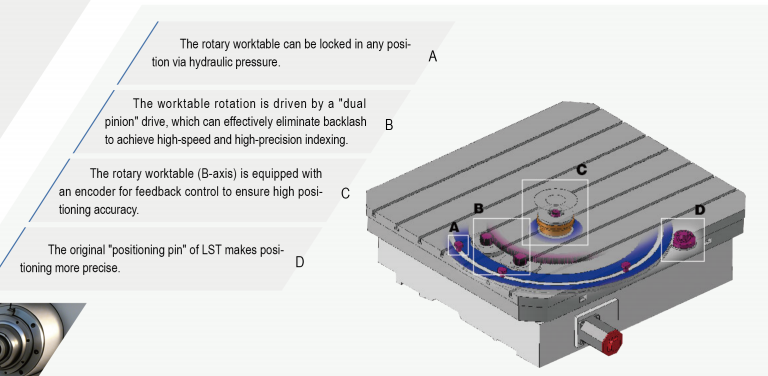

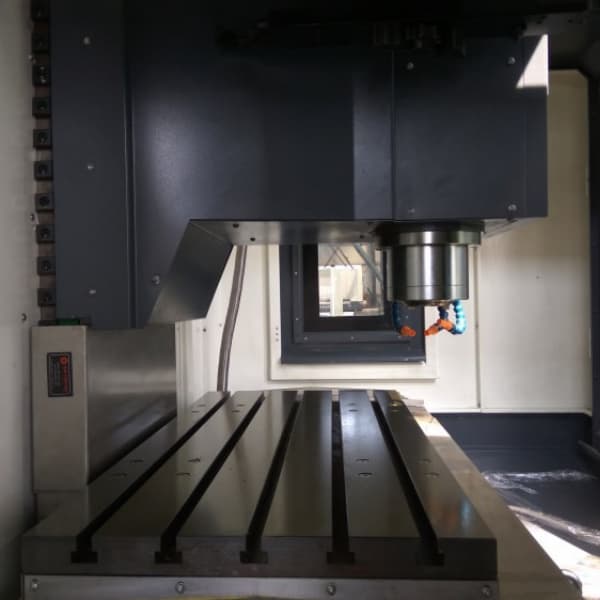

The in-house built heavy-duty worktable (1000×1200 mm) bears a max load of 4000 kg and comes with 22 mm-wide T-slots for reliable workpiece clamping.

It delivers high-precision positioning plus 360° full rotation with a minimum indexing step of 0.001°.

Imported circular grating closed-loop control guarantees superior indexing precision and coaxiality during reverse boring.

Fitted with linear rolling guideways for 1600 mm X-axis stroke and stainless steel guards, it is dustproof, waterproof and position-accurate with smooth movement.

Highly automated, it enables auto rotary positioning and multi-axis linkage to finish multi-operation machining in a single workpiece clamping.

Optimized for heavy cutting with matched working speeds, it supports four-side machining and reverse boring for extensive process adaptability.

specification

Items	KST-110 CNC
Table size	1000*1200 mm
Maximum load capacity	4000 kg
Minimum indexing of the table rotation, B axis	0.001˚
Retractable spindle diameter	110 mm
Spindle taper	BT 50
Spindle speed	10-2500 rpm (2 ranges)
Spindle motor power	18.5/22kg
Maximum torque of milling spindle	1157/1376(S1/S6)
Maximum axial resistance of boring	13000 N
Longitudinal movement of the table, X axis	1600mm
Vertical movement of the spindle head, Y axis	1200 mm
Transverse movement of the column, Z axis	1200 mm
Stroke of the retractable spindle, W axis	550mm
Rapid speed of X/Y/Z/W axes	10/10/10/6 m/min
Rapid speed of B axis	2.78 r/min
Automatic tool change (ATC) (optional)
Tool holder cone	MAS BT50
Number of tool positions	40pcs / 60pcs（opt. ）
Maximum tool diameter	125 (250 without adjacent tools) mm
Maximum tool length	400 mm
Maximum tool weight	25 kg
Minimum time of tool change (T-T)	15 seconds
Positioning accuracy ( X / Y / Z-axis)	0.025 mm
Repeatability accuracy ( X / Y / Z-axis)	0.013 mm
Positioning accuracy of W axes	0.025mm
Repeatability of W axes	0.013mm
Positioning accuracy of B axis	10”
Repeatability of B axis	6”
Total power consumption	75 KVA
Volume of the coolant tank	250 liters
Volume of the lubrication tank	3 liters * 2 sets
CNC system	Siemens SINUMERIK 828D, 10.4” TFT display
X/Y/Z axes guideways	X/Z : Linear guideways Y: box- ways
Machine size	510061004200mm
Machine weight	23000kg

Product Advantages

Transmission System

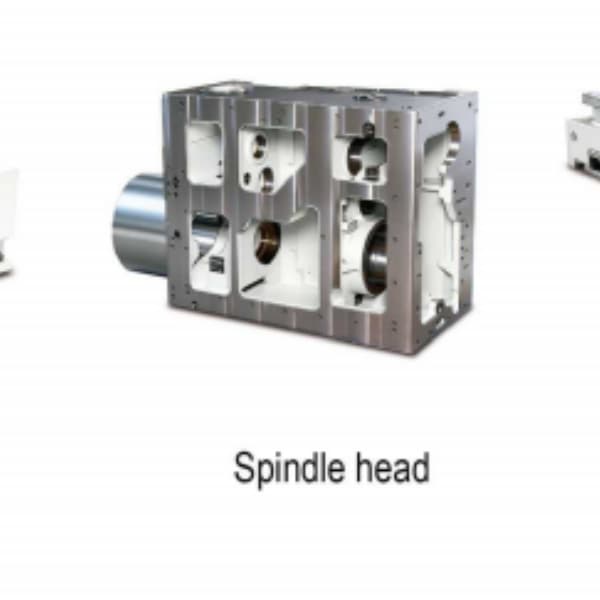

It adopts a two-stage gear shifting + large-module helical gear transmission structure, with a speed range covering 10-2500r/min, strong output torque, suitable for heavy cutting conditions
Tool Changing System
Standard automatic tool changer, with standard tool magazine capacity of 40 tools, optional 60 tools; adopts BT50 universal taper hole, matched with disc spring clamping + hydraulic tool release structure, with efficient and stable tool change.
Support Balance

It adopts NSK imported bearings + hydraulic cylinder balance structure, with excellent transmission accuracy, and the equipment runs smoothly and reliably.
Protection and Lubrication

The guideway adopts a differentiated protection design, equipped with centralized timed and quantitative automatic lubrication + oil cooler spray lubrication system, effectively extending the service life of components.

rotary table horizontal boring machine

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

cnc gantry cutting machine

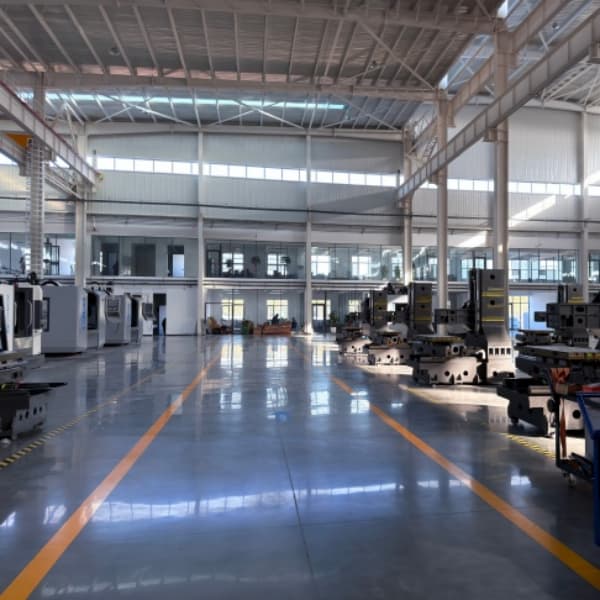

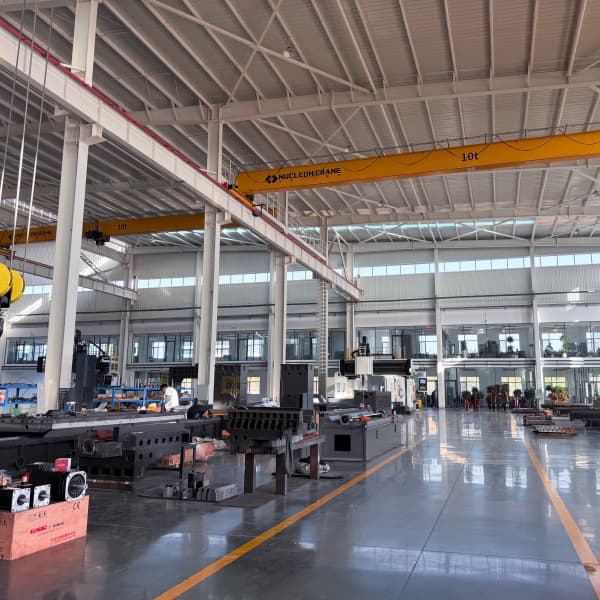

factory show

Professional Production Base, Strength in Precision Manufacturing.

horizontal boring miller horizontal bed borer mill

conventional horizontal boring milling machine auto indexing rotary table HBM

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

automatic heavy duty milling machine

fixed gantry cnc

Q: Spindle specification?

A: 110mm spindle, high speed and large torque for heavy cutting.
Q: Available machining functions?

A: Boring, milling, drilling, tapping and multi-side processing in one setup.
Q: Applicable workpieces?

A: Gear housing, pump body, engine block and engineering machinery parts.
Q: Bed advantages?

A: Cast iron bed with aging treatment, high rigidity and stable precision.
Q: Optional control systems?

A: Fanuc, Siemens, GSK and Syntec for selection.
Q: Customization available?

A: Axis travel, voltage and spare attachments can be customized.
Q: After-sales service?

A: 1-year warranty, English manual and lifelong technical support.
