The slant bed CNC lathe is a medium-duty inclined bed turning center widely adopted by precision machining workshops, automotive component factories, hydraulic parts manufacturers and metal fabrication companies worldwide. Different from traditional flat bed CNC lathes, the adopts a 30° inclined integral cast bed structure, which brings prominent advantages in structural rigidity, chip removal, operation visibility and automation compatibility.
This model is designed for continuous mass production of shaft parts, flanges, sleeves, connectors and other rotary workpieces. It supports external turning, internal boring, facing, grooving, threading and curved surface machining. Optional live tool turret, tailstock and automatic bar feeder can expand production capacity to meet diverse production demands from small batches to large-volume orders.

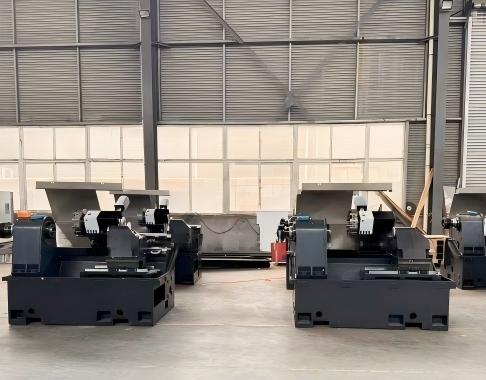

1. 30° Integral Cast Slant Bed
The main bed is one-piece cast iron with stress relief annealing to eliminate internal casting stress, effectively resisting vibration during heavy cutting. The inclined layout allows metal chips to slide down naturally by gravity, preventing chips from accumulating on linear guideways and protecting guide components for long-term precision retention.
2. High-performance Spindle Unit

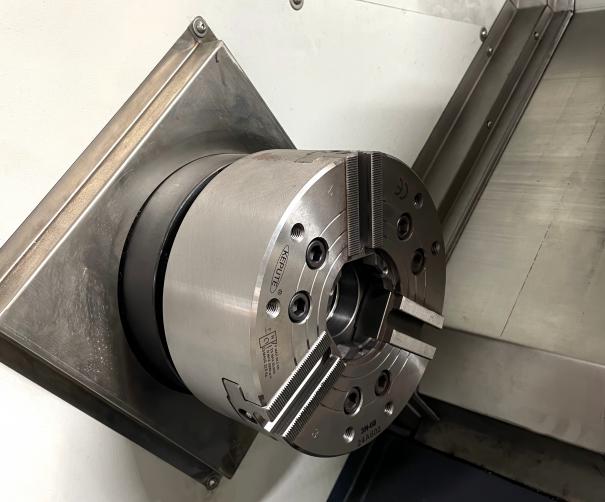

Equipped with A2-6 spindle nose and 65mm spindle bore, maximum through bar diameter reaches 50mm. Spindle speed ranges from 50–4500 rpm, matched with high-torque spindle servo motor. Stable rotation ensures consistent surface finish for steel, stainless steel, aluminum and cast iron workpieces.
3. High-speed X/Z Servo Feed System
X-axis travel: 200mm; Z-axis travel: 550mm. Rapid traverse speed up to 30 m/min. High-precision ball screws and linear guideways guarantee repositioning accuracy within 0.003 mm, meeting strict tolerance requirements for precision components.
4. Hydraulic Servo Turret
Standard equipped with multi-station hydraulic turret, enabling fast tool change. Users can select standard static tool turret or upgraded live power turret (C-axis option) to realize combined turning, drilling, tapping and milling in one clamping.

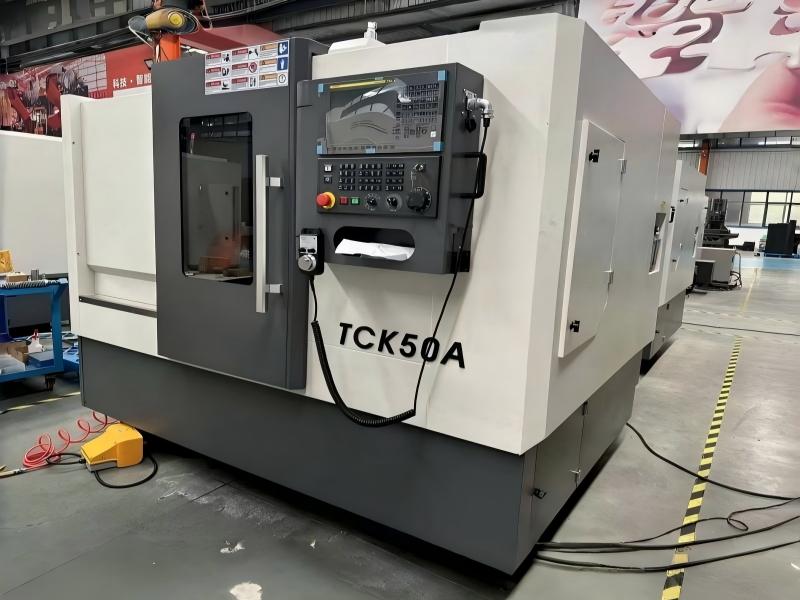

5. Full Enclosed Protective Housing
Complete splash-proof safety cover reduces coolant splashing, improves workshop environment and meets CE safety requirements for European, Middle Eastern and African markets.
Q1: What is the maximum workpiece diameter the can process?
A: Swing over bed is Ø500 mm; actual maximum machining diameter depends on the tool turret interference. The reliable turning diameter is within Ø400 mm for stable production.
Q2: Can the machine stainless steel?
A: Yes. With proper cutting tools and coolant setup, it can steadily turn stainless steel. The rigid slant bed structure effectively reduces tool vibration.
Q3: Can I upgrade to live tooling later?
A: The machine body can be reserved for live turret installation. It is more cost-effective to confirm the turn-milling requirement before order, rather than retrofitting after delivery.
Q4: Is CE certificate available for LC550?
A: We can provide CE mechanical safety documents for configured according to EU standards, suitable for exporting to European countries.
Q5: What after-sales support can be provided?
A: 12-month machine warranty. We supply complete English operation manual, electrical drawings, hydraulic schematic, and remote video technical guidance. Spare parts can be shipped globally with short lead time.
