High-precision Factory Manufacturer TCK500/600 CNC Slant Bed Lathe Machine

Our TCK500/600 CNC slant bed lathe is a high-rigidity, high-precision horizontal turning center engineered for mass production of complex metal parts. As a professional factory manufacturer, we integrate 45° slant bed, linear guideways, and advanced CNC control to deliver exceptional stability, speed, and accuracy for modern machining demands.

Order(MOQ) :
1
Product Origin :
China
Shipping Port :
Shanghai
Lead Time :
40
Weight :
3650kg

Inquire Now

TCK500/600 CNC Slant Bed Lathe Machine

The machine is suitable to process ll kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,outomo-bile,motorcycle,bearings and so on.

Applications:

1.Automotive parts: Mass processing of shafts, flanges, brake parts and connectors

2.Hydraulic & pneumatic parts: Machining of piston rods, valve parts, cylinders and pipe joints

3.General machinery: Turning of shaft sleeves, fasteners and standard hardware components

4.Electrical & instrumentation: High-precision motor shafts and instrument accessories

5.Construction machinery: Pin shafts, bushings and wear-resistant structural parts

6.Pipeline & valve industry: Threaded pipe fittings, valve connectors and pipeline parts

7.OEM customized processing: Non-standard rotary parts and small-batch custom workpieces.

specification


Specification	Unit	TCK500
Max. Swing Dia. over Bed	mm	φ500
Max. Swing Dia. over Slide	mm	φ320
Max. Turning Diameter	mm	φ400
Max. Working Length	mm	500
Spindle Nose		A2-6(8")
Main Motor Power	kW	11/15
Max. Spindle Speed	rpm	4500(A2-6)
Spindle Bore	mm	φ66(A2-6)
Slant Angle		30°
X-axis Travel	mm	200
Z-axis Travel	mm	550
X/Z-axis Rapid Traverse	m/min	30/30
Turret Type		8 Servo Turret
Live Tool Interface		/
Max. Live Tool Speed	rpm	/
Tailstock Quill Diameter	mm	/
Tailstock Quill Travel	mm	/
Guide Type		Linear Way

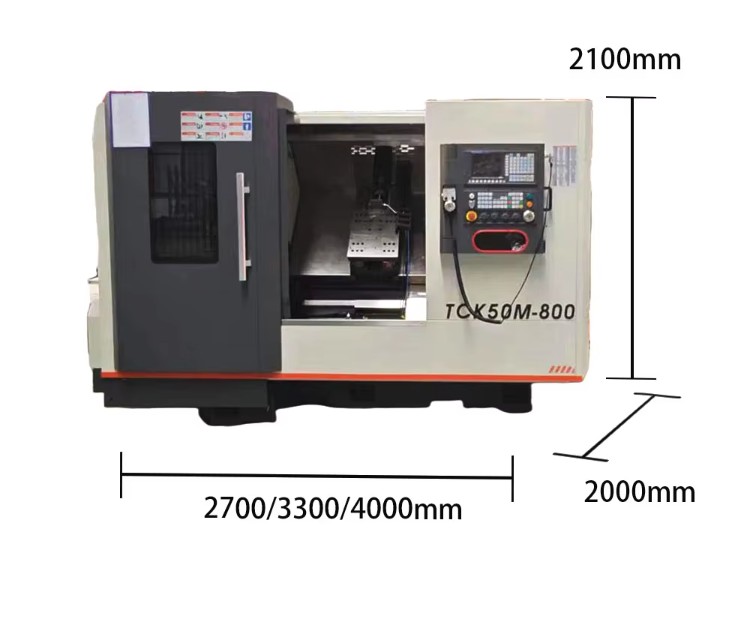

Overall Size	mm	2700×1890x1945
Weight(about)	kg	3650

product introduction

High Precision & Stable Performance
Adopts 45° slant bed integral cast iron structure, with good rigidity and shock resistance. It maintains long-term stable machining accuracy and meets high-tolerance workpiece processing needs.
Efficient & Humanized Design

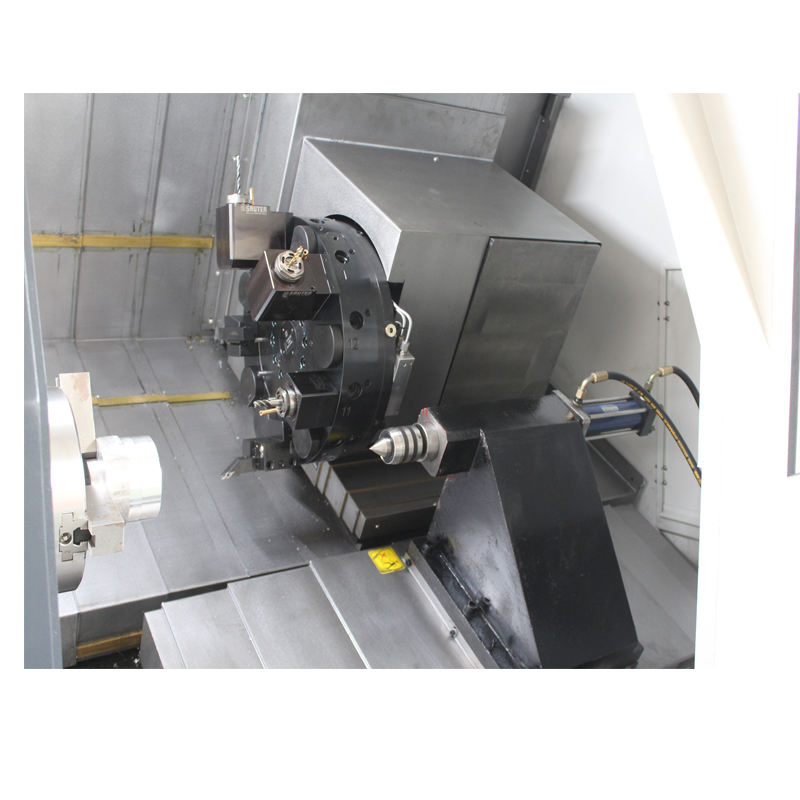

Equipped with high-speed spindle and reliable turret tool post. The inclined bed design ensures smooth chip removal, simple operation and greatly improves production efficiency for mass processing.
Wide Application & Strong Compatibility
Supports turning of various shafts, discs, threads and special-shaped parts. Compatible with mainstream CNC systems, flexible for automotive, hydraulic, hardware and OEM customized processing.
