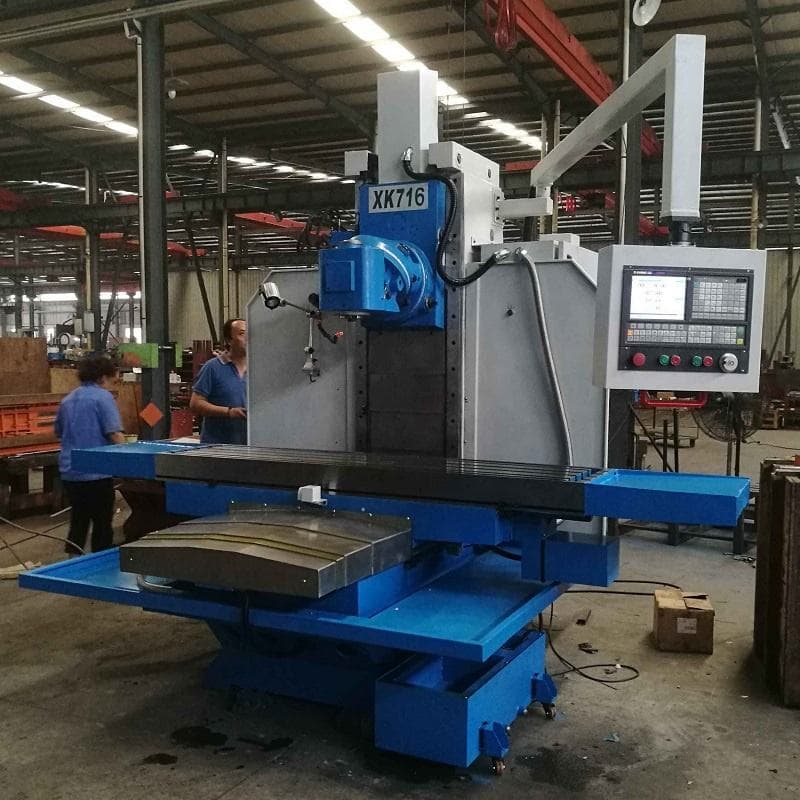

XK715/716 Professional High Torque CNC Bed-type Milling Machine

XK715 and XK716 CNC bed-type milling machines are high-precision, rigid computer-controlled machine tools developed for modern automated machining. Combining heavy-duty bed structure with advanced numerical control technology, these models deliver accurate positioning, stable feeding and consistent cutting performance. Ideal for complex contour machining, precision parts production, mold making and batch component processing, they perfectly meet the high-efficiency and high-precision demands of modern mechanical manufacturing.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
9000Kg

Inquire Now

XK715/716 Professional High Torque CNC Bed-type Milling Machine

Built with integral thick cast iron body and fully stress-relieved construction, the XK715/XK716 series minimizes vibration and thermal deformation during long-time running. Equipped with reliable servo drive units, high-precision ball screws and professional CNC system, the machines support flexible programming, multi-process compound machining and easy parameter adjustment. With strong material adaptability and stable long-term accuracy, they become ideal workshop equipment for metal processing, auto parts, engineering machinery and customized component production.

specification

Specification	Units XK715 XK716
Spindle hole taper		7:24 ISO50
Spindle speed range	r/min	两档无极6-300,30-1500
Distance betwteen spindle axis and column guideway	mm	610	8-660
Distance between spindle nose and table surface(V)	mm	10-650	10-700
Distance between spindle axis and table surface(H)	mm	8-660
Table size	mm	2100*500	2500*600
T slots	mm	4/20/100	5/20/100
Table travel-X	mm	1500	1800
Table travel-Y	mm	650	700
Table feed-X/Y	mmmin	2.5-3000
Table feed-Z	mm/min	2.5-2500
Table rapid feed XYIZ	mm/min	6000/6000/3000
Main motor power	kw	11
Torque of XY/Z axis AC serve motor	Nm	18/23/18
Cooling pump motor power	W	90
Overall size	mm	322024202800	438025202800
Net weight	kg	7300	9000

Product Advantages

High Rigid Bed Structure
Integral cast iron frame and aging treatment ensure stable performance and long service life under continuous cutting.
Precision CNC Control
Intelligent numerical control system realizes automatic processing, simple operation and outstanding repeat accuracy.
Stable Servo Drive System
High-response servo motors and optimized transmission design achieve smooth movement and high positioning precision.
Powerful Cutting Capacity
High-rigidity spindle design handles steel, cast iron, aluminum alloy and other metals with steady cutting quality.
Wide Application Range
Suitable for precision molds, mechanical parts, batch production and multi-variety customized processing tasks.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service. Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

CE small cnc milling machine

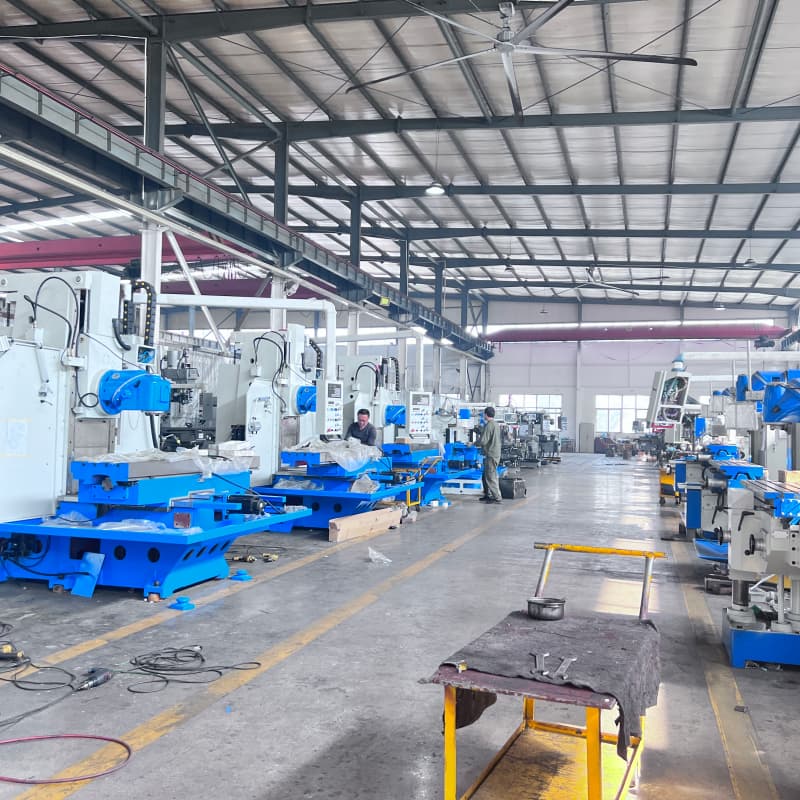

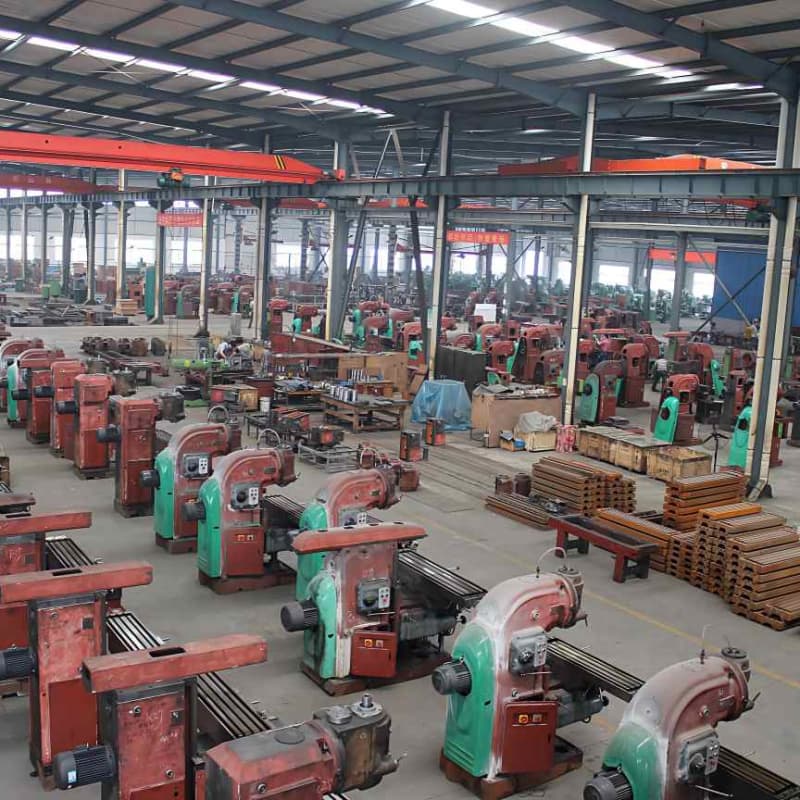

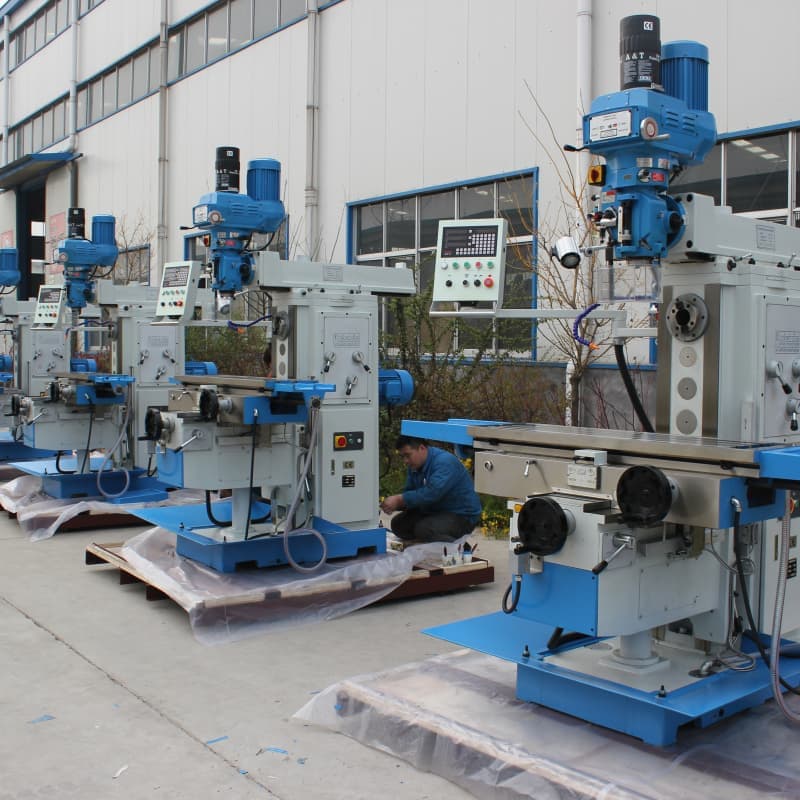

factory show

Professional Production Base, Strength in Precision Manufacturing.

universal cnc milling machine Conventional Machinery

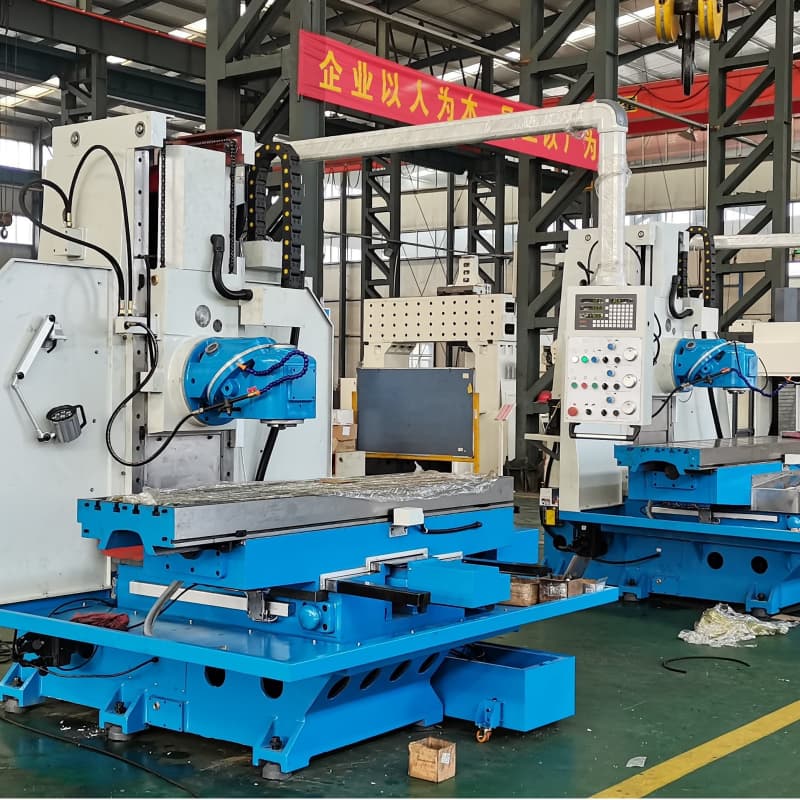

Industrial Milling Machine cnc milling machine xk715

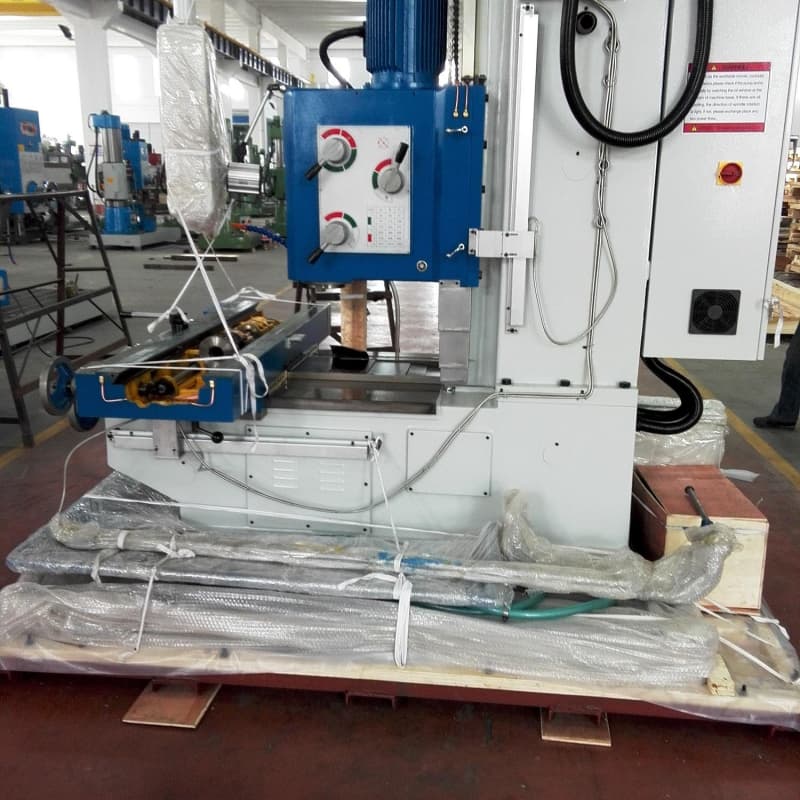

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

CE CNC universal milling machine

Milling Machine Manufacturer

Q: What are the outstanding performance features of XK715 and XK716 CNC milling machine?

A: This CNC bed-type milling machine combines high structural rigidity with flexible numerical control performance, delivering stable running and high processing efficiency for long-term production.
Q: What control system options are available for this CNC mill?

A: It can be equipped with mainstream well-known CNC control systems, with simple programming logic, friendly operation interface and strong anti-interference ability in industrial environment.
Q: What production scenarios can the CNC bed milling machine adapt to?

A: It fits small and medium batch production, customized part processing, mechanical accessory manufacturing and daily workshop precision machining tasks.
Q: Does this CNC bed milling machine support multiple processing functions?

A: It integrates milling, drilling, boring and tapping functions in one machine, realizing multi-process one-time clamping and improving overall working efficiency.
Q: What guarantees the long-term stable operation of the CNC bed-type milling machine?

A: High-quality cast iron components, reasonable heat dissipation design and standardized assembly technology effectively reduce equipment failure rate and extend service life.
