QK1313 QK1319 Heavy Duty Pipe Thread CNC Lathe for Oil Country Tubing

QK1313 QK1319 Heavy Duty Pipe Thread CNC Lathe for Oil Country Tubing

Name: QK1313 QK1319 Heavy Duty Pipe Thread CNC Lathe for Oil Country Tubing
Availability: InStock

QK13 series CNC pipe thread lathe, professional oil country lathe for steel pipe, tubing, casing and pipeline thread machining.

Models: QK1313, QK1319, QK1322, QK1327, QK1332, QK1335 etc.

Large through spindle bore for long pipe feeding, heavy cast iron bed with stress relief.

Supports API 5B, NPT, BSPT, BSPP, metric & imperial tapered pipe threads.

Optional system: GSK, Siemens, Fanuc. Dual front & rear chuck, steady rest, follow rest available.

Widely used in oil & gas, water pipeline, fire pipe, hydraulic pipe fitting manufacturing.

Order(MOQ) :
1
Product Origin :
China
Shipping Port :
Shanghai
Lead Time :
90
Weight :
6000kg

Inquire Now

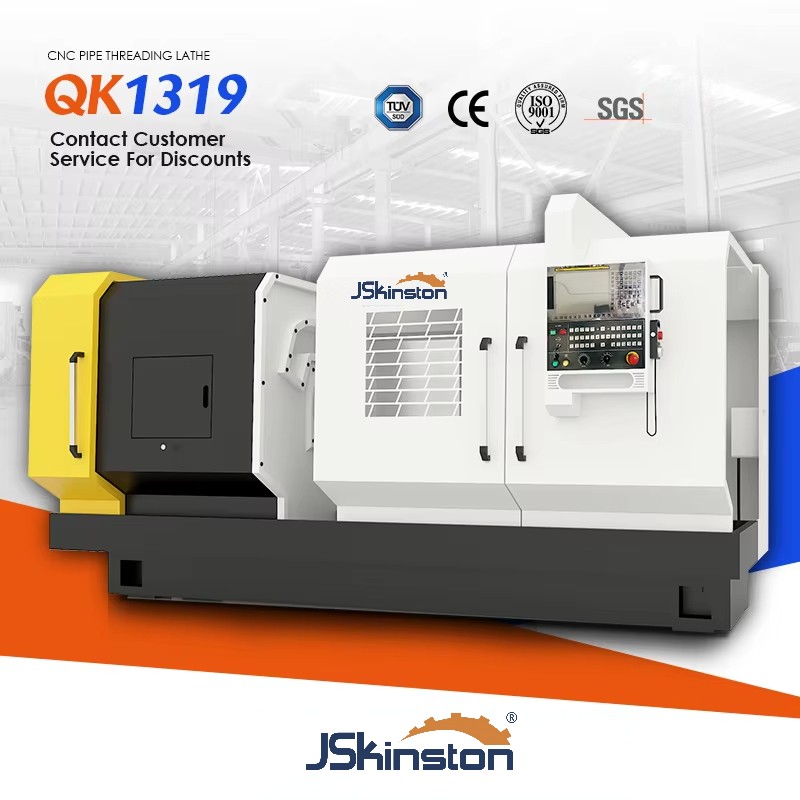

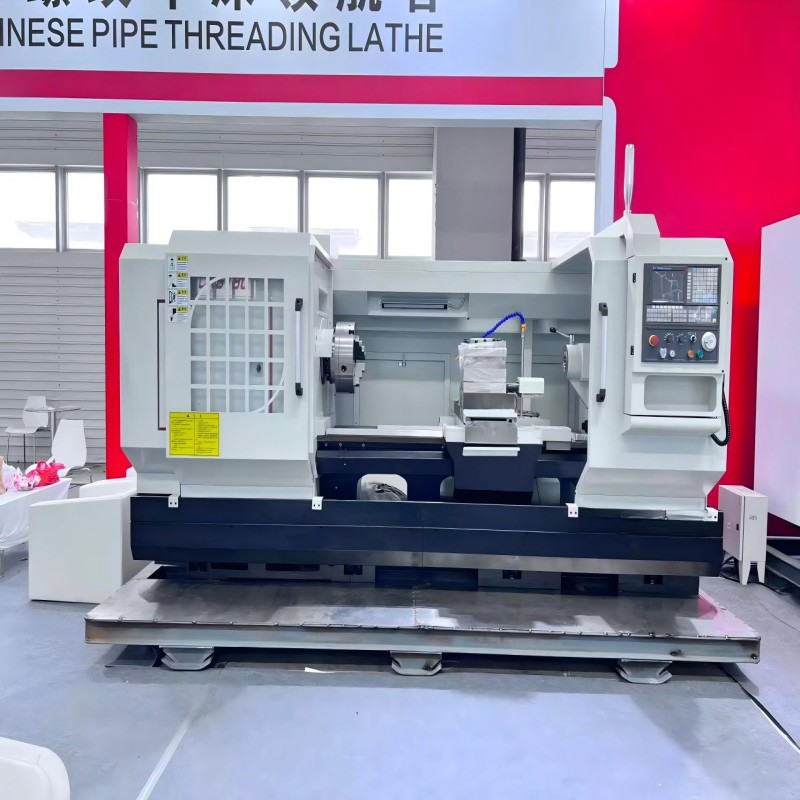

QK1313 QK1319 Pipe Thread CNC Lathe

QK1313 and QK1319 heavy-duty CNC pipe thread lathes are specially engineered for oil country tubing, casing, drill pipe and pipeline joint threading. Built on a heavy cast iron flat bed, they feature large spindle bore, strong spindle torque and stable threading performance. This series can cut internal & external inch, metric and API taper threads widely used in petroleum, mining and gas pipeline industries. It supports continuous mass production of oil pipes with reliable repeat accuracy and long service life.

4 Selling Points:

1. Heavy-duty integral cast bed & quenched guideway, strong rigidity and shock resistance, keeps stable precision under heavy pipe cutting load.

2. Large spindle bore + dual-chuck clamping structure, suitable for long and thick oil tubing, stable holding without vibration during threading.

3. Professional API oil thread program library, easy to set parameters, high threading accuracy for oil casing and drill pipe joints.

4. Wide configurable options, flexible on control system, tailstock and chuck, match different oilfield workshop requirements.

specification


ITEM	UNIT	QK1313	QK1319
Swing over bed	mm	630
Swing over cross slide	mm	340
Distance between centers	mm	1000/1500/3000
Processing thread dia range	mm	30–126	50–193
Guideway width	mm	400/550
Max. load	T	2/3
Spindle bore	mm	130mm	200mm
Spindle speed type		2 Steps
Spindle speed range	rpm	30–800
Chuck	mm	380 mm three jaw chuck	500mm three jaw chuck
Tool /Turret post type		Turret 4 Position
Tool shank size	mm	32×32
X Axis travel	mm	350
Z Axis travel	mm	850/1350/2850
X Axis rapid traverse	mm/min	4000
Z Axis rapid traverse	mm/min	4000
Tailstock quill diameter	mm	100
Tailstock sleeve taper	mm	MT5
Tailstock quill travel	mm	250
Spindle Motor power	kw	11
Coolant pump motor power	kw	0.125/0.37
Width×Height×Length	mm	1800×1850×3300/3800/5300
Net weight	T	4.5/5/6	4.6/5.1/6.1

product introduction

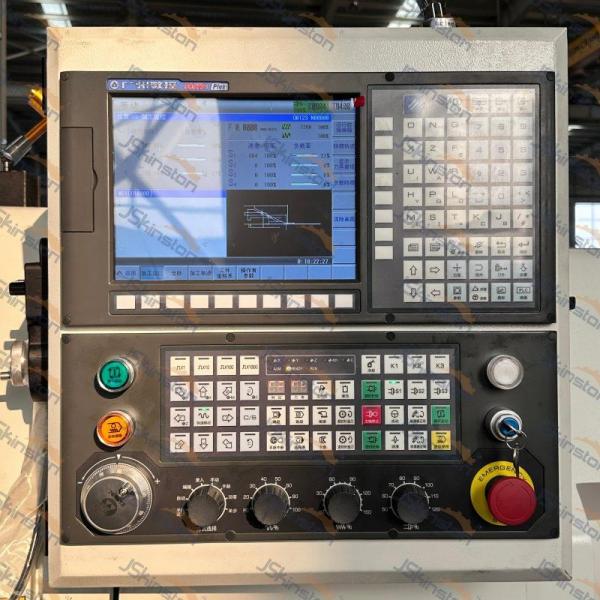

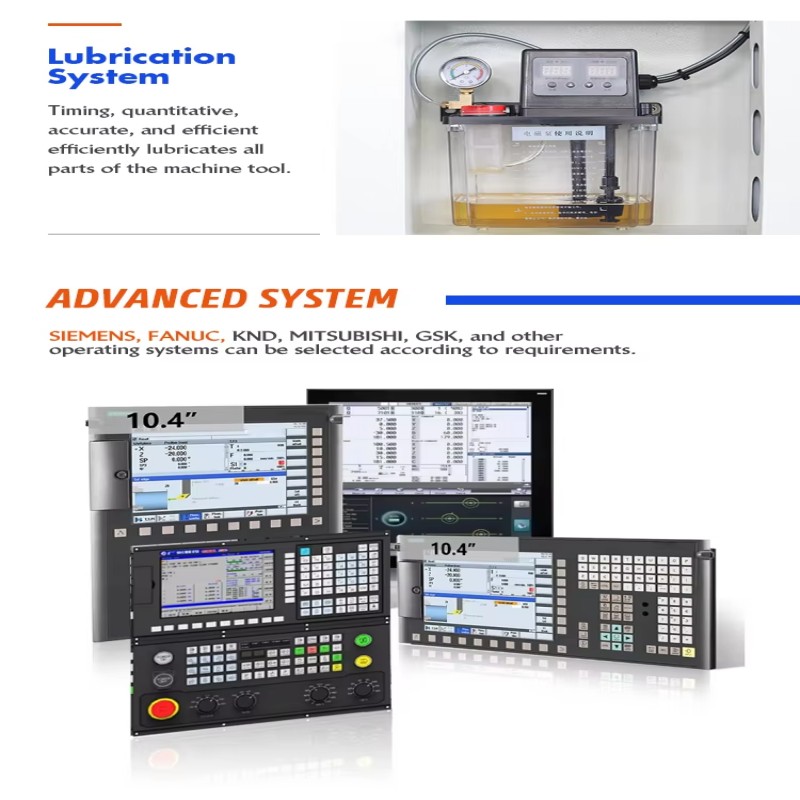

CNC System
Standard GSK system; optional Siemens, Fanuc, KND, Syntec. User-friendly oil-thread dedicated interface, stable operation, supports inch/metric/taper thread cycle programming.

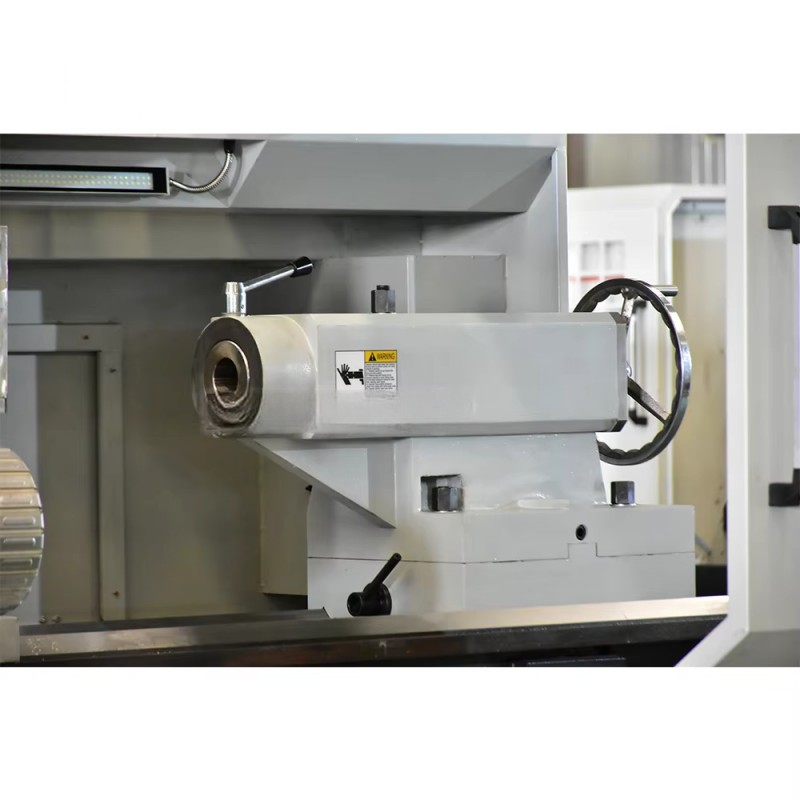

Tailstock
MT5 taper tailstock sleeve, precision ground & hardened. Manual tailstock as standard; hydraulic tailstock available on request. Provides reliable support for long oil pipes to prevent workpiece bending.

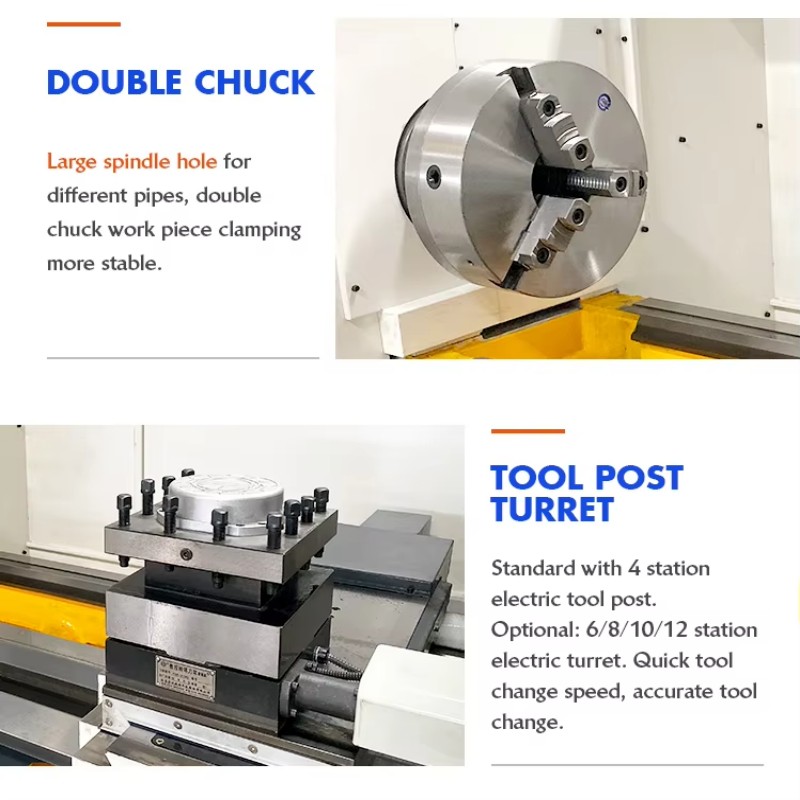

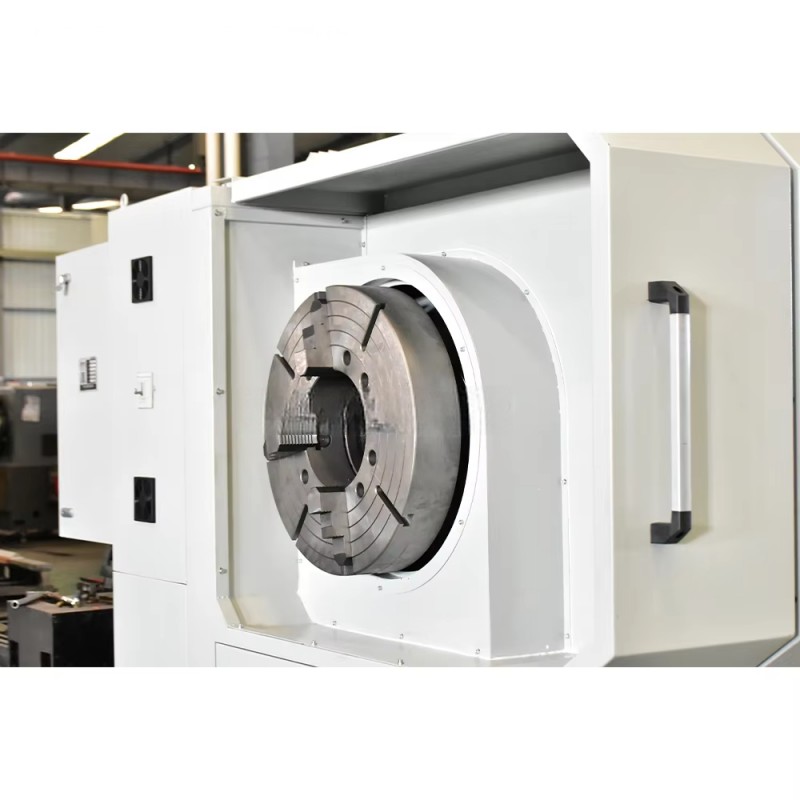

Chuck
Heavy-duty 3-jaw self-centering chuck (double chuck optional). Big clamping range, high clamping force, firmly secures thick-walled oil tubes; avoids workpiece shifting during high-torque thread turning.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Community charging overall solution covers all application

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

our certification

Authoritative Certifications, Stable and Reliable Quality.

Manual Lathe

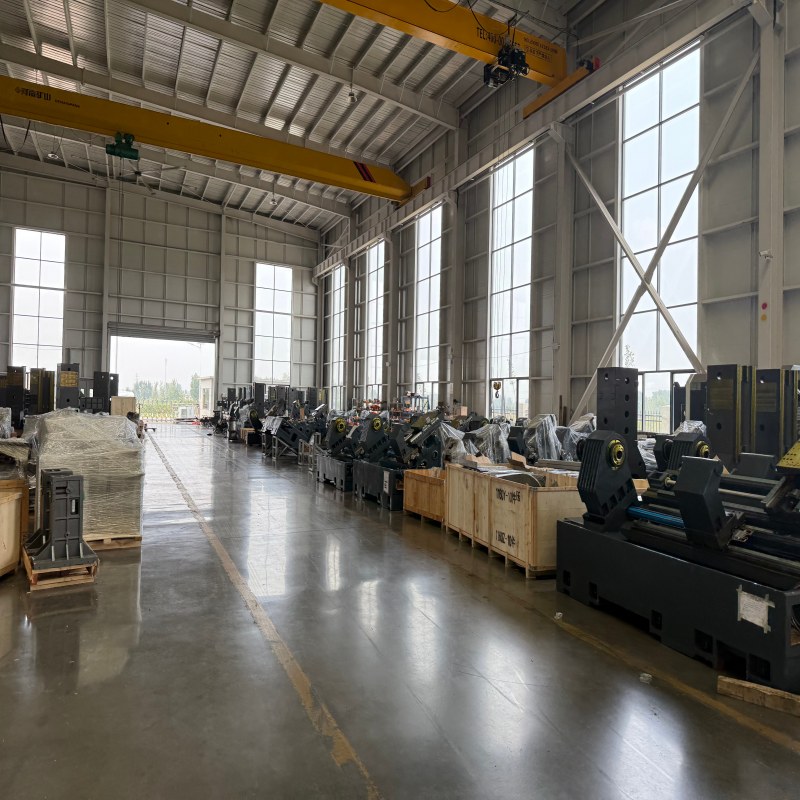

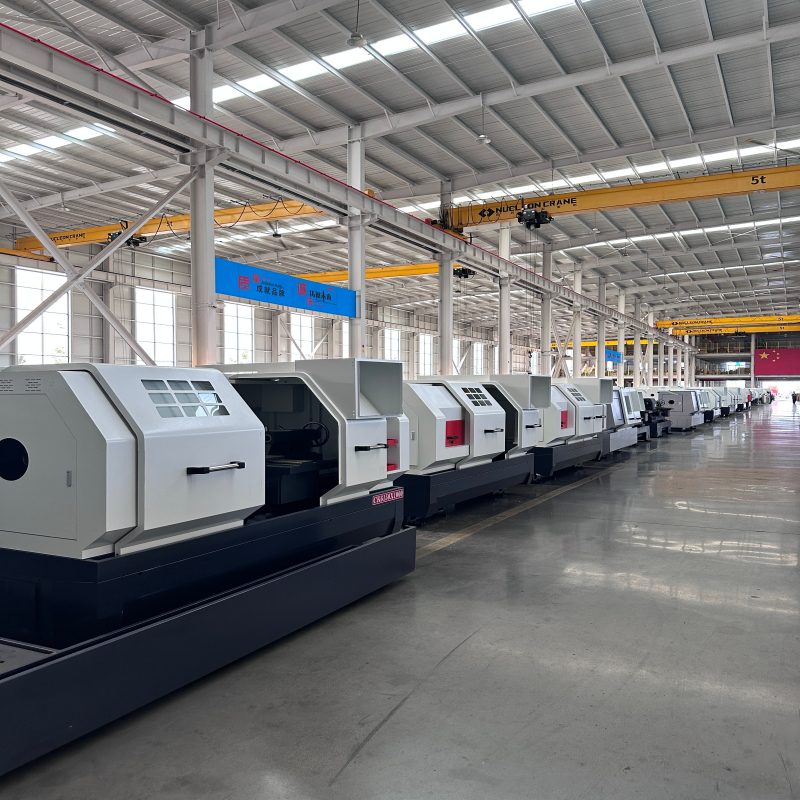

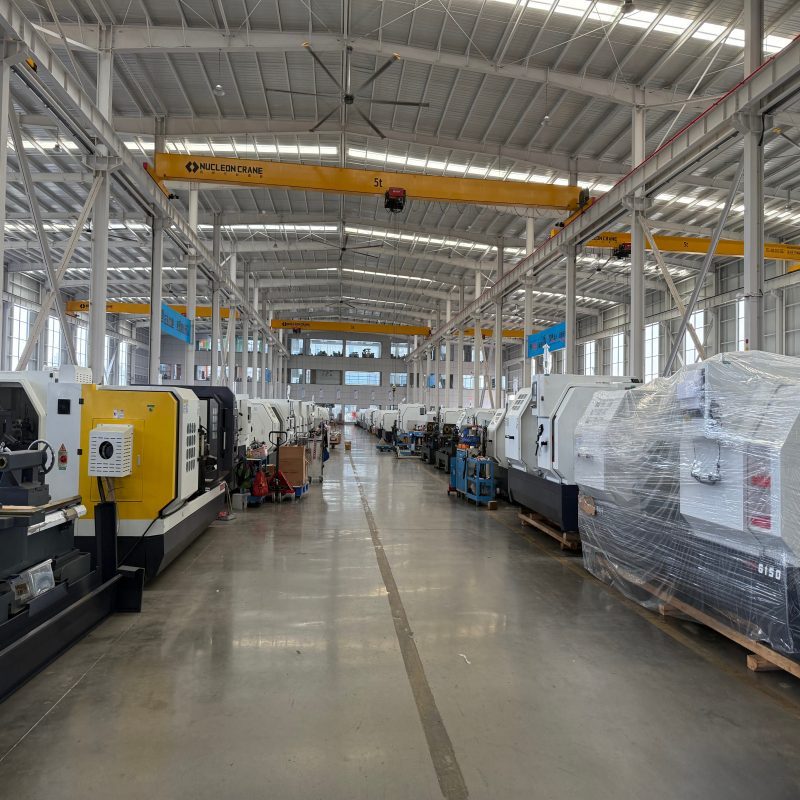

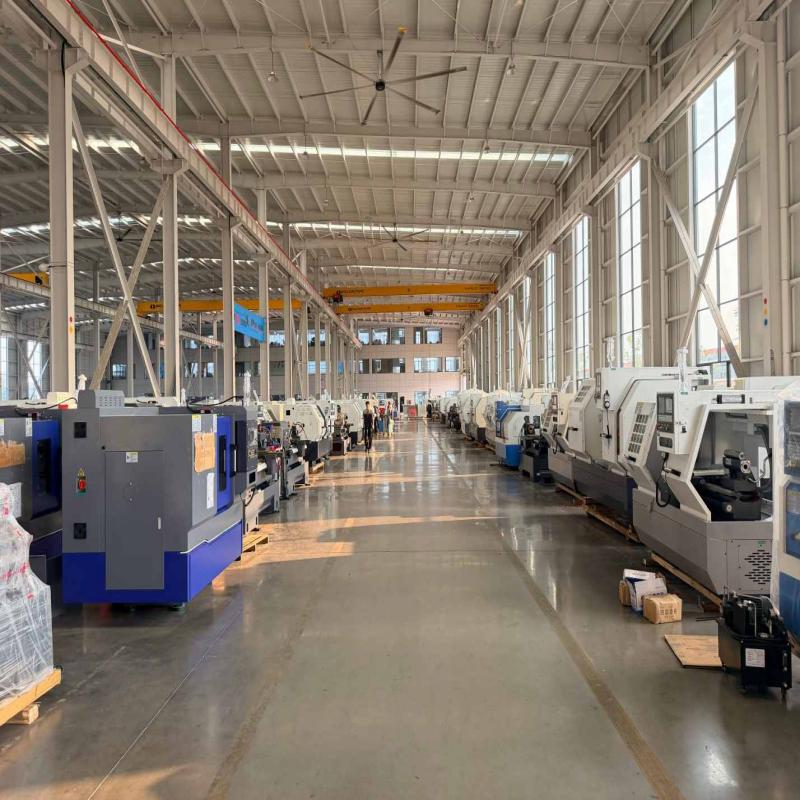

factory show

Professional Production Base, Strength in Precision Manufacturing

cnc lathe factory flat Bed cnc lathe mini lathe machine QK13 pipe thread lathe

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

lathe
Heavy machinery manufacturer

FAQ

1.Can a normal CNC lathe cut pipe threads?

It can make short thread samples, but most standard lathes have small spindle bore. Long pipe cannot pass through, and rigidity is insufficient for heavy pipe threading.

2.What is the difference between QK1313 and QK1319 pipe thread lathe?

Main difference is spindle bore size, max pipe capacity and machine weight. QK1319 is heavier for larger diameter casing

3.How long is the warranty period of this product?

We provide one-year warranty for the industrial universal lathe.

4.What is the MOQ and delivery time of the lathe?

MOQ 1 set, delivery in 40 working days after advance payment.
